"KINGREAL ROLL FORMER is a professional roll forming machine manufacturer in China. It provides customers with customized designs of various popular roll forming machine equipment, including metal ceiling making machine, stud and track machine, false ceiling channel making machine, shelf panel machine, warehouse pallet rack machine, volume control damper machine and metal roofing sheet machine. The various roll forming machine equipment produced by KINGREAL ROLL FORMER meets the product manufacturing needs of the building materials industry, warehousing industry, ventilation system industry and house tile industry.
Recently, KINGREAL ROLL FORMER completed the design and production project of volume control damper frame machine for UAE customers. It helps UAE customers improve the production efficiency of metal damper frame products, meet customers' customized production requirements, and is highly recognized by UAE customers."

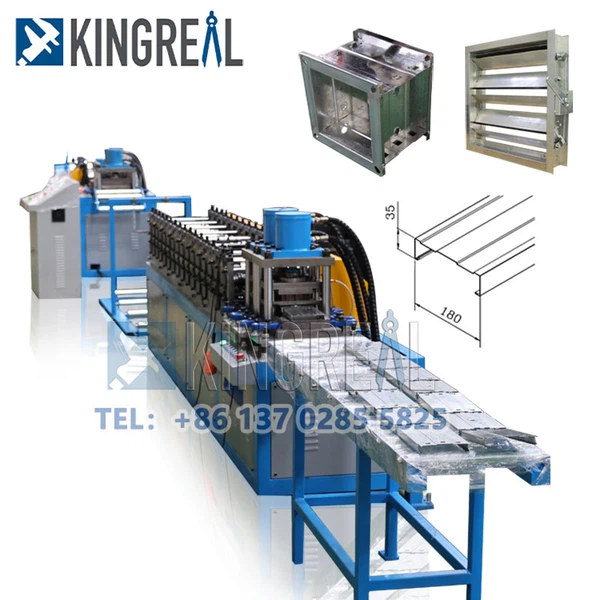

1/Volume Control Damper Machinery
As the load-bearing body of the air valve, the VCD frame needs to bear the air flow pressure in the ventilation duct and the weight of the equipment. The modern modular outer frame adopts a horizontal/vertical side panel splicing structure, and achieves high-strength connection through bending strips and fixing bolts. The pressure resistance can reach more than 5000Pa, ensuring the stability of large-size air valves under high-speed airflow. This requires the production of volume control damper frame to be continuously improved.
Traditional manual production of HAVC volume control damper frame product requires multiple processes such as cutting, punching, bending, and welding, which is time-consuming and labor-intensive and has poor consistency. KINGREAL ROLL FORMER Volume Control Damper Frame Machine realizes the full process of automatic production of round volume control damper products from raw material unrolling, punching, forming, bending and shortening through integrated design. At the same time, KINGREAL ROLL FORMER Volume control Damper in HVAC equipment uses servo motors with encoder pulse signals, and the feeding error can be controlled within ±0.5mm to avoid dimensional deviation caused by manual operation. And by replacing the rolling wheel mold, it can be realized that the same equipment can produce flanges, angle steel flanges and other specifications of outer frames to meet the needs of different projects.
2/Volume Control Damper Frame System
"As a professional roll forming machine manufacturer, KINGREAL ROLL FORMER is able to provide a complete design and production system of Volume Control Damper Frame Machine according to the actual production needs of customers."

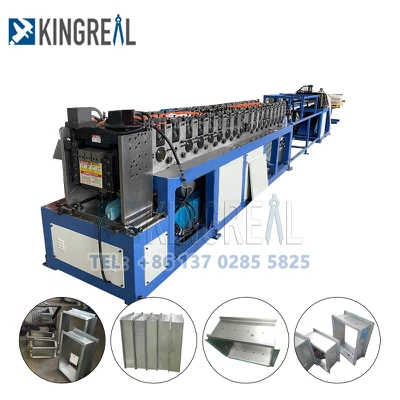

Fire Damper Frame Production Line
KINGREAL ROLL FORMER can provide fire valve frame forming machine, which is a kind of equipment specially used for the automated production of fire valve frames. By integrating punching, rolling, bending and other processes, metal sheets can be efficiently processed into frame structures that meet the requirements of fire protection performance.
The fire valve shell forming machine adopts a servo motor-driven feeding mechanism, and is equipped with upper and lower rolling wheels to perform preliminary forming of the sheet. The error is controlled at ±0.5mm to ensure the flatness of the material. The hydraulic punching die made of Cr12 material and hardness HRC55-58 is used to achieve high-precision punching. The punching cylinder receives PLC instructions to complete automatic positioning and hole position deviation.
Fire Damper Blade Forming Machine
The damper blade forming machine is a device dedicated to the automated production of damper blades for ventilation systems. It processes metal sheets into blade structures that meet specific specifications through continuous rolling, punching, cutting and other processes.
The core function of the damper blade forming machine is to replace traditional manual or semi-automatic processes, improve production efficiency and product precision, and is especially suitable for scenes with strict requirements on sealing and high temperature resistance such as fire dampers and smoke exhaust valves.
The damper blade forming machine can process raw materials of galvanized sheet, stainless steel and aluminum alloy to meet the requirements of 70℃ fuse sealing of fire damper blades or 280℃ high temperature resistance of smoke exhaust valves.
The damper frame flange machine is a type of industrial equipment dedicated to the forming of damper frame flanges. It processes metal sheets into flange structures through rolling, punching, bending and other processes to meet the strength, sealing and standardized interface requirements required for the connection between the damper frame and the pipeline.
The production process of the damper frame flange forming machine includes sheet material unloading, leveling, continuous rolling forming, online punching, hydraulic bending, cutting, etc.
The full process automation speed can reach 12-18m/min to replace traditional manual welding or riveting processes, achieving high-precision and high-efficiency automated production.
3/UAE Cooperation Case : VCD Frame Machine
KINGREAL ROLL FORMER helped UAE customers complete a series of processes from VCD Frame Machine demand determination, design determination to production and manufacturing, and recently successfully completed the shipment of VCD Frame Machine.
And according to the actual needs of customers, KINGREAL ROLL FORMER will provide local installation services for customers.
