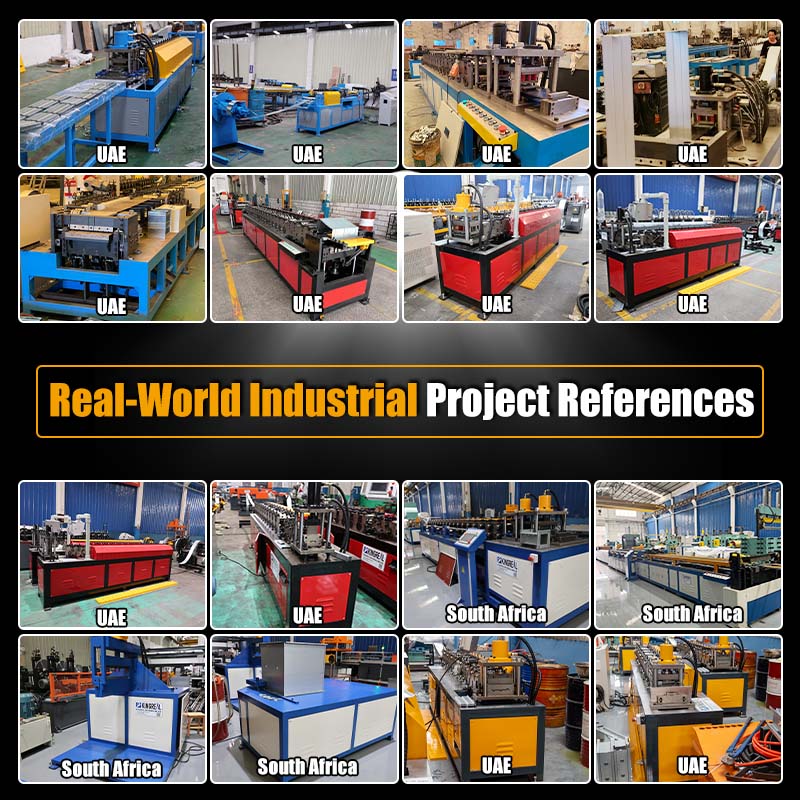

Global Damper Forming Production Line Project
In global damper forming production line project portfolio, UAE is a core partner market for KINGREAL Roll Former.
KINGREAL Roll Former never provides clients with single, fragmented equipment. Instead, it tailors complete ventilation system solutions based on the client's on-site production needs, project conditions, and capacity standards.
Through a combination of multiple machine types, it meets the diverse and large-scale damper production needs of clients, ensuring the integrity and practicality of the overall production system.
01
Case 1:
To meet the project requirements of a UAE client, KINGREAL Roll Former delivered several machines, including fire damper frame forming machine, fire damper blade forming machine, and VCD damper frame forming machine.
Specifically, KINGREAL Roll Former team tailored the structural design of the VCD damper frame forming machine to the UAE client's requirements, setting the machine to a manual bending mode.
After automatically completing the core processes of profile rolling, forming, and cutting, the machine requires manual assistance to bend and shape the semi-finished profiles produced by the machine, ultimately completing the finished damper frame.
02
Case 2:
KINGREAL Roll Former matched a VCD damper frame forming machine and a fire damper frame forming machine for a UAE client.
These two machines have clearly defined functions, specifically designed to produce two completely different specifications and types of damper frames, suitable for various ventilation projects.
To ensure production precision and product consistency, KINGREAL Roll Former team designed and manufactured the punching dies based on drawings provided by the UAE client.
This ensures accurate punching dimensions and extremely high consistency in hole positions during high-speed production.
03
Case 3:
In this UAE client project, KINGREAL Roll Former delivered a total of five damper forming production lines, including one fire damper frame forming machine and four damper blade forming machines.
These machines form a complete production system for the core components of the damper. The four damper blade forming machines can independently produce different types of damper blades, corresponding to the production of curtain fire damper blades, V-locking blades, and VCD airfoil blades.
Currently, all machines are successfully put into operation, with stable performance and an extremely low failure rate, continuously producing high-quality damper blades and frames for UAE customers.
04
Case 4:
In addition to the core UAE market, KINGREAL Roll Former damper forming production line project for a South African customer has yielded significant results.
In this collaboration, KINGREAL Roll Former customized and manufactured fire damper frame forming machine and VCD damper frame forming machine for the South African customer, along with a HVAC damper rivet table.
The entire set of equipment can fully automate the entire process of damper frame forming and riveting.
What customization is available to you?
KINGREAL ROLL FORMER can provide customized services in Damper Forming Production Line manufacturing, including Fire Damper Frame Machine And Spiral Duct Machine
Requirements analysis and design
Analyze and communicate with customers according to their data requirements and drawing requirements for Metal Duct products and VCD frame, and design machine drawings for customers.
Production configuration selection
Develop a detailed production process flow to ensure that the process parameters of the air duct machine in each link meet the design requirements. Provide a variety of optional configurations for customers to choose
Commissioning and testing, quality assurance
After the spiral duct machine parts are produced, they will be assembled and tested in the factory to ensure the precision of spiral duct products.
After-sales service
Provide 24/7 technical support, regular maintenance and spare parts replacement when necessary.
KINGREAL ROLL FORMER Professional Team
Professional technical team to ensure the quality of the HVAC DUCT machine
KINGREAL ROLL FORMER has a professional technical team to control the process in drawing design, manufacturing and equipment commissioning for Volume Control Damper Frame Machine,Fire Smoke Damper Machine and air duct making machine.
KINGREAL ROLL FORMER After-Sale Team
01
Pre-sale service
Provide professional technical guidance and customized DUCT Forming Machine designs and drawings to follow up with customers' production needs.
02
Installation service
KINGREAL can provide after-sales installation service, go to the customer's factory for on-site installation guidance and teaching work.
03
After-sales service
Provide online technical guidance and engineers offline technical teaching and maintenance and other aspects of after-sales service
-
Damper Blade Roll Forming Machine
The damper blade roll forming machine is specifically designed for producing damper blades of various types, shapes, and specifications. Its main function is to process raw materials into blades Add to Inquiry -
-
-
-
-
-
-
-
-
-
-
On-site Installation for South Africa Project
In 2026, KINGREAL Roll Former dispatched engineers to South Africa to provide on-site installation services for three pieces of equipment purchased by a client: a fire damper frame machine, a plug-in type VCD making machine, and a HVAC damper rivet table.
Upon arrival at the project site, the KINGREAL Roll Former engineers systematically executed the entire workflow, including equipment unpacking and inventory, machine positioning and layout, electrical connections, no-load and load testing, and on-site operational training.
This comprehensive service was designed to enable the client's team to quickly master equipment operation, commence production, and generate economic benefits.
What Is Duct Machine?
Metal Duct Machine is used to process metal materials to manufacture ducts for ventilation, air conditioning and HVAC systems.KINGREAL ROLL FORMER duct equipment produces metal ducts of various sizes and shapes, primarily by forming. Metal duct equipment can also include welding machines, laser cutting equipment and automated control systems to improve productivity and quality.
Duct Machine is used in a wide range of applications, covering construction, engineering, manufacturing and many other fields.
Common Types Of Duct Machine
round duct making machine
spiral ductwork machine
ac duct machine
What Is The HVAC Damper Frame Machine?
KINGREAL ROLL FORMER Volume Control Damper Frame Roll Forming Machine (VCD Frame) designed for the production of different types of damper frames.
KINGREAL ROLL FORMER has absolute design capability and manufacturing capacity to customize production according to customer's production drawings. In addition to the outer frame of the damper, KINGREAL ROLL FORMER can also produce components including damper blades and damper flanges to provide complete damper system equipment
machine in the ventilation system
Fire Damper Frame Machine
The Fire Damper Frame Machine is primarily designed for the mass production of fire damper frames. It can operate in tandem with a matching damper blade making machine to assemble complete fire dampers.
The fire damper frames produced by this Fire Damper Frame Machine serve the critical function of blocking the spread of fire and high-temperature smoke through air ducts during a fire event; they effectively contain the fire, control smoke flow paths, and ensure comprehensive fire safety for the building, making the Fire Damper Frame Machine an essential piece of production equipment for building fire safety and ventilation systems.
vCD damper frame making machine
The VCD Damper Frame Making Machine specializes in producing frames for HVAC dampers. The finished products are primarily used in HVAC ductwork to precisely regulate and balance internal airflow velocity and volume, ensuring the operational stability of the HVAC system.
Featuring an automated bending and forming process, the VCD Damper Frame Making Machine shapes the sheet metal in a single pass—eliminating the need for secondary manual processing—thereby simplifying production steps and significantly enhancing both machining precision and production efficiency.
Damper Blade Making Machine
The Damper Blade Making Machine offers exceptional versatility and adaptability, enabling the customized production of various damper blade specifications and types, including curtain fire damper blade, V locking blade, and VCD airfoil blade.
The Damper Blade Making Machine allows for flexible configuration based on project parameters, application scenarios, and performance requirements, meeting the manufacturing standards for diverse fire and VCD dampers with outstanding adaptability and compatibility.
HVAC damper rivet table
The HVAC Damper Riveting Table is specialized assembly and riveting equipment for fire damper frames and VCD damper frames. It integrates multiple riveting stations—combining pneumatic and manual operations—to handle key components such as frame corners, support bars, baffles, and TDF corners.
This HVAC Damper Riveting Table enables the standardized assembly and fastening of various components, ensuring the structural integrity and consistency of the damper, minimizing manual assembly errors, and enhancing the overall quality and structural stability of the finished product.
filter holding frame machine
The Filter Holding Frame Machine is used to manufacture filter holding frames specifically for HVAC systems, serving as a core component in air filtration system production. The mounting frame features a modular, sealed design that securely holds various types of air filters, preventing unfiltered air leakage at the joints and ensuring filtration precision.
The filter holding frames are compatible with mainstream filter elements—such as ASHRAE-standard filters, rigid filters, and HEPA filters—and support the assembly of large-scale modular filtration units.
Fabricated from materials like galvanized steel, stainless steel, or aluminum, the frames offer high strength and corrosion resistance, meeting the requirements of diverse industrial and commercial HVAC filtration systems.
Feature About Fire Damper Frame Machine
Fully automated production
KINGREAL ROLL FORMER VCD Frame Machine adopts PLC control system to realize automated production in a series of steps from uncoiling, punching to forming and bending.
Meet a wide range of production needs
KINGREAL ROLL FORMER can provide Fire Smoke Damper Machine production lines, Fire Damper Blades making machine and tdc/ tdf flange machine.
High Precision Punching
KINGREAL VCD Frame Machine is capable of realizing the precise size and shape requirements through punching process according to the customer's production drawings.
Frequently Asked Questions For Volume Control Damper Frame Machine
What Is A VCD Damper?
+
-
A VCD (Volume Control Damper) is a device used to control air flow in a ventilation system. It is mainly used in HVAC (Heating, Ventilation, and Air Conditioning) systems to control the air flow through the damper by adjusting the opening and closing angle of the damper, in order to realize the regulation of temperature, humidity and air quality of the indoor environment.
Explore The Different Types Of Air Ducts
+
-
In homes and commercial buildings, ventilation systems are a key factor in ensuring air circulation and comfort. However, choosing the right type of air duct is essential to ensure the efficient operation of your ventilation system. Different types of air ducts are suitable for different environments and needs.
Brief Introduction Of Cold Bending Forming Machine:
+
-
In recent years, with the continuous development of industrial technology, cold bending forming machine has gradually become an important and indispensable equipment for industrial production. So what is cold bending forming machine.
How To Deal With The Deviation Of The Cold Roll Forming Machine Correctly?
+
-
1. The debugging method of the Cold Roll Forming Machine, such as the plate running to the right, pad the left corner (feeding frame), or drop the bottom the right (the axis runs off the axis and the axis is flat, and the upper axis falls with the bottom axis.
How To Design Roll Forming Machine?
+
-
Roll Forming Machine is used to form flat metal sheets or strips into specific shapes by passing them through a series of rollers step by step. It is used to form flat metal sheets or strips into desired cross-sectional shapes, such as grooves and corrugated shapes, through a series of rollers in a continuous rolling operation. This type of molding is usually used to produce large quantities of metal products, such as:
Whether you need customized equipment development or support for a global production network, KINGREAL ROLL FORMER provides professional and efficient services. Contact the KINGREAL ROLL FORMER team for customized solutions!
As one of the leading duct machine manufacturers and suppliers in China for 25 years, we warmly welcome you to buy custom made duct machine at competitive price from our factory. Good service and quality products are available. Contact us for quotation.
