High Quality VCD Damper Blade Roll Forming Machine
Video About VCD Frame Blade Roll Forming Machine:

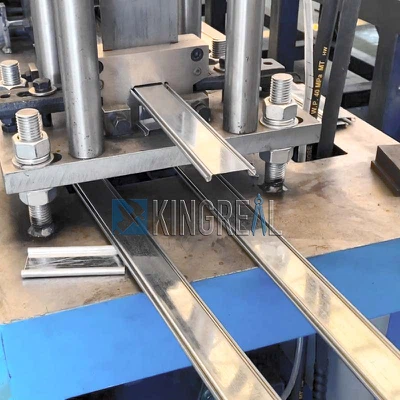

Description Of Damper Blade Roll Forming Machine
KINGREAL ROLL FORMER High Quality VCD Damper Blade Roll Forming Machine can processing the sheet metal and forms it into a damper blade with a specific shape and structure. The machine usually consists of hydraulic system, mechanical structure and control system, which can adjust the shape, size and angle of the blade according to the customer's need.
With high efficiency, precision and stability, the metal damper blade roll forming machine can greatly improve production efficiency and product quality. It is widely used in metal processing industry and provides reliable equipment support for manufacturing high quality metal dampers blades.
Full Automatic Design
KINGREAL ROLL FORMER Damper Blade Roll Forming Machine can reach full auto forming, full auto punching, full auto cutting, which can reduce labor force, save labor cost and realize fully automatic production.
Main Roll Forming Machine For Different Size Damper Blade
KINGRERAL ROLL FORMER VCD Blade Roll Forming Machine can change rollers in different sizes to produce different widths and flange heights for different sizes of material. Various fire damper widths are available on demand with only mechanical adjustments.For this blade roll forming machine, workers can change different blade widths in one configuration.
Technical Specification Of Damper Blade Roll Forming Machine:
|
Power |
380V, 60Hz, 3 phase |
|
Hydraulic oil |
# 46 hydraulic oil |
|
Gear oil |
# 18 hyperbolic gear oil |
|
The width of coil |
70-350mm |
|
The thickness of material |
1.6mm |
|
Length of product |
≦1200mm |
|
Total power |
about 12kw |
|
Line speed |
about 18m/min(Not included cutting time) |
|
Control System |
PLC Control System |
Main Components Lists:
|
Hydraulic Decoiler |
1 Set |
|
12 Roller Forming Machine |
1 Set |
|
Hydraulic Cutting |
1 Set |
|
PLC Control System |
1 Set |
Working Process Of Blade Roll Forming Machine:
Decoiler -- Feeding Guide Device -- Main Roll Forming Mill -- Hydraulic Cutter -- PLC System- Hydraulic Station -- Exit Rack
VCD Blade Drawing
Application Of Damper Blade Roll Forming Machine:
The wide range of applications of air damper blade forming machine covers HVAC, industrial ventilation, building ventilation and aerospace fields.

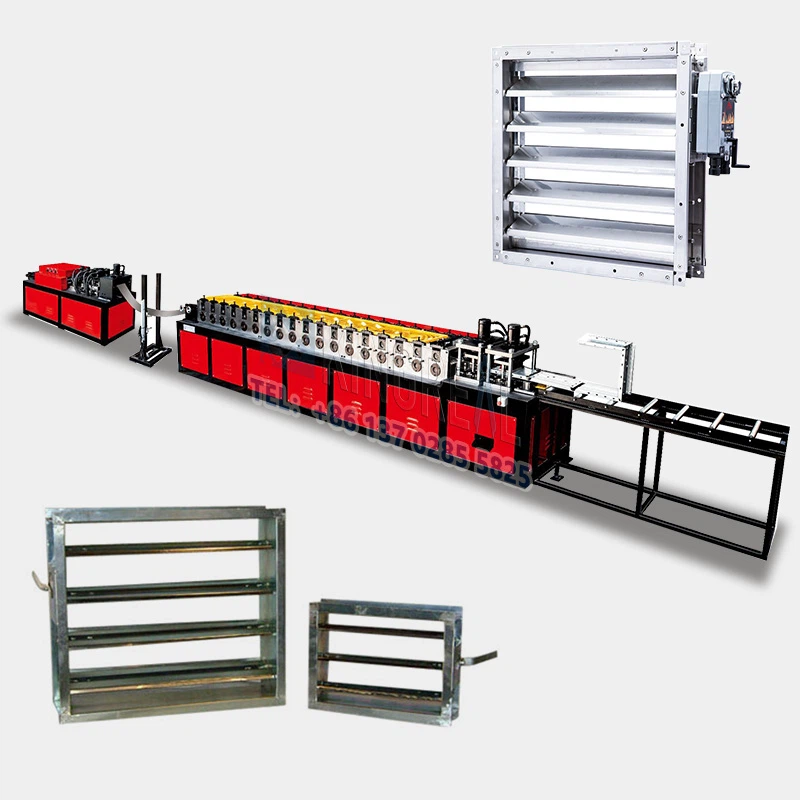

Whole Solution Of VCD Frame Making Machine
A cutting-edge automatic machine specifically created to generate VCD frames fast and effectively is the KINGREAL VCD Frame Roll Forming Machine. This machine was made using cutting-edge technology and premium components, and it has a consistent performance and a long lifespan to satisfy varied production needs.
clients can pick between three distinct production options that KINGREAL has devised and developed in accordance with the various production requirements of clients and various types of VCD frame.
KINGREAL Exhibition
Customer Visit
KINGREAL ROLL FORMER warmly welcomes customers from all over the world to visit our factory in China. Please do not hesitate to contact us immediately if you need any assistance.
