KINGREAL Roll Forming Machine is a professional manufacturer of cold roll forming machine in China, with very professional technical support and rich project experience in the field of Steel Frame Machine, the main products include: Light Gauge Steel Frame Roll Forming Machine and CZ Purlin Forming Machine.
Dedicated to bring customers Steel Frame Machine optimal production solutions, high-quality machines and equipment and a full range of after-sales service, which makes KINGREAL stand out among many competitors, and customers from all over the world, including Turkey, Saudi Arabia, the United Kingdom, Russia, India and Greece to reach a long-term and stable relations of cooperation.
01
High Quality Warranty
All KINGREAL ROLL FORMER machines come with a warranty. From production inspection, installation instruction to after-sales maintenance.
02
After-sales installation service
KINGREAL ROLL FORMER can provide customers with after-sales installation service, engineers on-site to guide customers to install the machine and carry out basic teaching work.
03
Professional Team
KINGREAL ROLL FORMER has a professional technical team to control and inspect the production of machines and equipment.
The final test and commissioning of the machine for the customer, to ensure the accuracy of the machine operation
04
Custom Service
KINGREAL ROLL FORMER provide customized services, complete production solutions and after-sales services.
Why To Choose Us?

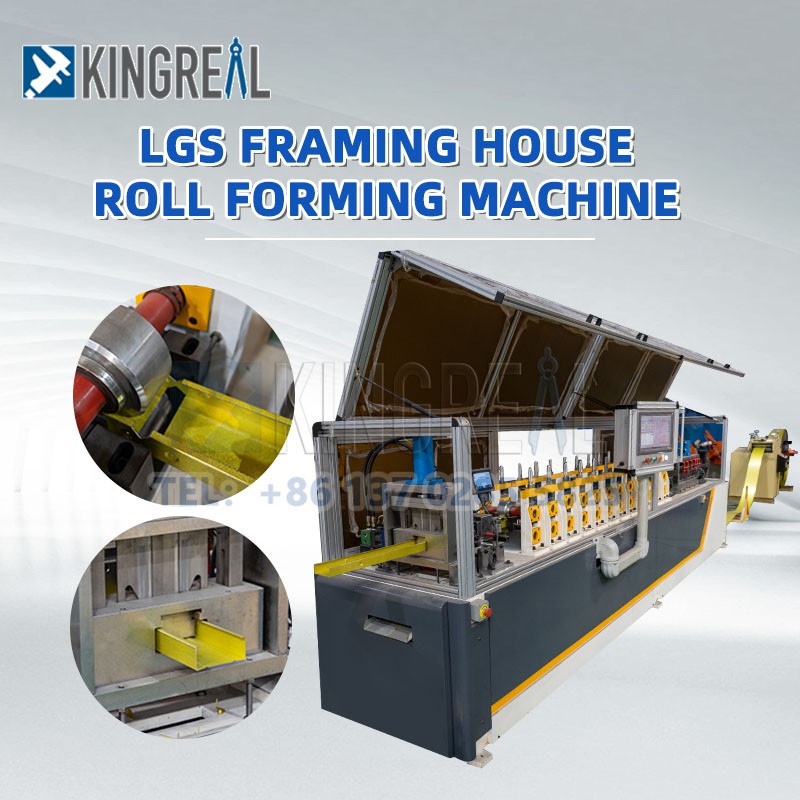

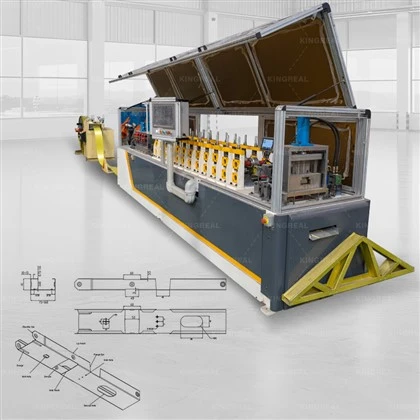

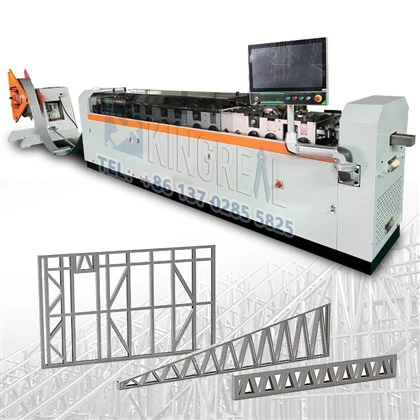

KINGREAL ROLL FORMER Light gauge steel frame making machine (roll forming machine) is a fully automatic production line for house structure channel profile. This light gauge steel framing roll forming machine is specially designed for the production of light steel villa house structure.
Only need to input the technical drawing of the steel villa housing structure. The steel framing machine will automatically calculate the raw materials consumption, holes punch positions, each section lengths by the industrial computer installed on the equipment. Then it will start the production one by one according these data and jet the code on each section for easy fabrication. Metal steel framing can save many labors cost and achieve fully automatic production.

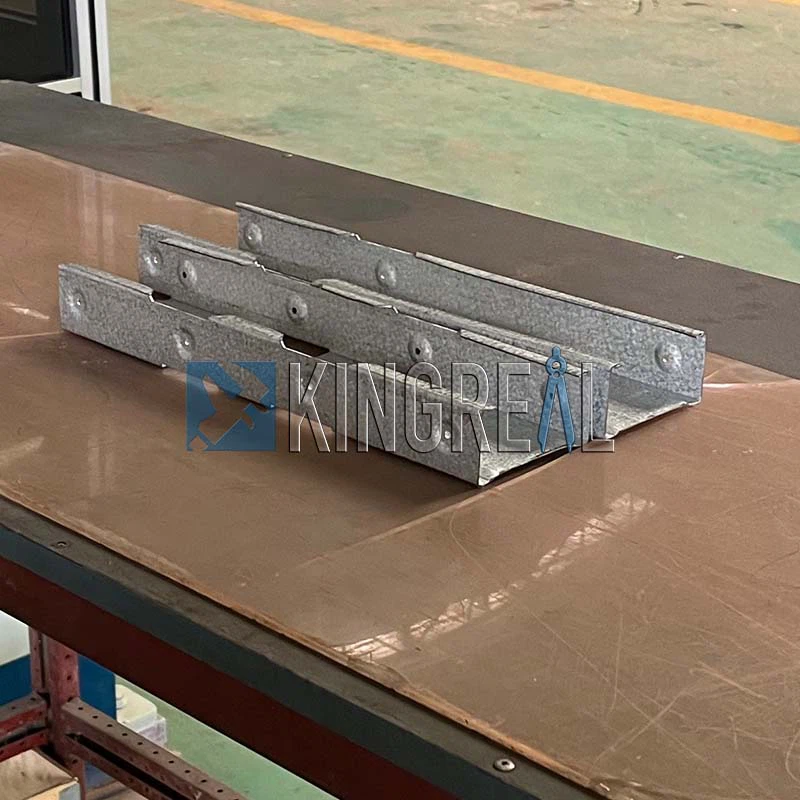

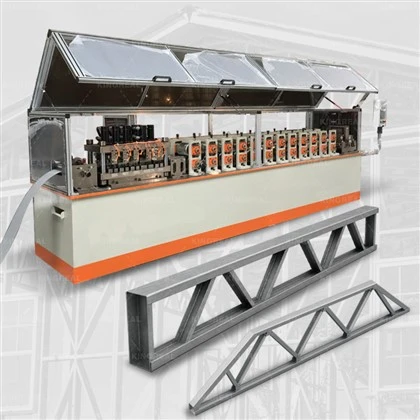

LGS Roll Forming Machine is one of the most representative machines and equipments of KINGREAL, we can provide the most common sizes such as C80 and C140, and we can also customise the design according to the customer's requirements.
Please feel free to contact us
Phone Number
+86 137 0285 5825
sales@kingreal.org

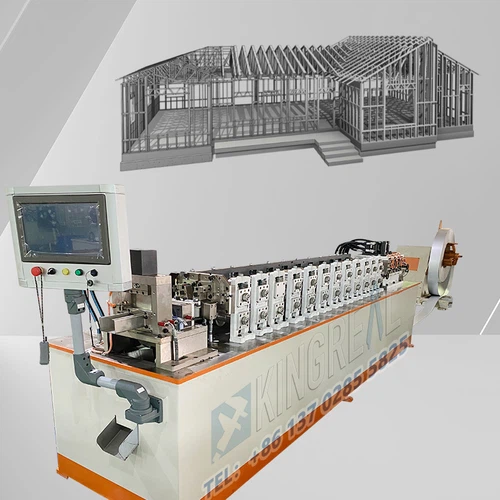

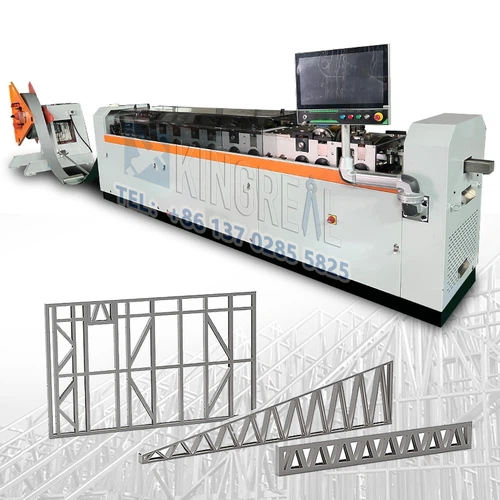

What Is Steel Frame Machine?

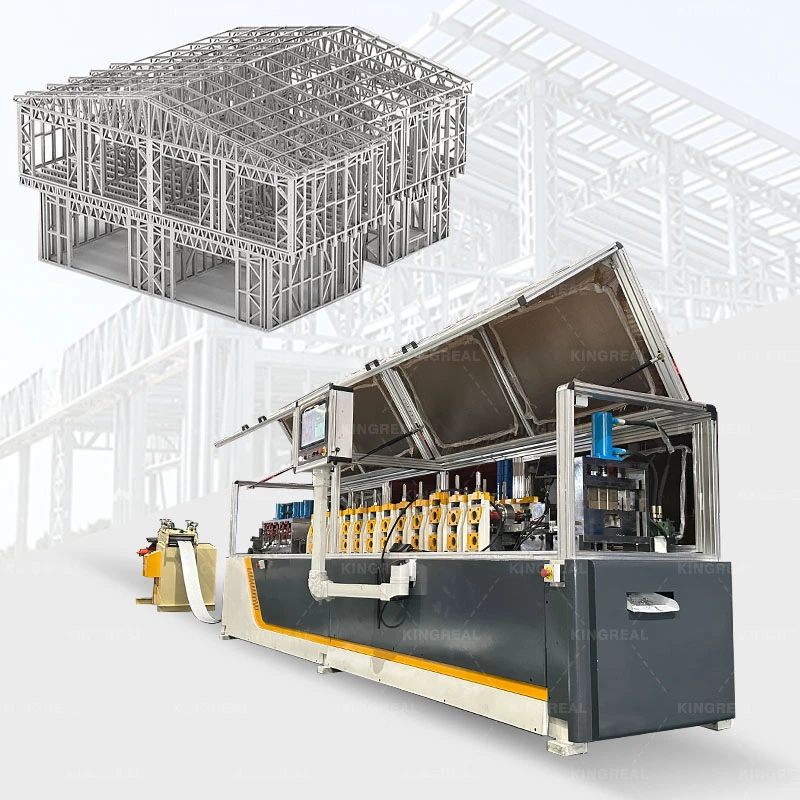

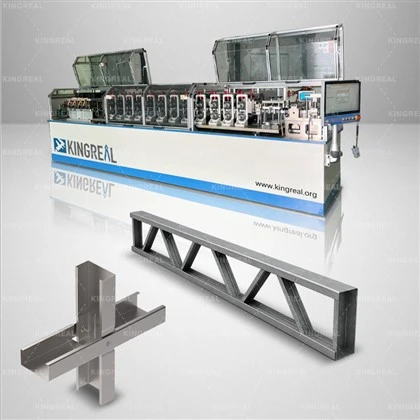

Stee Frame Machine(Light Gauge Steel Frame Roll Forming Machine) is a kind of production equipment, which is mainly used to produce light steel keel and other building profiles, these profiles are the main materials to build light steel villa. Steel Framing Roll Forming Machine takes strip steel as raw material, and produces complex section profiles through continuous cold rolling molding technology. PLC control is adopted to ensure the automation and precision of the production process.
The production process of automatic light steel villa production line is mainly completed through the following processes:
Decoiler - High Precision Punch Station - Main Roll Forming Machine - Cutting off -Output Table
Main components About LGS Forming Machine
Decoiler- LGS MACHINE
1. De-coiler Type: Auto Hydraulic de-coiler
2. Weight capacity: 3.0T
3. Diameter of inner: 480-510mm
4. Diameter of outer: 1250mm
Punch Machine-LGS MACHINE
All punching dies are made from Cr12Mov. Driven by hydraulic station. Holes parameter is able to set by computer, including Punching length and numbers.
Four leveling rollers are used to fasten the sheets. When punching system is on working, the steel sheets will be fixed tightly by leveling device to ensure the high precision.

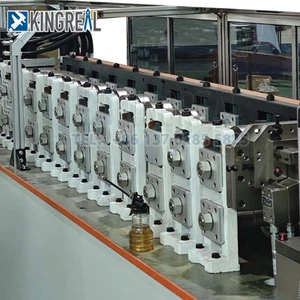

Roll Forming Machine-LGS MACHINE
•12 groups of rollers. Roller Material is GCr15 mould steel being quenched treatment, with digital-controlled procession. This ensures rollers are all on good condition and long life.
•Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. The frame is designed as strong as required to bear the whole rollers and shafts. This ensures machine is able to work in long life without repairing any shafts and frames. Diameter of main shaft: ø60mm Material of main shaft : 40Cr.
Technical Specification About Light Gauge Steel Frame Machine
|
List |
Item |
Specification |
| 1 |
Material Thickness |
0.7-1.2mm |
| 2 |
Operation System |
17 inch touch screen with linux system |
| 3 |
Production Control System |
Self developed FrameMac LGS machine controlling software |
| 4 |
Design Software |
Vertex BD |
| 5 |
Standard Production Speed |
300-900m/h |
| 6 |
Maximum Production Speed |
1000mm/s |
| 7 |
Main Unit Power |
7.5KW |
| 8 |
Hydraulic Power |
5.5KW |
| 9 |
Equipment Total Power |
16.5KW |
| 10 |
Hydraulic Cooling |
Self cooling |
| 11 |
Production Accuracy |
0.5mm |

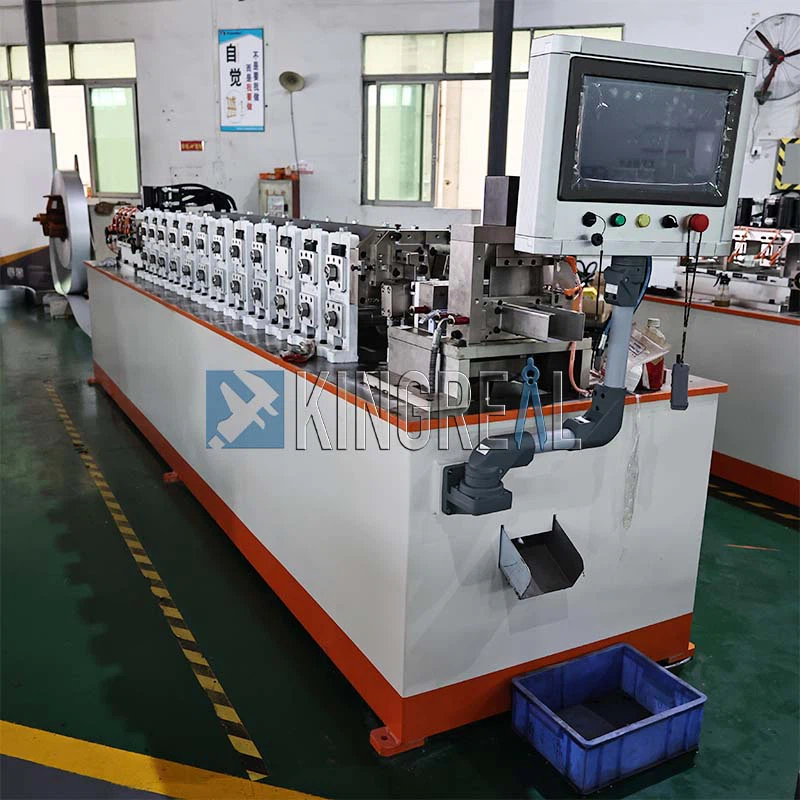

Light Gauge Steel Frame Machine Testing In Factory
How To Choose Light Gauge Steel Frame Machine?
"When choosing the right light steel frame (light steel frame) production equipment, we need to consider the following key factors, combined with the actual production needs and industry standards"
Specify production requirements and material characteristics
★Product specifications and models
Selection of the appropriate model (e.g. C89, C140, etc.) for the target market needs to be based on the definition of lightweight steel construction. For example, cold-formed thin-walled steel is a typical material for lightweight steel structures.2 The equipment must be able to efficiently handle the forming and processing of this type of material to ensure that the structural strength complies with industry specifications.
★Material suitability
The production of lightweight steel structures may involve a variety of material types, such as hot-rolled lightweight steel, high-frequency welded lightweight steel, etc.2 It is important to determine whether the machine can support the processing of the different materials and select the appropriate material characteristics (e.g., thickness, ductility), It is necessary to confirm whether the machine supports processing of different materials, and to select the appropriate rolling and cutting configuration for the material characteristics (e.g., thickness, ductility).
Capacity Planning and Equipment Configuration
★Capacity Matching and Investment Estimation
Equipment configurations are selected based on the expected production scale. For example, the steel consumption of a light steel structure plant is usually less than 50 KG/m2. If high capacity is required, choose a model with high automation, fast rolling speed, and an intelligent control system to enhance efficiency.
★Customized Function Requirement
To produce special specifications (such as square tubes, rectangular tubes, or shaped components), it is necessary to choose equipment that supports mold replacement or modular design.2 For example, some of the machines can realize flexible production of various cross-section shapes by adjusting the roll spacing and the combination of molds.
Supplier Professionalism and After-Sales Guarantee
★Technical Support and Service Network
Choose a supplier with expertise in light steel construction that can provide full technical guidance from equipment commissioning to process optimization.
★Case experience and certification
Evaluate the practical application capability of the equipment by referring to the supplier's past project cases. At the same time, check whether the equipment complies with international safety certificates (e.g. CE, ISO).
KINGREAL ROLL FORMER is a professional roll forming machine manufactuer from China, has more than 20 years experience, wlecome to choose us!
light steel frame construction Reference Drawing
CZ Purlin roll Forming Machine Description
What Is CZ Purlin Roll Forming Machine?
KINGREAL can provide customers with CZ purlin forming machine, which can realize one machine to produce two different shapes of C purlin and Z purlin by changing the cutter. The machine can be switched to produce purlin in 3-5 minutes.
KINGREAL CZ Purlin Forming Machine can meet the demand of producing CZ purlin with different sizes, the common height range is across 80-300MM.
Feature About CZ Purlin Forming Machine
High Speed Production Line
CZ Purlin Forming Machine adopts advanced production process and automatic control system, which can produce purlins of various specifications and shapes quickly and efficiently, which forming speed can reach 25M/Min.
Compared with traditional handmade or simple mechanical equipment, its production efficiency is obviously improved, greatly shortening the production cycle and increasing the output.
High Precision Production
The control system adopts PLC hydraulic drive to realize fully automatic production, and the rollers of the main forming machine are made of Gcr15.CZ Purlin Roll Forming Machine is equipped with precision molds and control system, which can precisely control the size, shape and quality of purlin.
No matter the length, width or cross-section shape of purlin, it can meet the design requirements and ensure the consistency and standardization of the products.
Multifunctionality
KINGREAL ROLL FORMER CZ Purlin Machine is capable of producing a wide range of sizes and types of purlins according to different construction requirements, such as different thickness, width and length, and even responding to special shapes. This flexibility makes it suitable for a variety of construction projects and meets the individual needs of different customers.
Thickness: 1.0-3.0MM
Height: 80-300MM
Bending: 10-20MM

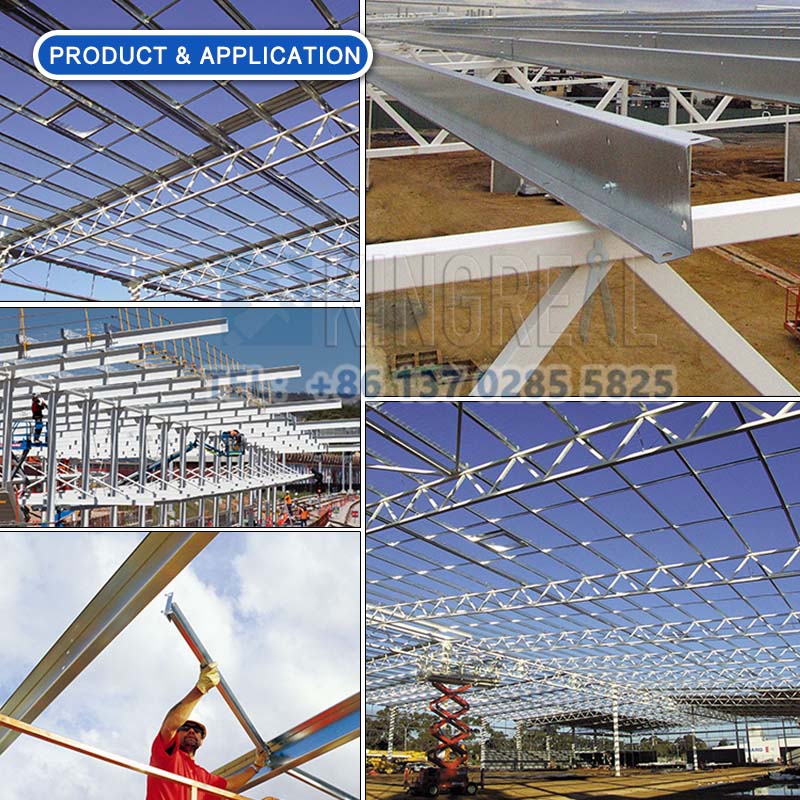

Application About light gauge steel framing machine
FAQ
01.Brief Introduction Of Light Steel Frame
Light steel frame, which is produced by light steel frame machine is a new type of building material. The light steel frame is made of light steel and used as the main material for the ceiling of the ceiling. It is connected with the floor slab through a screw rod to fix the ceiling or objects.
02.What Are The Determinants Of The Quality Of Light Steel Frame?
Light steel frame, which is produced by light steel frame machine is a new type of building material.
03.What Are The Parts Of The Light Steel Villa?
Light steel villa, which is produced by Light steel villa keel forming machine,is main material is light steel keel synthesized from hot-dip galvanized aluminum steel strip through cold rolling technology.
04.HWhat Is The Safety Factor Of Light Steel Villas?
Many people will worry about whether the safety of light steel villas can be guaranteed in thunderstorm weather, and whether it will endanger indoor personal safety.
What lightning protection measures have light steel villas taken in response to the occurrence of thunderstorms?
05.Development Status Of Light Steel Frame Industry
Light steel frame is produced by Light Steel Frame Making Machine, which is a new type of building material. It has the functions of light weight, high strength, suitable for waterproof, shockproof, dust-proof, sound insulation, sound absorption, constant temperature, etc. It also has the advantages of short construction period and simple construction.
06.What Is Light Gauge Steel Framing Used For?
The light gauge steel framing mainly used for the construction field has covered a wide range of areas such as residential houses, commercial buildings, industrial plants and so on. Its flexibility and malleability allow light gauge steel framing to adapt to a variety of building forms and functional needs, such as villas, apartments, office buildings, hotels, schools and more. In addition, light steel frame can be used in extension, renovation and remodeling projects, adding new life to old buildings.
