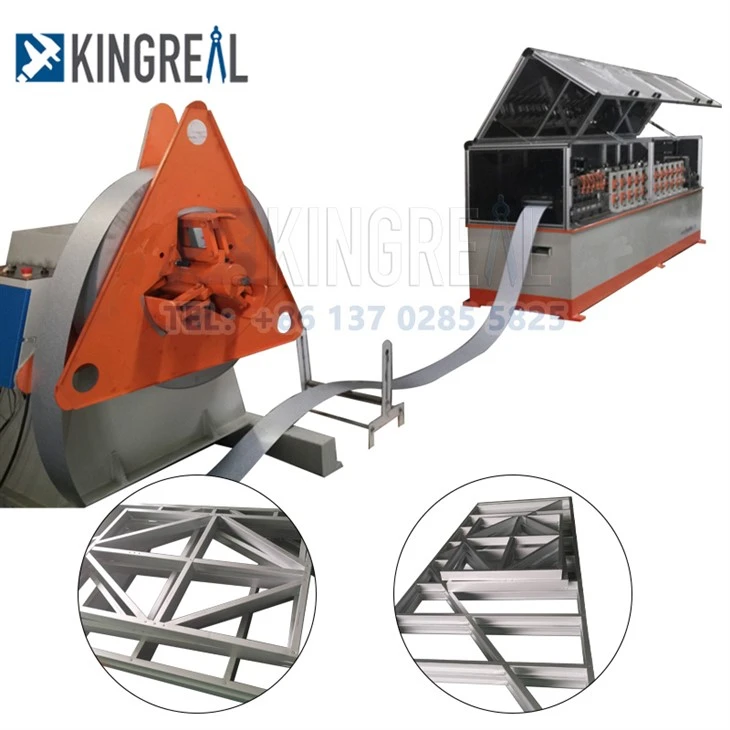

C/Hat-Shape Light Gauge Steel Framing Roll Forming Machine

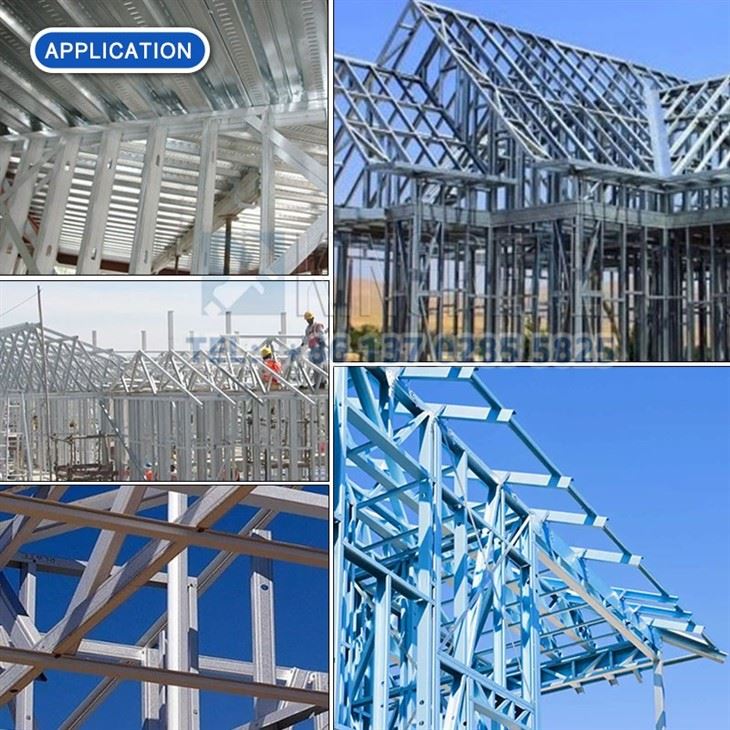

KINGREAL Light Gauge Steel Gauge Steel Framing Roll forming Machine is design to produce the C or Hat shape light steel frame profile, which is mainly used to process the main components required for manufacturing light steel keel villa, such as walls, roofs, floors, etc. The machine and equipment can automate the processes of cold-forming, cutting and punching to improve production efficiency and reduce labor costs.





LGS Roll Forming Machine used in the light steel frame main frame processing of light steel keel equipment, also known as light steel housing keel machine, by 14 groups of gradual type surface rollers, at room temperature, the sheet metal strip through continuous bending deformation into the required cross-sectional shape of sheet metal forming plus process method;



Online will be designed light steel frame keel body data, through the light steel keel machine, the designed keel shape in the light steel keel according to different hole types such as: screw mounting holes and pipe plumbing holes, footing holes, different lengths and other pipeline according to the graphics print, spray on the code processing, out of the product can be assembled according to the drawing number.



Hydraulic Decoiler -- Leveling Device -- Punching Device -- Main Roll Forming Machine -- Cutting Device -- Output Table

1. A vertical, automatic single-head uncoiler

A. manual tension design is used, and the material has inner and outer diameters of 460mm to 520mm and a load capacity of 2000kg.

B. Automatic unwinding by frequency conversion speed regulating.

c. 2.2kw of power.

2. Archway Panel

The primary archway box construction is independent from the auxiliary archway structure, and a CNC machining facility processes the box body.

3.Creating A Mold

After being vacuum quenched and heated to an HRC of 60–62, Cr12mov mold steel has its inner hole and end surface finely ground, and the roll surface is completed on a CNC lathe.

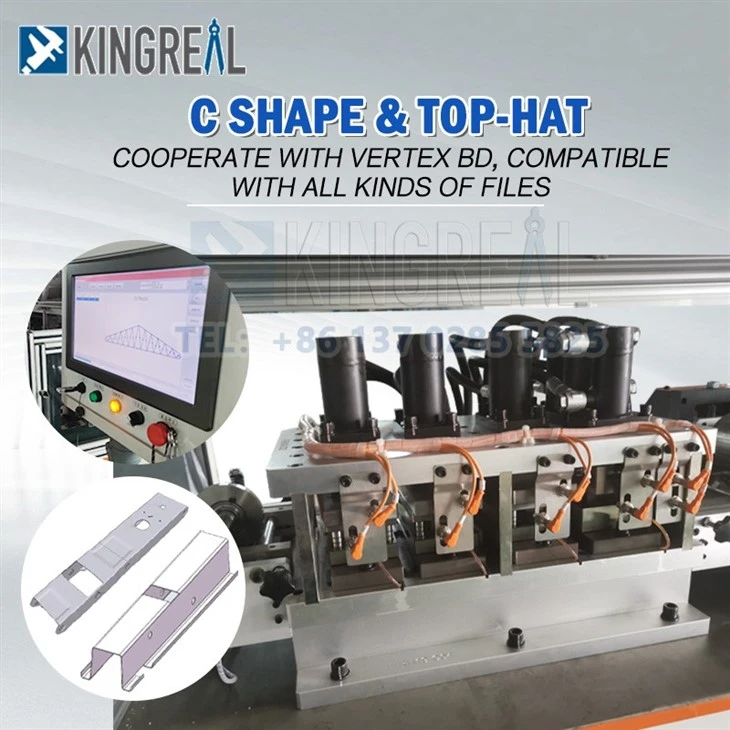

4. Die For Stamping

The die core is constructed of D2 or SKD11 high-quality steel, the die template materials are all made of S45C tool steel, and the mold is created using Japanese Misumi goods.

Flexible response

The modular design concept is used by KINGREAL, which has extensive expertise manufacturing cold roll forming equipment, to assure the uniformity of equipment parts and quick production delivery.

On the automatic machining center, the manufacture of the parts is finished. lessening human reliance while maintaining equipment quality.

Superior roll forming

The CNC control system uses independent intellectual property control software to enable data linking and remote network diagnostics and maintenance. This design is the same as that of international standard equipment.

KINGREAL has been serving our customer for a while now, and we have a library of excellent design docs. We are able to offer our client the common CAD application for profiles. For an additional fee, we can offer the design CAD program service for your bespoke profiles. No worries after you've purchased the device.

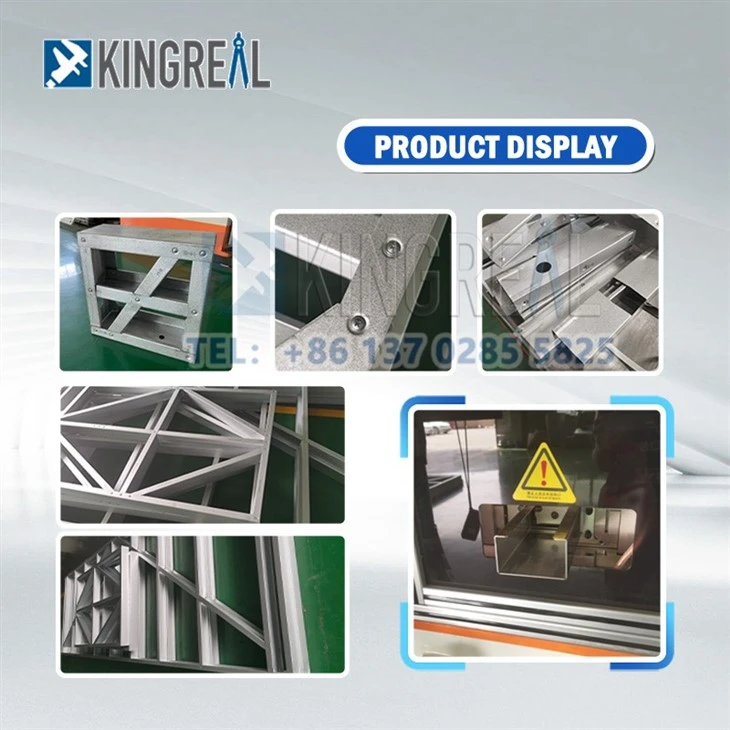

items with meticulous workmanship, from materials to workmanship. technology that is mature following thorough inspection. a strong framework for consistent production everywhere, increasing the effectiveness and safety of the operation. can be utilized for production on building sites in combination with a movable trolley.

In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress.

KINGREAL warmly welcomes customers from all over the world to visit our factory in China. Please do not hesitate to contact us immediately if you need any assistance.
