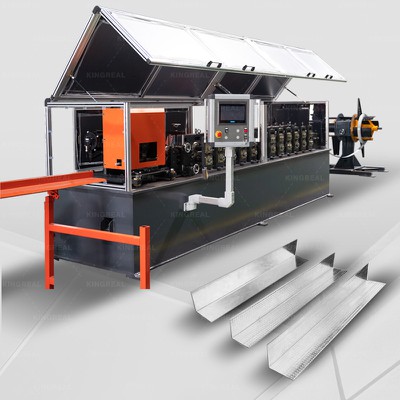

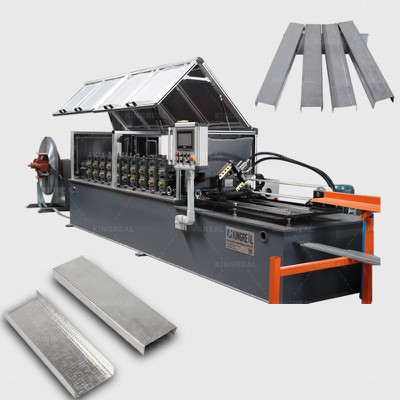

Wall Angle Furring Channel Roll Forming Machine
Video About Ceiling Channel Roll Forming Machine →
Wall Angle Furring Channel Machine Description
is used to produce different type ceiling channel, which is used in construction and decoration materials, usually used to make the frame structure of walls and ceilings. This machine forming the different type sheet coil into specific shapes and sizes of steel channel by putting it through as series of forming, cutting and stamping processes. This type of machine can automate the production process to improve productivity and product quality.
As a Chinese professional roll forming machine manufacturer, KINGREAL can provide the Ceiling Channel Roll Forming Machine for produce different shape construction channel, such L-shape profile, U-shape profile and Hat-shape profile, which can realize one machine to produce various profiles, mainly by changing different cutter molds.
One of the most important features of this roll forming is is the ability to produce 3 different shapes of profile in one machine at speeds of up to 100m/min, which allows the customer to achieve a highly efficient production process. It is the preferred choice for many types of keel factories.
Different Gypsum ceiling Profile Roll Forming Machine Display
|
Gypsum Ceiling Wall Angle Machine
●Wall angle profile usually refers to a metal structure used to support or connect walls in construction. It can be an L-shaped or other shaped profile used to hold wall materials such as plasterboard in place, or as a wall angle reinforcement.
●In some cases, wall angle profile can also refer to the angle between the wall and the floor or ceiling, which is important when designing pitched roofs or specific types of building structures. |
 |
|
U-Shape Channel Roll Forming Machine
●A U channel profile, also known as a U-channel or U-section, is a metal profile that resembles the shape of the letter "U". It is usually made of materials such as steel or aluminum or stainless steel. It is typically made of materials such as steel, aluminum, or stainless steel and features an open design with two parallel wings connected by a web at the bottom.
●U Channel profiles are commonly used in a variety of structural and support applications in the construction and engineering fields. For example, they can be used as part of a building frame to provide stability and support. In some cases, U Channel profiles can also be used as cable channels to neatly arrange and protect electrical wires.
The dimensions and specifications of U Channel profiles may vary according to different standards and applications. For example, European standard U-channels (UPN) have specific dimensions, specifications and properties, and these are manufactured according to standards such as DIN 1026-1: 2000, NF A 45-202: 1986, etc. |
 |
|
Hat-Shape Profile Roll Forming Machine
●Furring Channel profile, also known as cap channel or cap profile, is a metal framing assembly used in construction. It is typically used for leveling (furring) on masonry wall and ceiling assemblies. In concrete wall applications, furring channel is typically installed perpendicular to the wall surface and fastened using concrete nails or power-driven fasteners.
●Furring channels are named for their hat-like shape. They consist of two flanks and a top, forming a hat-shaped cross-section.
During construction or renovation, if furring channels are to be installed on an existing wall, the builder will install them perpendicular to the wall support structure (e.g., wall studs). Metal furring strips are often synonymous with cap channels, and they contain flanges on both sides to provide a stable mounting structure |
 |
Ceiling Channel Roll Forming Machine Features
stopping the production line, enhance the production speed.
Decoiler - Power: 3KW - Decoiler speed: < 25m/min - Max. Loading Capacity: 1.5ton - Material Inner diameter: φ480mm-φ520mm - Max material external Diameter： <φ1200mm |
 |
 |
This roll forming main machine including the main roll forming station and hydraulic shearing station.
ROLL FORMING SPECIFICATION: ● Machine frame: the machine frame is welded by steel panel to one piece structure. Then one 30mm thickness panel will be put on the frame after fine processed by the planomiller. This will ensure the accuracy basic size. Also it will increase the machine strength to reduce the deformation influence. ● Driving System: liner drive by the main drive motor and reducer motor through Gear driving rollers structure. The main axle material is 40Cr, the axle diameter isΦ80mm, the main axle is fine grinding process after quenching heat treatment. |
|

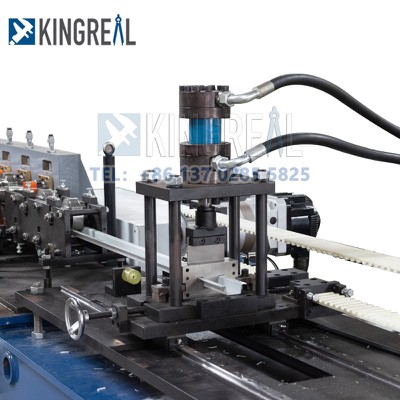

HYDRAULIC SHEARING
The hydraulic parts use high efficiency environmental protection energy storage type hydraulic system. And it adopt Taiwan hydraulic components and equipped with air cooling system.
Shearing Method: Servo follow cut without stop the machine, the blade material is D2 with quenching treatment hardness up to HRC60℃. |
 |
Machine Quality Assurance
quality assurance (QA)
Main Channel Machine Trial In Factory

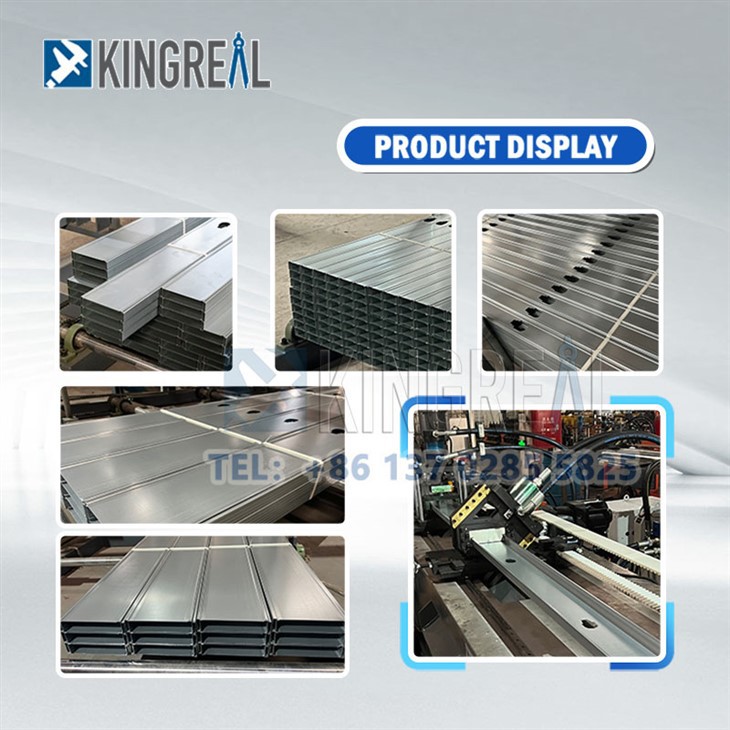

Final Product Of Light Steel Keel Roll Forming Machine

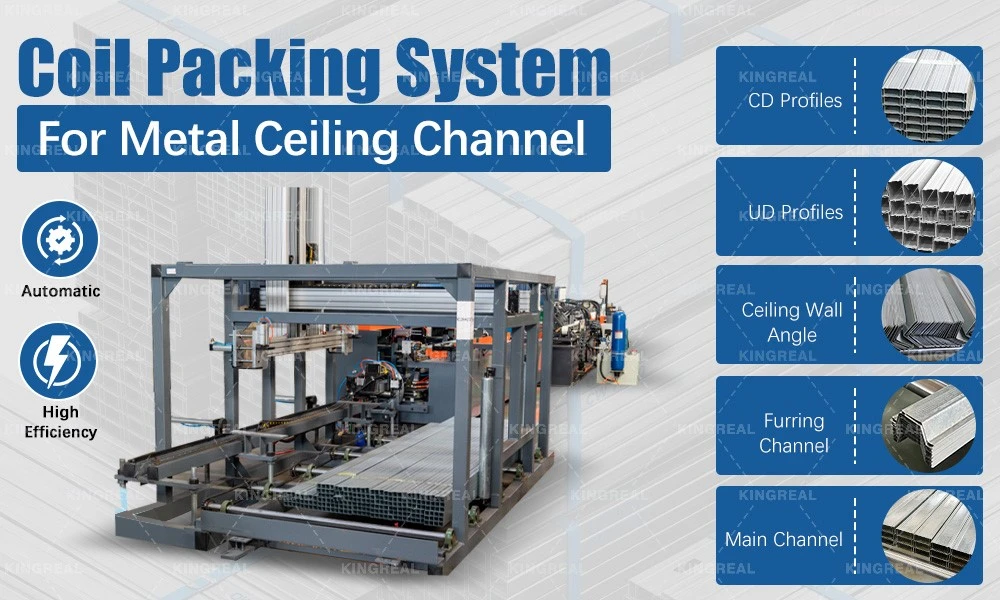

Automatic Package For Different Profile
KINGREAL offers optional automatic balers packing machine configurations to cater to the needs of various customers. It is capable of automating packaging while creating profiles, and the entire production process-from coil material to packaging-can be done on a single production line.
- Technical Specification
Local After-Sale Service
KINGREAL has established specialized service locations in numerous nations and areas, such as India, Russia, Turkey, the United Arab Emirates, and Qatar, in order to be able to properly address customer demands the first time.
Localized service locations are also being developed in other nations and regions.
Inspection in factory
KINGREAL warmly welcomes customers from all over the world to visit our factory in China. Please do not hesitate to contact us immediately if you need any assistance.
How To Order?
FAQ
01.Brief Introduction Of Light Steel Frame
02.What Is Light Steel Keel Profile?
What Is Light Steel Keel Profile? Light Steel Keel is a new type of building material, which is produced by Ceiling Channel Roll Forming Machine.
03.What Are The Classifications Of Light Steel Keel?
