Machin Description

A complete production solution for open cell ceilings can be obtained from Open Cell Ceiling Machine. Additionally, the various product sizes can be tailored to meet the needs of the client.

● Popular open cell ceiling size

10mm*30mm; 10mm*40mm, 10mm*50mm

15mm*30mm, 15mm*40mm, 15mm*50mm

Or other sizes as required

By altering the sets of the shearing and punching molds, it is possible

to make products with varying open cell ceiling sizes and heights on the

same production line.

Different cell ceiling production lines are required to manufacture products

with varying widths of open cell ceilings, such as 10 or 15 mm.

● Cell size for open ceiling as required. Such as:

50*50mm, 75*75mm, 100*100mm, 120*120mm, 150*150mm, or other size.

Different cell size products can be produced on the same machine, the

distances are controlled

by the servo motor.

Technical Specification

Raw materials	Pre-painted Aluminum or Pre-painted Galvanized steel
Ceiling sizes	Width: 10mm / 15mm / 25mm Height: 40mm / 50mm/ 30mm
Length control	Automatic servo control
Maximum forming speed	15 m / min
Roll Forming stands	14 roll forming stations
Machine Power	~ 12KW

Structure Of The Production Line

- Combine decoiler & Leveler

- Punching press machine

- NC servo roller Feeder

- Automatic cutting press machine

- Roll forming machin

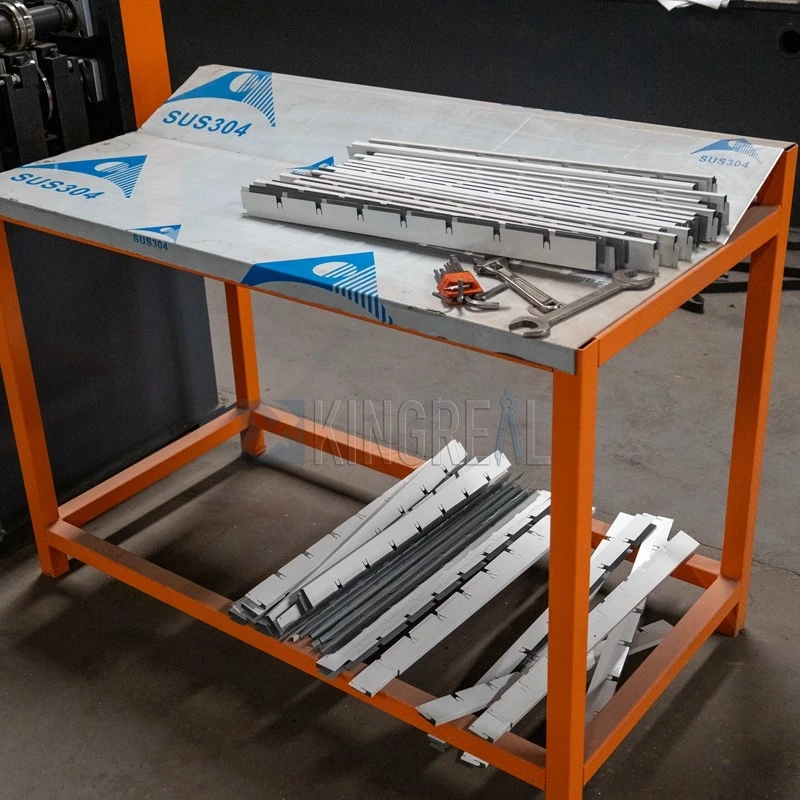

- Finished product collector table

- Electric control panel

- Punching molds sets

- Cutting molds Sets

New Design For Open Cell Ceiling Machine

High Precision Straightener

The leveler is a precision leveler specially designed by KINGREAL for grating production.

The precision leveler has 15 rollers in total, eight rollers on the top and seven rollers on

the bottom.

All rollers are made of 40Cr and chrome-plated, durable and with long service life.

The panels are smooth after precision leveling, no indentation or damage to the panel surface.

Double Punch Station

KINGREAL's specially designed double punching station is used for the

uninterrupted and precise punching of grating panels according to the

customer's production requirements.

In addition to the punching station configuration, the customer can also

choose a punching machine for punching the panels, using a 16 tons + 4 tons

power press for punching and shearing. Punching speed is 100-150 times per minute (adjustable)

Main Roll Forming Machine

1)Roller group: 14 groups
2)Roller material: CR12#steel
3)Roller hardness: HRC=56-60 degrees
4)Shaft drive system: chain
5)Control system: data control system
6)Drive motor: 3kw
7)Raw material thickness: 0.3-0.4mm GI STEEL
8)Material width: 94mm (height: 40mm)
9)Molding speed: 10m/min
10)Body material:steel

Open Cell Ceiling Machine In The Factory

Quality Control About Open Cell Ceiling

Check The Final Product

Technical Support

open grid ceiling system

KINGREAL ROLL FORMER is able to provide technical after-sales service to our customers.

In order to ensure the smooth installation and operation of the machines, KINGREAL ROLL FORMER will arrange to send engineers to the customer's project for technical guidance.

Up to now, KINGREAL ROLL FORMER has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.
