Machine Introduction
KINGREAL ROLL FORMER baffle ceiling carrier roll forming machine
Baffle Ceiling Carrier Machine design to produce different types of carrier for multiple ceiling suspending. The production line is controlled by PLC and the punching spacing is set by high precision NC servo motor.
The carrier length, production quantity can be set on the touch screen.
KINGREAL ROLL FORMER also offer flexible Acoustic baffle ceiling roll forming machine
Metal Ceiling Carrier Making Machine for manufacturing multi sizes linear baffle ceiling products. With the baffle ceiling strips from this machine, these can be fabricated into a whole baffle ceiling suspending system.
Technical Feature About Baffle Ceiling Carrier Making Machine
|
- Auto Servo motor feeder control. One line can produce carrier for different sizes baffle ceiling products. - High quality punch press and punching mold set. - High precision main roll forming station. - Combi structure available for different carrier shape production on one machine - High precision pin-insert shearing method |
|
Specification Of Metal Ceiling Carrier Machine
|
Raw materials |
galvanized steel strip, width according with clients' design |
|
Carrier sizes |
V shape or U shape, According with customers' drawing |
|
Decoiler & Leveller |
Combine decoiler & leveler, hydraulic expansion and manual loading, maximum weight 1 tons |
|
Punching press |
25tons capacity, speed 100-200SPM. |
|
NC servo feeder |
NC roller servo feeder, 1.2KW Yaskawa servo motor |
|
Maximum forming speed |
5- 20 m / min according with different punching speed |
|
Roll Forming stands |
10-15 Rollers station according with different cross sections sizes. |
|
Machine Power |
~ 20 KW |
|
Length setting method |
Encoder to detect length, optical fiber count holes, then hydraulic shearing by insert pins |
|
Shearing method |
Hydraulic shearing, equipped with air cooling system |

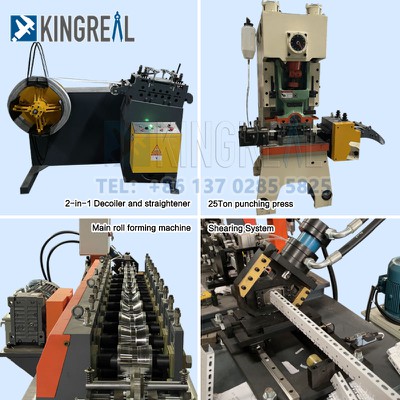

Main Components For Baffle Ceiling Carrier Machine
|
- Decoiler & straightener -High speed punch press -NC servo roller feeder -Main roll forming machine -Auto pin insert shearing station -Output tables. |
 |
Machine Features
|
2 in 1 decoiler & Leveling
The KINGREAL 2 in 1 decoiler & Leveling apply to unwinding and straightening work of coil sheet metal. This combination contains decoiler and straightener.
To respond to changing demands, we have hydraulic decoiler and manual decoiler, and optional trolley for full-automatic metal loading.
The straightener provides high precision straightening. By doubling the amount of rollers we ensure straightness of materials and high-accuracy finished products. |
|
|
|
UNIQUE COMBI STRUCTURE
Combi structure can be widely used in multi-spec production.
Different types of products can be produced by the same machine by using this structure. And the roller sets can be easily and quickly switched, thereby saving time and reducing technical difficulties. |
|
Online Punch system
We use high-speed perforation machines, hydraulic punching machines, etc. for online punching of products. After punching, the product can directly enter the roll forming machine for cold bending forming.
KINGREAL punching machine has the characteristics of fast punching speed, high precision and strong stability. |
|
Metal Ceiling Carrier Application

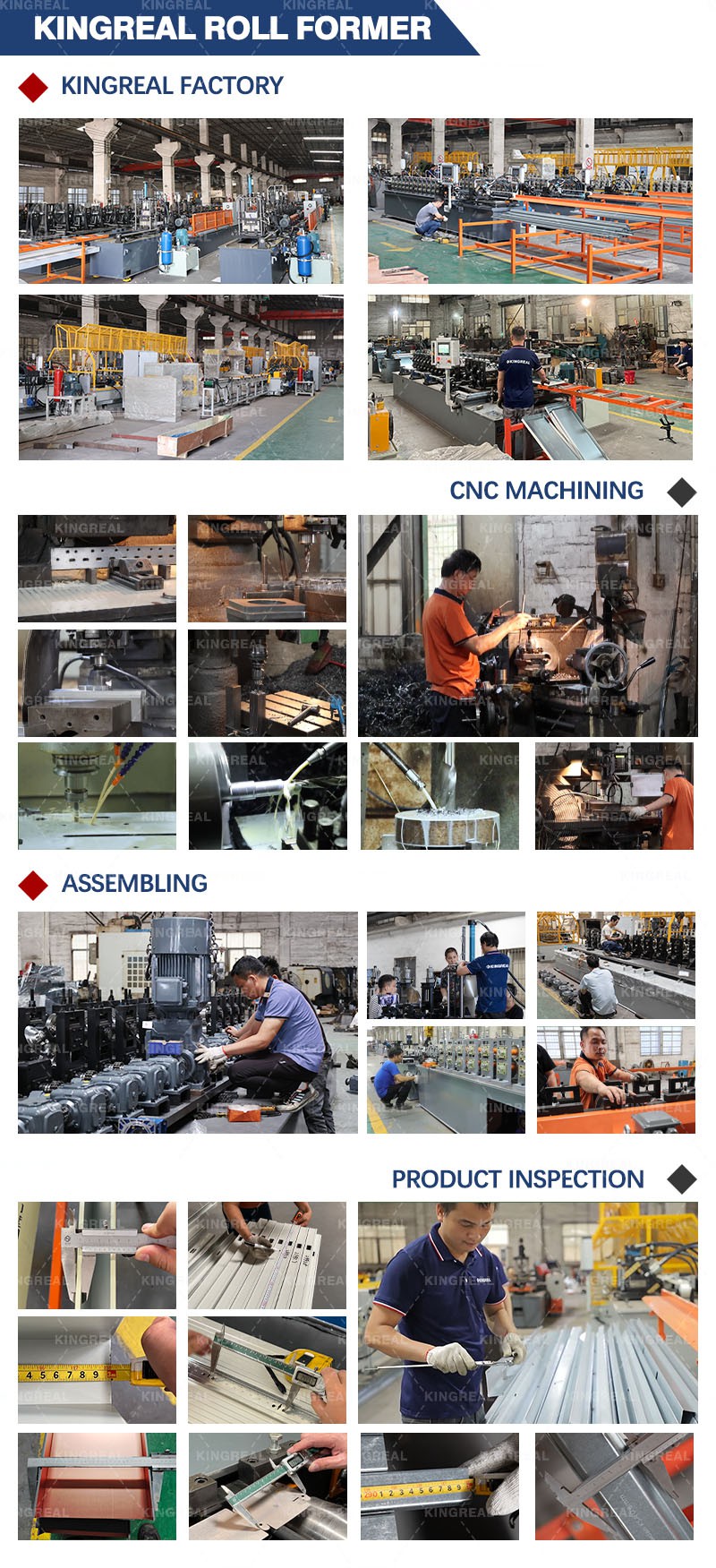

Production Workshop
