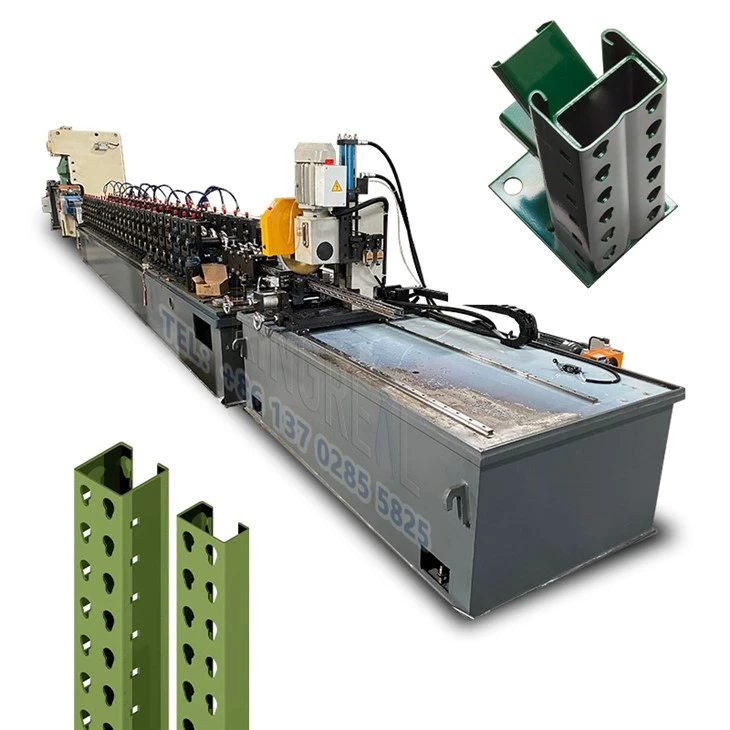

Upright Rack Post Making Machine Description
The Shelf Upright Rack Pallet Production Line is mainly to unwind and level the coils of the corresponding width,
and then send them to the forming host through a series of forming dies arranged in sequence, so that the material is continuously bent laterally, and finally processed into various corresp-onding sections.
Shaped profiles ensure the accuracy and flatness of processed products, and can be cut to length.This Upright Rack Pallet rolling line has reasonable design, moderate price, simple operation, good stability, and high yield.
Welcome to order. At the same time, KINGREAL ROLL FORMER will provide shelf beam forming machine, shelf back plate forming machine and shelf layer plate forming machine.
Shelf Upright Rack Pallet Machine Feature
A. The structure is simple and the appearance is beautiful.
Because the whole machine adopts the steel structure and
is processed as a whole after welding, the structure is simple
and reasonable, the storage capacity is strong, and the operation
is stable and reliable.
B. Other important parts and components of the equipment are
all used in the accessories of well-known domestic companies,
thus effectively ensuring the performance of the equipment.
C. It adopts automatic fixed-length cutting, fixed-length positioning,
and the plate-shaped head is neat and not deformed.
D. The equipment is easy to install and debug, simple and easy to
operate, which is suitable for factory production and can be transported
to the site for processing.
E. The equipment has low noise, no pollution and low consumption.
Reference Date
|
1. Installation size of production line: 8000mm*1500mm*1500mm |
|
2. Total weight of production line: 4.5 tons (approximately) |
|
3. Fully automatic decoiler: 1 ton full automatic decoiler |
|
4. Feeding method: pneumatic feeding. |
|
5. Punching method: 25 tons punch punching. |
|
6. Number of forming passes of the molding machine: 10 passes. The thickness of the spacer sleeve of each upper and lower mold wheel is 2mm. |
|
7. Forming shaft parameters of the molding machine: ￠70mm, solid shaft, after quenching and tempering, CNC lathe finishing. |
|
8. Mold wheel parameters: GCr15 quenching treatment, hard chromium plating after finishing. The hardness is above 57 |
|
9. Main engine power: 4KW power. |
|

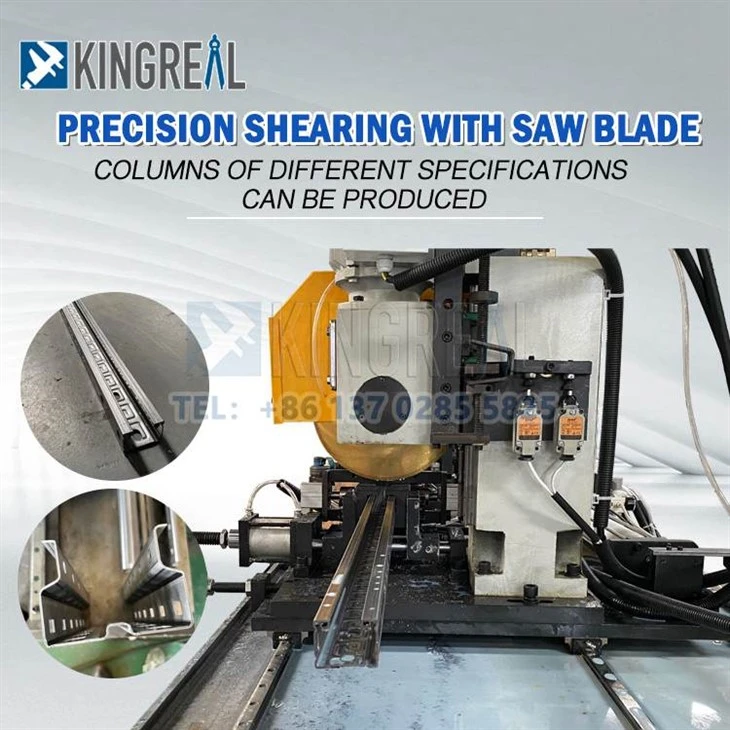

10. Shearing method: hydraulic shearing |
|
11. Shearing die parameters: After 12 quenching, fine grinding. |
|
12. Fixed length control: Industrial PLC fixed length control. |
|
13. Transmission mode: 1.2-inch sprocket chain transmission. |
|
14. Power of hydraulic pump station: 3KW |
|
15. Receiving rack: a set of 3m flat type receiving rack. |
|
16. Forming speed: 4 m/min or more |
|
17. After-sales service: Free warranty within one year. |
Process Flow For Shelf Upright Post

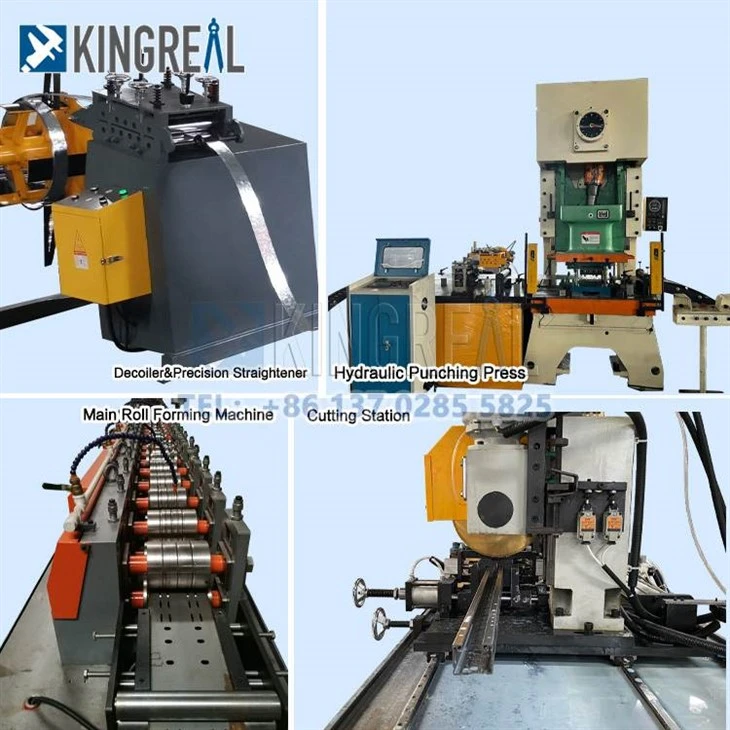

2-in-1 Combination of Decoiler and Straightener →Servo feeder→ Guide device → Hydraulic Punch → Roll Forming Machine →Shear Device (including knife)→ Finished Product Rack

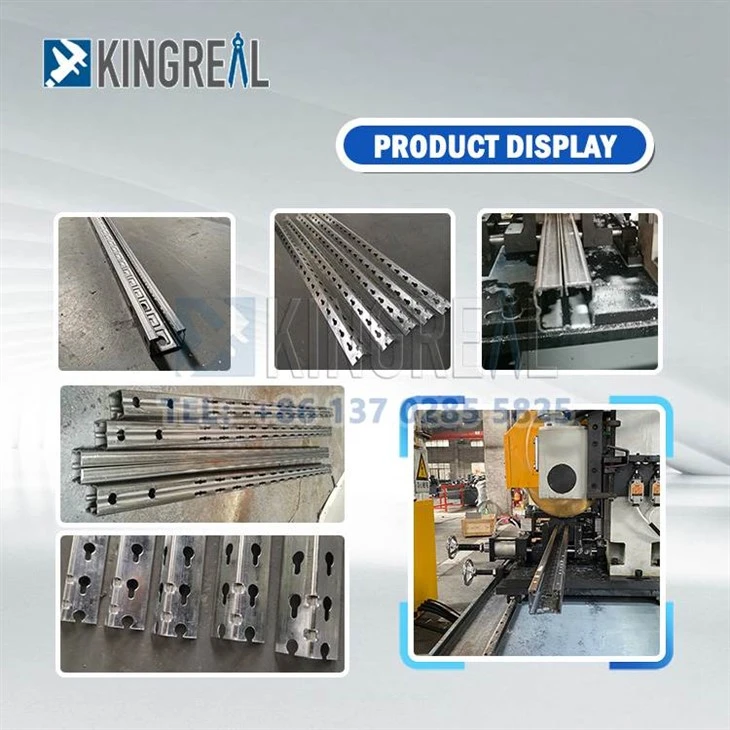

Products Application
