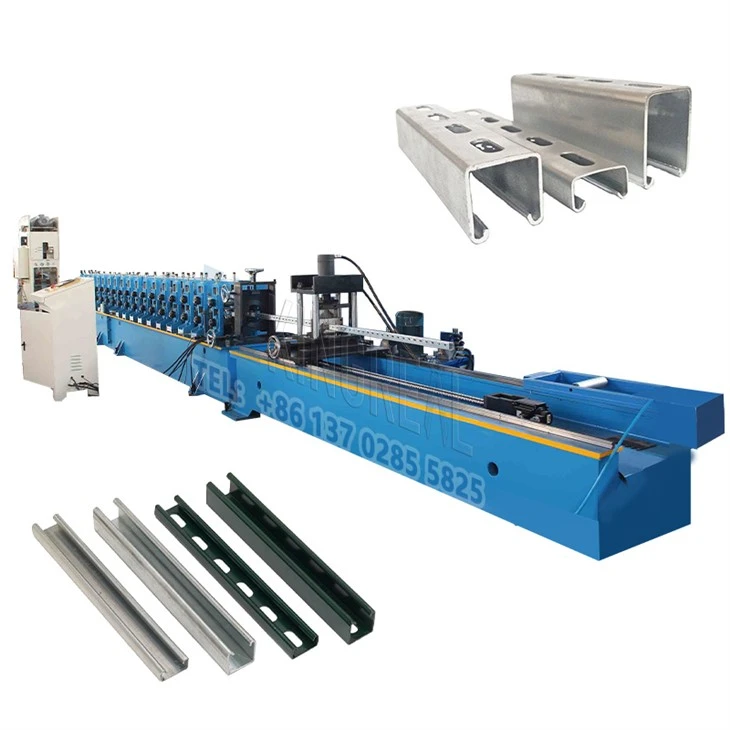

Overview Of Solar Mounting Bracket Making Machine:

KINGREL ROLL FORMER Solar Mounting Bracket Production Line can produce solar photovoltaic support series products,

including 41×21, 41×41, 41×62, 41×82 and other specifications.

The entire solar mounting strut channel production line integrates production equipment with multiple technologies such as leveling, feeding/punching,

forming, and cutting. The whole production line is composed of unwinding system, punching system, forming system, cutting system,

electric control system and other parts.

By simply input the requested width on touch screen, the servo motors can drive the forming rollers to the position produce different widths of solar strut channel on the same machine.

Machine Features

- The solar strut channel equipment is controlled by PLC, and multiple safety protections are set up during normal production.

- The bed is welded steel plate. And it is tempered to eliminate internal stress and avoid deformation of the fuselage.

- The solar mounting strut channel forming frame is a cast iron structure and has been tempered. High strength and long service life.

- The material of the roller shaft is 40Cr, and the hardness is HB280 after quenching and tempering.

- The material of the forming mold is GCr15, quenched, and hardness: HRC56-62℃.

- The transmission structure is gear box transmission.

- Each forming frame has a gear box, which can ensure the equipment overtime, high intensity operation and long service life

Technical Specification of Solar Mounting Bracket Making Machine:

Sheet thickness	1.5~2.5 mm galvanized sheet, mild steel, etc
Production line speed	4 – 8 m/min
Main machine forming speed	10 – 15 m/min
Production area	30m long × 3m wide
Total installed capacity	35.5 kw

Working Process Of This Machine

Uncoiling--Leveling--Pinching, Punching--Forming--Sizing, Cutting--Receiving

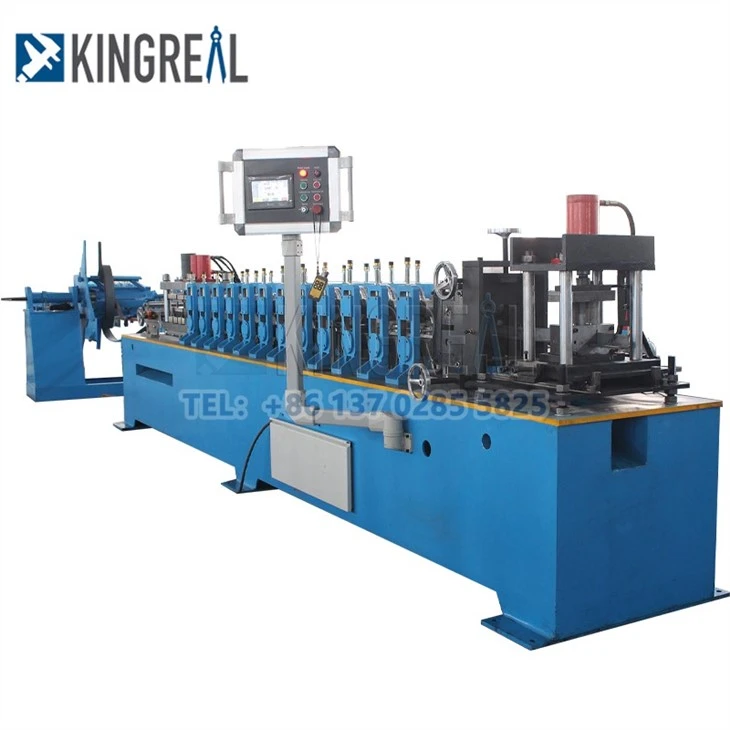

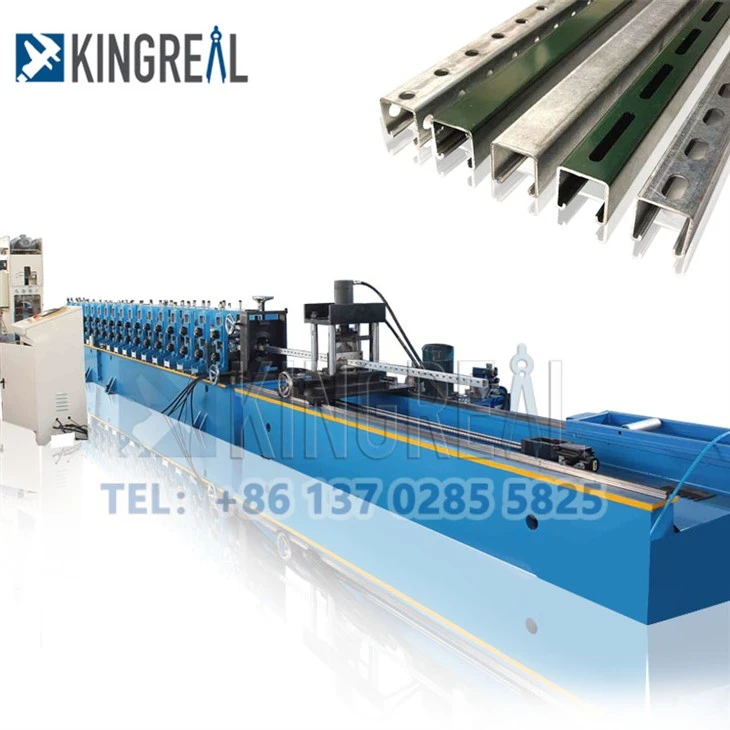

unistrut slotted channel machine

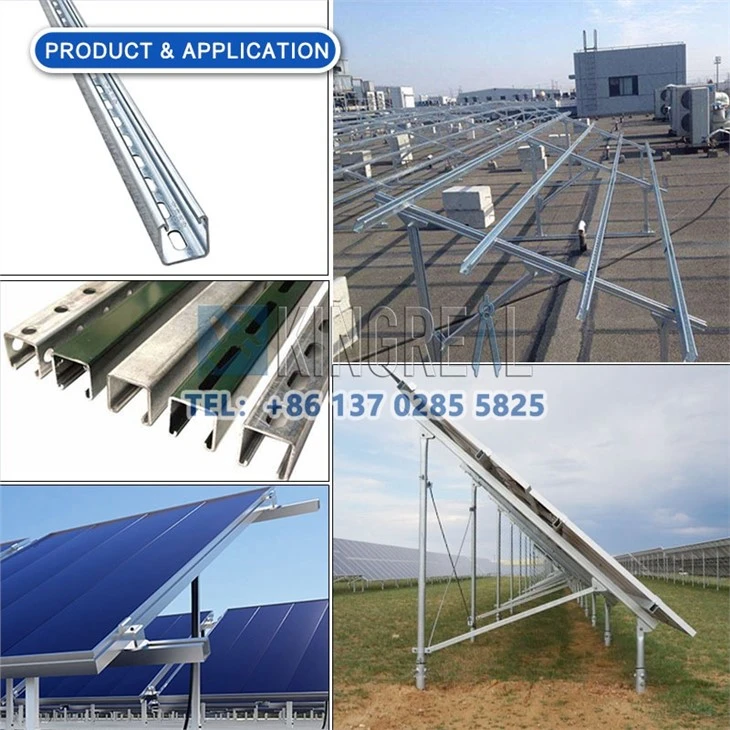

Product Application

solar panel bracket

Production Workshop

roll forming machine factory

Certification

certification

Local After-Sale Service

Solar Mounting Bracket Machine

FAQ

01. Are you a manufacturer?

Yes, KINGREAL ROLL FORMER is a professional sheet metal processing machines manufacturer, we are an OEM.

We have been focusing on the field of machine manufacturing for more than 20 years.

02.How to visit your factory?

There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.

03.What's your Warranty ?

12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.

04.What's your delivery Time ?

Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.

05.What's your payment terms ?

40% deposit is paid before production, the balance paid after inspection confirmation before shipment.

06.What's your Install and Training ?

If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, Manual book and video is provided to show how to install and operate.
