Machine Description

KINGREAL offer wide ranges of high-precision tube ceilings roll forming machines series.

Compared with traditional extrude aluminum tube ceilings, the roll formed products is

featured with light-weight, flexible length, acoustic solution and etc.

This type of roll forming machine can produce different kinds of tube ceilings including round tube ceiling,

square tube ceiling etc. The raw materials are usually steel or aluminum, and it can use the perforated materials

to produce the acoustic tube ceiling system.

Technical Specification

Raw materials	Perforated or Plain Pre-painted Aluminum strips, PPGI strip sheet materials
Raw materials strip width	According with different designs
Maximum forming speed	30 m / min
Shearing method	Hydraulic shearing or Saw blade shearing according with different profiles design
Roll Forming stands	15-25 Rollers station according with different profiles design
Machine Power	~ 15 KW

Structure Of Tube Ceiling Making Machine

- Combine decoiler & sheet leveler

- Main roll forming machine and straightening device

- Hydraulic shearing station / Saw blade shearing station

- Output table.

- Electrical & Hydraulic system

Machine Features

Hydraulic decoiler

To respond to changing demands, we have hydraulic decoiler and manual decoiler with integrated hydraulic core expansion system.

For more, there is optional trolley for full-automatic metal loading.

High Precision Cr12MoV forming rollers

Cr12mov mold steel, heat treatment hardness up to HRC 58⁰-60⁰. Which is processed by CNC machine after wire cut, 1^st lathe machine, then vacuum heat treatment.

After strictly following these processing procedures, the forming rollers would be endurable and ensure our machines long time running.

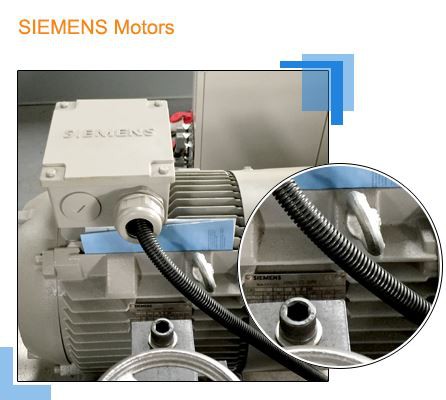

SIEMENS MOTOR

KINGREAL cold roll forming machines series use SIEMENS motors to ensure the stable running of the machine.

Beside the motors, all the electrical system we use high quality famous brands, Such as YASKAWA for the servo

feeder motors and Omron for the PLC, etc. This will ensure our machine running stable and long life time usage.

Packing & Shipping

Local After-Sale Service

In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.

Localized service points in other countries and regions are also in progress
