Garage Door Making Machine
Garage Door Panel Machine Description
The product produced by the Garage Door Panel Machine is bright in color, does not fade, and does not rust. It is widely used in shops, labor departments, warehouses and fire boards. The strength is three times that of aluminum alloy doors.
The whole machine adopts PLC fully automatic control from uncoiling, board feeding and unloading. The production line has high degree of automation, low labor intensity, simple structure, convenient operation, low investment and fast recovery. It is the first choice for the building materials industry.
Technical Specification
|
Material: |
G330 galvanized steel strip |
|
Thickness: |
0.3-0.5mm |
|
Width: |
500-700mm |
|
PU material: |
Polyurethane A/B material |
|
Width: |
400-600mm adjustable |
|
Panel thickness: |
40mm / 50mm (two types are selected by the customer) |
|
Length: |
2000mm-16000m can be set |
|
Foaming density: |
35-50Kg /M³ adjustable |
|
Working speed: |
3-8m/min |
|
Compound belt length: |
24 meters |
|
Heating temperature: |
30-60 degrees, automatic control temperature meter |
|
Total power: |
100Kw |
|
Overall dimensions: |
85m×2m×5m machine installation size |
|
Plant size: |
100m×15m×7m with 5T crane |

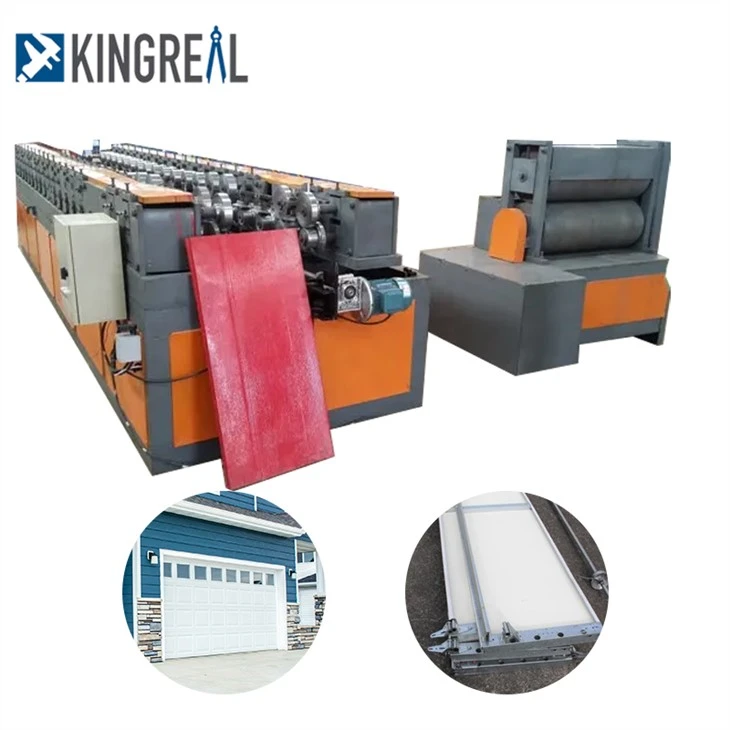

Structure Of Garage Door Making Machine
|
|
2. upper and lower laminating machine, PU high-pressure foaming machine, 200T hydraulic press, automatic tracking flying saw cutting machine and other automatic production equipment, which is liquid The PU raw material is sprayed at high pressure between the upp er and lower color steel panels that are pressed and formed, and the composite host PVC plastic double conveyor belt is foamed and molded, and the board is tracked and cut by a flying saw. |
|
3. The structure is simple and the appearance is beautiful. Because the whole machine adopts a steel structure and is processed as a whole after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable. |
4. The other important parts and structure of the equipment adopt the accessories of well-known domestic enterprises, thus effectively ensuring the performance of the equipment. |
|
5. It adopts fully automatic fixed-length cutting, punching, precise positioning, neat appearance of the plate-shaped head and tail, and small deformation. |
6. The equipment has low noise, no pollution and low consumption. The entire unit automation control system of the tile press equipment adopts a highly integrated network, which makes the performance of the automation system more superior. The color steel angle chi tile press equipment also has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.
|
Process Flow Of The Machine
Decoiler-----Feeding----- Leveling ----- Cutting -----Roll forming ----- Punching ----- Output table
Components Of This Machine
-Un-coiler

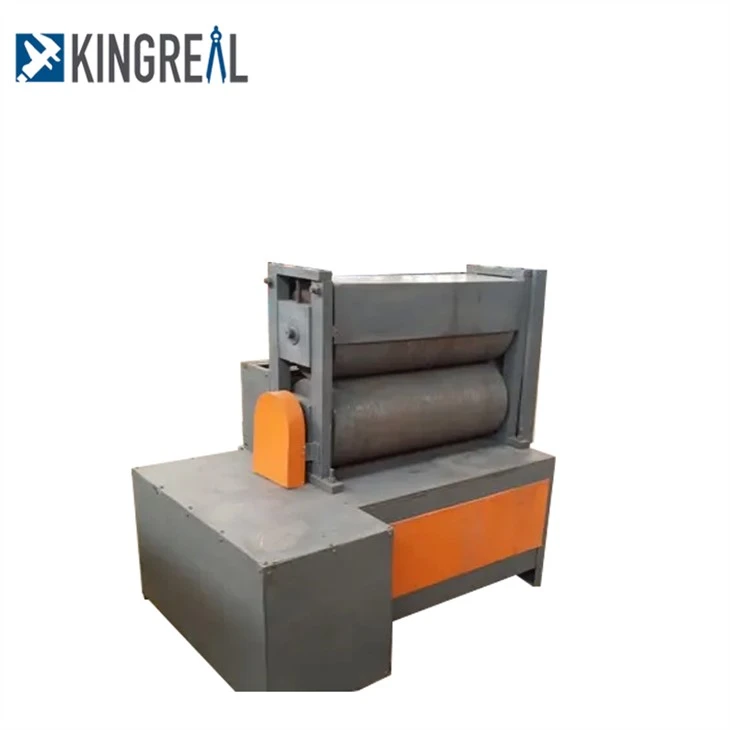

-Leveling device
-Main forming machine
-Foaming machine
-Adjusting device
-Pneumatic following cutting device
-PLC Control system
-Finished product shelf
Drawing of Garage Door Frame

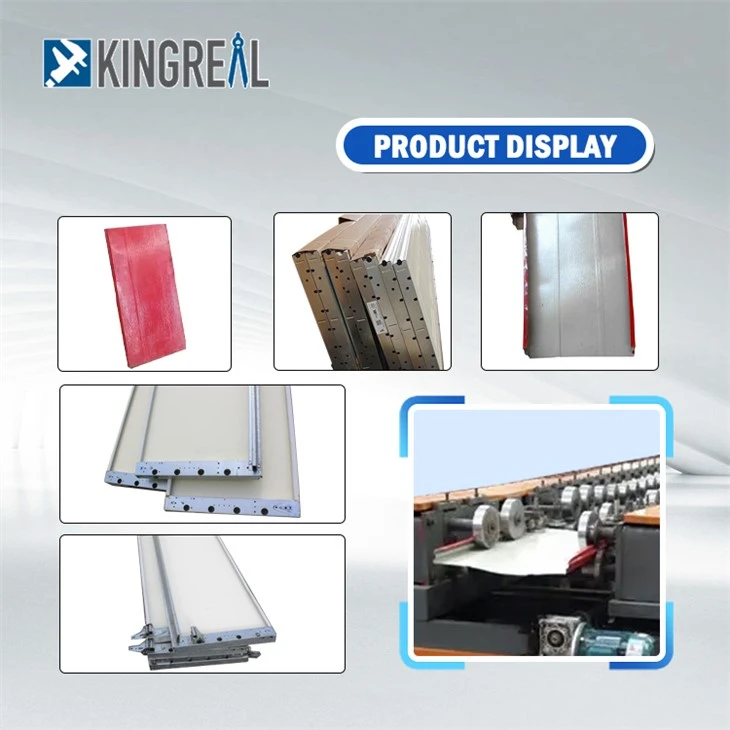

Appliation Of Garage Door Frame Machine
Customer Visit
KINGREAL Roll Former warmly welcomes customers from all over the world to visit the factory for on-site inspections.
During the visit, we will arrange professional and technical personnel to accompany the reception throughout the entire process, leading customers to observe various types of roll forming machine on-site, and demonstrate the complete operating conditions of the equipment, the continuous molding process of profiles, and the dimensional accuracy testing of finished products on site.
Customers can visually observe the equipment operating status, molding effect and production stability, and verify the quality of finished products at close range.
Relying on on-site observation, we help customers quickly and comprehensively understand KINGREAL Roll Former roll forming machine, intuitively evaluate various performance parameters, automated configuration and production capabilities of the equipment, and accurately judge whether the roll forming machine can fully match their own project planning, production capacity goals and finished product production requirements.
KINGREAL Catalogue
KINGREAL Roll Former provides global clients with integrated production solutions for metal door systems, offering complete equipment sets for the manufacturing of various door types.
For garage door production projects, in addition to Garage Door Making Machine, KINGREAL Roll Former supplies octagonal tube roll forming machines and garage door guide rail machines, enabling the integrated production of key garage door components.
Catering to the door & window manufacturing sector, KINGREAL Roll Former offers specialized door frame making machines designed for the continuous roll forming of diverse metal door frames.
Leveraging an extensive portfolio of roll forming machines, KINGREAL Roll Former offers flexible solutions tailored to specific application scenarios, fully meeting client needs for diverse metal door system projects and production line expansions by providing a one-stop source for core door profile manufacturing equipment.
