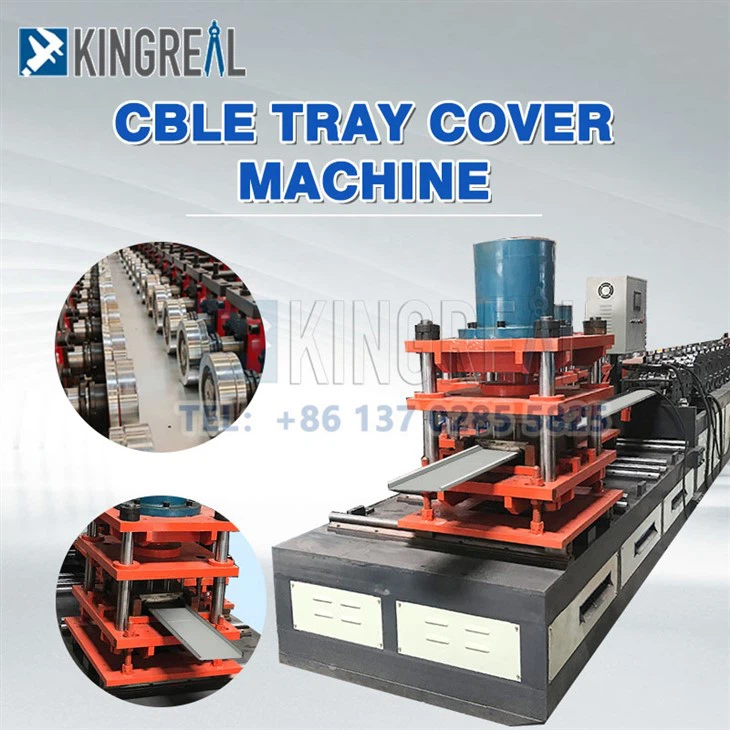

Channel Cable Tray Cover Making Machine Description

The whole cable tray ladder production line integrates the production equipment of punching/cutting, automatic conveying

(automatic blanking-optional), forming and other technologies.

The whole cable tray ladder production line is composed of unwinding system, leveling system, punching/cutting system,

automatic conveying system, forming system, electric control system, etc.

This cable tray ladder production line can produce cable trays. Different specifications can be completed by changing the die.

The roll bending machine adopts a combination and can be debugged. A set of rolls can complete all specifications

of the tray products.

The specification changes are completed by adjusting the opening and rolls of the cable tray forming production line.

Professionally provide customers with cold-formed forming machines, cold-formed steel equipment product design

and engineering cost analysis, roll design, calculation, forming process simulation, customized various precision rolls,

and various cold-formed steel equipment

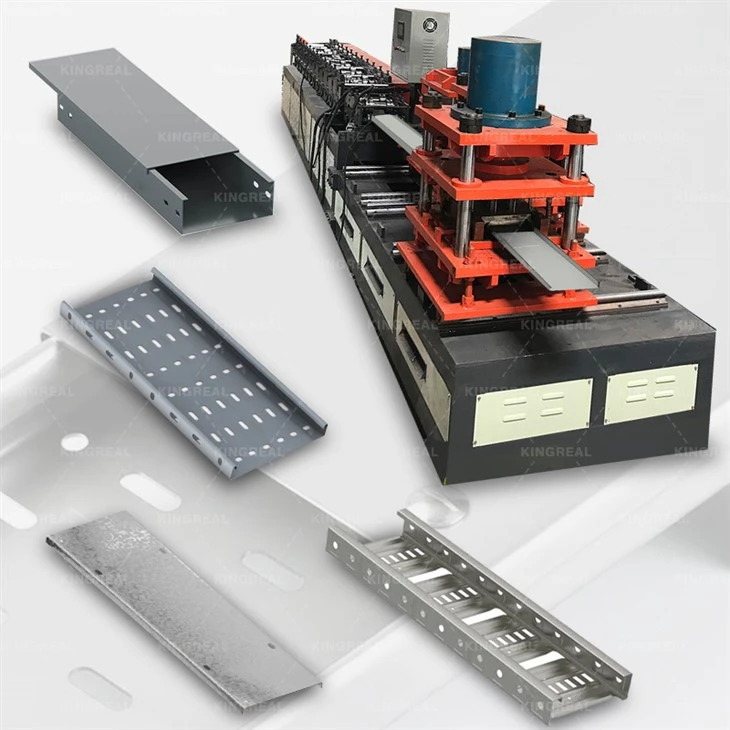

KINGREAL Offer Full Solution For The Perforated Cable Tray Cover Production As Following :

- Perforated cable tray production line
- Electrical cable tray cover making machine

By simply input the requested width on touch screen, the servo motors can drive the forming

rollers to the position produce different widths of cable trays on the same machine.

Machine Features For Cable Tray Ladder Machine

- Fully automatic cable tray cover production line

- Online high-speed perforation

- Width adjustable

- High quality roll forming

Technical Specification of cable tray cover making machine:

Raw materials	galvanized sheet, mild steel, etc
Raw material width	≤1050mm
Raw materials weight	≤8T
Raw material ID	460～510mm
Raw material OD	≤1200mm
Material thickness	0.5-1.5mm
Products width	500-800mm adjustable
Punch speed	2.5-5m/min
Production line	Fully automatic
Maximum forming speed	12 m / min
Roll Forming stands	22 Rollers station
Forming rollers materials	GCr15 quenching treatment
Driving method	Gearbox driving
Electrical control system	PLC control
Machine Power	~ 35 KW
Dimension	322.31.8M (LWH)

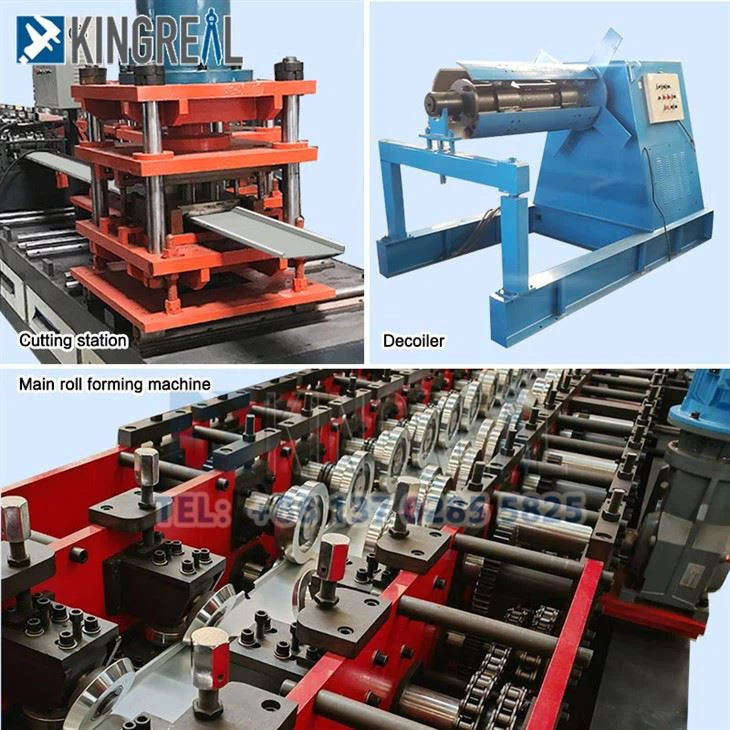

The main components of the cable tray ladder equipment: a complete set of components such as decoiler, leveler, servo feeding device, punching machine, cutting die, cutting, conveying, forming host, cut-to-length, receiving table and electrical control.

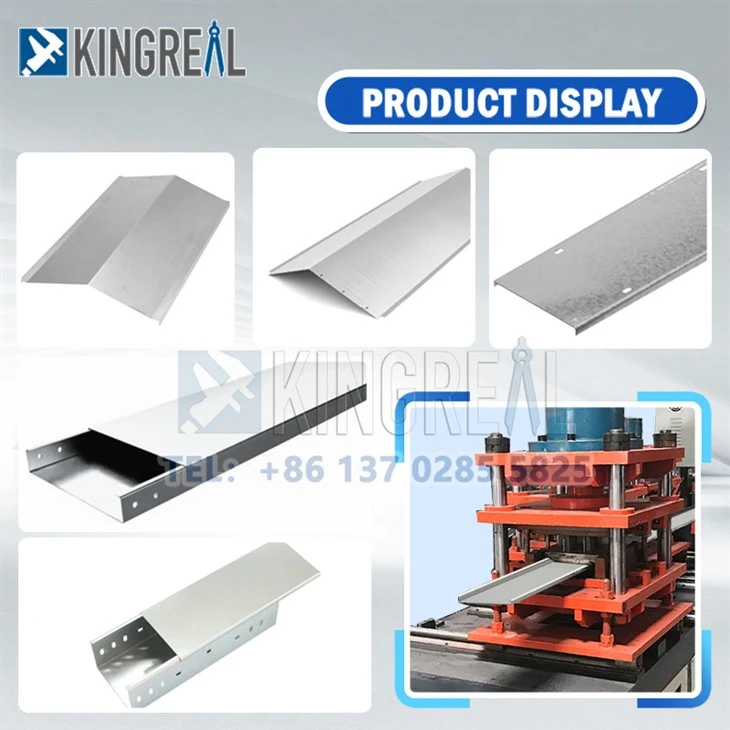

Cable Tray Cover Production Application

- CABLE TRAY MAKING MACHINE

- CABLE LADDER MAKING MACHINE

- CABLE TRUNK COVER MACHINE

- PERFORMATED CABLE TRAY SYSTEM EQUIPMEMTY

In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.

Common cable trays are made of galvanized steel, stainless steel, aluminum, or glass-fiber reinforced plastic. The material for a given application is chosen based on where it will be used. Galvanized tray may be made of pre-galvanized steel sheet fabricated into tray, or may be hot-dip galvanized after fabrication. When galvanized tray is cut to length in the field, usually the cut surface will be painted with a zinc-rich compound to protect the metal from corrosion.
