2024 New False Ceiling Channel Roll Forming Machine
Machine Description
False Ceiling Channel Roll Forming Machine:
False Ceiling Channel Roll Forming Machine is a type of industrial equipment used to produce metal ceiling frame channels that are commonly used in the construction of false ceilings. The false ceiling channel machine takes metal coils as input and processes them through a series of rollers and dies to form the desired shape and dimensions of the ceiling channels.
These channels are then used to support and install false ceilings in buildings, providing a smooth and aesthetically pleasing interior finish. The roll forming process allows for efficient and precise manufacturing of these channels, making the construction process more streamlined and cost-effective.
KINGREAL ROLL FORME offers a wide range of False Ceiling Channel machines to meet the needs of different ceiling shapes and has a wealth of experience in the production of these machines, which have been successfully sold to Russia, India, Italy, Turkey, Brazil and Saudi Arabia, among other countries.
Popular False Ceiling Channel Machine:

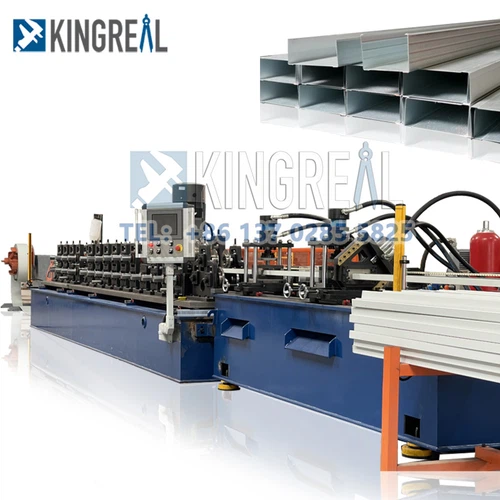

Steel Stud Roll Forming Machine
A steel stud roll forming machine is a machine and equipment used to produce steel components. It processes steel plates or strips into desired shapes and sizes by passing them through a series of roll rolling and forming processes.
This type of machine is commonly used to produce steel components used in construction, such as steel wall frames, roof structures, and so on. It can efficiently produce large quantities of steel components with high precision, fast production speed and easy operation
False Ceiling Channel Roll Forming Machine
Metal Ceiling channel roll forming machine is a machine and equipment used to produce false ceiling channel. Ceiling channel is a lightweight metal material used for interior partitions, ceilings and other decorative purposes in buildings.
False ceiling channel is produced by taking a coil of metal through a series of processing steps, such as uncoiling, stamping, forming, and cutting, to produce a ceiling channel product that meets specifications. This type of machinery and equipment usually utilizes an automated control system to efficiently produce high-quality metal false ceiling channel products.
T Bar Roll Forming Machine
T Bar Roll Forming Machine used to produce cross tee and main tee. It does this by stamping and forming sheet metal through a series of rollers and dies, resulting in ceiling t bar.
This machine is commonly used to manufacture products in the construction and industrial sectors that require the use of T-bars, such as roof and wall support structures.
Metal Ceiling Frame Carrier Machine
Metal Ceiling Frame Carrier Roll Forming Machine is a specialized machine for manufacturing metal ceiling frames. This machine is commonly used in the construction and decorative industries to produce metal ceiling frames of various sizes and shapes.
It processes sheet metal through a continuous rolling process to form it into the desired shape and size. This machine automates cutting, forming, stamping and sizing to increase productivity and ensure product quality.
Technical Specification For False Ceiling Channel Machine:
Steel Stud Roll Forming Machine
①Unit rolling capacity: width ≤ 200mm
②Sheet thickness 0.6-1.2mm
③Production speed: 30-100 m / min
④Total installed capacity: about 5.5kw
⑤Production area: length 15 meters x width 2.5 meters
Light Keel Roll Forming Machine
①Quantity of forming rollers stations ：12-14
②Diameter of forming rollers shafts ：60mm
③Roll Forming Speed ：15-20m/min
④Forming rollers material： No.45 steel, coated with chromed treatment
⑤Cutter material ：CR12 mould steel, with quenched treatment
⑥Controlling system ：PLC and Converter
⑦Electric Power requirement Main motor power: 4kw
⑧Hydraulic unit motor power: 3kw
T Bar Roll Forming Machine
①Raw materials Galvanized steel strips
②Carrier sizes According with customers' drawing
③Maximum forming speed 20-30m/min
④Roll forming stands 15-20 Rollers station
⑤Machine Power~ 25 KW
Metal Ceiling Frame Carrier Machine
①Raw material Gi steel
②Product shape As per clients' requests
③Product length 3000mm
④Production capacity 30m/min
⑤Electricity requirement 380V 50Hz 3 Phases
⑥Power consumption 10KW
False Ceiling Channel Display:
KINGREAL ROLL FORMER has rich project production experience in ceiling keel molding machine, which has been exported to Italy, Poland, Chile, Turkey, Saudi Arabia, India, Russia and UAE. We are able to offer complete production solutions to our customers, so don't hesitate to contact us!
KINGREAL ROLL FORMER Customer
FAQ
Q1:How long will you send the proposal and offer?
A1:We will need about 3~7 days to design the proposal upon collecting all details of the ab- ove mentioned info necessary.
Q2:When will you tell me the price?
A2:After confirming all detailed configurations of the machine line, that we are able to make offer for i
Q3:How long do you need to install and commissioning the machine line?
A3: Usually one week for installing and teaching workers about how to operate.
Q4:How many people will come to install and commission the machine line?
A4: Usually 1 engineer is enough to do all the things. All his expense during this travel will be paid by buyer accordingly.
