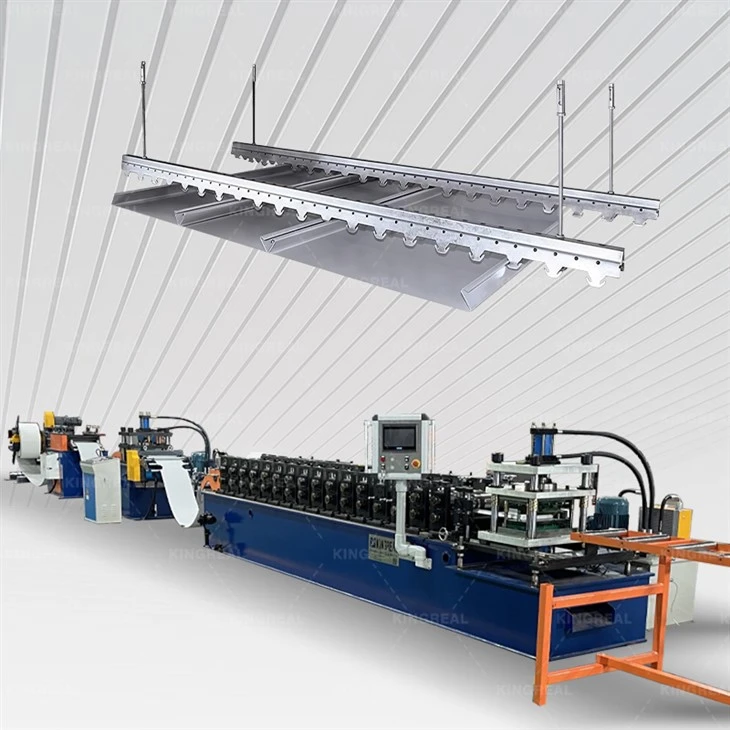

S300 Linear Ceiling Machine
Video About Linear Strip Ceiling Roll Forming Machine →

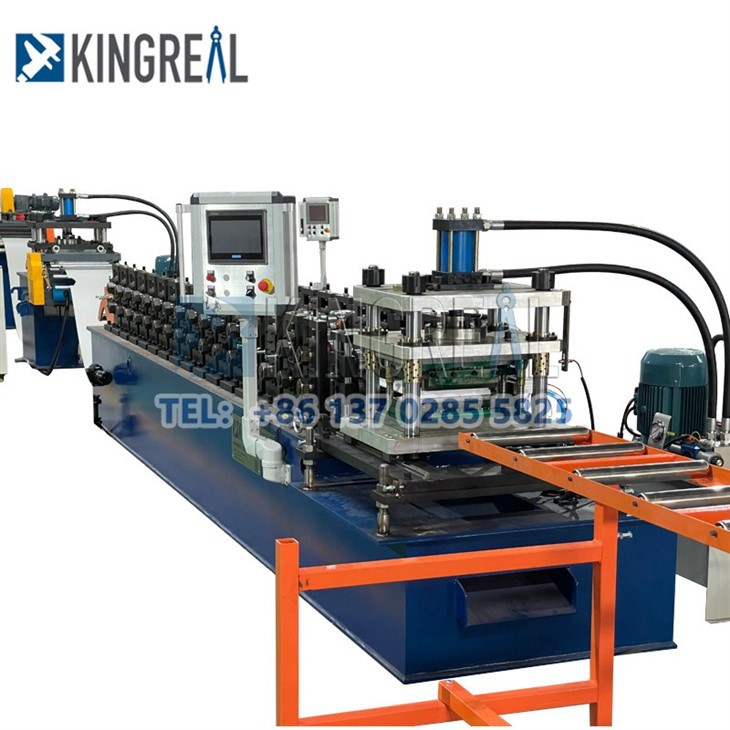

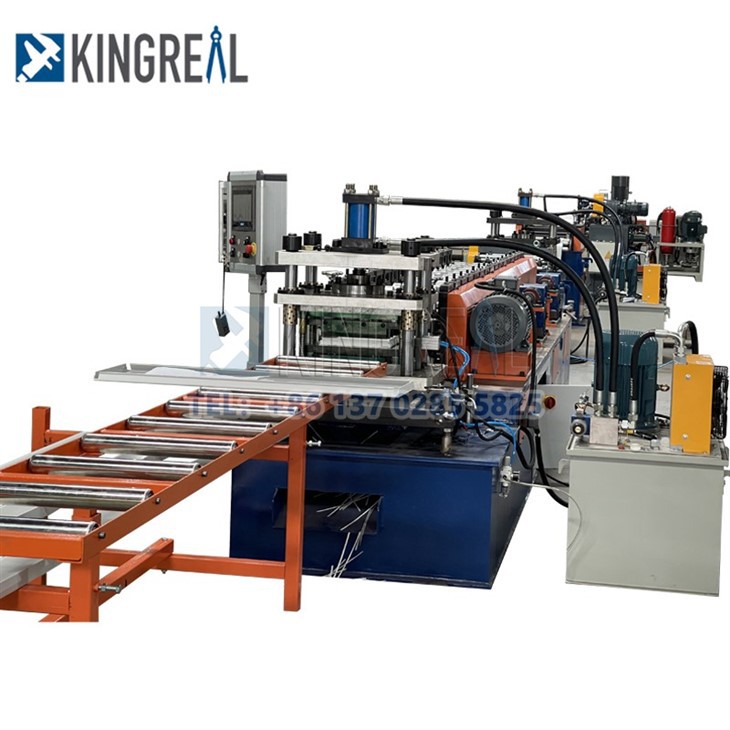

Roll Forming Machine Description
KINGREAL MACHINERY is a professional manufacturer of different kinds of roll forming machines, including machines for baffle ceilings, linear strips, open cell grids and others.
More than 500 machines have been successfully delivered to customers worldwide, and we have established a solid reputation with them. Kingreal can generate the strips for the linear strip production machine with or without bending ends.
The bending ends can be fully aromatically created. The strips will be sheared and bent in one motion following precision roll forming with a precision pre-notching station placed before the main roll forming equipment.
Techinical Specification
|
Main parameters |
|
|
Line structure |
Portal-type frame style, A3 steel |
|
Forming Roller Stations: |
12 Stations |
|
Forming Roller shaft: |
Φ40mm |
|
Forming rollers |
Cr12, Quenching, hardness HRC56-58º |
|
Hydraulic punching system |
Servo feeding; Holes position tolerance ±0.03mm |
|
Forming Speed |
7-12 meters / min |
|
Main motor: |
5.5kw |
|
Material of Sheet: |
Soft Quality (Annealed) Galvanized Sheet |
|
Sheet Thickness: |
0.3 to 0.5 mm |
|
Cutting mode: |
Hydraulic automatic punching and cutting machine |
|
Control Cabinet |
3xAC380v, 50HZ |
|
Main machine sizes (L*W*H) mm |
6000*700 *700 |

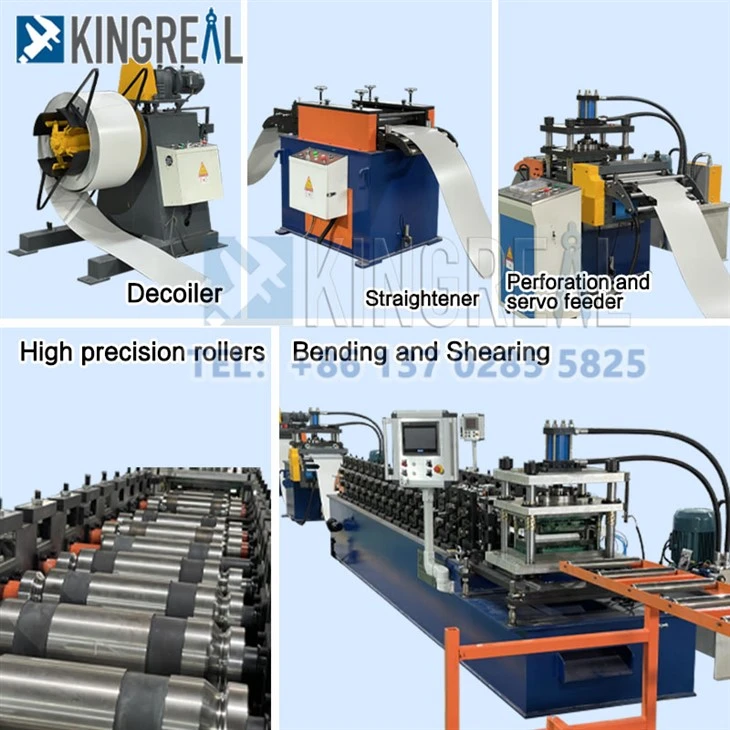

Structure Of The Production Line
|
- Hydraulic decoiler - Precision leveler - Pre-Notching station - Main roll forming machine - Shearing & Ends bending - Output table - Electrical & Hydraulic system |
 |
Machine Features
|
Decoiler with hydraulics
We offer a hydraulic decoiler and a manual decoiler with an integrated hydraulic core expansion system to adapt to changing demands.
Additionally, a trolley option is available for fully automatic metal loading.
|
|
|
|
High Precision Straightener
The device offers highly accurate straightening. We increased the number of accuracy rolls by two to verify that the materials are straight. The precision of the final items is thereby increased.
Leveling rollers are made of 40Cr round bars that have undergone thermal refinement, high frequency quenching, double electroplating, and precise grinding. They have four threaded rods for adjustment, are smooth and free of scratches, and are harder than HRC 62.
|
|
Auto Width Adjustable
The auto width adjusting mechanism that KINGREAL designed is driven by a high precision Yaskawa servo motor and through a precision screw rod. The device has the ability to manually or automatically adjust the roller width.
This width-adjustable mechanism is frequently used on machines that manufacture U-shaped baffle ceilings, shelves, wall studs, and tracks, among other things.
This system's versatile approach and low investment costs allow it to create a variety of items in a variety of sizes on a single machine.
|
|
--------------------------------------------------------------------------- Production Application-----------------------------------------------------------------------------
--------------------------------------------------------------------------- Production Workshop-----------------------------------------------------------------------------
KINGREAL has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop. In order to ensure the production quality of the machines, the whole line will be tested and adjusted in the factory. KINGREAL welcomes all customers to visit our factory.
--------------------------------------------------------------------------- How To Install The Machine?-----------------------------------------------------------------------------
In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services.
--------------------------------------------------------------------------- Local After-Sale-----------------------------------------------------------------------------
KINGREAL has established specialized service points in numerous nations and areas, such as India, Russia, Turkey, the United Arab Emirates, and Qatar, in order to be able to properly address customer demands the first time.
Localized service locations are also being developed in other nations and regions.
FAQ
01.What Is Linear Strip Ceiling?
02.The introduction of metal linear strip ceiling
03.Cold Bending Roll Forming Equipment Design Characteristics
04.Manufacturer Cold Roll Forming Machine Layout Requirements
05.What should be paid attention to in the operation of the cold roll forming machine?
