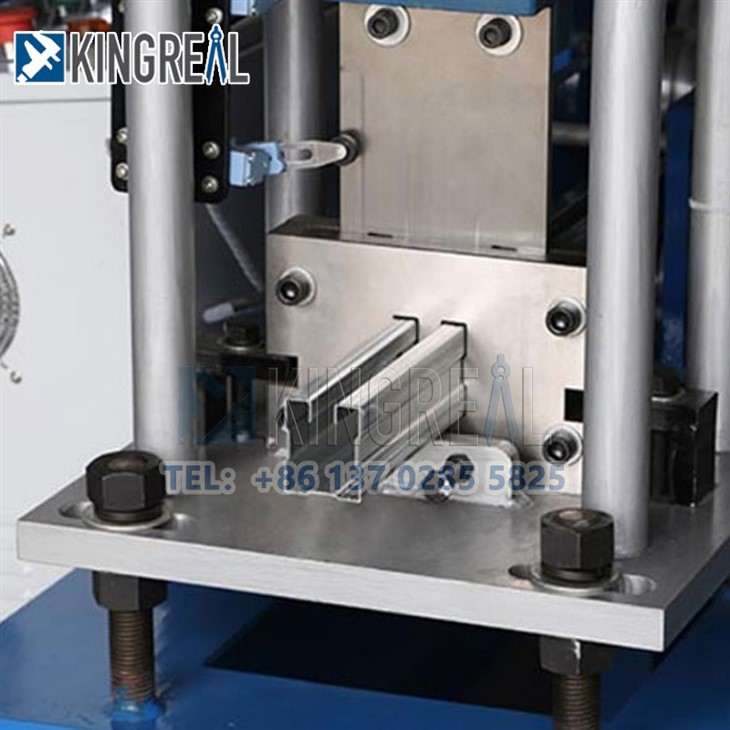

Strut Channel Roll Forming Machine

Video About Struct Channel Roll Forming Machine →

ØWhat's Uni Strut Channel?

Strut Channel is a standard cold roll formed steel used in electrical industry or constructions for structural support. Which is usually formed from metal coil strips, roll formed into an open channel section with lips to provide additional stiffness.

The basis strut channel sizes are: 41*21,41*41,41*61,41*81

This part is a 6.5-meter automatic control shifting and feeding device, which can automatically clamp a workpiece with a length of 0-6000mm according to the processing program to automatically achieve an equidistant, unequal-distance precise feed, and has guide rail guidance, precision rack drive, servo motor drive.

The table of the feeder is equipped with a cylindrical roller with adjustable center height, which effectively reduces the transfer resistance of the workpiece during the transfer process and the surface of the workpiece is not scratched.

Machine Features









1. Customized equipment:

Customers customize according to their own production requirements, product requirements, plant requirements, etc.

Our company relies on its own strong technical team and school resources (Shandong Vocational College of Science and Technology) to meet the different requirements of customers.



2. Automation:

Adopting domestic advanced technology and integrating many production processes, one person can complete the operation, saving labor and production costs.



3. High speed:

highly automated and intelligent, saving production cycle and improving production efficiency.



4. Safety:

PLC controller is adopted and multiple safety protections are built-in to avoid accidental injury.



5. Durable:

Most of the equipment adopts well-known international brands, such as Mitsubishi, Schneider, Pepperl+Fuchs, Omron, etc., to reduce failure rate, save production time and cost, improve production efficiency, and reduce maintenance cost.





More Detail About Unistrut Channel Forming Machine

Raw material Uncoiling –- Sheet Leveling – -NC roller Feeding – -High speed holes Punching – -Precision cold roll Forming – -Hydraulic Tracking and Cutting – Products output

The seismic support produced by the strut channel roll forming machine (equipment) restricts the displacement of the attached electromechanical engineering facilities, controls the vibration of the facility, and transmits the load to various components or devices on the bearing structure.

Building water supply and drainage, fire protection, heating, ventilation, air conditioning, gas, heating, electricity, communications and other mechanical and electrical engineering facilities after earthquake-resistant reinforcement can reduce earthquake damage and reduce damage when encountering earthquakes with seismic fortification intensity in the region. Prevent the occurrence of secondary disasters as much as possible, so as to achieve the purpose of reducing casualties and property losses.

Solar Strut Channel Product Drawing





KINGREAL ROLL FORMER Technical Team
