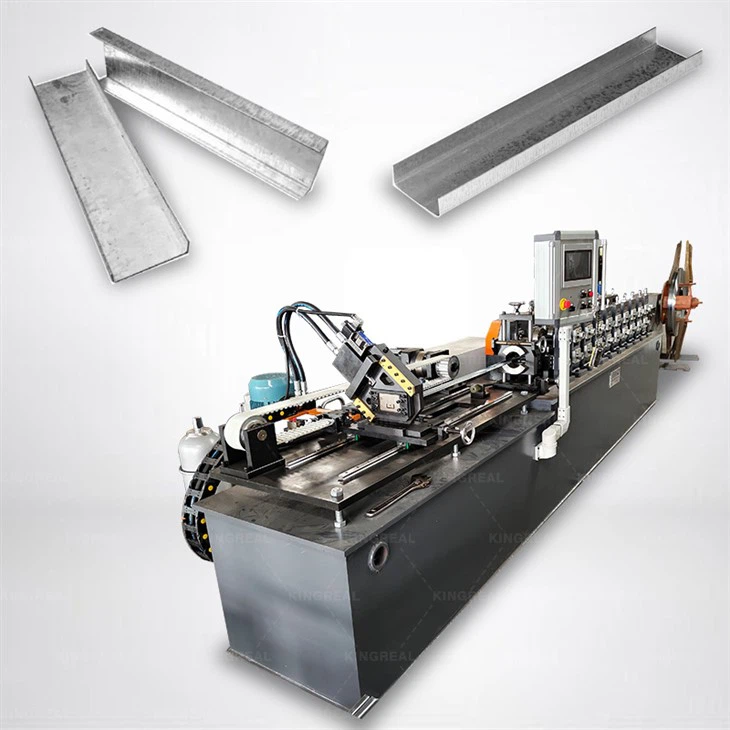

U Channel Roll Forming Machine

What Is U Channel Roll Forming Machine?



U Channel Roll Forming Machine is a kind of machine and equipment used to produce U channel steel. It takes rolled sheet material through a series of processes, such as decoiler, feeding, forming, and cutting, to produce U channel steel.



The main channel roll forming machine is commonly used in construction, manufacturing and other industries to produce U channel steel in various sizes and thicknesses to meet the needs of different industries.The U Channel Roll Forming Machine is characterized by high efficiency, precision and stability, which can greatly improve the production efficiency and quality of U channel steel.



1)Raw Material Uncoiler For U Channel Machine It adopts hydraulic expanding frame and the capacity is 1.5 Ton. Manual feeding and manual expanding.   1)Decoiler a.Power: no power b.Decoiler speed: < 100m/min c.Max. Loading Capacity: 1.5 ton *2 d.Material Inner diameter: φ480mm-φ520mm e.Max material external Diameter： <φ1200mm
2)Roll Forming Main Machine This roll forming main machine including the main roll forming station and hydraulic shearing station.   Machine frame: Steel panels are used to fuse the machine frame into a single piece of structure. Following fine processing by the planomiller, one panel with a thickness of 20 mm will be installed on the frame. This will guarantee the fundamental size accuracy.   Additionally, it will strengthen the machine to lessen the impact of deformation.
Hydraulic Shearing For Main Channel Machine A .high-efficiency hydraulic system with energy storage and environmental protection is used in the hydraulic parts. Additionally, it uses air cooling and Taiwanese hydraulic components.   b. Shearing Method: Servo follow cut without stopping the machine; D2 blade material with HRC60°C hardness after quenching treatment.

Auto Package Unit ForU Shape Profile

Light steel keel automatic package machine is a kind of automatic equipment specially used in light steel keel production line, which can automatically complete the baling work of light steel keel. This kind of machine usually includes the following parts:





• Automatic turning system: used to turn the keel to the right position before packing. Automatic strapping system: uses straps to automatically tie the keels to ensure they remain neat during transportation and storage.
• Automatic Stacking System: Automatically stacks the bundled keels for subsequent handling and transportation.
• Automatic transfer system: transfers the bundled keels from the production line to the designated location or to the next process. The combination of these systems not only improves production efficiency, but also reduces labor costs and possible operational errors





Why Choose Us?



High-speed production

High-speed production (100M/Min) to improve U Channel Machine productivity;

Diverse machine and equipment production program options:



1. Single machine high speed production;

2. 3-in-1 production, one machine produces three different shapes of profiles;

3. can be equipped with protective cover, improve the production safety index.

 (Don't hesitate to send us your needs right away to get an updated quote program!)

1. Are you a manufacturer?
Yes, KINGREAL ROLL FORMER is a professional sheet metal processing machines manufacturer, we are an OEM.

We have been focusing on the field of machine manufacturing for more than 20 years.

2. What's your Warranty ?
12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.

3.  What's your payment terms ?
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.

4.  What can you do if the machine breaks down?
We will include some spare parts with the machine itself, if emergency we will send required parts by air to ensure problem solved quickly.

5. When will you tell me the price?
After confirming all detailed configurations of the machine line, that we are able to make offer for i
