F Keel Roll Forming Machine
Video About F-Shape Channel Roll Forming Making Machine →
Machine Description
F drywall profiles are produced in line with client requests.
This apparatus is a unique piece of machinery for cold-formed profile forming. It is a unique piece of equipment that was created to meet the needs of the user.
When the raw materials are loaded onto the uncoiler and leveled, they are then placed into the main roll forming machine, where they are gradually deformed to take on the necessary geometric shape by the roll forming machine's main forming stations and a few specialized auxiliary molding devices before entering the straightening device to remove internal stress. A cutting machine lengthens the product to the user's specifications for various product lengths while guaranteeing its straightness.
It is then manually taken from the receiving table.
Machine Features
|
Finished product support frame, feeding mechanism, forming host, shearing mold, PLC electronic control system, and passive unwinding mechanism make up the majority of its components.
|
 |
F-shape Profile Machine Trial In Factory
Technical Specification
|
Raw materials Specification |
galvanized steel coils, 0.5-3mm according with customer's request |
|
Products types |
F drywall profiles or other customize profiles, According with customers' design |
|
Maximum forming speed |
30- 120 m / min according with different machine structure and customers' request |
|
Roll Forming stands |
10-20 Rollers station based on the final products section drawings sizes |
|
Machine Power |
~ 15 KW, main machine power about 7.5KW, Hydraulic station power 5.5KW, Servo motor power 1.8KW |
|
Shearing method |
There are different choices for the shearing method: 1. Hydraulic shearing station 2. Saw blade shearing |
|
Main roll forming machine specification |
1. High precision gear box driving 2. Independent archway panel structure 3. Combi structure for your choice to produce multi profiles on one machine. |

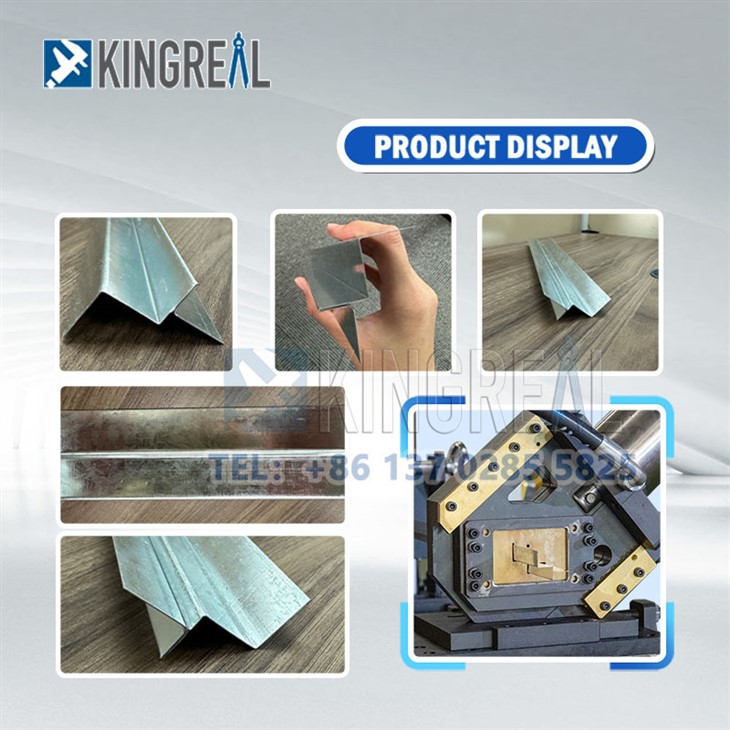

Products Description
-Decoiler
-Raw materials guide
-Continuously cold roll forming
-Hydraulic follow shearing
-Output tables
-Electrical & hydraulic system
Application Of F-Shape Profile
Our Customer
Export:
Netherlands, Australia, UK, Mexico, Brazil, Argentina, Israel, UAE, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
Technical Support
KINGREAL will offer both online and local installation services to assist our customers in resolving machine installation issues.
