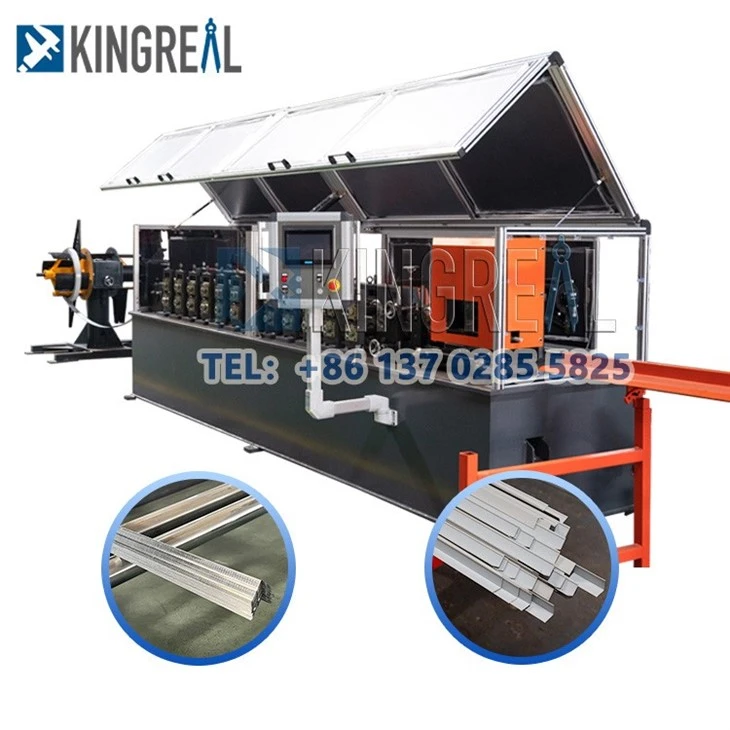

Wall Angle W/L-Shape Profile Roll Forming Machine

KINGREAL ROLL FORMER Wall Angle W/L-Shape Profile Roll Forming Machine is used to manufacture wall angle profile. The wall angle profile is a metal or steel material used to support and reinforce the corners of walls in buildings, usually made of galvanized steel or aluminum alloy. The Wall angle profile roll forming machine shapes the different size metal sheet into edge keel by processing it through a series of bending, cutting and stamping processes. According to different production requirements, the products produced by the corner edge forming machine can be roughly divided into metal wall angle.

This wall angle channel machine and equipment can automate the manufacturing process of corner keel and improve production efficiency and product quality. Corner edge forming machines are widely used in the construction industry for manufacturing corner keel materials to provide structural support and decorative effects.

Hydraulic Decoiler -- Main Roll Forming Machine -- Hydraulic Cutting Station -- Output Table

1. The Wall Angle Profile Roll Forming Machine can adjust the roll forming mold to produce different specifications and shapes of wall angle profile as needed. For the different shape, both L-shape and W-shape can be choose.

2. The Main Roll Forming Machine adopts stable structure and advanced control technology, which can maintain stable production quality and operation status, which can also has a long service life and stable performance.

3. The Light Steel Keel Roll Forming Machine has a simple and easy to understand operation interface and humanized operation design, so the operator can easily master the operation skills.

Wall Angle Profile is a construction material used for partition walls and meal ceilings, whose main function is to provide support and hold the wall panel or ceiling structure in place.

The difference lies in the installation location and use:

Partition wall wall angle profile: When used to build a partition wall structure, the wall angle profile is located at the corner of the wall and serves as a support and connection for the wall.

Metal Ceiling Wall Angle Carrier Profile: When used in the construction of ceilings, the corner edge keel is located at the edges and corners of the ceiling.

The location and purpose of wall angle profile installation on partition walls and ceilings varies, but both are intended to provide structural support and anchoring for flat, solid and aesthetically pleasing walls and ceilings.

KINGREAL warmly welcomes customers from all over the world to visit our factory in China. Please do not hesitate to contact us immediately if you need any assistance.

In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress



Wall Angle Profile Machine

The wall angle profile machine is specially designed for producing 22*22, 22*14 wall angle profile. Wall angle profile machine is mainly used to manufacture metal or composite material corner bead to enhance the strength of wall corners, prevent cracks, and improve construction efficiency.



The wall angle profile machine can follow up the production needs of customers to adjust different production speeds, configure protective shield, etc.



Working process about the wall angle profile machine:

Deceoiler-- Roll Forming Machine -- Cutting Station -- Output Table

Angle Bead Roll Forming Machine

KINGREAL ROLL FORMER Angle Bead Roll Forming Machine, also called corner bead making machine, through multiple rolling processes, the punched diamond mesh metal plate (such as galvanized steel plate) is bent into a corner protection mesh profile with a wing angle of 75°~85° and a top arc radius of R2~3mm, which is used to enhance the crack resistance of the corner and the convenience of construction



Working Process Of Angle Bead Making Machine

Decoiler -- Punch Press Machine -- Roll Forming Machine -- Output Table



KINGREAL ROll FORMER can follow up with customers' needs and provide two different punching equipment options:
1. Mechanical punching, suitable for high-quality punching equipment
2. Hydraulic punching, suitable for customers with limited budget

Steel Angle Bar Roll Forming Machine

Steel Angle Bar Making Machine is an automated equipment specially used for producing angle steel (L-shaped steel) for construction and industry. Steel Angle Bar Roll Forming Machine continuously processes metal strips (such as galvanized sheets, stainless steel sheets) into equal or unequal angle steels through cold bending forming process.

Steel Angle Bar Roll Forming Machine usually consists of 10-13 chrome steel rollers (material GCr12MoV) to ensure forming accuracy and durability, producing 50×50mm or 75×75mm V-shaped L-shaped profiles.



Working Processing Of Steel Angle Bar Roll Forming Machine

Uncoiling → feeding → roll forming → fixed length cutting → blanking, full automatic control, production speed can reach 20 meters/minute
