Full Auto CZ Purlin Roll Forming Machine
Video About KINGREAL Roll Forming Machine Factory

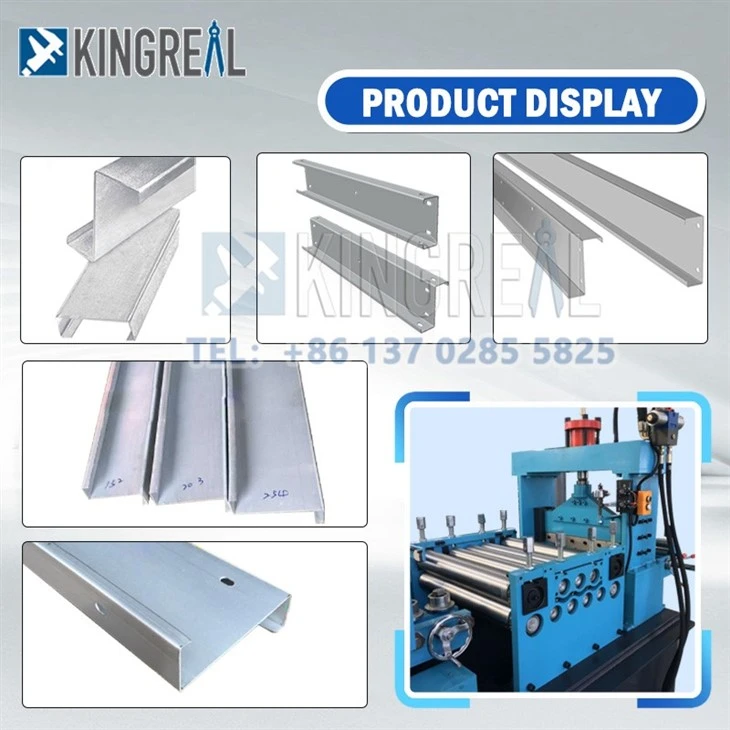

Products Description What Is CZ Purlin Product?

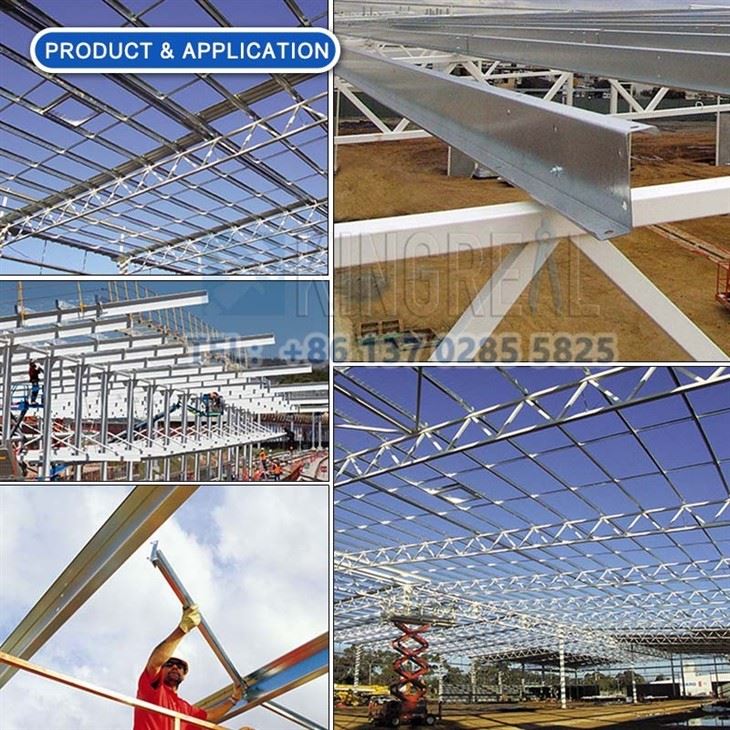

CZ purlin is a common member in construction, usually used to build roof or wall structures. It is a kind of steel plate with C-shaped cross section, which has high strength and stability and can be used to support and fix various parts of the building.
CZ purlin can be customized according to the needs, and the common specifications are 100*50, 120*50, 140*50, etc.

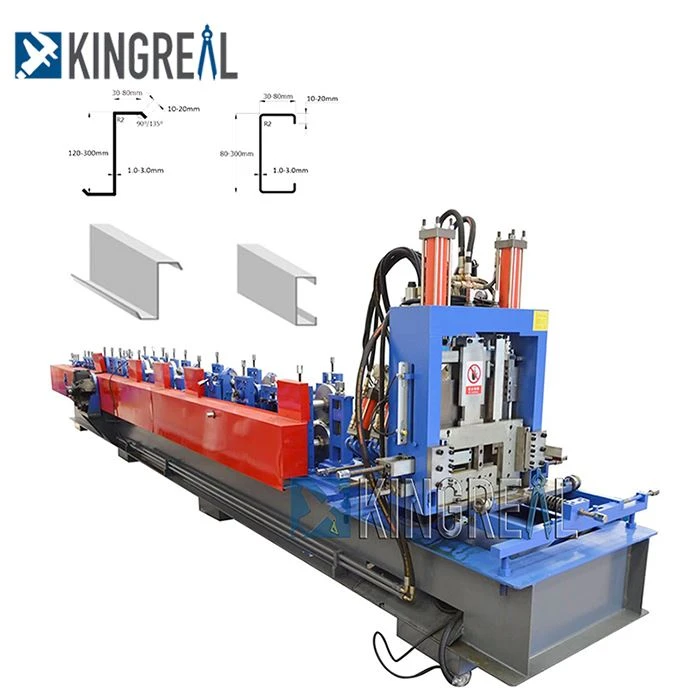

What Is CZ Purlin Roll Forming Machine
KINGREAL full auto CZ roll forming forming machine is a kind of machine used to produce C- and Z-beams, which can process, press, cut and roll form steel plates through a series of processes to finally form C- and Z-shaped steel products.
The C&Z Roll Forming Machine usually consists of coil device, hydraulic system, electrical system, forming machine frame, cutting system, etc., which can achieve efficient and accurate production. CZ forming machine is widely used in construction, bridge, machinery manufacturing, light industry and other fields.
Working Procedure Of CZ Purlin Making Machine
Hydraulic Decoiler -- Feeding And Straightener -- Main Roll Forming Machine -- Hydraulic Punching & Cutting -- Product Support Frame
Technical Specification
|
Material |
Galvanized Steel Coils |
|
Material thickness |
1.0～3.0mm |
|
Forming passes |
20 forming passes |
|
Forming speed |
18 m/min |
|
Forming rollers material |
Gcr15 mould steel, with quenched treatment |
|
Drive mode |
Motor drive, gear chain drive |
|
Motor power |
18.5KW frequency conversion speed regulation |
|
Cutter material |
Cr12Mov heat-treated |
|
Frame size |
H400 |
Advantage Of This Roll Forming Machine
1. High degree of automation:
CZ purlin forming machine adopts PLC control system to realize fully automatic production, which greatly improves the production efficiency and production quality.
2. High quality of products:
The purlins produced by CZ purlin forming machine have stable quality, precise size and smooth surface, which can meet various requirements of customers.
3. Simple operation:
CZ purlin forming machine adopts human-machine interface operation, which is simple and convenient to operate and does not require professional skills to be able to operate.
Customer Inspection
KINGREAL warmly welcomes customers from all over the world to visit our factory and see for themselves how our machines work.
