Gypsum Carrier Making Machine Description

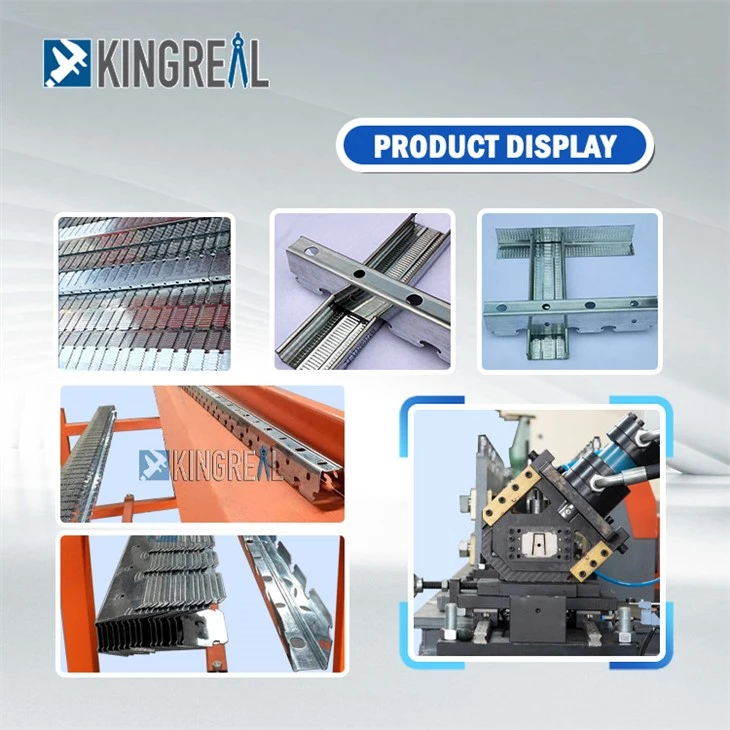

The gypsum clip carrier profiles produced by KINGREAL gypsum clip carrier

cold forming machine are widely used in the construction industry, mainly used

as fasteners during the installation of linear aluminum strips, baffle ceiling strips

and can also be used in the fields of partition walls and wall decoration.

The gypsum clip carrier making machine produced by our company has stable

performance, high automation program and high efficiency.

Welcome to inquiry and order.

KINGREAL GyPsum Carriers Roll Forming Machine series Including As Follow

1. 50 vice keel high speed roll forming machine (up to 120m/min)

2. C / U profiles roll forming machine (up to 120m/min)

3. Gypsum clip carrier making machine

The profiles produced by these roll forming machine can provide a complete metal

suspending system for the gypsum board.

Technial Features

- High speed punching press and high quality punching molds set

- Auto Servo feeder control.

- 63tons capacity Pneumatic clutch C type high speed press, the punching speed is 80-200 SPM

- High precision main roll forming station with independent archway panels, 10 sets of forming rollers for V section shape

- Combi structure available for different carrier shape production on one machine

- High precision pin-insert shearing method

Technial Specification Of Gypsum Ceiling Carrier Making Machine

Raw materials	galvanized steel strip with thickness 0.5-0.8mm
Carrier sizes	V types with ends punching, According with customers' drawing
Control method	PLC control, length and quantity set on touch screen
Press	63tons high speed pneumatic clutch press to punch about 200-300mm each step
Servo feeder	NC servo roller feeder with Yaskawa servo motor
Maximum forming speed	10-30 m / min, can punch 200mm each step
Roll Forming stands	10 Rollers station
Length control	1. Encoder to detect line 2. Fiber optic to count the holes 3. Pins-insert to shearing
Products Accuracy	1mm/3000mm
Machine Power	~ 20 KW

Structure Of Gypsum Ceiling Carrier Making Machine

- Combine decoiler & Straightener

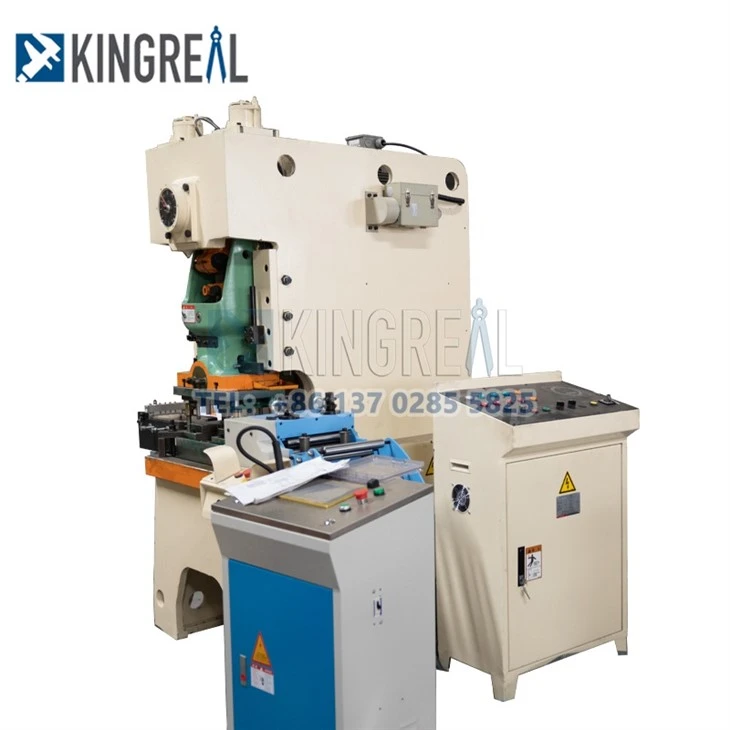

- High speed Pneumatic clutch Punch C press & servo feeder

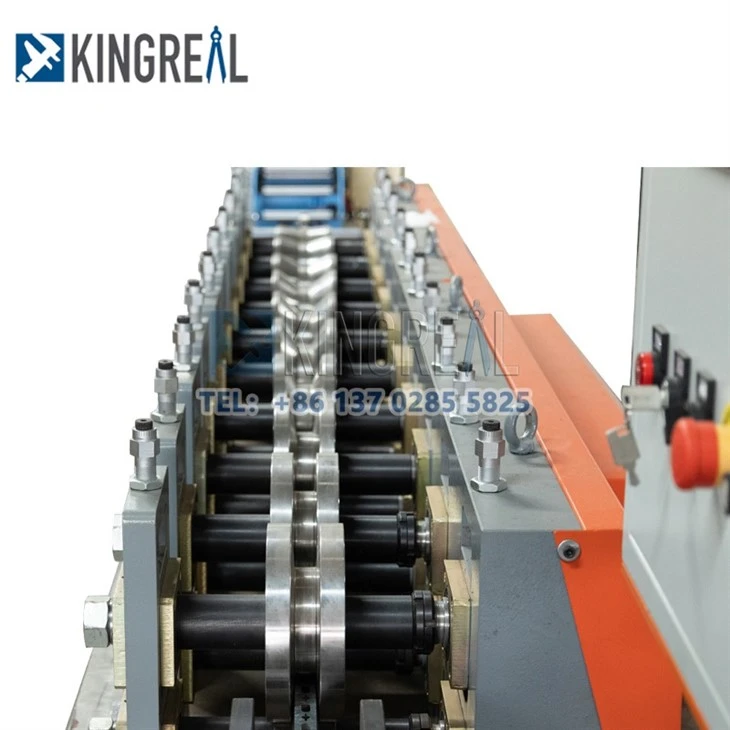

- Main roll forming machine

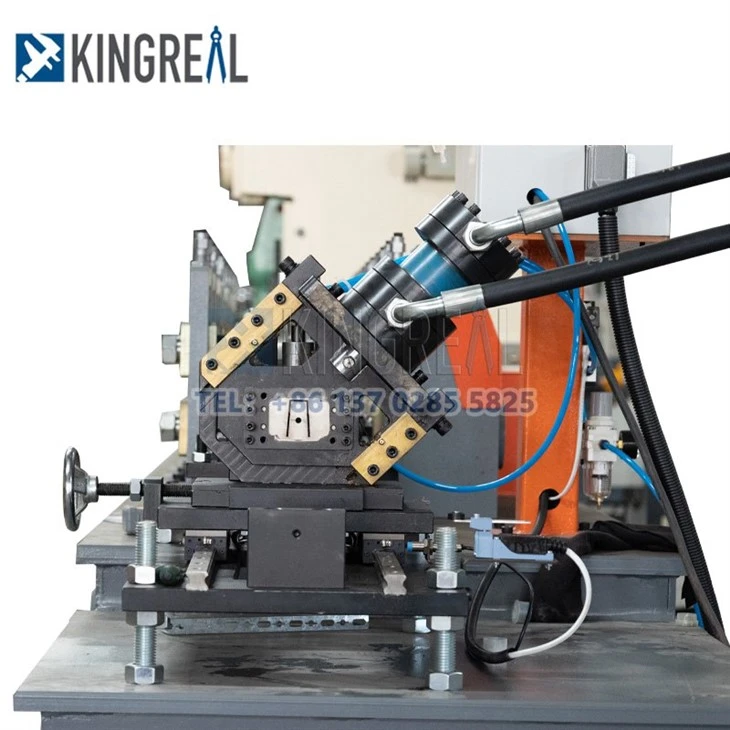

- Auto shearing station with Pin insert shearing and ends punching on one set of mold.

- Output table.

- Electrical & Hydraulic system

Advantages

STRONG ROLL FORMING MACHINE STRUCTURE

KINGREAL machine frame is welded by steel panel to one-piece structure.

Then one 30mm thickness panel will be put on the frame after fine processed by the Plano miller. This will ensure the accuracy basic size.

Also, it will increase the machine strength to reduce the deformation and ensure the long life time operation.

Rich Projects experiences

Our company has rich experience in design, production and installation of roll forming

machines. At present, our company has completed designing and producing of more than

500 kinds of different forming machines.

We've been successfully exported and installed our machines in more than 60 countries around the world and won joint praise of customers.

Relying on rich project experiences and customer feedback, we continue to improve,innovate,and be dedicated to produce faster, smarter,more automatic and efficient machines.

Excellent Technical SUPPORT

Our company provides professional after-sales service and support.

We will send an engineer to customer's factory for guidance, installation,

trial production and training when the machines are shipped.

In addition, we provide 7/24 online support to solve all kinds of problems for customers.
