open cell ceiling Machine Description

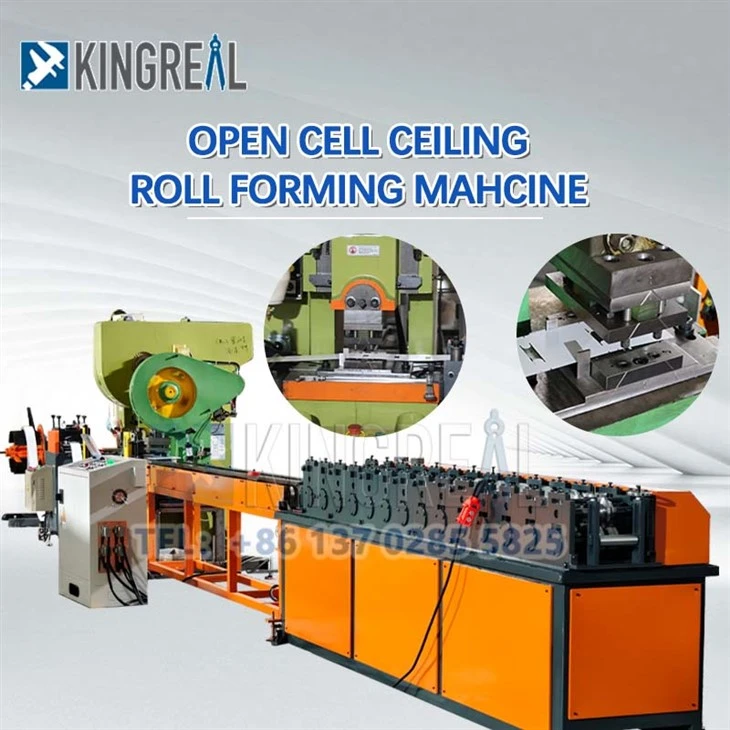

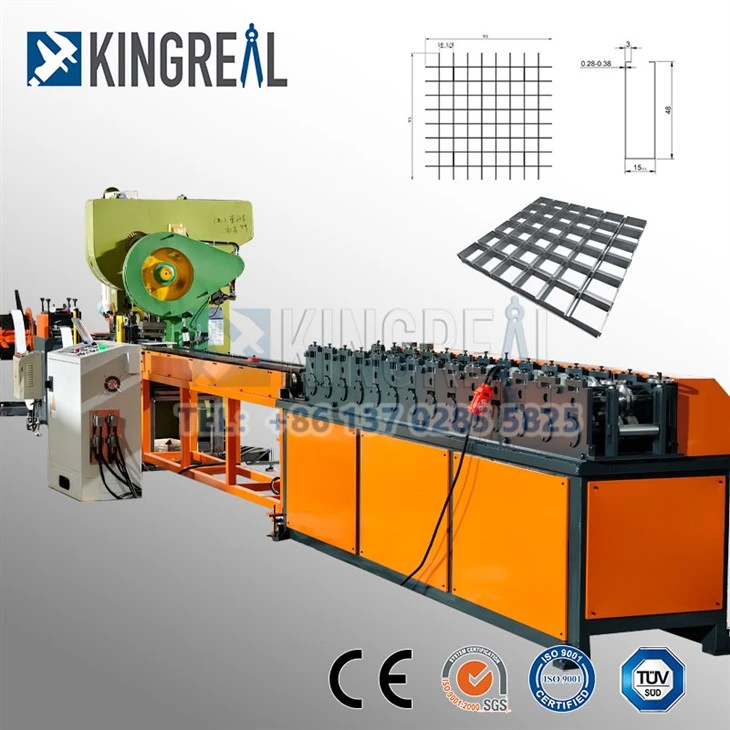

KINGREAL ROLL FORMER Open Cell Ceiling Roll Forming Machine

One of our most well-liked products is the open cell ceiling making machine, which may be produced using our machine in its entirety. Included in our open cell ceiling machine are the material decoiler, punch press, primary roll forming, and final product collection components.

By switching the punch molds, this open cell ceiling production line can create the entire open cell ceiling system, including the main grid, cross grid, and 600 /1200/2400mm carriers.

25×25MM

Reference Size

30×30MM

Reference Size

50×50MM

Reference Size

65×65MM

Reference Size

Working Process of open cell ceiling machine

Hydraulic Decoiler -- Straightener -- Punching Press Machine -- Main Roll Forming Machine -- Output Table

open grid ceiling making machine

Technical Specification of open cell ceiling machine

Raw materials	Pre-painted Aluminum or Pre-painted Galvanized steel
Open cell ceiling sizes	Width: 10mm / 15mm / 25mm Height: 40mm / 50mm/ 60mm
Length control	Automatic servo control
Maximum forming speed	15 m / min
Roll Forming stands	14 roll forming stations
Machine Power	~ 12KW

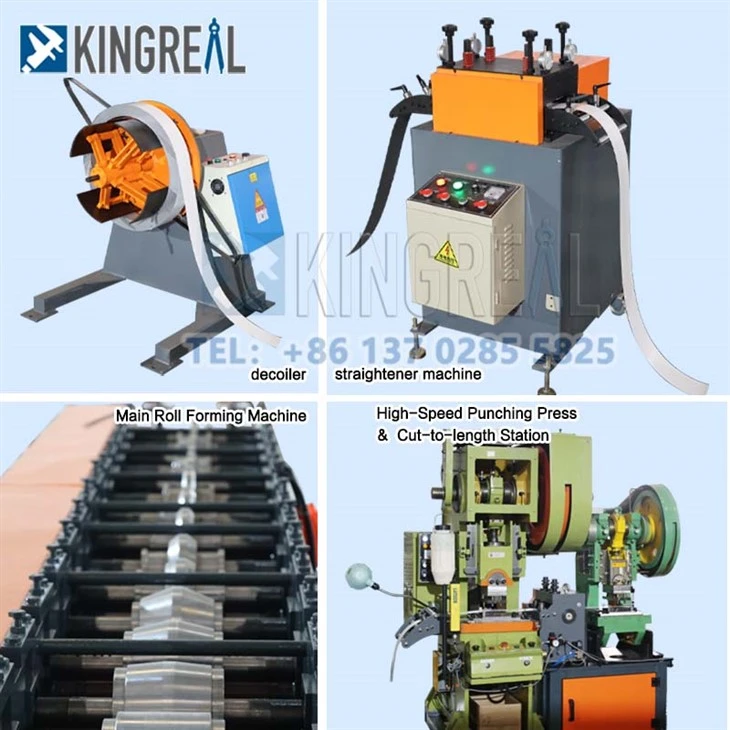

open cell ceiling Machine Structure

01.

- Combine decoiler & Leveler

- Punch & Shearing

- Servo feeder

- Main roll forming station

- Output table.

- Electrical & Hydraulic system

KINGREAL Roll Former is a skilled producer and supplier of various

machinery for processing metal sheets and roll shaping.

Following confirmation of the order and design, we will begin fabricating and producing all parts.

02.

- Forging, CNC machine center processing, vacuum heat treatment, wire cutting, fine grinding, and other processes will be used to create the forming rollers.

- Well-known manufacturers like Yaskawa servo motor, Fatek PLC, etc. will be used for the electrical and hydraulic components. Once all parts have been produced, we will begin fabrication and conduct extensive factory testing. Additionally, we have a strict quality control system in place for the roll forming machine as well as the finished goods.

All of these will guarantee the long life and reliable operation of our machine.

Open Cell Ceiling Machine In The Factory

High-end Open Cell Ceiling Machine

High-end Open Cell Ceiling Making Machine--2026 New Design

The high-end Open Cell Ceiling Roll Forming Machine is another one of KINGREAL Roll Former primary products in addition to the conventional Open Cell Ceiling Making Machine.

The high-Profile Open Cell Ceiling Roll Forming Machine differs most from similar machines in that it has a high-speed 63ton punching press and a hydraulic cut-to-length station.

As a result, the open cell ceiling machine's production rate will significantly increase.

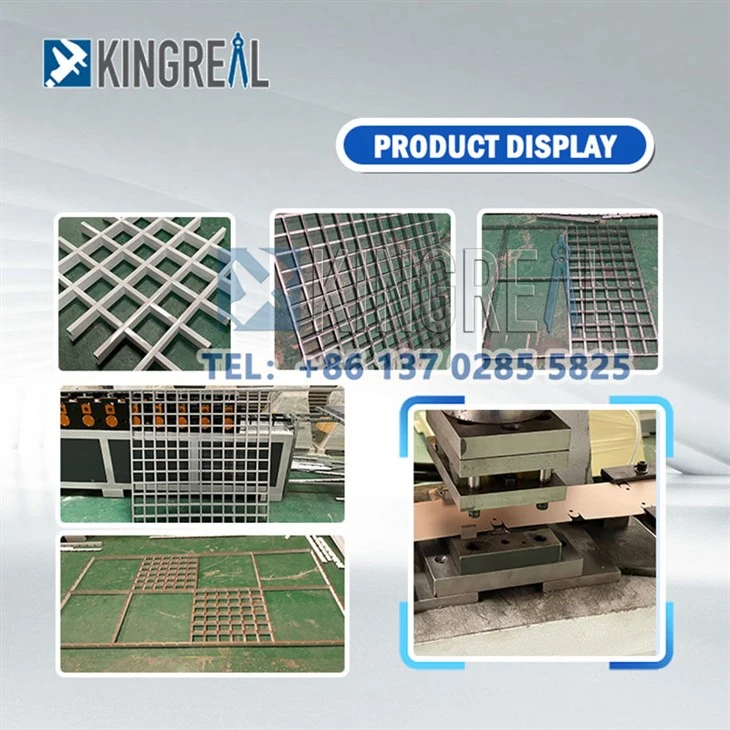

Final Product

"In Factory"

open cell ceiling

open cell ceiling grid

"Reference Drawing"

open cell metal ceiling

open metal ceiling

"About Installtion"

open cell ceiling installation

Acceptance Services for Open Cell Ceiling Machines

Upon completion of the open cell ceiling machine manufacture, KINGREAL Roll Former initiates a comprehensive, standardized factory acceptance process to ensure rigorous quality control.

This acceptance procedure comprises three core stages:

First, KINGREAL Roll Former professional engineers conduct a full pre-assembly and commissioning phase, verifying the equipment's operational status item by item; Next, the client is invited to the factory to participate in the on-site inspection and operational testing of the complete open cell ceiling machine;

Simultaneously, specialized quality checks are performed on the finished product to strictly verify all technical specifications.

Throughout this process, KINGREAL Roll Former thoroughly evaluates operational performance and output quality, ensuring that all open cell ceiling machine parameters align precisely with the client's project requirements.

If any anomalies arise during acceptance, KINGREAL Roll Former engineers will promptly perform on-site adjustments and troubleshooting; if on-site modifications fail to meet standards, the open cell ceiling machine will be returned to the factory for optimization and rework.

The open cell ceiling machine is packaged and shipped only after the client has confirmed acceptance and signed off on the results, ensuring the delivery of a stable, reliable, and fully compliant open cell ceiling machine.

KINGREAL ROLL FORMER Exhibition

2025 exhibition 3

FAQ

01.How To Choose Roll Foring Machine?

Roll Forming Machine, from the current point of view it is different specifications, and regardless of which specifications to choose the size, is involved in the product offer this work, and this work is very important, because it is related to the buyer can correctly buy the product. Therefore, based on this point can be concluded that different sizes of cold-formed steel equipment, its product offer this work is important work, the answer to this question is yes.

02.Common Specifications of Metal Open Cell Ceiling

One of the more popular products in the suspended ceiling range, metal open cell ceiling is a suspended ceiling system made of metal materials such as aluminum alloy and stainless steel. It usually consists of a series of parallel metal bars or grids that form a structure with light transmission and ventilation. This type of ceiling design is not only aesthetically pleasing, but also improves the sense of permeability of the space.

03.Roll Forming Machine Design And Manufacturing Feature

Cold forming machine equipment is a kind of machinery and equipment used to process metal plates (such as steel plates, aluminum plates, stainless steel, etc.) into various complex cross-sectional profiles through continuous bending process.

04.What are the benefits of open ceilings?

Open cell ceiling system is a type of ceiling system made of metal material, usually made of metals such as aluminum or steel. This type of ceiling system consists of a series of grid-like metal strips or panels that form an open or semi-open grid structure. Metal grille suspended ceilings are widely used for interior decoration in commercial buildings, public places and some high-end residences.

05.HHow To Design Roll Forming Machine?

Roll Forming Machine is used to form flat metal sheets or strips into specific shapes by passing them through a series of rollers step by step. It is used to form flat metal sheets or strips into desired cross-sectional shapes, such as grooves and corrugated shapes, through a series of rollers in a continuous rolling operation. This type of molding is usually used to produce large quantities of metal products, such as:

06.How is the open ceiling ceiling market developing?

With the continuous development of the construction industry and the improvement of consumer aesthetics, the open cell ceiling market is witnessing unprecedented growth opportunities. According to the latest research report, the market demand for open cell ceiling system will continue to grow in the coming years, and the market size is expected to reach billions of RMB in 2029, with a CAGR of %
