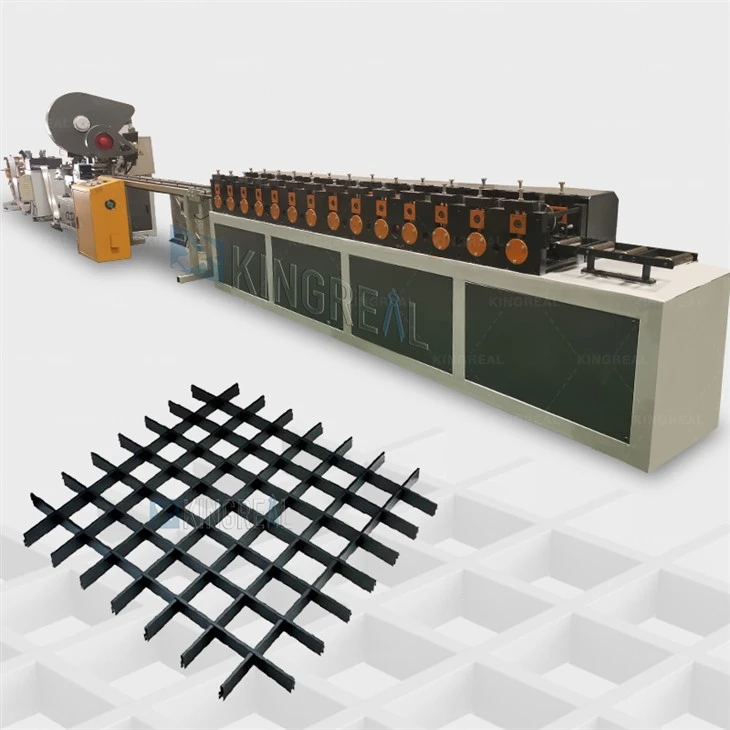

Description Of Grilyato Ceiling Roll Forming Machine

KINGREAL ROLL FORMER Grilyato Ceiling Roll Forming Machine is one of our

best machines featured with most advanced technology. Open cell ceiling machine contains a full solution from material decoiler to perforation and

roll forming.

Both customisation and standardization are features of this grilyato ceiling production process. In addition to producing open cell ceilings in standard sizes, it can be tailored to manufacture alternative sizes in response to customer requests.

Gi steel or aluminum coils are used as the raw material, and the decoiling and straightening process is quick. The entire open cell celing production line for open ceill ceilings is fully automated.

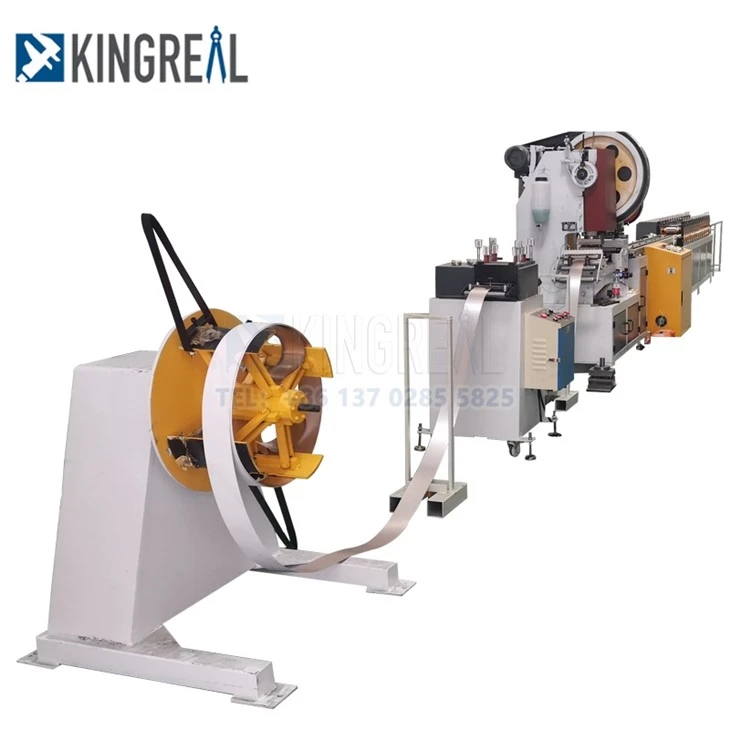

Working Process for open cell ceiling line

Combined material decoiler&straightener, High-speed punching press, Servo feeder, Main roll forming machine, Product output table and Electrical control system.

suspended ceiling grid machine

Main Part Detail Of Grilyato Ceiling Roll Forming Machine

Decoiler Part For Grilyato Ceiling Machine

1) Model: TUL-200
2) Material width: ≤200mm
3) Inner diameter of coil: ø 508mm
4) Maximum outer diameter of coil: ø1200mm
5) Maximum bearing weight: 1000 kg
6) Expansion diameter: ø450-ø530mm
7) Expansion mode: manual expansion
8) Whether the uncoiler is energized or not: No.

open cell ceiling machine-2

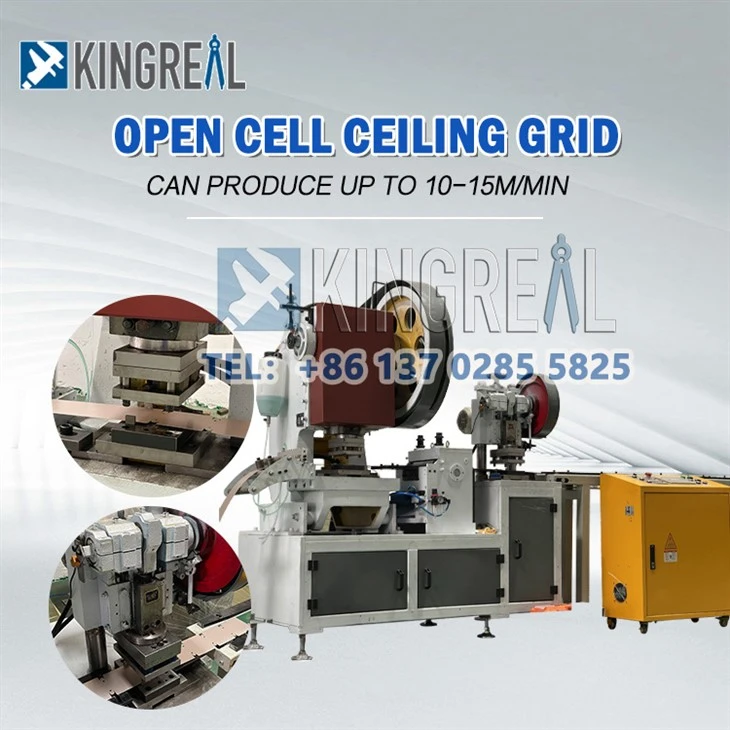

High-Speed Punching Press For Grilyato Ceiling Line
This leveler is a precision leveler specially designed by KINGREAL for grating production. The precision leveler has a total of 15 rollers, upper eight rollers and lower seven rollers.

All rollers are made of 40Cr and chrome-plated, durable and with long service life. The panels are smooth after precision leveling, no indentation or damage to the panel surface.

open cell ceiling machine-3

Roll Forming Machine For Grilyato Ceiling

1) Roller set: 14 sets
2) Roller material: CR12#steel
3) Roller hardness: HRC=56-60 degrees
4) Shaft drive system: chain
5) Control system: data control system
6) Drive motor: 3kw
7) Material thickness: 0.3-0.4mm GI STEEL
8) Material width: 94mm (height: 40mm)
9) Molding speed:10m/min
10) Material of body:steel

Technical Specification Of Grilyato ceiling Machine

Motor Power	380V 0.75KW
Max. Loading Weight	1Ton
Max inner Diameter	520mm
Min. Inner Diameter	450mm
Machine Frame Material	Channel steel and welded steel
Max. Material Width	200mm
Machine Frame Material	Channel steel
Control method	PLC
Production Speed	7-12m/min

Open Cell Ceiling Products Display

How To Install The Grilyato ceilingMachine

1. An online installation guide will be provided; 2. Machine photos and videos will be delivered; 3. An online group discussion will be started; and 4. Regular video conferences will be arranged to maintain contact and communication.

2. Installation locally
In order to guarantee that the machine operates normally, KINGREAL ROLL FORMER will arrange for engineers to travel overseas to install the machine at the customer's location. They will also offer all necessary technical assistance. Amounts to be agreed in detail.

open cell ceiling machine project

Local After-Sale Service

KINGREAL ROLL FORMER has established localized service points in numerous countries and territories, including India, Russia, Turkey, the United Arab Emirates, and Qatar, to enhance its ability to promptly and efficiently address customer requirements.
Additionally, localized service stations are being developed in various nations and areas.

after sale service

FAQ

01.What Size Is An Open Cell Ceiling?

According to the different materials of the suspended ceiling, Open Cell Ceiling is generally divided into aluminum, iron and plastic open cell ceiling, the current mainstream open cell ceiling on the market is aluminum open cell ceiling and iron grille.

02.Why Should Test The Cold Roll Forming Machine?

A cold roll forming machine is a machine and equipment used to process sheet metal or metal strip into various cross-sectional shapes through a continuous cold roll forming process.

03.How To Prevent The Cold Roll Forming Machine From Rusting?

Cold roll forming machine is through the sequential configuration of the multi-channel molding roll, the coil, strip and other metal sheets and strips constantly transverse bending,

04.How To Install The Grille Ceiling?

Copy the wall corner with the level meter to draw the level line, then measure the height from the level line to the ceiling, and draw the level line with the pink line, which is the lower skin line of the ceiling grille.

05.Structural Composition Of Cold Roll Forming Machine

Cold roll forming machine, also know as arch forming machine is widely used in the forming of tunnels, subways, hydro-power stations, underground caverns and other I-beams, channel steel angle iron U-shaped steel and other profiles.

06.Common Specifications of Metal Open Cell Ceiling

One of the more popular products in the suspended ceiling range, metal open cell ceiling is a suspended ceiling system made of metal materials such as aluminum alloy and stainless steel.
