Video About Volume Control Damper Frame Machine

Volume Control Damper Frame Making Machine Description

KINGREAL ROLL FORMER Volume Control Damper Frame Roll Forming Machine

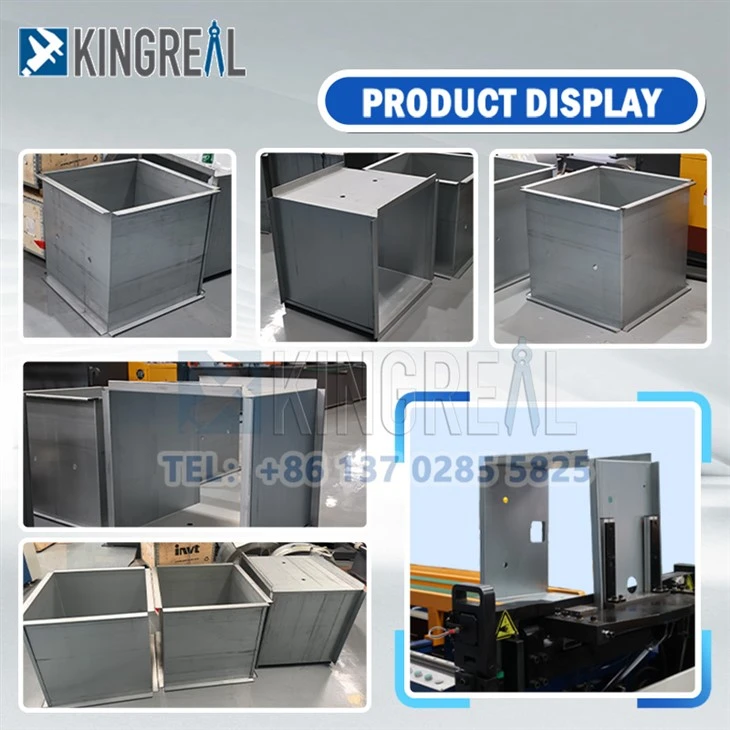

is frequently used for cold bending and forming of metal enclosure

distribution boxes, electrical cabinet frames, and volume control damper

frames (also known as VCD frames).

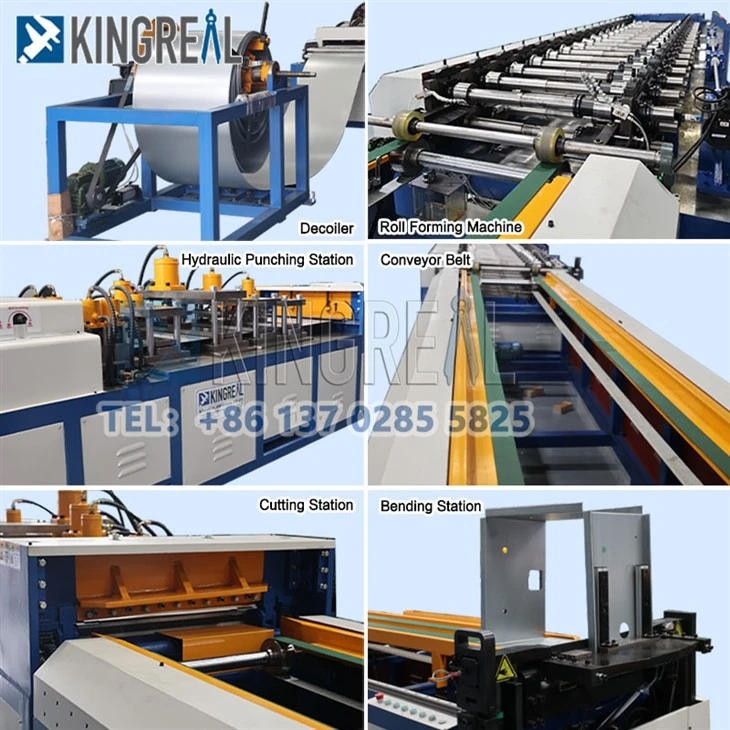

Components of Volume Control Damper frame making machine:

- Decoiler

- Leveler

- Multi stations hydraulic punching machine

- Main roll forming machine

- Hydraulic shearing station

- Auto frame bending station.

One of KINGREAL ROLL FORMER best-selling products is the rectangular damper frame roll forming machine,which can be tailored to the needs of the customer and is adored by them.

This machine can be configured to produce variable width fire cabinet frames in less than

ten minutes thanks to the most cutting-edge servo feeder drive technology.

Additionally, the touch screen and PLC allow for the setting of the fire cabinet frame sizes

for various punching and notching stations.

Machine Feature

★Combine decoiler & Precision sheet leveler

★Multi hydraulic station for Pre-punching & notching

★Precision Servo feeder

★High precision cold roll forming with servo driving width adjustable system.

★Auto shearing

★Auto frame bending.

★Easy Machine operation

Products Description Technical Specification Of Volume Control Damper Frame Making Machine

Raw materials	1.0-1.5mm mild steel(Q195,Q235)
Raw material ID	450-520mm
Max. raw material weight	5tons
Max. materials width	400MM
Main axle diameter	ф65 mm
Products sizes	According with customers' drawing
Maximum forming speed	0-10 m / min
Roll Forming stands	15-20 Rollers station
Machine Power	~ 35 KW
Power supply	AC380V 50Hz
Air pressure	0.6MPa

Advantage Of This Machine

Multi stations hydraulic perforation system

To provide effective multi-station punching, corner cutting, and other punching operations,

the KINGREAL ROLL FORMER multi-station hydraulic perforation system may be adjusted to the hole positions of

various profiles in accordance with customer specifications.

The program is simple to use and totally automatic. It can be used to make furniture profiles and

shelf columns.

Main Roll Forming Punching Machine

hvac duct fire dampers

Provide a total solution,such as punching, bending, forming and welding, etc.

In accordance with customer requirements, our business can offer a comprehensive solution that

includes product punching, automatic forming, bending, welding, etc.

The construction of many complicated profiles, including closed complex profiles, shelf columns, etc.,

is frequently done fully automatically using this method.

KINGREAL Provide All Solution for VCD Frame Machine

Volume Control Damper Frame Machine

Who Are We?

roll forming machine

With over 20 years of manufacturing experience and a history dating back to 1995, KINGREAL ROLL FORMER has gained the respect of clients from all over the world, including those from Russia, India, Egypt, Arabia, and the United Arab Emirates.

Roll Forming Machine

Technical Support

technical support

KINGREAL ROLL FORMER is able to provide technical after-sales service to our customers.

In order to ensure the smooth installation and operation of the machines, KINGREAL ROLL FORMER will arrange to send engineers to the customer's project for technical guidance.

Up to now, KINGREAL ROLL FORMER has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.

FAQ

01.How to visit your factory?

There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together

02.What's your Warranty ?

12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.

03.What's your delivery Time ?

Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.

04.What's your payment terms ?

40% deposit is paid before production, the balance paid after inspection confirmation before shipment.

05.What's your Install and Training ?

If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, Manual book and video is provided to show how to install and operate.

06.Do you provide after-sales service?

We provide 24-hour online service for our customers.

A. We will debug the machines freely in our factory make sure everything is OK before shipment.
When engineer go to your place to debug the machines, all according expense shall be paid by you
