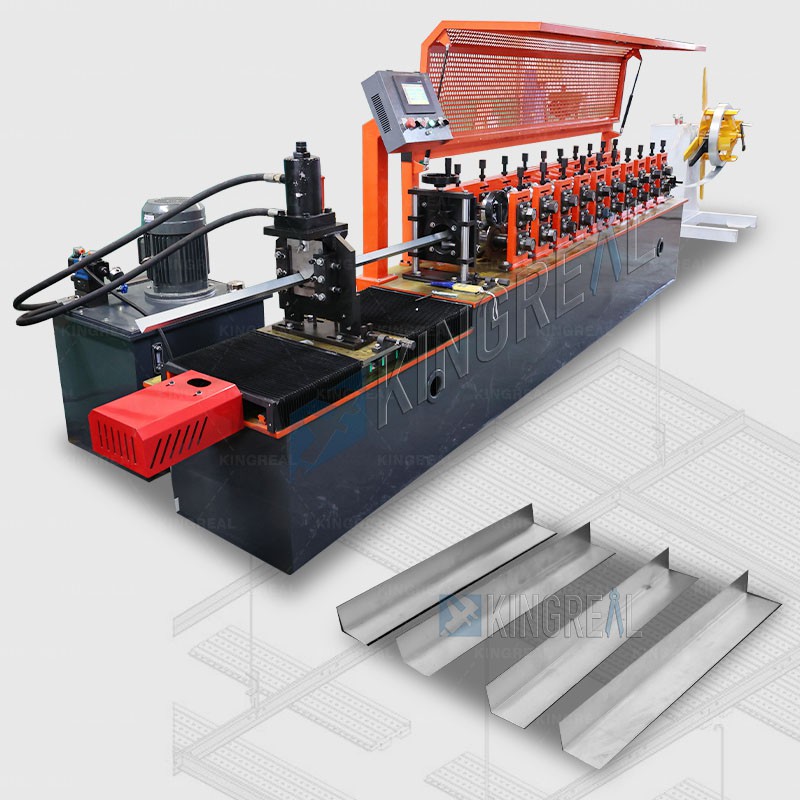

L Angle Roll Forming Machine

Description of L Angle Roll Forming Machine

L angle roll forming machine is specifically designed for producing l angle profiles. These l angle profiles are typically composed of steel materials with equal or unequal side lengths and are widely used in construction, frame structures, and various structurally related fields.

This advanced l angle profile making machine shapes steel using multiple rollers, with precise operation controlled by a PLC and touchscreen controller. Its high-speed hydraulic/servo cutting system significantly improves production efficiency. This l angle roll forming machine can continuously roll steel with thicknesses from 0.4mm to 1.2mm to form the required l angle profiles, achieving a production speed of up to 120m/min, greatly improving production line efficiency.

To address the latest market trends and customer needs, KINGREAL Roll Former continuously customizes the l angle profile making machine's design, ensuring the functionality and flexibility of all equipment. One advanced l angle roll forming machine has already been manufactured and is scheduled to be shipped to a customer's factory in Romania in 2026.



Working Process of L Angle Roll Forming Machine

Decoiler- Roll Forming Machine-- Cutting Station -- Output



1) Decoiler

•Decoiler Type: Manual Decoiler

•Weight Capacity Of Decoiler: 3 Ton

•passively to expanding

2) Roll Forming Machine

•Axis Diameter: 60mm

•Forming Roller stand: 8 Groups

•Main Axis material: First grade 45# steel, heated and quenched

•Roller material: First grade 45# steel with hard chrome 0.05mm , heated and quenched

•Forming Speed: 10-15 m/min

•Dive Type: 1" Chain of transmission

•Machine Frame stand: Welded structural steel

3) Cutting Device

•Cutting type: Hydraulic cutting

•Hydraulic pump station power: 3 KW

•Hydraulic pressure: 12Mpa

•Hydraulic Blade and cutter material: SKD-11, quenching process 58-62

•Cutting length tolerance: 10m+/- 2.0mm

4) Electrical System

•Voltage: 380V, 3 Phase 50Hz

•PLC Electrical control system: Japanese PANASONIC PLC

•Length Controller by Encoder Frequency Control

•Operation: Touch Screen

•Transducer: PANASONIC

5) Runout Table:

* Non-power type

1)Punching and embossing for l angle profile making machine

This advanced l angle roll forming machine can be equipped with punching or embossing functions, allowing for punching or embossing on the formed l angle profiles. This feature is particularly useful for applications requiring drilling for fastening or specific designs for aesthetic purposes. This personalized function ensures that customers can flexibly design according to specific project needs, resulting in more adaptable and aesthetically pleasing finished products.

2)Cutting for l angle roll forming machine

After the l angle profile is formed to the required length, the l angle profile making machine's cutting station precisely trims the profile to the desired length. This process ensures consistent l angle profile dimensions, meeting customer requirements for both large-scale production and small-batch customization. Precise shearing not only improves production efficiency but also reduces material waste, further optimizing costs.

3)Diverse forming specifications for l angle profile making machine

This l angle profile making machine primarily uses a series of rollers to form flat metal strips into the desired l angle profile. As the strip passes through each roller, it gradually deforms until the final profile is formed. Furthermore, the l angle roll forming machine can be designed with adjustable settings to produce l angle profiles of different specifications, including different side lengths, flange widths, and hole types. This flexibility allows the l angle roll forming machine to be customized to specific project needs, supporting projects of different sizes and types.

4)Diverse finished product types for l angle roll forming machine

This l angle profile making machine can also be optionally equipped to drill holes at any location on the web and flange of the l angle profile, and features embossing and logo printing. This versatility not only enhances the aesthetics of the product but also facilitates subsequent installation.

5)Material flexibility for l angle roll forming machine

The l angle profile making machine can handle a variety of materials, including aluminum, galvanized steel, and pre-coated steel, and can be flexibly adjusted for different materials. This adaptability ensures that the l angle roll forming machine can meet the diverse needs of various industries and the requirements of various application environments.

6)Efficiency and speed for l angle roll forming machine

Thanks to continuous feeding and automated forming and cutting processes, this l angle profile making machine can achieve large-scale production at a speed of 120m/min, significantly improving work efficiency. Through modern production line design, companies can respond to market demands more quickly, ensuring high output without compromising product quality.





The l angle profile making machine holds an important position in the production field due to its versatility and high efficiency. The l angle profile produced is widely used in construction and ceiling projects. These l angle profiles produced by the l angle profile making machine are an important component of wall, ceiling, and floor frames, providing structural support and ensuring the strength and durability of building components. In modern commercial buildings, suspended or recessed ceilings are common. L angle profile produced by l angle profile making machines forms the perimeter of the ceiling, providing reliable support for the ceiling panels and ensuring their stability under various environmental conditions.



1)Over 20 years of experience

KINGREAL Roll Former specializes in the research and development and manufacturing of l angle profile making machine, boasting over 20 years of industry experience. KINGREAL Roll Former l angle roll forming machines have supported numerous large-scale projects in Mexico, Saudi Arabia, Kazakhstan, the UAE, and other countries, earning the trust of customers.

2)One-stop service

KINGREAL Roll Former provides a complete one-stop service, from accompanied visits and process design to l angle roll forming machine selection, installation, and commissioning. Even after l angle profile making machine installation and commissioning, KINGREAL Roll Former still provides operation training and maintenance plans, allowing customers to complete the entire process without relying on third-party experts.

3)Customized R&D capabilities

KINGREAL Roll Former can quickly design and manufacture customized l angle profile making machines based on CAD drawings, material thickness, and production capacity targets provided by customers. KINGREAL Roll Former R&D team works closely with customers to ensure that all designs meet the specific needs of each project.

4)Global after-sales service

No matter where the customer is located, KINGREAL Roll Former can dispatch experienced engineers for on-site l angle roll forming machine installation and operation training. Furthermore, KINGREAL Roll Former customer service team responds quickly, providing solutions to both troubleshooting and l angle profile making machine operation issues in the shortest possible time.

5)Quality system certifications

KINGREAL Roll Former l angle profile making machine is ISO9001, CE, and EN1090 certified, ensuring strict adherence to international quality standards in the design and manufacturing process. KINGREAL Roll Former strives to provide customers with a reliable, high-performance l angle roll forming machine experience.

1)What materials can be used in a l angle profile making machine?

KINGREAL Roll Former l angle roll forming machines primarily use galvanized steel and PPGI as the raw material.

2)What is the production speed of a l angle profile making machine?

KINGREAL Roll Former offers two options: medium-speed l angle roll forming machines (50-60 m/min) and high-speed l angle profile making machines (100-120 m/min).

3)Can the l angle roll forming machine produce different channel sizes?

Yes. By adjusting the width of the roller assembly, the l angle profile making machine can produce ceiling channels of various sizes according to international standards (such as ASTM, BS, or local building codes).

4)Are customization options available?

Yes! KINGREAL Roll Former l angle profile making machines can be equipped with inject devices, embossing rollers, protective shields, packaging machines, etc., according to the customer's specific needs.

5)What factors affect the l angle roll forming machine price?

The price of the l angle profile making machine is mainly influenced by factors such as production speed, size range, degree of automation, and other additional accessories.
