Open Cell Ceiling Grid Production Line With Protective Shield
Video Display
Machine Description

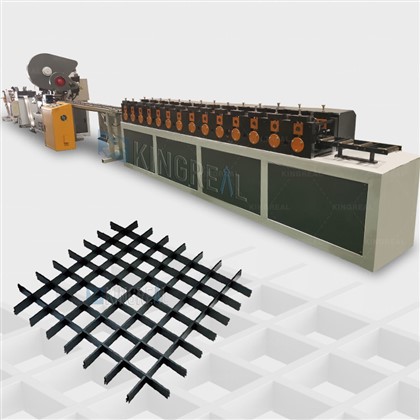

Metal Roof The complete production solution for the cell ceiling can be obtained with the Grilyato Grid Roll Forming Line. Additionally, the various product sizes can be tailored to meet the needs of the client. The material decoiler, punch, shaping, and final product collection sections are all included in our open cell ceiling machine.
For the grille shaping machine, KINGREAL has also built a matching protection cover in order to guarantee the machine's safety while it is in use. This raises the machine's overall safety and prevents mishaps when it's in use.
A metal grating production line equipped with a protective cover can bring multiple benefits, mainly including:
Safety enhancement: the guard can effectively prevent direct contact between operators and moving parts, reducing workplace accidents.
Equipment protection: dustproof, waterproof and prevent foreign objects from entering the interior of the machinery, prolonging the service life of the equipment.
Productivity: Reduces downtime due to equipment malfunctions and improves production continuity.
Easy Maintenance: Guards are often designed with easy disassembly in mind, facilitating routine maintenance and cleaning.
Noise Reduction: Reduces the noise generated by machinery operation and improves the working environment.
These benefits contribute to the overall efficiency and safety of the production line, while also meeting the safety standards and regulatory requirements of modern industrial production.
Popular open cell ceiling size
|
- 10mm*30mm; 10mm*40mm, 10mm*50mm - 15mm*30mm, 15mm*40mm, 15mm*50mm - Or other sizes as required |
|
By altering the sets of the shearing and punching molds, it is possible to make goods with varying height open cell ceiling sizes on the same production line. Different cell ceiling production lines are required to manufacture open cell ceiling products with varying widths, such as 10 or 15 mm.
Cell size for open ceiling as required. Such as:
50*50mm, 75*75mm, 100*100mm, 120*120mm, 150*150mm,or other size. Different cell size products can be produced on the same machine, the distances are controlled by the servo motor.
Metal grille ceiling is widely used in a variety of architectural and interior design applications due to its beauty, durability and functionality. Its applications include commercial spaces, transportation hubs, public facilities, office buildings, residential areas, cultural and entertainment venues. The flexible design of metal grille ceilings can be customized to suit different architectural and design needs, making it a versatile and widely used option.
Machine Structure
- Combine decoiler & Leveler
- Punching press machine
- NC servo roller Feeder
- Automatic cutting press machine
- Roll forming machine
- Finished product collector table
- Electric control panel
- Punching molds sets
- Cutting molds Sets
Technical Specification:
|
Raw materials |
Pre-painted Aluminum or Pre-painted Galvanized steel |
|
Ceiling sizes |
Width: 10mm / 15mm / 25mm Height: 40mm / 50mm/ 30mm |
|
Length control |
Automatic servo control |
|
Maximum forming speed |
15 m / min |
|
Roll Forming stands |
14 roll forming stations |
|
Machine Power |
~ 12KW |
Production Line Features
Open Cell Ceiling Grid Machine
High Precision roll forming machine
Use Cr12mov mold steel to achieve high precision and HRC 580–600 heat treatment hardness. which is first processed by a lathe machine, then a CNC machine, and finally a vacuum heat treatment.
Following these processing steps to the letter will make the forming rollers durable and guarantee the long-term operation of our machines.
Online Punch system
For online product punching, we utilize hydraulic punching machines, high-speed punching machines, etc. The product can go straight into the roll forming machine for cold bending once it has been punched.
Fast punching speed, excellent precision, and robust stability are the features of our punching machine.
Machine Quality Control
About Us
A reputable producer and provider of sheet metal processing equipment is KINGREAL Machinery.Our primary products include roll forming machines, metal ceiling tile machines, coil slitting lines, metal perforation lines, and other fully automated, high-speed solutions.KINGREAL has successfully assisted our clients in constructing factories across the globe, including in South America, South Asia, Russia, and the Middle East.
(KINGREAL Exhibition)
