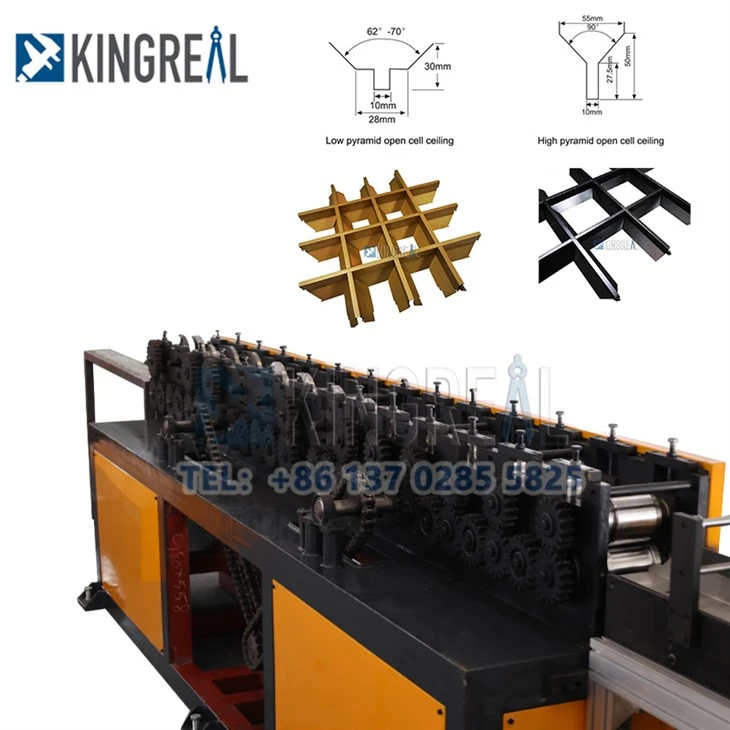

Pyramid Cell Ceiling Machine
【Video Display】
Pyramid Cell Ceiling Making Machine Description
KINGREAL ROLL FORMER can produce U-shaped square aluminum grille ceiling, Y-shape Pyramid aluminum open cell ceiling, diamond aluminum grille ceiling, triangular aluminum grille ceiling, hexagonal aluminum grille with different specification and sizes.
The standard pyramid cell ceiling width is 10mm or 15mm, and the height is available in 40mm, 60mm and 80mm.The cell size of the aluminum open cell ceiling is 50X50mm, 75X75mm, 100X100mm, 125X125mm, 150X150mm, 200X200mm available
The pyramid cell ceiling machine can produce the main runner and cross runner on the same production line by changing different punching molds and shearing molds.
Technical Specification
|
Raw materials |
Pre-painted Aluminum strip or Pre-painted Galvanized steel |
|
Open cell ceiling sizes |
Width: 10mm or 15mm Height: According with customer's drawings |
|
Cell ceiling sizes |
50X50mm, 75X75mm, 100X100mm, 125X125mm, 150X150mm, 200X200mm, etc. PLC control |
|
Length control |
Automatic servo control |
|
Maximum forming speed |
15 m / min |
|
Roll Forming stands |
14 roll forming stations |
|
Machine Power |
~ 12KW |
Structure Of Technical Specification Of Pyramid Cell Ceiling Making Machine
-
Combine decoiler and straightener
-
Punching press & punching molds
-
NC servo roller feeder
-
Shearing press & shearing molds
-
Main roll forming machine
-
Output table
-
Electrical & Hydraulic system
Machine Features
|
Self-developed Software & Multi Language support
Self-developed software, which is more capable and professional, is integrated into our equipment. Furthermore, we may offer an operation interface in multiple languages, such as English, Russian, Spanish, and so forth. |
|
|
|
Online Punch system
For online product punching, we utilize hydraulic punching machines, high-speed punching machines, etc. The product can go straight into the roll forming machine for cold bending once it has been punched. |
|
Multi rollers driving system For your choice
We have two distinct driving methods to select from: driving through gears powered by main motors and planetary reducer, or driving by chains and gears, depending on the different products, speed needs, and so on. |
|
KINGREAL ROLL FORMER has rich experiences of designing, manufacturing, exporting and installing different kinds of roll forming machines all around the world. Our equipment had been successfully installed in more than 30 countries and win good reputation all around the world.
Export:
Netherlands, Australia, UK, Mexico, Brazil, Argentina, Israel, UAE, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
Open Cell Ceiling Machine In The Factory
Feature Production
KINGREAL can customize the drawing of the suspended ceiling making machine according to the customer's production needs, such as this high size open cell ceiling production line, which is designed to meet the market and production needs of customers in Vietnam. Through the engineers' continuous adjustments, the production line equipment was finally produced to meet the requirements.
KINGREAL has rich experience in the design and manufacture of grating equipment, welcome to contact us!

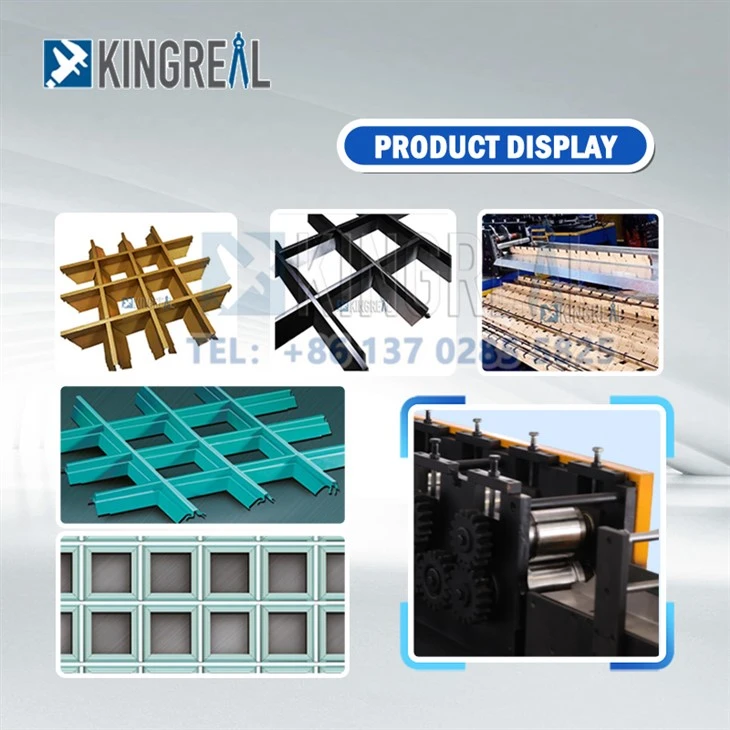

Product Display
About Us
KINGREAL is a proficient Chinese producer and provider of machinery for sheet metal fabrication. It has a highly skilled and knowledgeable technical staff, cutting edge production technology, an impeccable quality assurance system, a scientific management system, and it has successfully completed the ISO9001-2015 quality management system certification process.
The business offers a wide range of services to clients, including quality control, machine casting, assembly of equipment components, and drawing design.
With more than 20 years of production and sales expertise, KINGREAL has exported machines to Saudi Arabia, India, Russia, and the Middle East, among other nations and regions. We have gained the respect and admiration of our clients with our superb after-sales care, quick delivery, fair prices, and high quality products.
