Video About Steel Profile Wall Angle Channel Making Machine

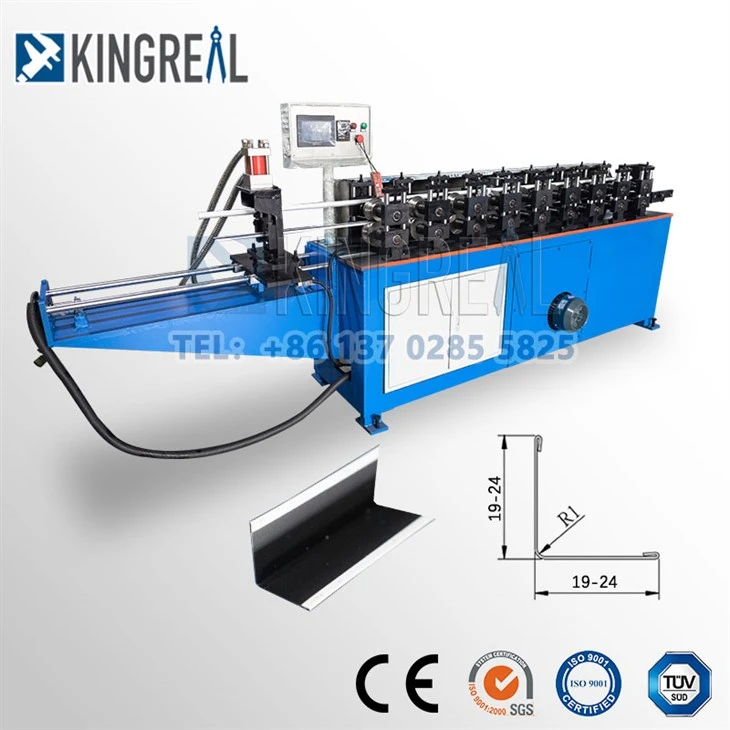

Description Of Wall Angle Channel Roll Forming Machine

KINGREAL ROLL FORMER wall angle channel roll forming machine is design for making L-shape keels. Wall angle channel making machine can produce wall angle profile of various specific sizes using a computer-controlled precise mechanical system to improve efficiency.
	The Wall Angle Channel Machine can automatically perform forming and can be customized according to customer requirements. In addition, it can detect poor quality products in order to save production costs.

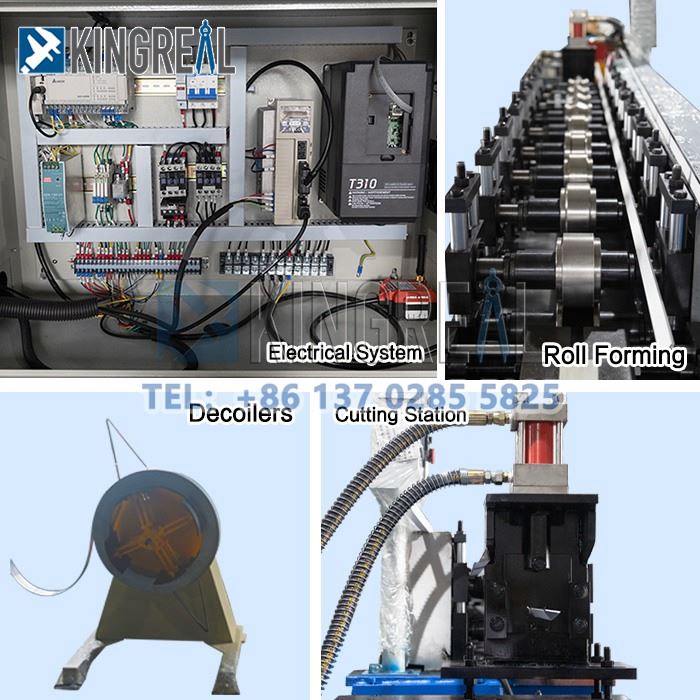

Working Procedure

Decoiler -- Main Roll Forming Machine -- Cutting Machine -- Out Table

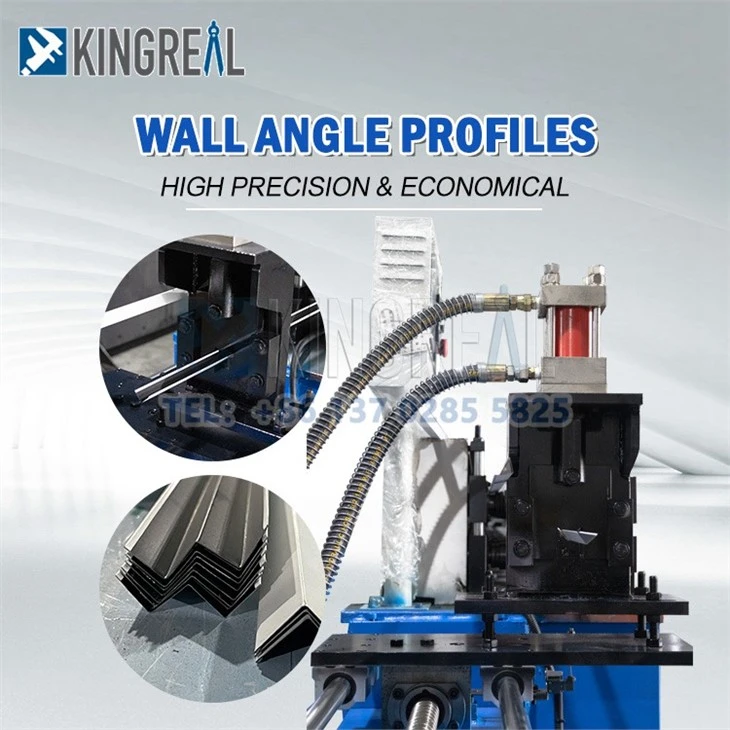

wall angle profile

Specification Of Wall Angle Channel Machine

Thickness Of Mild Steel	0.5-1mm
Material Of Rollers	CR12
Thickness Of Structure	20mm
Forming Stations	10 Stations
Forming Speed	30M/Min
Drive	Gear
Type OF Cutting	Hydraulic Cutting
Control System	PLC

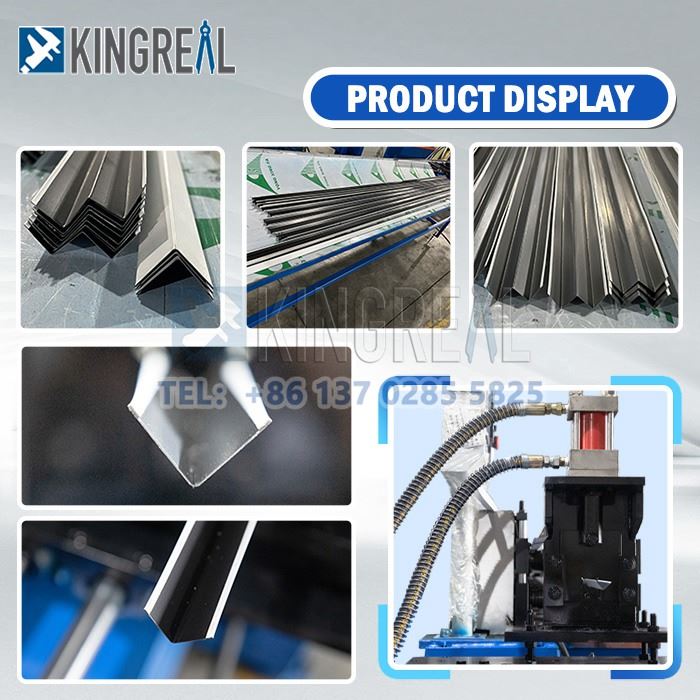

Products Description

steel wall framing
