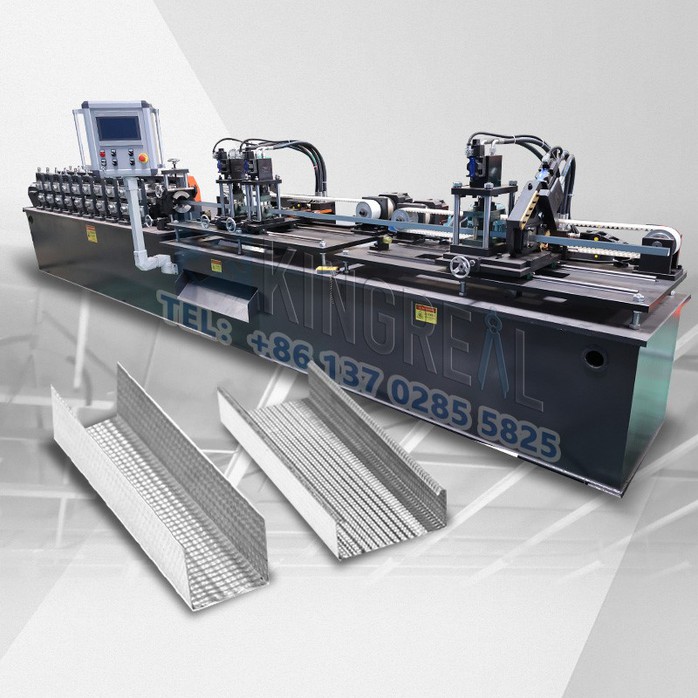

"KINGREAL Roll Former u channel roll forming machine can efficiently produce u channels with a standard size of 28x27 mm. Due to u channel making machine's fast production speed, high precision and simple operation, it is widely used in suspended ceiling systems."
KINGREAL Roll Former u channel roll forming machine is suitable for Gi Steel and PPGI metal coils with thicknesses of 0.35-0.6 mm, efficiently producing u channels in a standard size of 28x27 mm.
The u channel making machine is comprised of precision components such as a decoiler, a roll forming machine, and a fly punching and cutting system. The u channel roll forming machine's control panel facilitates adjustment of production parameters and monitoring of production progress. Operators can easily set the finished product length and production quantity, enhancing overall flexibility.
Operation of the u channel making machine is also extremely simple, a single operator simply configures the machine through the control panel and starts it automatically. In addition to the u channel roll forming machine, KINGREAL Roll Former also offers other related equipment to meet customers' needs for complete suspended ceiling systems:
●Drywall Wall Angle Profile Machine
Working Process of U Channel Roll Forming Machine
Double-head Decoiler -- Roll Forming Machine -- Fly Punching and Cutting System -- Output Table -- Auto Packaging Unit
►Parameters of U Channel Roll Forming Machine
|
No. |
Item |
Technical Parameters |
|
1 |
Material |
Gi Steel, PPGi |
|
2 |
Thickness |
0.35-0.6mm |
|
3 |
Product type |
U Channel |
|
4 |
Product size |
28*27mm |
|
5 |
Production speed |
U Channel with punching 50-60m/min |
►Fully Automated U Channel Making Machine Solutions
KINGREAL Roll Former provides customers with efficient, fully automated u channel making machines designed to improve production efficiency, reduce labor, and ensure product quality. Using KINGREAL Roll Former u channel roll forming machine, customers can achieve significant increases in production and cost reductions.
Dual-head decoiler for u channel making machine
Traditional decoilers typically only process one roll of material, but the dual-head decoiler on KINGREAL Roll Former u channel roll forming machine can load two metal coils simultaneously. This design not only reduces downtime during coil changes but also improves production efficiency. Designed to handle metal coils up to 3 tons, KINGREAL Roll Former dual-head decoiler series demonstrates exceptional durability and stability, making it particularly suitable for large-scale production environments.
Fly punching and cutting station for u channel making machine
KINGREAL Roll Former u channel roll forming machine is equipped with an advanced hydraulic system utilizing Taiwanese hydraulic components and an air cooling system. The u channel making machine features two fly cutting stations, which, through servo control technology, can quickly cut to pre-set lengths without stopping the u channel roll forming machine. This cutting method not only improves production efficiency but also ensures cutting accuracy. The blades are made of CR12MOV and are hardened to a hardness of HRC60°. Furthermore, the hole pattern and diameter of the finished product can be customized according to customer drawings to meet diverse needs.

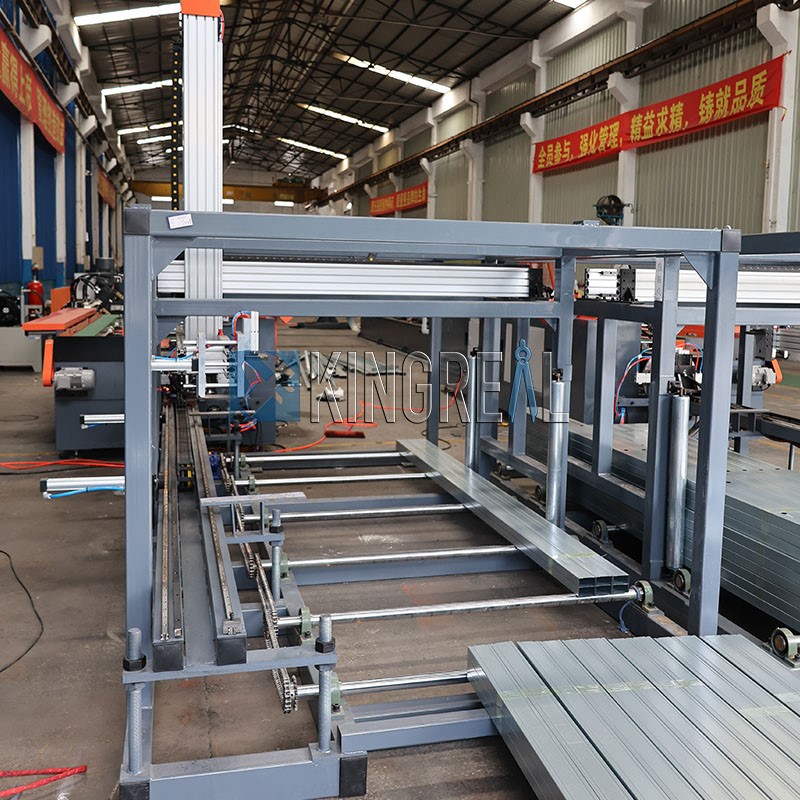

Auto packaging unit for u channel making machine
To maximize automation and efficiency, KINGREAL Roll Former u channel roll forming machine can be equipped with an auto packaging machine. This packaging unit bundles profiles at a speed of 60m/min, capable of packing up to 20 profiles per bundle. This automated configuration improves production efficiency while reducing manual strapping workload.
►Why Choose KINGREAL Roll Former U Channel Roll Forming Machine?
Choosing a KINGREAL Roll Former u channel making machine means choosing more than just a machine, it means choosing a trusted partner. KINGREAL Roll Former advantages are reflected in the following aspects:
One-stop service for u channel roll forming machine
KINGREAL Roll Former provides customers with one-stop service, from initial site inspections, u channel making machine solution design, and negotiation, to mid-term machine manufacturing and regular progress reports, and finally to final u channel roll forming machine inspection, delivery, after-sales installation, and u channel making machine operation training. KINGREAL Roll Former professional team provides comprehensive support throughout the entire process.
Extensive u channel making machine project experience
KINGREAL Roll Former maintains close partnerships with customers in countries including Saudi Arabia, Russia, Qatar, the UAE, and Turkey. KINGREAL Roll Former engineers are familiar with the policies and market demands of various countries and are able to design the most suitable machine configuration for customers based on the climate and environmental characteristics of each region. KINGREAL Roll Former can also equip u channel making machines with oil cooling system, engraving rollers, inkjet device, and other features to meet individual customer needs.
Permanent responsibility for u channel making machine
KINGREAL Roll Former is committed to the enduring responsibility of the u channel roll forming machines it sells. Even after years, if a u channel roll forming machine problem arises, KINGREAL Roll Former will provide prompt repair services to ensure that your production line remains efficient. KINGREAL Roll Former also provides spare parts to ensure a quick resumption of productio
►Applications of U Channel Making Machine
The u channel produced by KINGREAL Roll Former u channel roll forming machine is widely used in suspended ceiling installation, becoming a crucial component of structural forming. The u channel provides stability and strength to gypsum board and is often used to connect wall angle, form edge frames, and is used in conjunction with the c channel produced by KINGREAL Roll Former c channel making machine. While u channels are most commonly used in suspended ceiling systems, their applications are not limited to this area. They can also be used for wall cladding or edge partitions where additional strength is required, and can even be used to create niches or decorative structures, offering exceptional design flexibility.
U channels produced by KINGREAL Roll Former u channel roll forming machine are ideal for installing suspended ceiling systems in homes, offices, and other venues. As a project-based solution, KINGREAL Roll Former u channel making machine produces profiles suitable for small, medium, and extra-large construction projects, meeting construction needs of all sizes.
