TDC Flange Roll Forming Machine Video Display

tDC duct flange Description

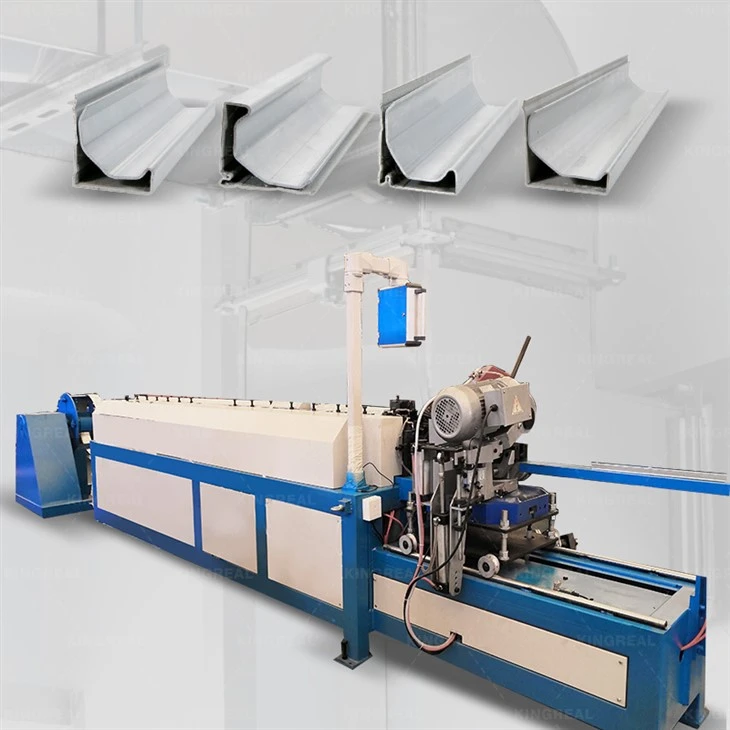

KINGREAL ROLL FORMER TDF flange forming machine is a special equipment used to manufacture TDF flange. TDF flange is a kind of flange commonly used for duct connection, which is simple, reliable and easy to install and dismantle. TDF flange forming machine mainly consists of coil decoiler, roll forming frame and cutting part. The cutting part can be divided into grinding wheel cutting and electric saw cutting, and the cutting system can realize the cutting length. The burr is very small and can be fully automated.

The operator only needs to put the metal sheet into the feeding device of the machine, and by setting the parameters and controlling the buttons, the machine will automatically complete the processes of shearing and bending, and finally produce TDF flanges that meet the requirements. With high efficiency, precision and stability, TDF flange forming machine is widely used in air duct manufacturing, air conditioning system, ventilation equipment and other industries.

Working Process

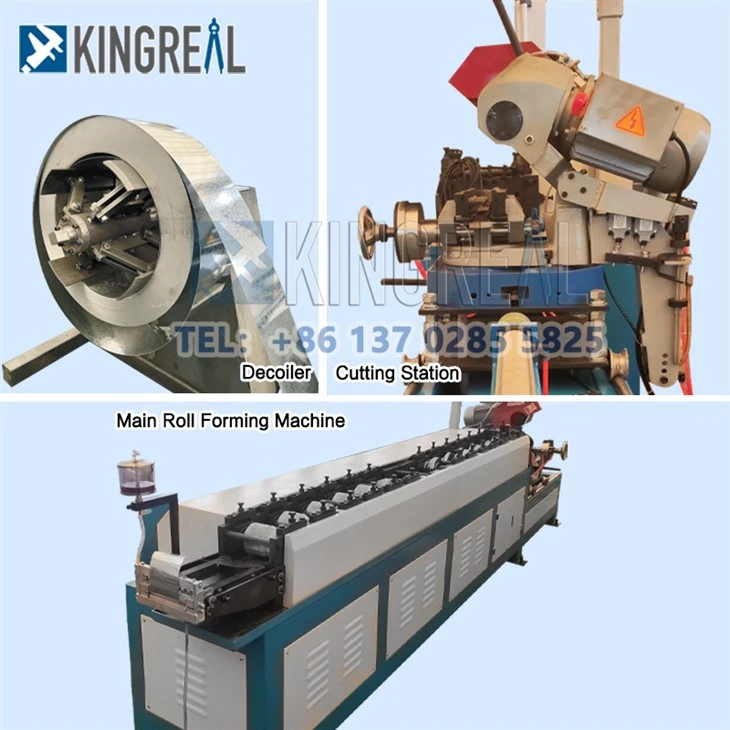

Hydraulic Decoiler -- Main Roll Forming Machine -- Control System Panel -- Cutting Station -- Output Table

Technical Specification

Raw Material	Galvanize steel(and so on)
Coil Thickness	0.6-0.8mm
Width Of Raw Material	80 mm-120 mm
Machine Motor	3.0KW
Machine Weight	2500KG
Forming Sets	17 sets roller
Forming Speed	8 M/M

Main Component Details

01.

Main Roll Forming Machine

TDF Flange Roll Forming Machine is usually made of sturdy steel with stable structure and high strength to ensure the stability and durability of the machine.

It is manufactured according to the design requirements of TDF flanges. The forming mold usually consists of upper and lower parts, and the upper and lower molds are pressed together by a hydraulic system. During the forming process, the upper and lower molds bend the sheet metal into the shape of TDF flange by pressure.

1. Diameter of main shaft￠42 mm , raw material of shaft 40Cr heart dealing

2. Raw material of roll GCr15 , all of them with heart dealing , HRC58-60

3. Forming speed : 8 m/m

4. Occupy square measure : length X width 15 meters X 2 meters

5. Power of motor 3 kw(brand is Ying yi brand) , type of reduction gear ZQ250 , 4.3.11 flow rate of cooling and lubricating liquid :120L/min

02.

Cutting And Measuring Part:

It usually consists of a cutting tool and a drive system. The cutting tool may be a circular saw blade, a cutting blade, or other shaped tool, and they are moved by the drive system to realize the cutting action.Cutting devices are able to cut within a small margin of error, ensuring that the cut work-piece is dimensionally accurate.

1. Motor cutting power: 2.2 KW (reputable Chinese brand)

2. Cutting speed can be flexibly adjusted.

3. High-speed steel is the material, and the cutting method is saw.

4. 0.9 cube/min, 0.5–0.7 MP Airsource

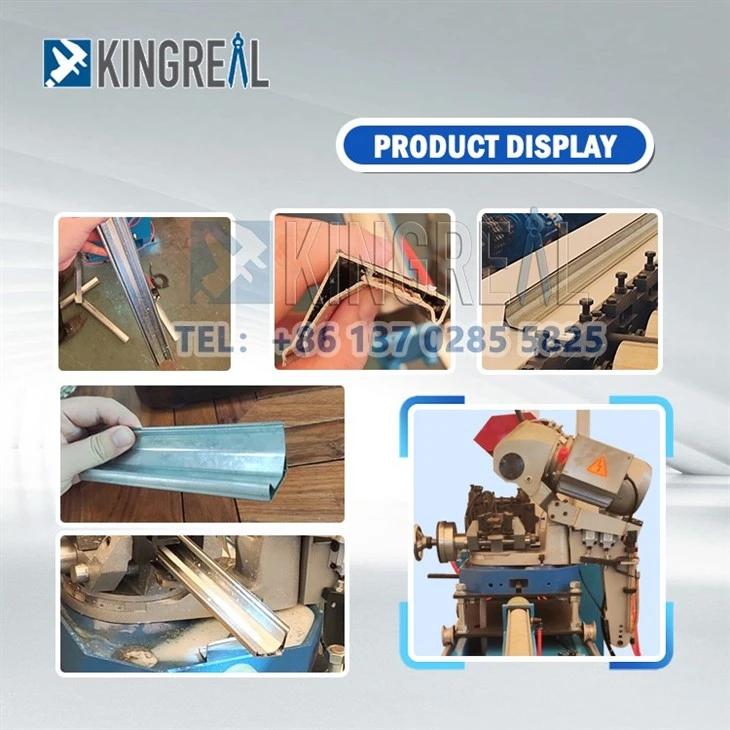

Final Product Display

tdf flange

Recommended Machine

VCD Frame Roll Forming Machine

One of our best-selling products is the rectangular damper frame roll forming machine, which can be tailored to the needs of the customer and is adored by them. This machine can be configured to produce variable width fire cabinet frames in less than ten minutes thanks to the most cutting-edge servo feeder drive technology.

Additionally, the touch screen and PLC allow for the setting of the fire cabinet frame sizes for various punching and notching stations.

VCD Damper Blade Roll Forming Machine

With the use of the KINGREAL High Quality VCD Damper Blade Roll Forming Machine, sheet metal can be processed and given the precise shape and structure of a damper blade.

The machine's mechanical construction, hydraulic system, and control system are often what allow it to modify the blade's size, shape, and angle to suit the needs of the user.

Technical Support

20230815-

KINGREAL ROLL FORMER is able to provide technical after-sales service to our customers. In order to ensure the smooth installation and operation of the machines, KINGREAL will arrange to send engineers to the customer's project for technical guidance.

Up to now, KINGREAL has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.
