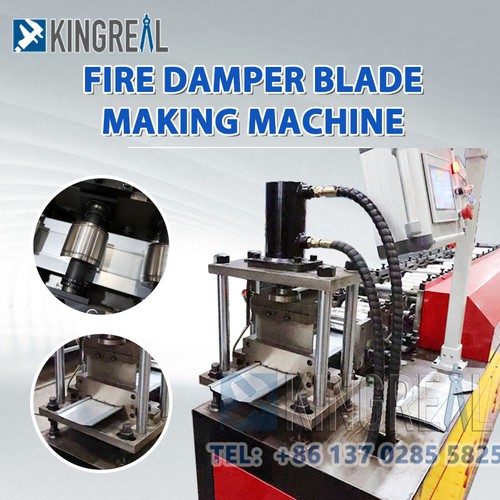

Definition of Damper Blade Roll Forming Machine

The damper blade roll forming machine is specifically designed for producing damper blades of various types, shapes, and specifications. This damper blade making machine's main function is to process raw materials into blades suitable for different damper systems (such as manual regulating valves, electric regulating valves, and fire dampers), including flat blades, triple-V blades, and airfoil blades, thus meeting market demand for high-quality, precisely shaped damper blades.

This damper blade roll forming machine can be customized to meet the specific needs of customer projects. Its flexible design allows for rapid changeovers while meeting different specifications. The forming section consists of two sets of precision rolling dies, which, through multiple rolling processes, ultimately form the blade shape required by the customer.

Working Process of Damper Blade Roll Forming Machine

Decoiler -- Feeding System -- Roll Forming Machine -- Cutting Station--Product Output

Parameters of Damper Blade Roll Forming Machine

Plate Thickness	1.2-1.5mm/1.8-2.0mm Galvanized Sheet
Center-to-center Distance Between Ribs	102mm
Material Weight	≤2000kg
Line Speed	≤15m/min,Adjustable
Plate Length Error	±0.5mm/m
Product Evenness	±0.8mm/m
Product Distortion	±1.0mm/m
Controlling	PLC Panasonic PLC, Japan
Electric Elements	First-rate Brand in China or Other Countries
Total Power	11kw

Damper Blade Making Machine for Different Blade Types

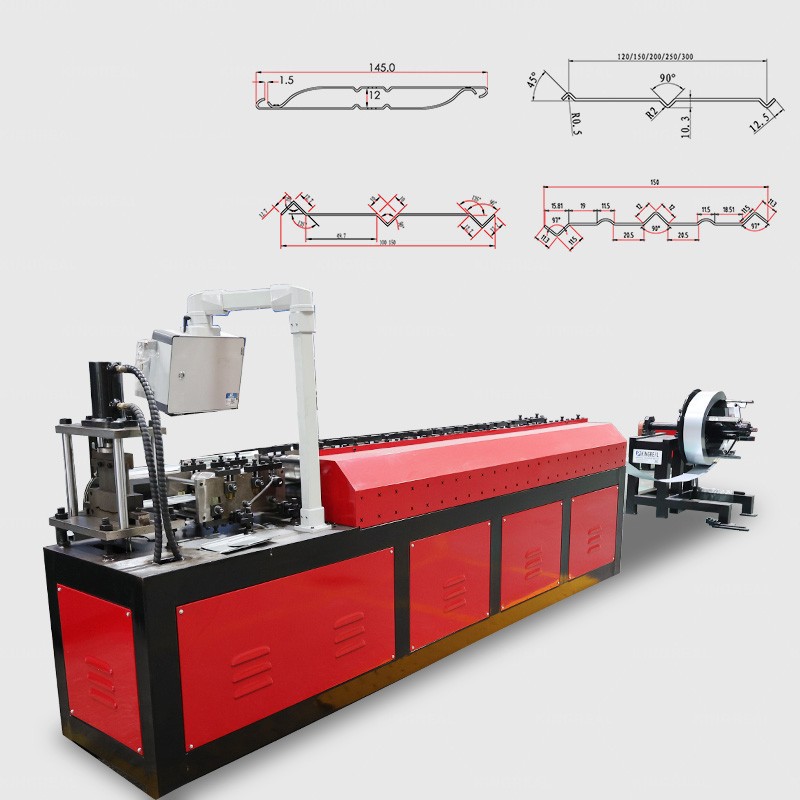

KINGREAL Roll Former damper blade making machine is designed to meet diverse market demands. It can produce various types of blades, including flat blades, triple-V blades, and airfoil blades, based on customer-provided drawings and specific requirements. When producing different types of blades, the roller design and shearing blade configuration of the damper blade roll forming machine are crucial. Each blade type requires corresponding molds and tools designed based on specific aerodynamic characteristics and operational requirements. To this end, KINGREAL Roll Former engineers work closely with customers to ensure that every blade produced not only meets functional requirements but also possesses superior product quality.

Common Damper Blade:

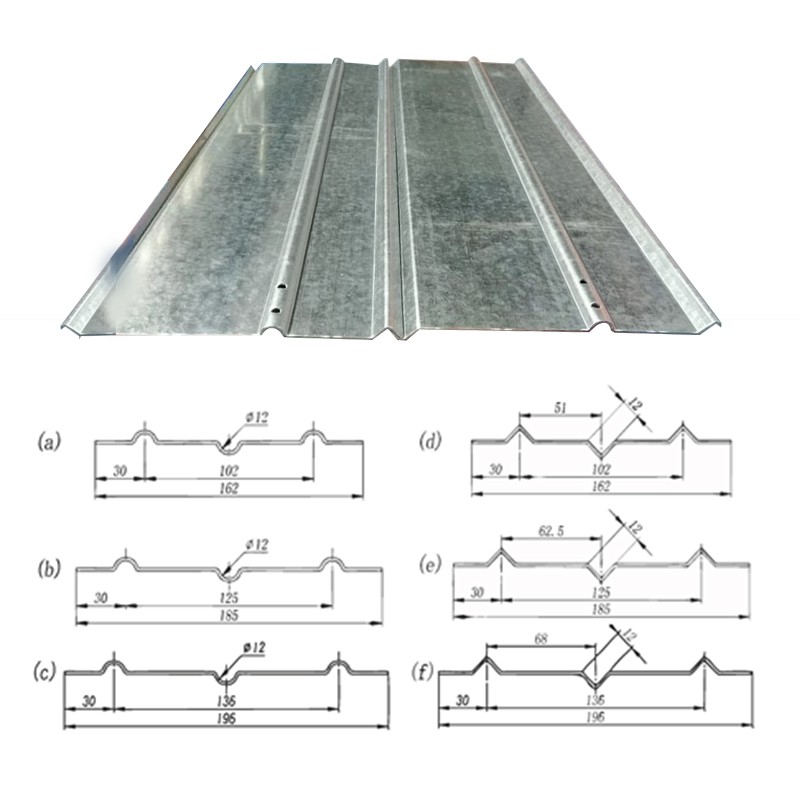

●Flat Blade: Flat blades are the most basic and common type in ventilation systems. Their simple design makes them suitable for basic airflow regulation. KINGREAL Roll Former damper blade making machine can precisely design rollers according to customer needs, ensuring that each flat blade has a consistent shape and meets industry-standard quality requirements. During the forming process, the damper blade making machine's advantage in control precision ensures that the thickness and width of the flat blades are within the specified range, effectively improving production efficiency.

●Triple-V Blade: Triple-V blades exhibit superior aerodynamic performance, efficiently controlling airflow direction and flow rate. This type of blade is generally used in applications requiring high airflow regulation precision. KINGREAL Roll Former damper blade roll forming machines are specifically designed with rollers and shearing blades for these types of blades, helping to achieve more complex shapes and higher production precision. By optimizing rolling parameters and blade angles, the manufacture of triangular blades not only improves airtightness but also ensures better airflow efficiency.

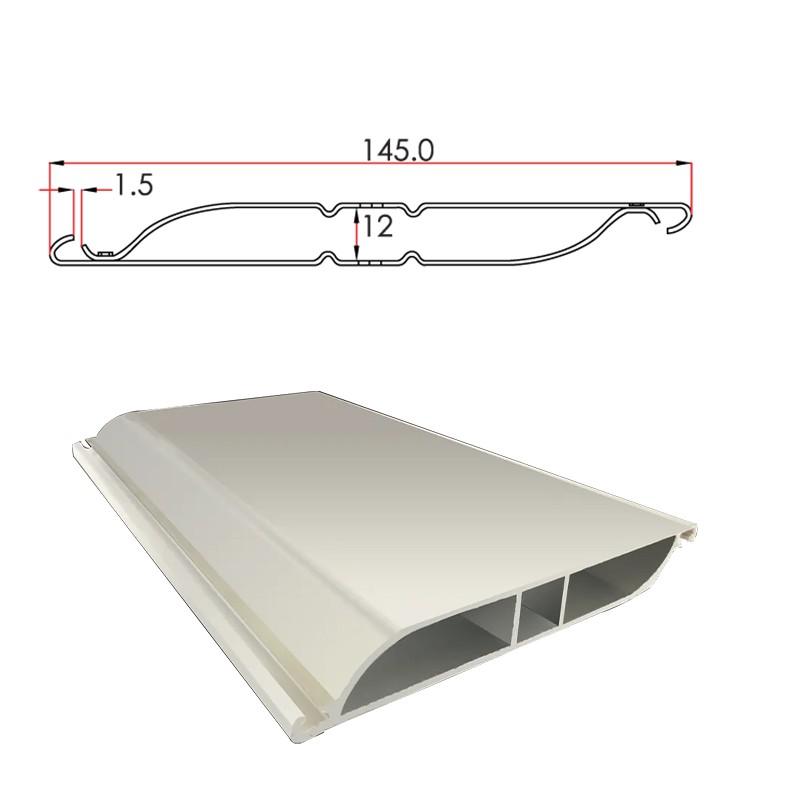

● Airfoil Blades: Airfoil blades are designed for efficient ventilation solutions. Their unique profile maximizes airflow and reduces energy loss. Such designs require highly precise forming processes. KINGREAL Roll Former damper blade making machines possess advanced technological advantages, enabling them to manufacture perfectly matched roller configurations according to customer-specific drawings. This ensures excellent performance of the airfoil blades while also safeguarding long-term stability and durability.

Main Components of Damper Blade Making Machine

PLC control panel for damper blade making machine

The damper blade roll forming machine is equipped with a full-touchscreen intelligent PLC control panel, which is simple and intuitive to operate. Users can easily adjust parameters such as operating speed, output, and finished product length.

After setting these parameters, the machine will operate stably according to the settings, minimizing manual intervention. This intelligent design allows operators to focus more on the production process without needing to overly monitor the damper blade making machine's actual operation.

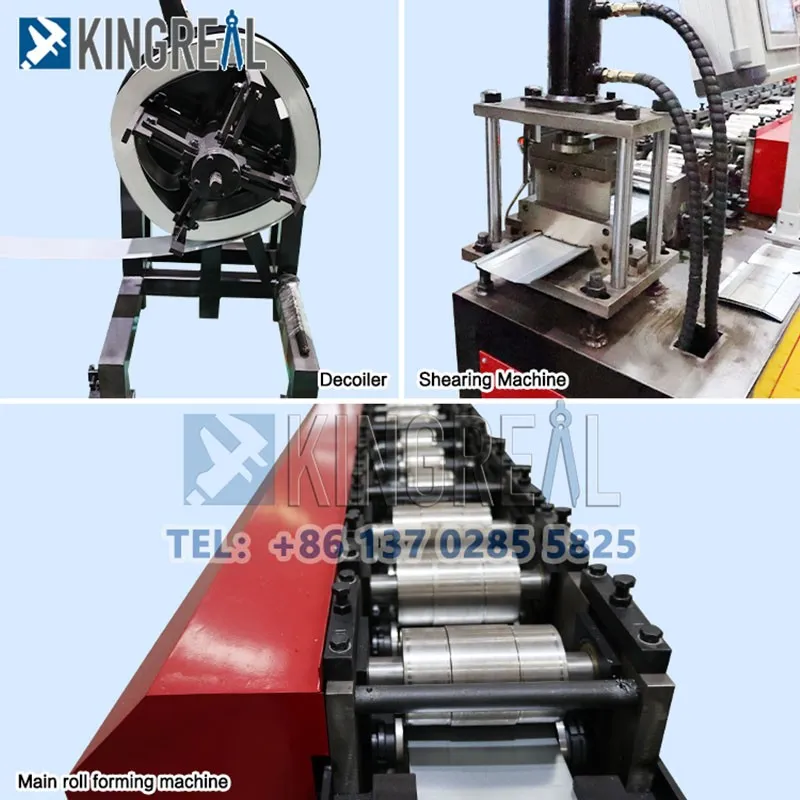

Decoiler for damper blade roll forming machine

As the front-end equipment of the damper blade making machine, the decoiler is primarily responsible for uncoiling the galvanized coil and automatically feeding it into the forming section. During the uncoiling process, the decoiler not only effectively flattens the surface of the coil but also lays a good foundation for subsequent precise forming.

Through the automated uncoiling process, the efficiency of the entire production line is significantly improved, ensuring the continuity and stability of production.

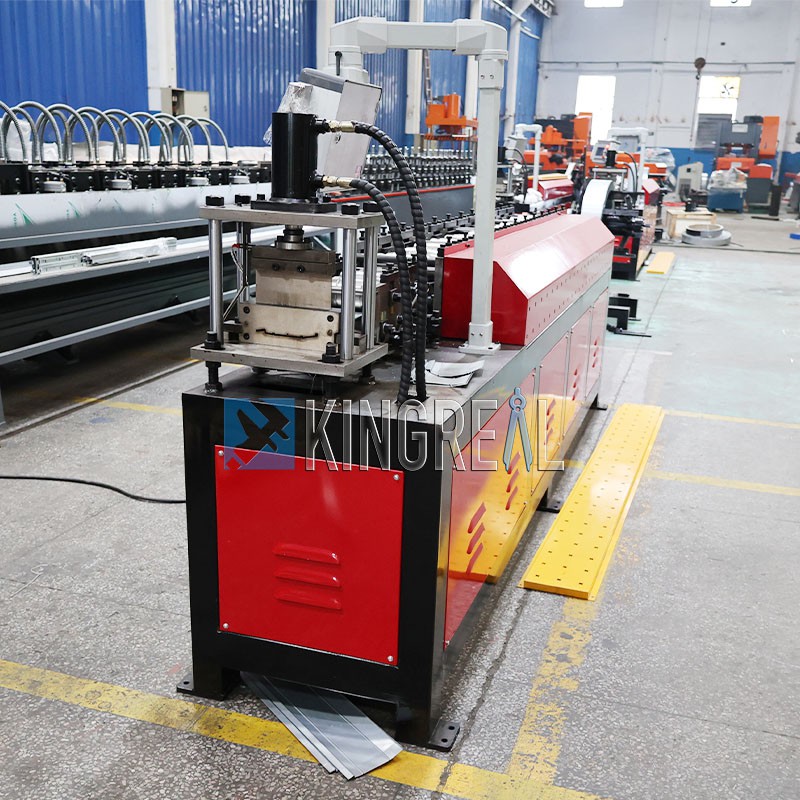

Roll forming machine for damper blade making machine

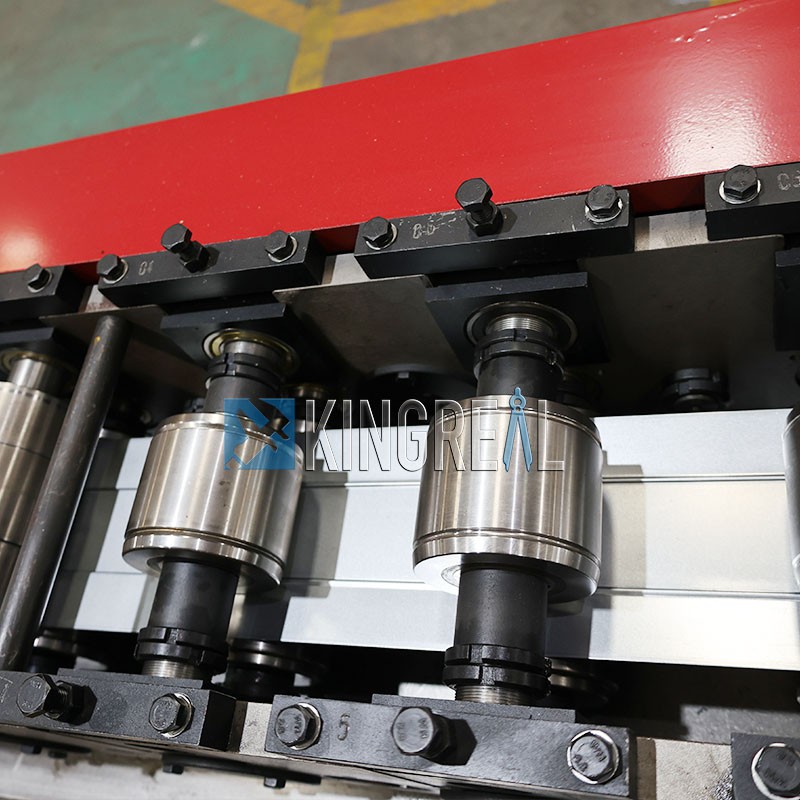

The roll forming machine is responsible for rolling the material through forming rollers to obtain the desired shape. It is worth noting that the roller design of the damper blade roll forming machine is customized according to the specific drawings provided by the customer.

Each roller has a unique design, working together to form the desired final shape. The material undergoes a gradual forming process during rolling, ensuring the accuracy and consistency of the product.

Cutting station for damper blade making machine

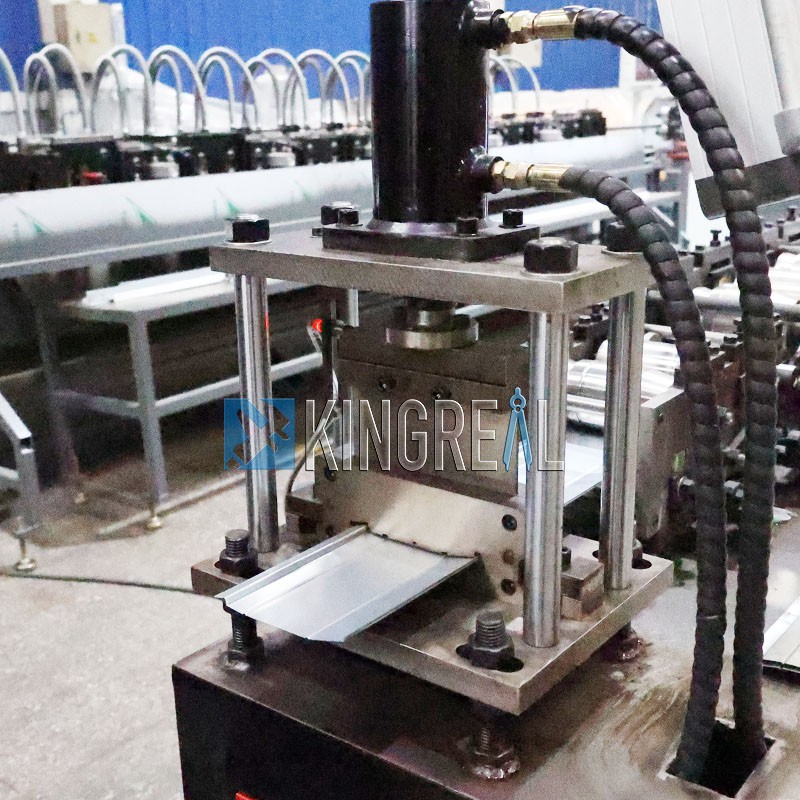

The cutting station is equipped with high-hardness blades that can precisely cut the damper blades at specific points according to the instructions of the PLC control system.

The cut damper blades have a smooth, burr-free surface with high consistency. Precise control in this stage not only improves product quality but also reduces the workload of subsequent processing.

Why is Damper Blade Roll Forming Machine Needed?

A damper blade making machine is an essential piece of equipment specifically designed to produce damper blades. Damper blades are installed inside the valve body and rotate to adjust the airflow area, thereby effectively controlling the airflow. As a crucial component of ventilation systems, blades regulate airflow and effectively improve indoor air quality, creating a comfortable and healthy environment for users.

When adjusting airflow is needed, the blades can be rotated manually or electrically to change their angle relative to the airflow direction. The larger the blade opening angle, the more airflow passes through; conversely, the smaller the angle, the less airflow. The flexibility and precise control capabilities of the blades make them an indispensable part of modern ventilation systems, driving the increasing demand for damper blade roll forming machines.

2026 New Project: Damper Blade Making Machine

In 2026, KINGREAL Roll Former successfully delivered four damper blade roll forming machines and one fire damper making machine to a client in the UAE. Prior to final delivery, KINGREAL Roll Former invited the UAE client to visit the factory to personally inspect the damper blade roll forming machines. The KINGREAL Roll Former team and the client jointly inspected the machines' external condition, operational status, and the quality of the finished products. The client expressed satisfaction with the damper blade roll forming machines and authorized their shipment. Currently, these damper blade roll forming machines are operating stably at the client's factory in the UAE, consistently producing high-quality finished products.

FAQ About Damper Blade Making Machine

Q: What is the damper blade making machine's operating speed?

A: Damper blade roll forming machines typically operate at a speed of 15m/min, but this can be freely adjusted within a range of 0-15m/min. If you require a higher damper blade roll forming machine operating speed, please contact KINGREAL Roll Former at any time.

Q: How is the damper blade making machine's precision guaranteed?

A: KINGREAL Roll Former damper blade roll forming machine is manufactured using high-quality raw materials. The rollers are made of Cr12MOV material and precision-machined to ensure forming accuracy. The tie rod has a φ22 galvanized diameter, further ensuring the damper blade roll forming machine's stability and reliability.

Q: Is the damper blade making machine highly automated?

A: Yes! The damper blade roll forming machine features automatic uncoiling, automatic feeding, automatic forming, and automatic cutting, significantly reducing manpower requirements. The highly automated production line makes the production process more efficient, saving labor costs for businesses.

Q: What thickness of material can the damper blade making machine process?

A: KINGREAL Roll Former damper blade roll forming machine can process galvanized sheets of 1.2-1.5mm and 1.8-2.0mm. For other material thicknesses, KINGREAL Roll Former can also design a solution after thorough communication to meet specific customer needs.
