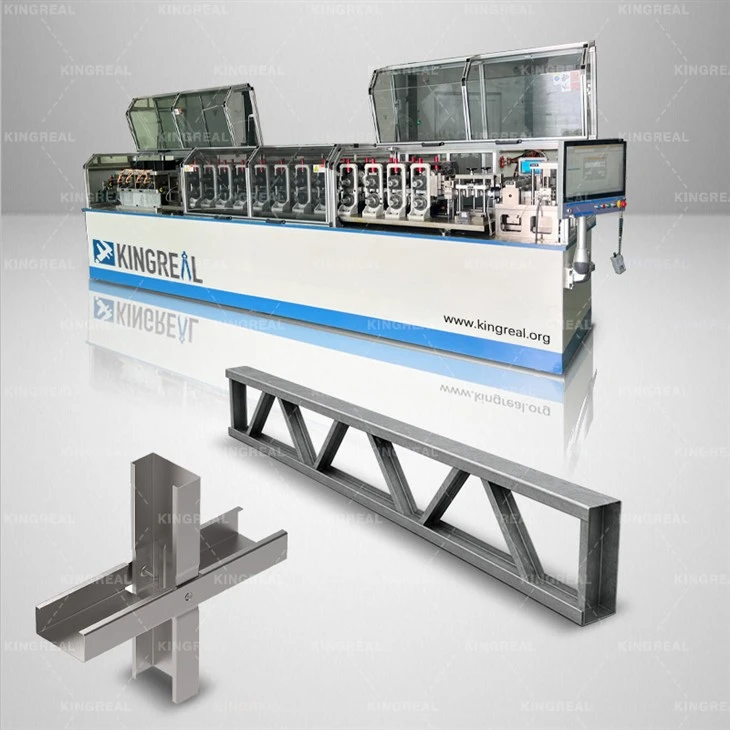

Light Steel Frame Machine
Video Display Of Light Steel Frame Roll Forming Machine
Products Description

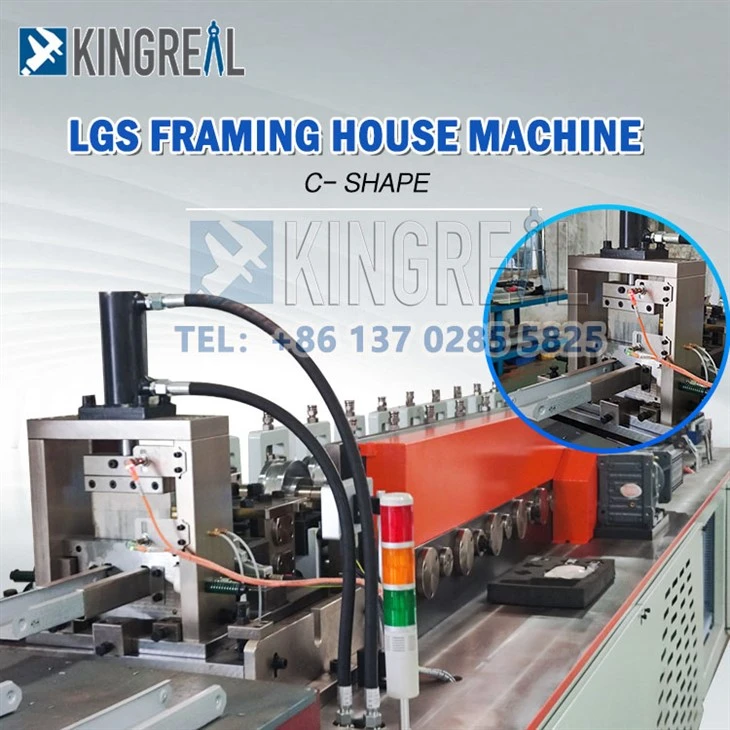

KINGREAL light gauge steel roll forming machine

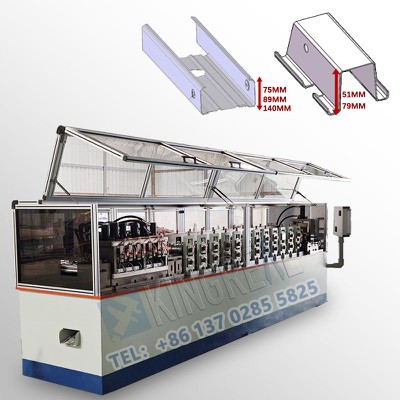

KINGREAL Light Steel Frame Machine is mainly used to produce the
C89, C75, C140 light steel keel prodcuct, which are some of the most commonly used profiles on the market. Of course, KINGREAL can customize the design and production the other cold formed steel framing machine according to the customer's specific needs.
About the design software, KINGREAL usually use imported famous brand of building design software can be selected, but if you have any other software needs, please feel free to contact us.
Light Gauge Steel Frame Machine Working Process

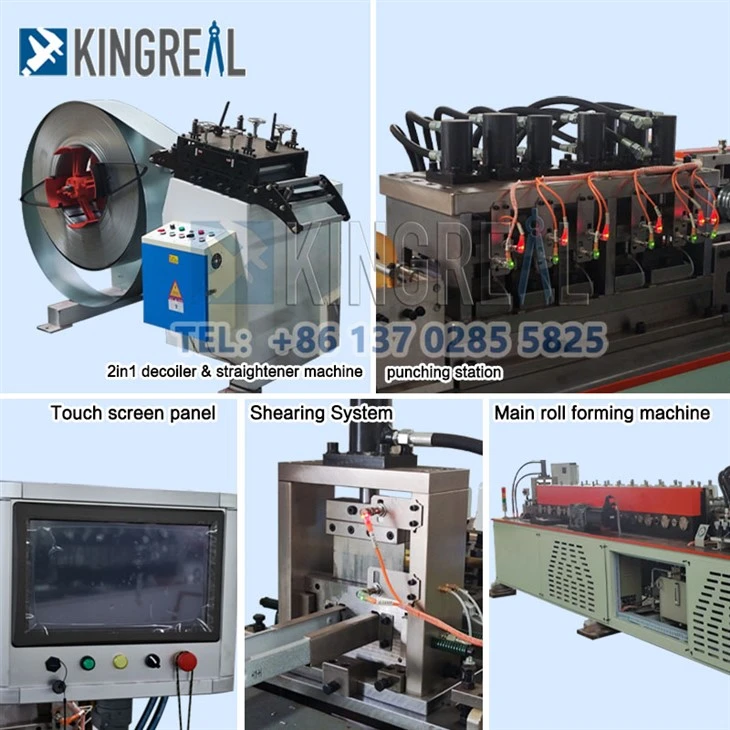

2 In1 Hydraulic automatic decoiler and leveling machine -- High speed punching station -- Spray coding -- Roll forming machine--Cutting machine
Technical Specification (According To The C89)
|
Section size
|
C89*41mm
|
|
Material Thickness
|
0.8-1.2mm
|
|
Standard speed of production
|
350-900m/h
|
|
Max speed of production
|
1600m/h |
|
Main machine power
|
High precision 7.5kW
|
|
Product precision
|
±0.5mm
|
|
Inkjet printer
|
Standard configuration
|
|
Machine Weight
|
5500KG
|
Machine Advantages
Full locking screw assembly method
Full locking screw assembly method is one of the major advantages of light steel keel frame molding machine. The machine is finely processed and positioned by CNC machining center, which can effectively reduce the deformation during processing and assembly.
Adopting full-locking screw assembly method not only can be assembled quickly, but also makes the maintenance of the equipment more simple and convenient.

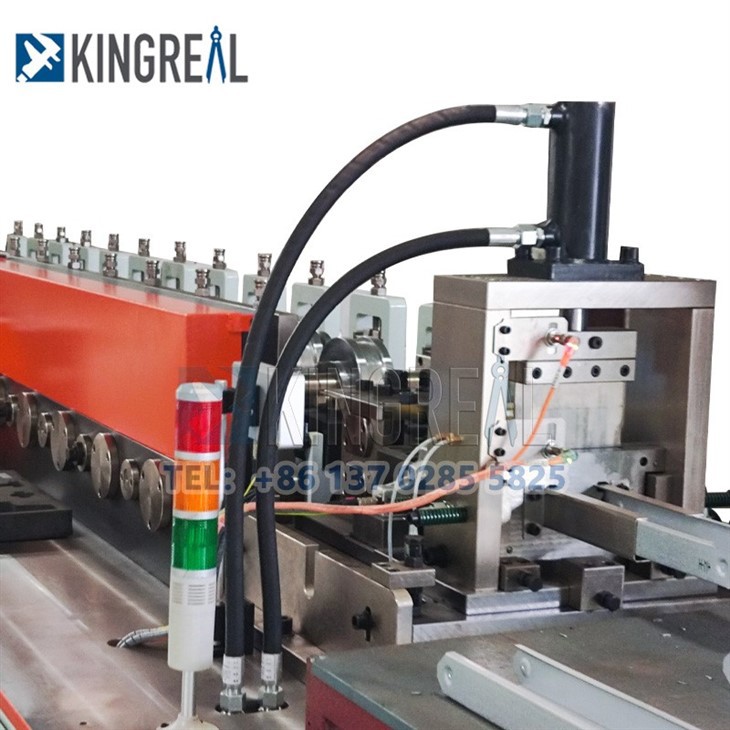

Automatic lubrication and maintenance of punching and shearing dies
The light steel frame machine is equipped with precision punching molds and shearing molds, which can realize high-precision punching and shearing operations, ensuring the accuracy and consistency of the products.
Automatic lubrication and maintenance can automatically lubricate and maintain the punching and shearing molds on a regular basis, reducing the workload of manual maintenance and extending the service life of the molds.

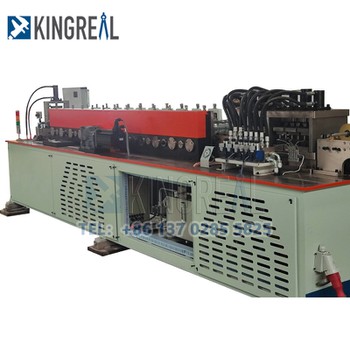

LGS Roll Forming Machine In The Factory

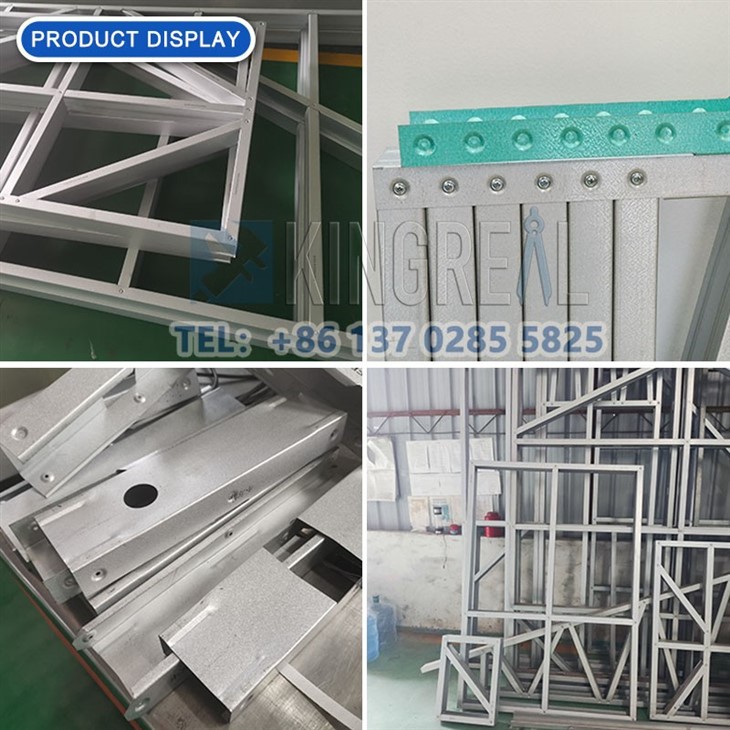

Different Type LGS Frame
About KINGREAL
One of the top producers of roll forming and sheet metal processing equipment in China is KINGREAL.
KINGREAL has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop. In order to ensure the production quality of the machines, the whole line will be tested and adjusted in the factory. KINGREAL welcomes all customers to visit our factory.
(KINGREAL EXhibition)
Technical Team
FAQ
01.What is light gauge steel villa construction system?
02.What are the advantages of multi-specification light steel villa keel?
03.What is light gauge steel framing used for?
04.Common Types Of Light Steel Structure Buildings
The output of China's steel industry has been in the forefront if the word, but the proportion of steel used in the construction industry is far below the level of developed countries. The light steel structure low-rise civil residential building technology is in line with the nation industrial orientation for the construction industry.
05.What is the competitive advantage of light steel frame enterprises?
