Mobile LGS Frame Making Machine
2024 New Design For Light Gauge Steel Frame Forming Machine
Description Of LGS Making Machine
|

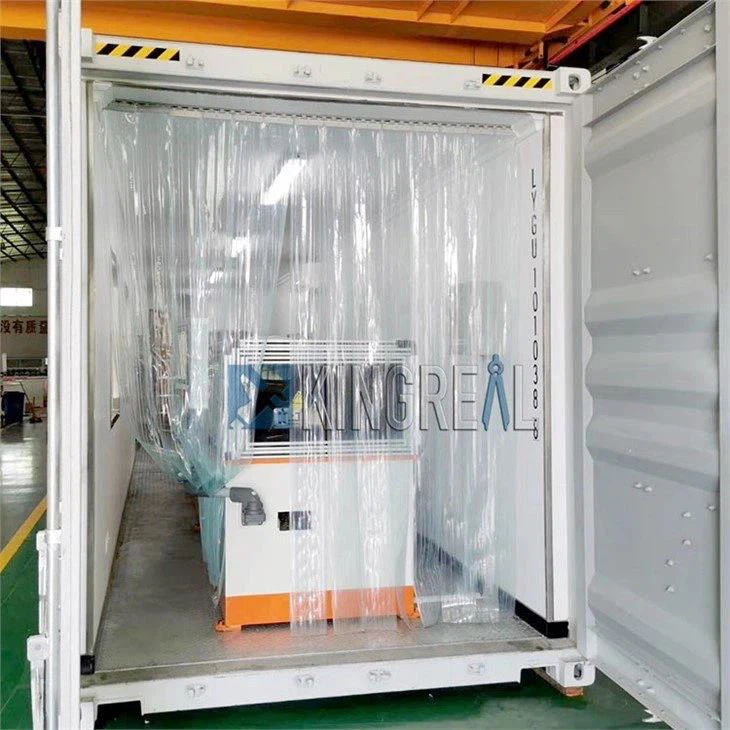

The KINGREAL mobile LGS framing making machine can have an independent, complete and safe production system.
Its characteristics can solve the problems of remote areas, backward infrastructure, inconvenient areas and construction projects.
The mobile factory is equipped with equipment and tools that can start work immediately,and can perform real-time production when time is tight and the construction site environment is harsh. |
 |
 |

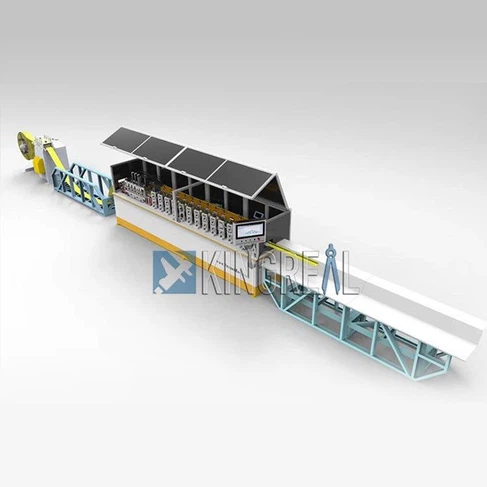

KINGREAL cold-formed thin-walled light steel forming unit includes automatic material unwinding and unwinding machine, material leveling device, forming host, automatic punching, cutting, receiving table and control cabinet.
According to the specific requirements of light steel villa construction, it is equipped with: dimple screw holes, chamfering, web through holes, small edge cutting, pipeline holes, web shrinking, cutting and other punching dies and coding devices.
|
Using professional-grade industrial computer CNC automatic control, it has the characteristics of wide range of use, high product accuracy, high degree of automation, material saving, and high degree of automation. Aiming at the characteristics of continuous innovation and diversification of structural forms of prefabricated buildings on the market, our company also Special equipment with special requirements can be designed and manufactured according to customer requirements, and supporting equipment such as floor deck/adjustable C steel can be provided.
Machine Features
|
Fast Speed
|
High accuracy
Size: The light gauge steel framing C channels produced by KINGREAL equipment can reach +_ 0.5mm for the accuracy.
Forming standard: KINGREAL equipment can guarantee the precision of products for the flexible machine.
Maintenance and repair: independent molding, punching die statistics interface equipped, strong technical support for after-sales provided.
|
|
Flexible solution
With its rich experiences on cold roll forming equipment manufacturing, KINGREAL uses the modular design concept to ensure the standardization of equipment parts to achieve fast production delivery.
The parts in the production process are completed on the automatic machining center. Reduce human dependence and ensure the sustainability of equipment quality.
|
High quality roll forming
CNC control system is the same as the design of the international mainstream equipment, using independent intellectual property control software to achieve data linkage and remote network diagnosis and maintenance.
|
|
Reliable Parts
Choose the highest-end and most reliable configuration as much as possible to ensure the quality of the equipment is excellent, reliable and safe.
The key parts are selected from well-known brands at home and abroad to fulfill our brand route.
|
Innovation
Due to continuous innovation and continuous improvement of product construction concept, we provide high-precision and sturdy equipment for our customer |
Technical Specification Of This Machine
|
Product name |
KINGREAL mobile factory LGS framing Making machine |
|
Function |
All production can be operated in the mobile factory |
|
Size |
12.192X2.438X2.896 meters |
|
Coil crane |
2 tons |
|
Machine Fixation |
Mobile factory with all machines fixed in the container, Insulated walls and roofs to control temperature and reduce noise, Internal distributor, air conditioner, industrial LED tube, etc. Electric box for industrial use |
|
Applicable |
machine models can be equipped with mobile factories 75mm/ 89mm/140mm width for your choice |
Machine Feature
|
1). Vertical single-head automatic uncoiler: 1 Unit
a. It adopts manual tension design, the material inner diameter is 460mm-Ф520mm, the outer diameter is 1400mm, and the load is 2000Kg;
b. Automatic unwinding by frequency conversion speed regulation. c. Power 2.2kw. |
|
|
|
2). Rack
It adopts steel plate welding and overall annealing to remove stress to ensure that it will not be deformed after long-term use; and it is processed in CNC machining center to ensure dimensional accuracy.
|
|
3). Archway Panel
The main archway box structure, the box body is processed by CNC machining center, and the auxiliary archway structure is independent. |
|
|
|
4). Forming mold
Cr12mov mold steel, after vacuum quenching heat treatment for HRC60-62°, the inner hole and end surface are finely ground, and the roll surface is finished by CNC lathe. |
|
5). Spindle
The material is 40Cr tool steel, quenched and tempered heat treatment, and cylindrical grinding finish.
|
|
|
|
6). Drive mode
The servo motor is linked with the reducer, and the rollers are operated with precision hard-toothed gears soaked in oil to ensure long-term use without wear. |
|
7). Hydraulic system
a. Energy storage structure, energy saving and environmental protection. b. Hydraulic components: German Bosch Rexroth products.
|
|
|
|
8). Stamping die
The die template materials are all made of S45C tool steel, the die core is made of D2 or SKD11 high-quality steel, and the mold is made of Japanese Misumi products |
|
9). Electrical parts
a. Original imported motion controller and industrial-grade computer; b. International first-class brand low voltage components |
|
|
|
10). CNC inkjet printer
a. Equipped with an industrial-grade high-quality solvent-based electronic inkjet printer, the printing is clear and firm, which is convenient for assembly and installation. b. Universal solvent-based ink, easy to purchase and economical to use. C. Automatically print the marks automatically generated by the design software, without manual intervention, double-sided coding. d. Through the FrameMac LGS maker production control system, other information can be added arbitrarily, such as: company name, logo, website, etc.
|
Product Application
- ROOF, FLOOR, WALL PRINT
- Input Drawing to Produce
- Easy to fabricate
(What Our Machine Can Do?)
