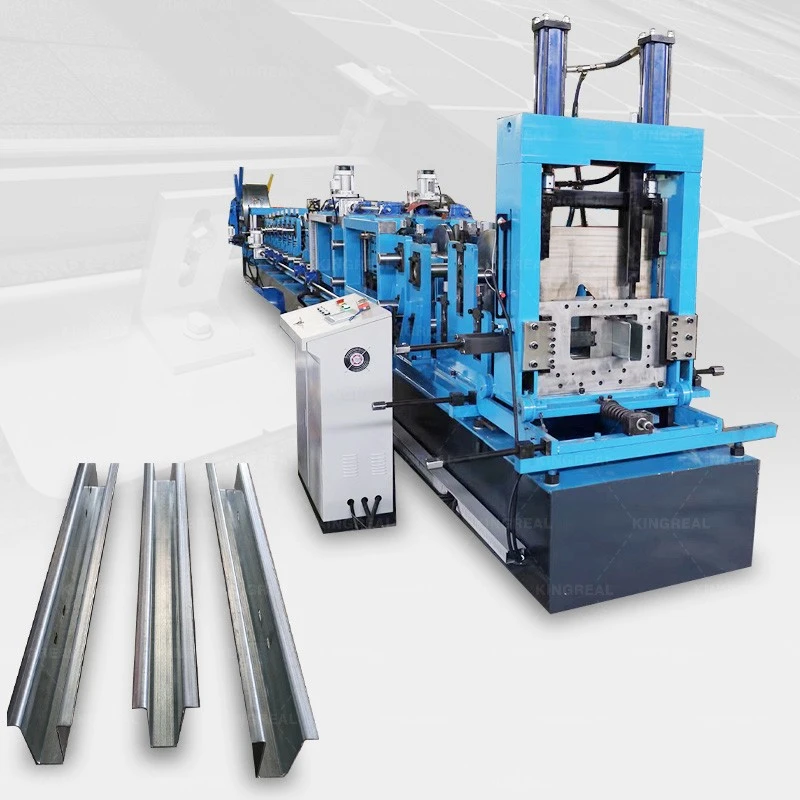

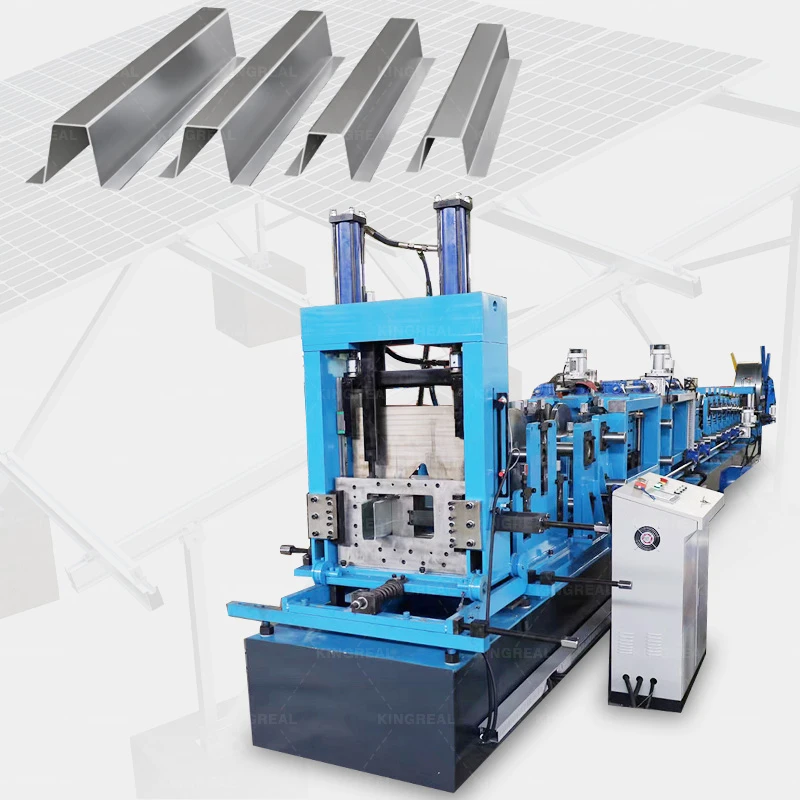

Roof Batten Roll Forming Machine

The roof batten roll forming machine, also known as a top hat purlin roll forming machine, is specifically designed for producing roof battens, an indispensable and crucial component of light steel structure systems, directly determining the quality of the roof and wall support system.

This roofing batten roll forming machine is easy and quick to operate, and boasts excellent material adaptability. It can flexibly process metal sheets of varying thicknesses and widths, producing roof battens of various specifications to meet diverse production needs based on the actual requirements of building projects.

Specifications

Equipment

P.S.: KINGREAL Roll Former provides reliable and high-performance roofing batten roll forming machines to customers through rigorous component configuration standards.

(1)Regarding specification adjustment, the roofing batten roll forming machine, through hand-wheel adjustment or servo motor control, can produce roof battens of various sizes on the same production line, significantly shortening specification changeover time and improving production continuity. It is particularly suitable for multi-specification production needs, enhancing enterprise production efficiency.

(2)In terms of cutting configuration, either a servo tracing cutter or a stationary cutter can be selected according to the user's production requirements, further improving the adaptability and practicality of the roofing batten roll forming machine.

(3)Both the rollers and blades are made of high-quality alloy steel and SKD11 steel, undergoing professional heat treatment processes to achieve a hardness of 60-62 HRC. This allows them to withstand high-intensity rolling and cutting for extended periods, significantly reducing component wear.

(4)Furthermore, the roofing batten roll forming machine's detailed design fully considers the user's actual needs, featuring a specially designed embossing roller device at the feed inlet. Embossed roofing strips develop a uniform texture on their surface, significantly enhancing their structural strength and load-bearing capacity. This allows them to better withstand external loads and meet the specific needs of areas with high wind loads or special buildings.





Roof battens produced by the roof batten roll forming machine are widely used in various building applications, becoming an indispensable core component of building structures. These profiles are specifically designed for structural and framing applications such as ceilings, partitions, solar panel supports, and cladding systems.



In roof structures, the profiles produced by the roofing batten roll forming machine provide a stable and robust base for metal roofs, cladding, or tiles, effectively transferring roof loads through purlins to the rigid frame, ensuring the stability and safety of the roof structure.



In wall structures, these profiles serve as wall support components, providing additional support and stability to the building, enhancing the walls' resistance to lateral displacement and seismic performance, and improving the overall structural safety of the building.



With its wide range of applications and superior product performance, the roof batten roll forming machine is well-suited for various customer groups, including purlin manufacturers, construction contractors, and steel structure processing plants. It provides customized production solutions for different types of clients, helping them improve production efficiency and optimize product quality.

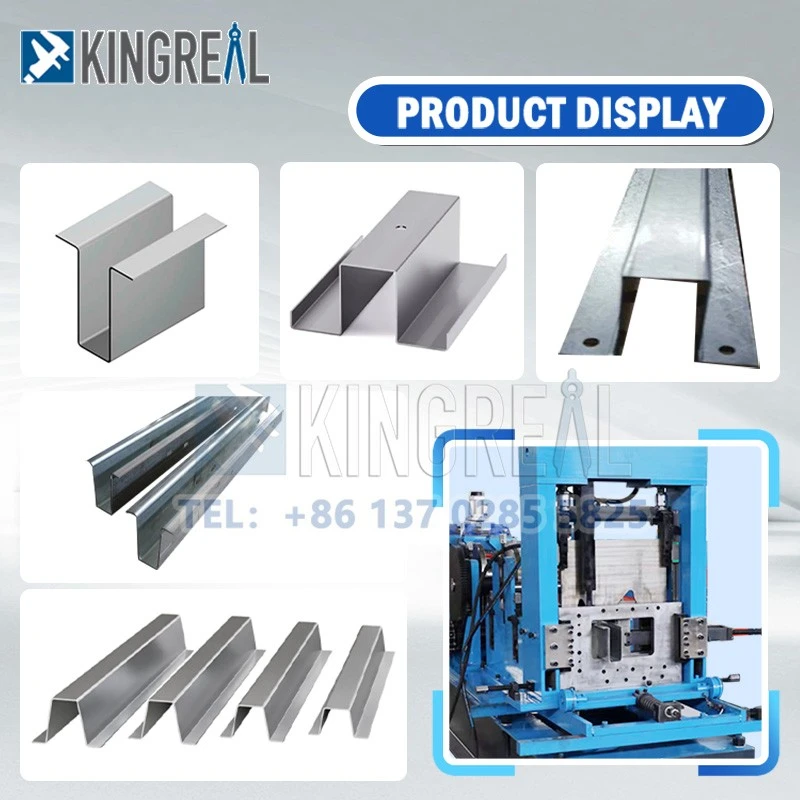

The rigid cap-shaped cross-section of the profiles produced by the roofing batten roll forming machine gives them excellent load distribution and strength-to-weight ratio. The depth of roof battens is typically 60 mm to 150 mm for structural purlins; while the depth for standard roof or ceiling slabs is 22 mm to 50 mm.

KINGREAL Roll Former always puts customer needs at the core, providing comprehensive one-stop service to every customer, from pre-sales consultation to after-sales maintenance, so customers don't have to worry about roof batten roll forming machine procurement, installation, use, and maintenance.

KINGREAL Roll Former one-stop service covers the entire process from pre-sales to after-sales. In the pre-sales phase, KINGREAL Roll Former warmly welcomes customer visits, gaining a thorough understanding of their production needs, site conditions, and expected goals. Customized roofing batten roll forming machine solutions are designed to ensure customers fully understand the equipment's performance, parameters, and production benefits. During the sales phase, the KINGREAL Roll Former team rigorously manufactures and commissions the roof batten roll forming machine according to the customized solution, adhering to strict production processes to ensure each machine meets quality standards. After manufacturing, customers are invited to inspect the machine to confirm it fully matches daily production needs before shipment.

In the after-sales phase, KINGREAL Roll Former dispatches professional engineers to provide roofing batten roll forming machine installation and operation training, ensuring staff are proficient in operating the roof batten roll forming machine and its routine maintenance. Simultaneously, KINGREAL Roll Former has established a comprehensive after-sales response mechanism, monitoring equipment usage in real time, responding quickly to various customer issues, and providing timely spare parts supply and repair services to ensure long-term stable operation of the roofing batten roll forming machine.
