Highway Noise Barrier Making Machine Performance

1. Range of rolled plate Material:	St-37-3δ1-1.5 Plate width: 245≤§≤650㎜
2. Production line speed:	0-10m/min (adjustable)
3. Production area:	28 meters long X 3 meters wide
4. Total installed capacity:	About 38kw

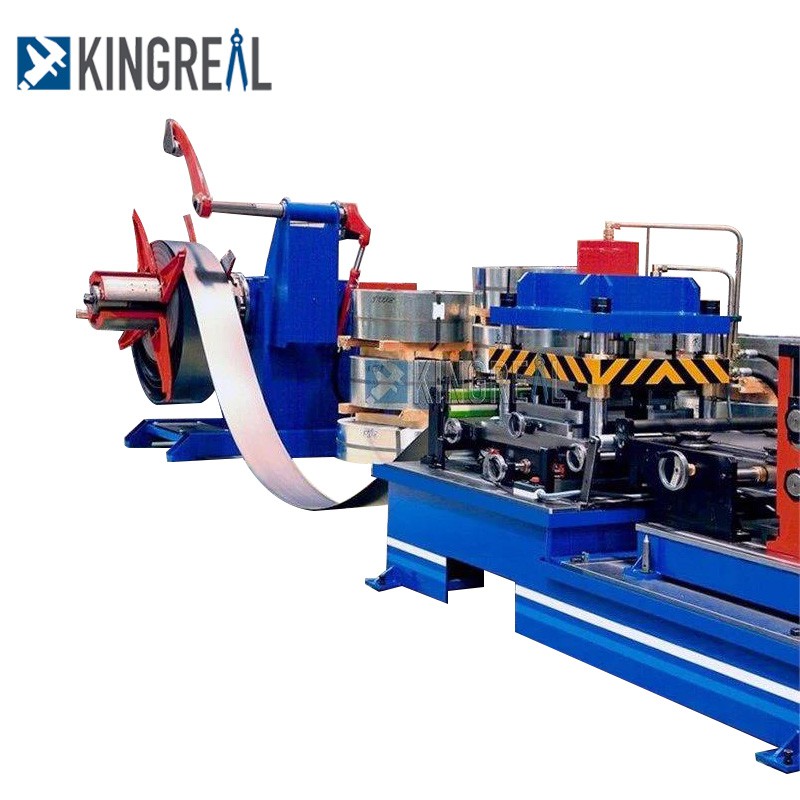

Sound Barrier Making Machine

Machine Features

1. The equipment is controlled by PLC, and multiple safety protections are set up during normal production.

2. The roll forming machine bed is welded by thick steel plate. And it is tempered to eliminate internal stress

and avoid deformation of the fuselage.

3. The forming frame is cast iron structure and has been tempered. High strength and long service life.

4. The material of the roller shaft is 40Cr, and the hardness is HB280 after quenching and tempering.

5. The material of the forming mold is GCr15, quenched, and hardness: HRC56-62℃.

6. The transmission structure is gear box transmission. Each forming frame has a gear box, which can ensure the

equipment overtime, high intensity operation and long service life.

Technical Parameter

Equipment Name	Highway Noise Barrier roll forming Machine
Final Products	Highway sound barrier, railway noise barrier, city road noise barrier
Raw materials	galvanized sheet, mild steel, etc
Punch speed	0-10m/min adjustable
Production line	Fully automatic with PLC control and touch Screen
Maximum forming speed	12 m / min
Roll Forming stands	22 Rollers station
Forming rollers materials	GCr15 quenching treatment
Total Machine Power	~ 35 KW

Structure Of This Machine

The equipment is mainly composed of active unloader, guiding frame, leveling machine,

servo feeder, 400-ton punch cutting part, forming part, bending part, receiving table, electrical

control cabinet and other components. The equipment produced by our company has the following

Several advantages:

Sound barriers are mainly used for sound insulation and noise reduction of highways, expressways,

elevated composite roads and other noise sources. It is divided into pure sound insulation reflective sound

barrier and composite sound barrier combining sound absorption and sound insulation.

The latter is a more effective sound insulation method. It refers to a wall structure set beside railways and highways

to reduce the impact of traffic noise on nearby residents.

sound barrier making machine

Sound Barrier Is Also Called Soudproof Wall

- Sound barrier thickness: 0.6mm, 0.7mm, 0.8mm, 1.0mm (can be customized according to customer requirements)

- Sound barrier molding thickness: 60cm, 80cm, 100cm (can be customized according to customer needs)

- Sound barrier color: can be customized into various colors according to customer needs

- Sound barrier use: road sound barrier, railway sound barrier, high-speed rail sound barrier, etc.

Features Of Sound Barrier

1. Large sound insulation, average sound insulation 36dB

2. High sound absorption coefficient: average sound absorption coefficient 0.85

3. Economy: prefabricated construction, improve work efficiency, short construction time, and save construction and labor costs

4. Features: The product has water resistance, heat resistance, UV resistance, and will not reduce the sound absorption quality of the metal sound barrier due to changes in rain temperature

5. Convenience: It can be installed in parallel with other products, easy to maintain and replace

6. Fire protection: Ultra-fine glass wool is used, due to its high melting point and non-combustible, it fully meets the requirements of environmental protection and fire protection regulations, and the fire protection level reaches A
