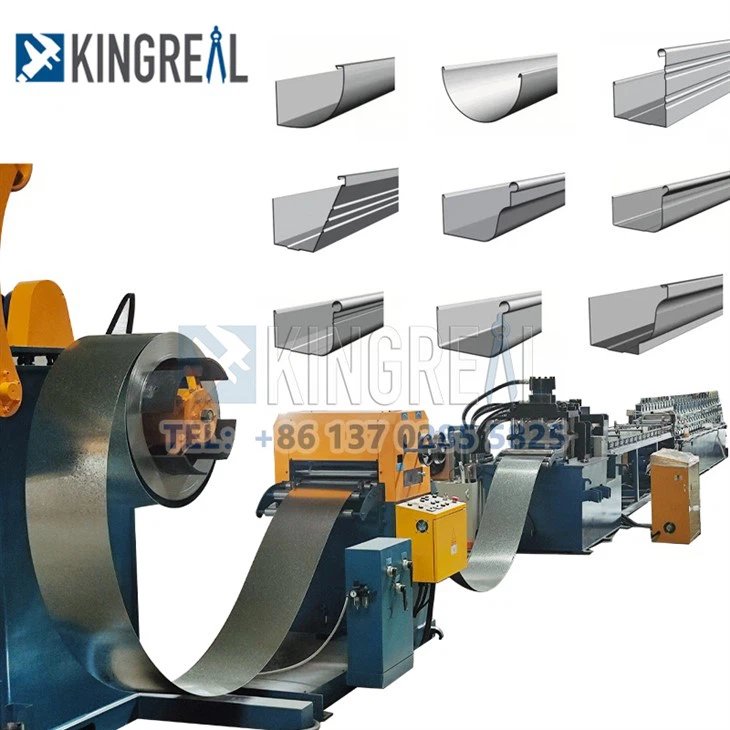

Metal Gutter Making Machine Description

Metal rain gutter channel is a component of the water discharge system for a building mainly including

gutters and downspouts.

The rain gutter is roll formed by galvanized steel strip or stainless-steel strip. We provide different kinds

of metal rain gutter roll forming machine for different building requirements:

1. K shape metal gutter forming machine

2. Fascia gutters making machine

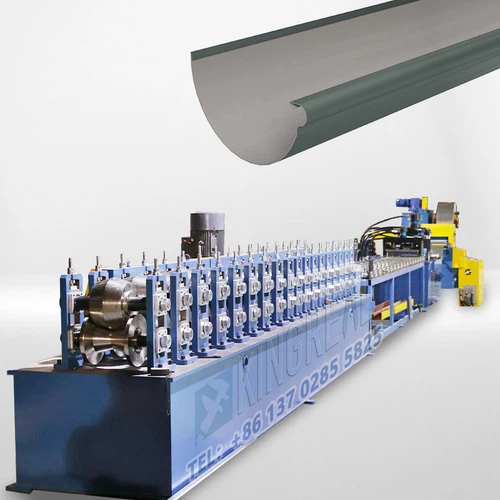

3. Half round gutter roll forming machine

4. Europe style metal gutter making machine

5. Metal rain gutter production line

The metal rain gutter making machine is used for the continuously production of metal gutter.

The gutter length and production quantity can be set on our own developed PLC control system.

We can design the gutter roll forming machine with your drawing.

(Profile drawing provide by customer or we can recommend our design).

Technical Specification Of Rain Gutter Making Machine

Raw materials	Pre-painted Galvanized steel or stainless steel coil, thickness 0.6-0.8mm
Input material width	280mm (according with customers' final drawing)
Length control	Encoder control, set on the touch screen
Maximum forming speed	0-20 m / min
Roll Forming stands	15-20 roll forming stands according with different products' shape
Machine Power	~ 15KW

Parts Display

『Feeding Orientation』

① Positioning plate: adjust the position of both ends to make

it fit the width of the feed.

②Guide frame: play a role in supporting the transport of the

material roll.

③Guide roller: The upper and lower round roller design makes

the feeding process smoother.

④Pre-cutting by hand: For the amount of the material roll, manual

cutting is carried out in the front section.

gutter making machine

metal gutter making machine

『Roll Shaft Assembly』

① Spindle diameter: φ70mm, 45# round steel.

②Roller material: heat treatment, hard chrome plating after finishing,

mirror polishing.

③ Frame rod: φ20# electroplated round steel to increase the rigidity on

both sides of the wall panel.

④Cold-bending forming: the process of cold-bending rolls one by one.

[Cut after forming]

①Guiding mechanism: moving the device up and down, the

shearing process is stable without deformation.

②Cast iron knife holder: cast iron has obvious shock absorption

effect and strong impact resistance.

③Cutter material: Cr12Mov, the cutting life exceeds 1 million times.

④Rear scissor frame: Q235 steel plate, annealing treatment after rough

milling, and finishing.

gutter forming machine

metal gutter making machine

[PLC control cabinet]

① P L C: adopts Delta/Schneider high-precision PLC electronic control system.

②Inverter: Delta/Schneider heavy-duty inverter, running efficiently and stably.

③Control components: Schneider Electric, with long service life and low failure rate.

④Touch screen operation: input production data and automatically complete

production requirements.

Structure Of Metal Gutter Roll Forming Machine

The production line is made of manual decoiler, feeding table, roll forming machine part, hydraulic cutting unit, output table, hydraulic station and electrical control cabinet etc.

metal gutter production line

Products Application

gutter making machine

Technical Support

Technical Team

KINGREAL ROLL FORMER is able to provide technical after-sales service to our customers. In order to ensure the smooth installation and operation of the machines, KINGREAL ROLL FORMER will arrange to send engineers to the customer's project for technical guidance. Up to now, KINGREAL ROLL FORMER has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.

Our Customer

Certification

certification

KINGREAL ROLL FORMER has established a strict quality control process to ensure that every production step meets the standards and requirements. This includes raw material procurement, production process, assembly, testing, etc. To ensure that every part of the machine meets quality standards.

It has also passed the international CE certificate certification.

FAQ

01.How to choose Roll Forming Machine?

Roll Forming Machine, from the current point of view it is different specifications, and regardless of which specifications to choose the size, is involved in the product offer this work, and this work is very important, because it is related to the buyer can correctly buy the product.

02.Roll Forming Machine Design And Manufacturing Feature

Cold forming machine equipment is a kind of machinery and equipment used to process metal plates (such as steel plates, aluminum plates, stainless steel, etc.) into various complex cross-sectional profiles through continuous bending process.

03.What are the most common cutting methods in roll forming?

One of the most common cutting methods in roll forming is fly cutting. This method involves cutting the formed metal while the roll forming machine is running at high speed. The fly-cutting method is favored for its efficiency and accuracy in producing precise cuts in the metal.

04.Cold Bending Roll Forming Equipment Design Characteristics

Cold bending equipment is a kind of mechanical equipment used for cold bending and molding of sheet metal. It usually includes components such as plate rollers, bending machines, and cutting machines.

05.Cold Formed Steel Product Characteristics

Cold Roll Forming Machine, the raw materials used in the manufacturer of hot-rolled or cold-rolled strip steel as a billet, after the bending equipment, so as to get a variety of cross-sectional shapes and sizes of cold-formed steel.

06.Manufacturer Cold Roll Forming Machine Layout Requirements

In order to ensure the stable operation of the cold-formed forming machine and avoid secondary adjustments during use in the future, the cold-formed profile production workshop needs to have a reasonable layout.
