Hook-on Tiles Making Machine
Hook On Panel Making Machine Description
KINGREAL Hook On Panel Ceiling Machine can produce aluminum made
hook-on panels fully automatically.
The roller stations are controlled by servo motors, which are easily to adjust
by inputting parameters into the computer system.
We use 30mm thickness of base panel for this production line, for the reason
that it can ensure the line to sustain damages during its entire life and perform well.
The basic procedure of this production line is raw material decoiler, precision
straightener, corner-cutting, main roll forming station (width auto adjustable),
shearing & bending, final products output.
Technical Specification
Raw materials | Pre-painted Aluminum or Pre-painted Galvanized steel |
ceiling sizes | Width: 600-1200mm width adjustable |
Length control | Automatic servo control, set on touch screen |
Maximum forming speed | 15 m / min |
Roll Forming stands | 20 roll forming stations |
Machine Power | ~ 22KW |

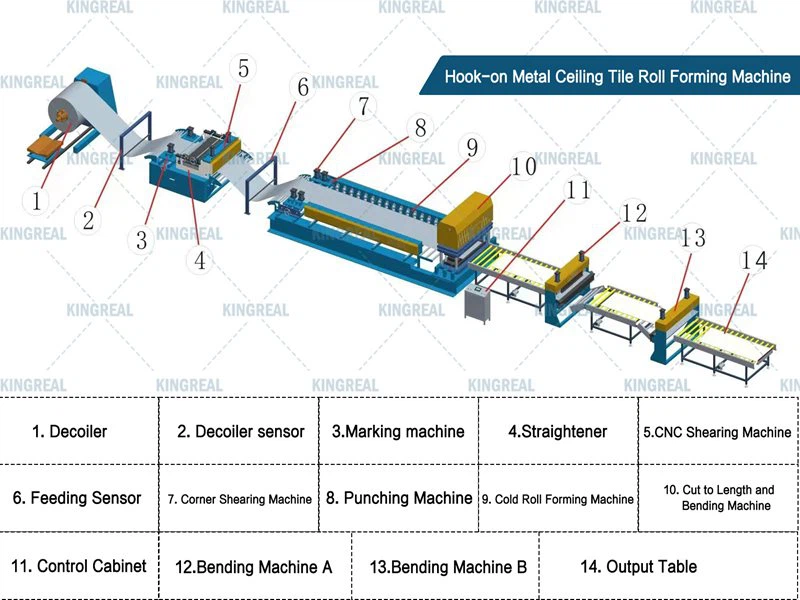

Structure Of The Production Line
- Raw material decoiler - Precision leveler - Servo feeder - Corner punch station - Main roll forming station - Bending & shearing station - Output table. - Electrical & Hydraulic system |  |
Machine Feature
Hydraulic decoiler
The hydraulic decoiler needs an overhead crane to load material coils, maximum capacity is 5 tons. |
|

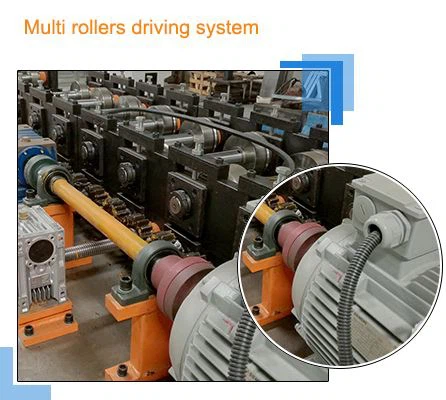

| Multi rollers driving system For your choice
On the basis of different products, speed requirements and so on we have multiple methods of driving to choose: Driving by chains and gears, or driving through gears powered by main motors and planetary reducer. Our driving system can provide high-speed production and stable operation. |
Auto Width Adjustable The width adjusting system is controlled by servo motors from Yaskawa and main motor from Siemens. Only need to press button on the touch screen then all rollers will adjust automatically. |
|
Advantages

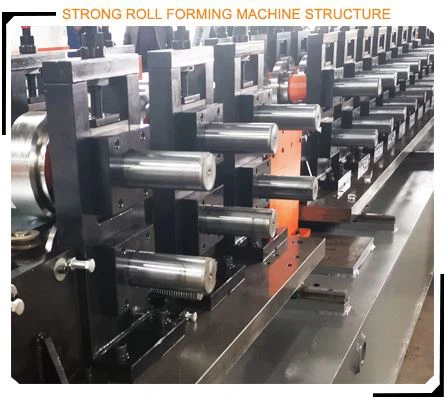

STRONG ROLL FORMING MACHINE STRUCTURE
KINGREAL machine frame is welded by steel panel to one-piece structure. Then one 30mm thickness panel will be put on the frame after fine processed by the Plano miller. This will ensure the accuracy basic size. Also, it will increase the machine strength to reduce the deformation and ensure the long life time operation. |
|

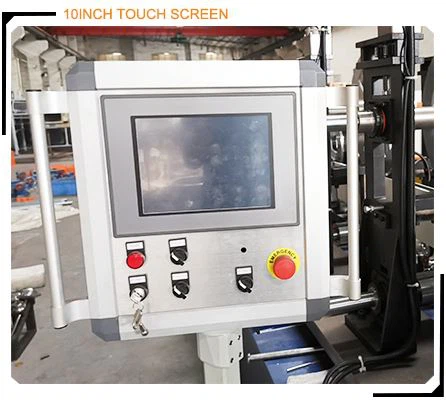

| 10inch Touch Screen
The 10-inch touch screen system is easy to use, not only does it has a large screen, but also it features with our own-developed multilingual system for easy using. |

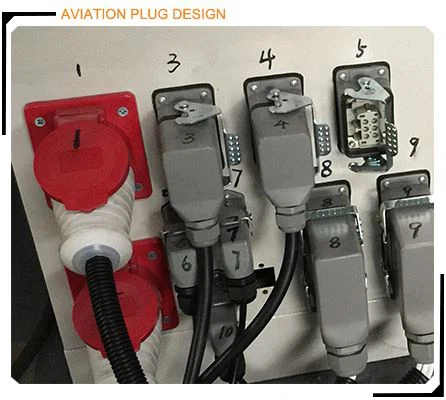

Aviation Plug Design Our machines use aviation plug design to connect the circuit. The design has the characteristics of simple installation and beautiful appearance. |
|
Different Type Product

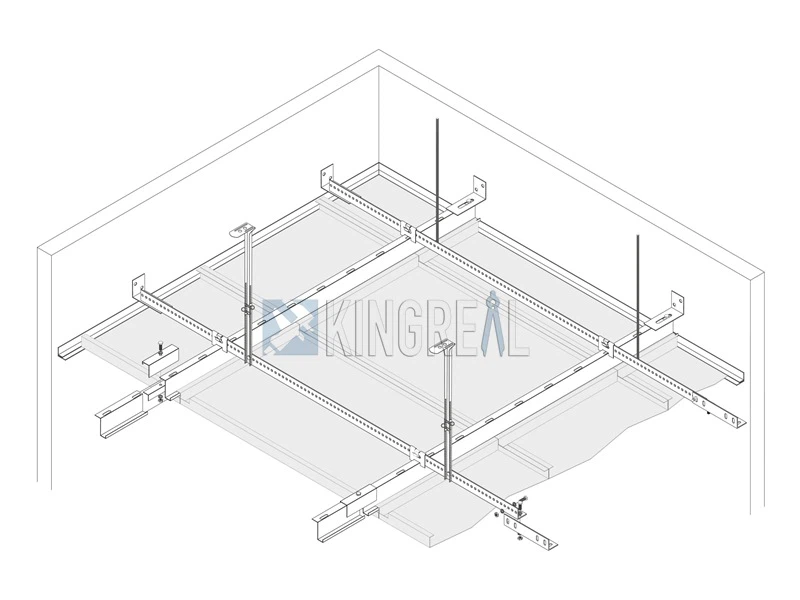

Hook-On Ceiling Application
How To Install The Machine?
In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services.
Local After-Sale Service
In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress
