1.What Is U Baffle Ceiling With U Bent?

The U Bent Baffle Ceiling is a common suspended ceiling design that features square or rectangular panels with raised edges around the panels, allowing the panels to inter-inserted to form a flat ceiling surface. The reverse hooked u baffle ceiling is installed by bending the edges of the panels backwards so that they edges of the panels backwards so that they interlock with the edge of the next panel, thus forming the overall structure of the ceiling.

The advantages of this type of ceiling are structural stability, ease of installation and aesthetic appeal. As a result, the demand for this U bent design type of baffle ceiling is also increasing.

2.What Is U Baffle Ceiling Roll Forming Machine?

KINGREAL U Baffle Ceiling Roll Forming Machine is specifically designed for the production of acoustic baffle ceiling product through a series of production processes including uncoiling, leveling, forming and cutting. At every stage of the production process, KINGREAL pay special attention to quality control. Each component of this device must be expertly made, and our staff will inspect each one.

To ensure the quality of the machines and to provide the best products to our customers, KINGREAL put all of our energy, attention, and knowledge into the creation. After the production line is finished, we will help our client.

baffle ceiling forming machine

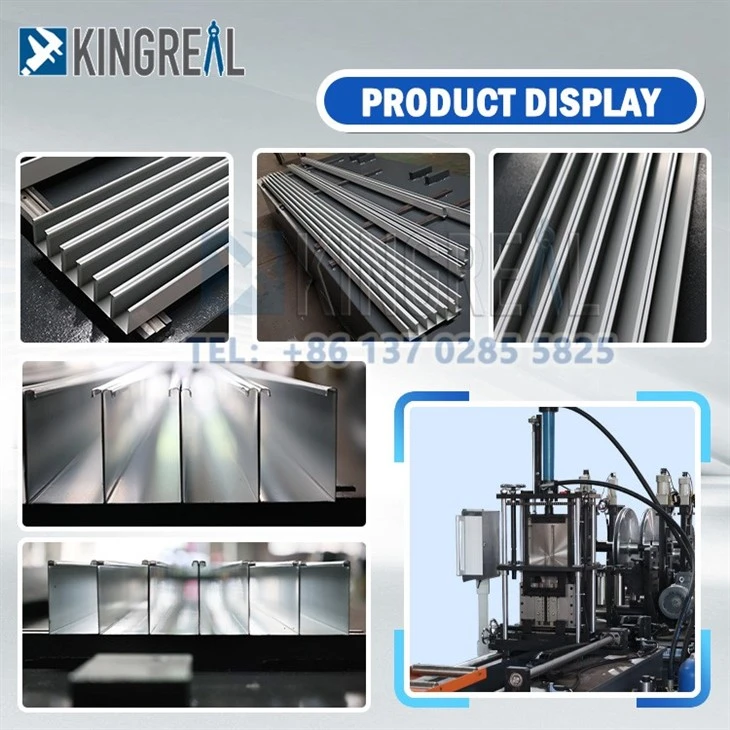

3.What Types Of Baffle Ceiling Products Can Our Machines Produce?

sound baffle ceiling

- For different material:

Gi Steel, Aluminum, Pre-painted Gi Steel or Aluminum;

- For different shape:

U/V-shape, and other;

- For Other customization:

U- Bent

4.Technical Specification Of U Baffle Ceiling Roll Forming Machine:

Raw Material Type	Pre-painted Steel Strip
Material Thickness	0.4-0.7MM for Gi Steel Coil 0.4-1.2MM for Aluminum Coil
Product Size	Height: 75-300mm, Width: 25-100mm
Shearing Method	Hydraulic following shearing without stop the machine
Yield Strength	Comply with international Standard
Roller Materials	45# mold steel
Production Speed	30M/Min Max
Machine Power	~ 30KW

5.Working Process Of U Baffle Ceiling Roll Forming Machine

baffle ceiling machine process

Hydraulic Decoiler → High Precision Leveling → Main Roll Forming Machine → Auto Shearing To Length→ Products Output

6.Advantage Of KINGREAL Baffle Ceiling Production

1. Automated Operation:

KINGREAL U-bent Baffle Ceiling Making Machine adopts PLC control series, with automatic operation function, which can realize some automatic production process from unrolling to forming of products. Reducing manual operation and labour intensity.

2. Precise Roll Forming:

This machine adopts advanced forming technology and is able to accurately form various shapes of counter hooked square ceiling.

3. High quality products:

The U- Bent Baffle Ceiling Forming Machine produces products with high consistency and quality stability to meet customer requirements.

Machine Quality Assurance

KINGREAL has established a strict quality control process to ensure that every production step meets the standards and requirements. This includes raw material procurement, production process, assembly, testing, etc. To ensure that every part of the machine meets quality standards. It has also passed the international CE certificate certification.

Application Of U-bent Baffle Ceiling:

metal baffle ceiling

The U-bent Baffle Ceiling is widely used in building decoration, it is not only beautiful and practical, but also can meet the needs of a variety of different places. For example, in shopping malls, offices, hotels and libraries.
