Wall Cladding Panel Machine
Metal Cladding Panel Machine Description
|

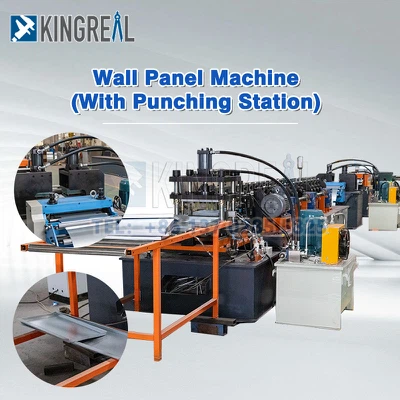

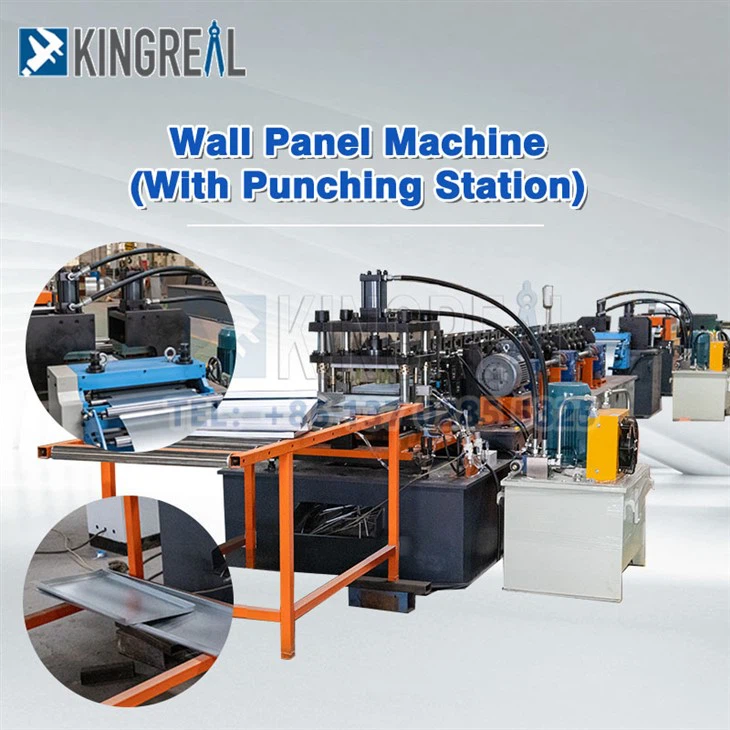

KINGREAL ROLL FORMER Metal wall Cladding Panel machine is one of our most featuring products.
This machine can make the aluminum or steel wall cladding panels up to 4FT width. The length is controllable by PLC.
The metal call cladding panel materials are widely used in high class facilities such as airport suspending, railway station, office and etc.
|
 |
 |
This equipment is used for the production of fast-installed color steel wall panels, which can flexibly adjust the product width (300-1200mm) and meet the needs of the market for multiple specifications.
It can save equipment investment costs for equipment purchasers and reduce the purchase of equipment quantities, so it can also reduce plant costs.
This equipment is fully automatic, from raw materials uncoil to final products bending forming fully automatic, which can reduce the number of workers and reduce labor costs, while the efficiency has been doubled.
Moreover, compared with the traditional multi-process production method, it reduces the machine occupied space by multi-process circulation and reduces production costs.
|
Technical Specification Of Metal Cladding Panel Machine
|
Raw materials |
Pre-painted Aluminum or color steel coil |
|

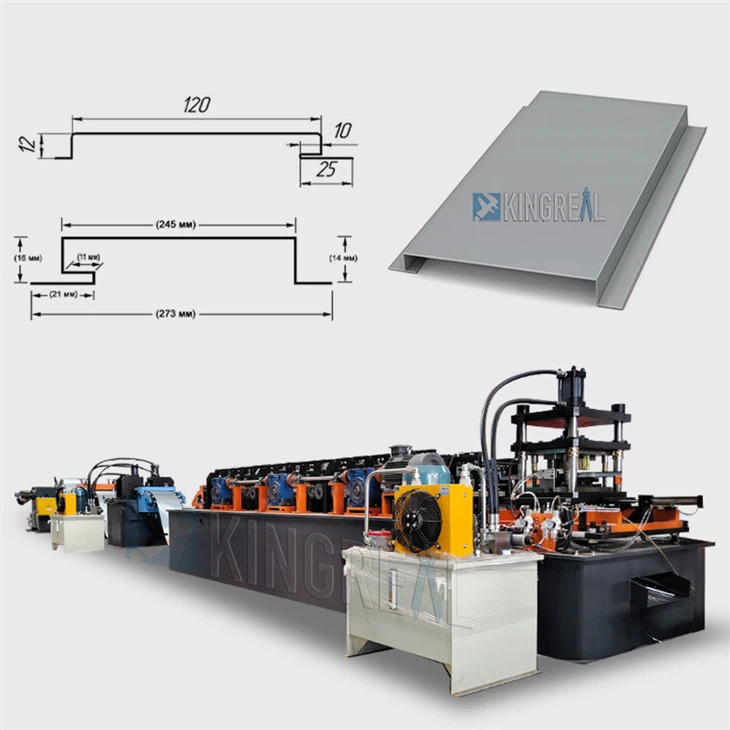

Wall cladding panel sizes |
Max width: 1200mm, 300-1200mm adjustable automatically by the servo motor |
|
Length control |
Automatic servo control |
|
Maximum forming speed |
12 m / min |
|
Number of forming rollers |
14 stations or according with customer's design |
|
Roller materials |
Cr12MoV high performance cold forming mold steel. |
|
Transmission mode: |
worm gear motor driving. |
|
side plate form: |
40mm thickness wall plate type |
|
Cutting: |
hydraulic Cutting and edges bending at the same time |
|
Machine Power |
~ 20KW |
Technical Process
Raw materials uncoile→ Notching→ Continuously cold roll forming→Automatic cutting and folding→Ready product output

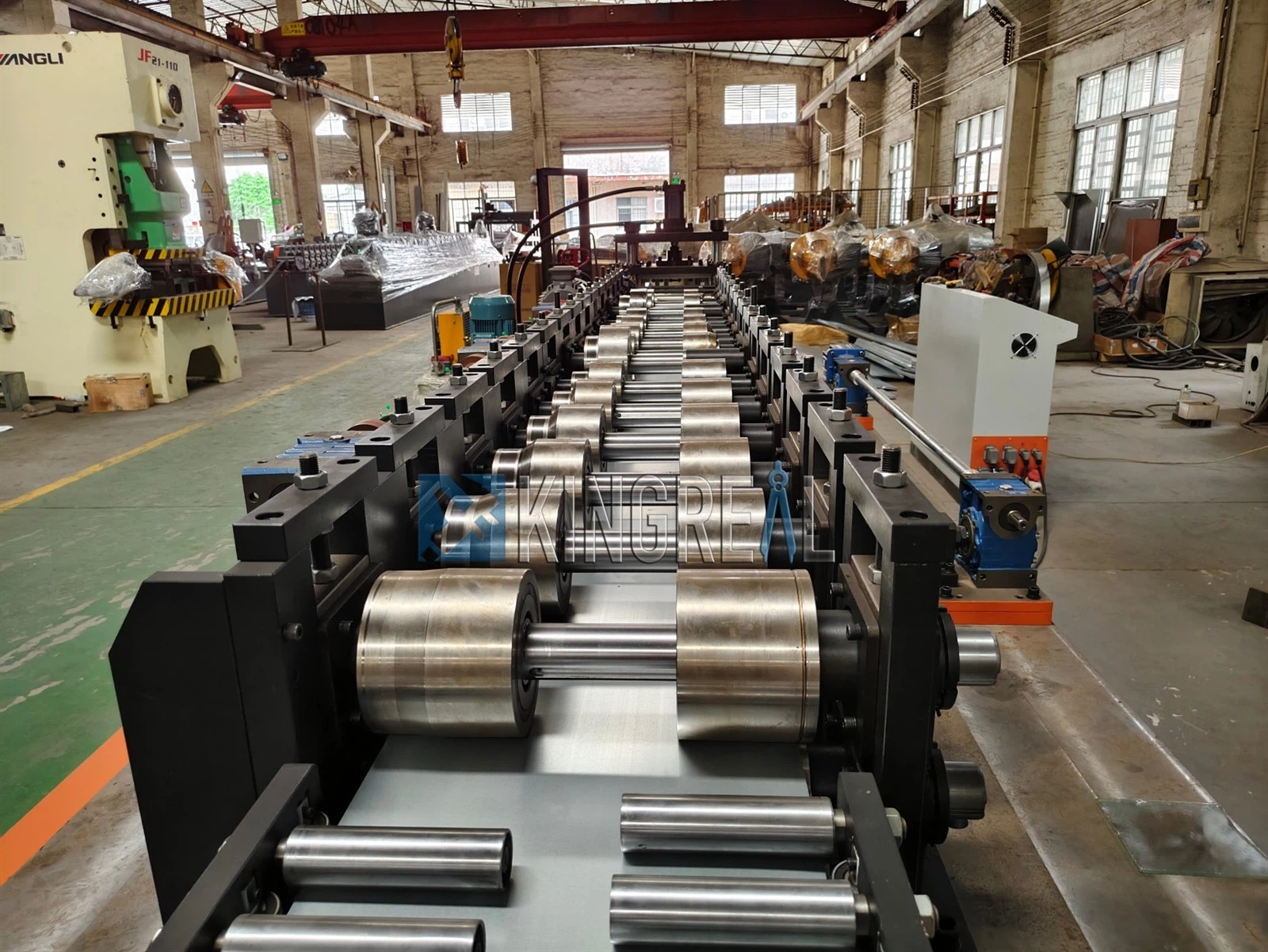

Production Workshop
KINGREAL ROLL FORMER has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop. In order to ensure the production quality of the machines, the whole line will be tested and adjusted in the factory. KINGREAL ROLL FORMER welcomes all customers to visit our factory.
Our Professional Team
Technical Team
KINGREAL ROLL FORMER has its own professional technical team.
With strong professional ability and rich design experience, KINGREAL ROLL FORMER engineers can design machines according to the drawings provided by customers and the corresponding production needs.
Solve all technical problems during the production, installation and use of the machine.
Local After-Sale Service
In order to be able to effectively solve customer needs in the first time, KINGREAL ROLL FORMER has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress.
