Acoustic Baffle Ceiling Machine
→ Video About Acoustic Baffle Ceiling Roll Forming Machine
Products Description
U Baffle Ceiling is a ceiling system commonly used in modern architectural design that consists of a series of U-shaped baffles suspended from the ceiling. These baffles are usually made of metal or other materials and can be customized in size and color.

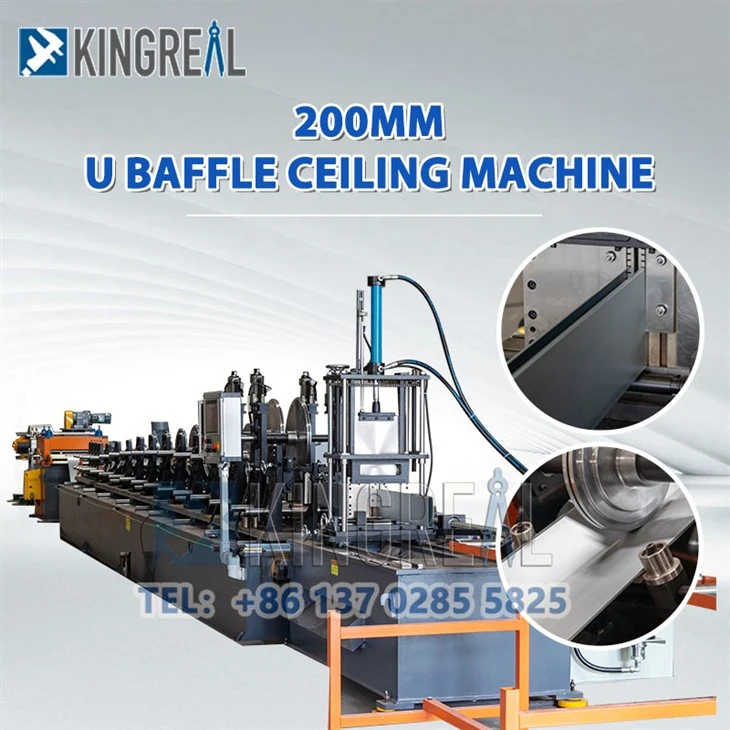

KINGREAL Acoustic U-shape baffle ceiling production line can produce baffle ceilings with perforation.It uses acoustic/perforated/pre-painted metal with acoustic fleece as raw material.This production line is also compatible with other types of raw material, produce
regular products.
For big sizes like baffles with more than 200mm height, we use our unique hollow roller design to avoid distortion
Phone Number
+86 137 0285 5825
sales@kingreal.org
Technical Specification
|
Raw materials |
Perforated Pre-painted Aluminum or perforated Pre-painted Galvanized steel |
|
Ceiling sizes |
Max height: 300mm, Max width: 100mm |
|
Decoiler |
Hydraulic decoiler, manual materials loading and hydraulic expanding |
|
Coil weight |
Max 5tons |
|
Straightener |
Precision 21rollers straightener |
|
Width and height adjustable |
Automatic servo motor control by 3 units of Yaskawa servo motors, drive by the screw rod and reduce motor |
|
Roll forming speed |
0-35 m / min for different sizes and thickness |
|
Roll forming machine |
Strong base panel welded to avoid deformation |
|
Roll Forming stands |
14 Rollers station |
|
Machine Power |
~ 30KW |
|
Machine weight |
About 18tons for the whole baffle ceiling production line. |

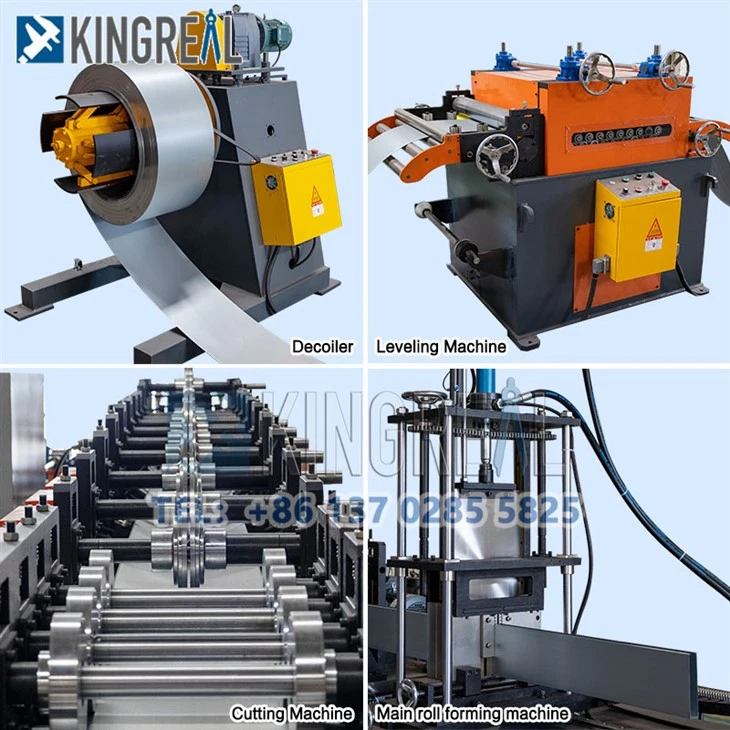

Main Components
- Hydraulic decoiler
- Precision Straightener
- Main roll forming machine
- Follow shearing station
- Output table
- Electrical & Hydraulic system
Each Part Feature
Hydraulic Decoiler With Trolley
The loading trolley in a metal uncoiler is an auxiliary device used to place steel coil material safely and consistently onto the uncoiler.
Optimizes the loading process and ensures the safety and efficiency of the operation. Especially when handling heavy steel coil material, these features are particularly important as they help to reduce the labor intensity of the staff and increase the level of automation in the production line.
Roll Forming Machine With Width adjustable
The key to realize adjustable width design of metal roll forming machine is the adjustability of its rollers and frame. This makes the metal roll forming machine highly flexible and adaptable in the production process, and can meet the changing production needs.
Machine frame: the machine frame is welded by steel panel to one-piece structure. Then one 30mm thickness panel will be put on the frame after fine processed by the planomiller. This will ensure the accuracy basic size. Also it will increase the machine strength to reduce the deformation influence.
Follow Shearing Cutting Station
The hydraulic parts use high efficiency environmental protection energy storage type hydraulic system. And it adopts Taiwan hydraulic components and equipped with air cooling system.
Shearing Method: Servo follow cut without stop the machine, the blade material is high standard mold steel with quenching treatment hardness up to HRC60℃. Taiwan TBI liner rail and ball screw-liner with lubrication device.
Why Choose Us?
|

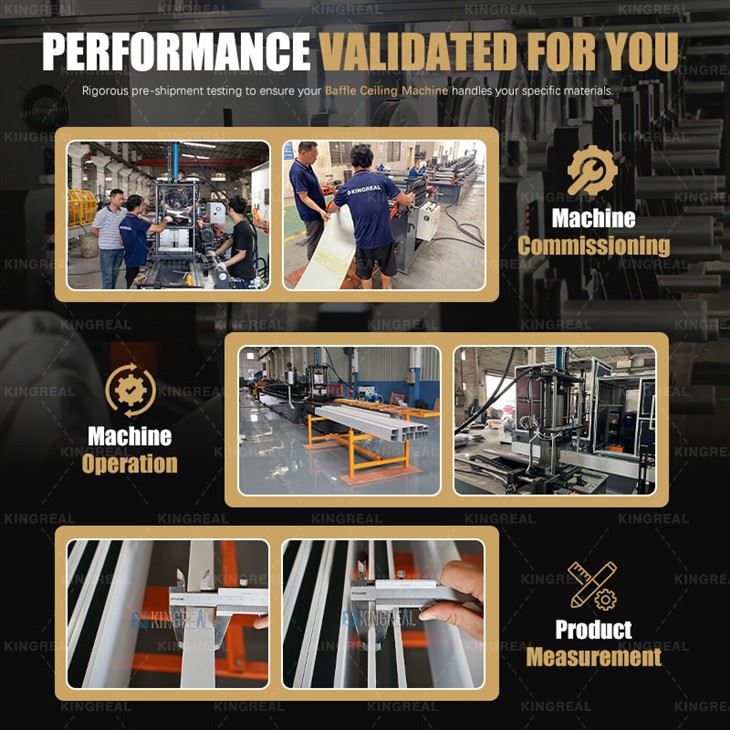

Trial running & Training
When machine production is completed, KINGREAL will conduct large-scale trial production in factory to ensure quality and working conditions of the machine. Customers can send their engineers to inspect the machine and be familiar with basic operation and maintenance. |
|
|
|
Strict Products Quality control System
KINGREAL has a strict quality control system for finished production line. We will strictly inspect machine according to the product drawings. These inspections include but are not limited to product size, shear length accuracy, surface smoothness and distortion. |
|
HIGH QUALITY ELECTRICAL APPLIANCES
We use high-quality imported electrical appliances, such as Japanese Yaskawa NC servo feeder, PLC from FATEK, MCGS touch screens, which can ensure stable and continuous work of our machines. |
|

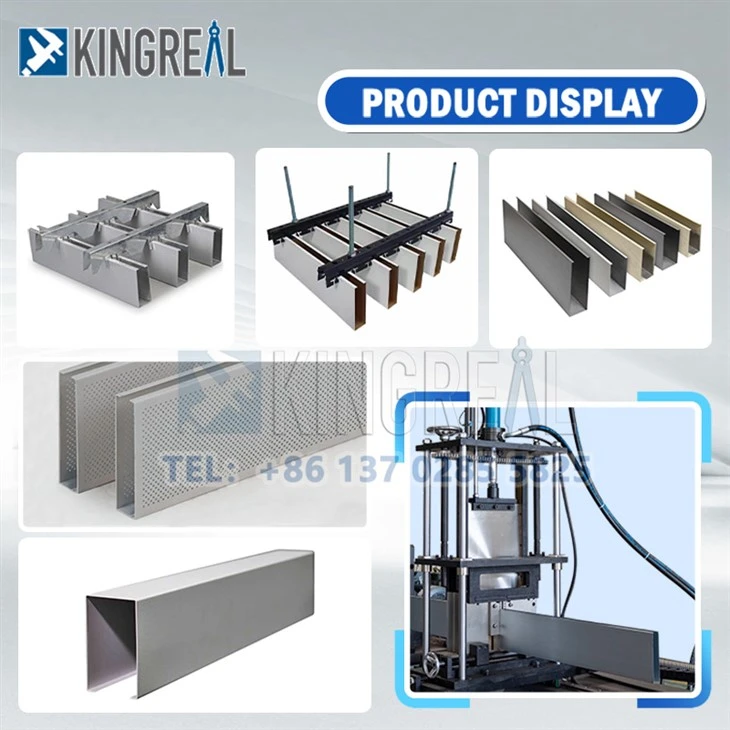

Products Application
Packing And Shipping
After-Sale Service
In order to be able to effectively solve customer needs in the first time, KINGREAL ROLL FORMER has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress
