Malaysia Keel Making Machine
Video About Roll Forming Machine →
Malaysia C keel roll forming machine Description :
|
The keel Machine uses strip steel as raw material and is formed by continuous cold roll forming to produce complex cross-section profiles (products include: light steel keel, paint keel, cassette keel, various building profiles, steel structures, steel-lined door frame profiles, high-speed protection Bar, etc.) and different specifications of cold-bending and paint-baking units are controlled by PLC.
Light steel keel is a new type of building material. With the development of modernization in my country, light steel keel is widely used in hotels, terminals, train stations, stations, playgrounds, shopping malls, factories, office buildings, and old buildings. Renovation, interior decoration, ceiling and other places.
|
 |
 |
Light steel (painted) keel ceiling has the advantages of light weight, high strength, adaptability to waterproof, shockproof, dustproof, sound insulation, sound absorption, and constant temperature. It also has the advantages of short construction period and simple construction.
The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross section.
The marking sequence of light steel keel is: product name, code number, width and height of section shape, thickness of steel plate and standard number. For example, the ceiling keel whose cross-section shape is "C" type, width is 50mm, height is 15mm, and steel plate thickness is 1.5mm is marked as: light steel keel for building DC50×15×1.5 GB11981.
The basic structure of Malaysia C channel profile making machine is decoiler, continuously cold roll forming, hydraulic follow shearing, auto stacking system, etc. |
Roll Forming Machine Features
- Double heads decoiler
- High speed cold roll forming
- Combi structure for your choice to produce different steel profiles on one machine
- Machine protection
- Hydraulic fly shearing
- Auto stacking system for your choice.
Technical Specification of Malaysia C Channel roll forming machine:
|
Raw materials |
galvanized steel strip or stainless-steel strip |
|
Spring tee sizes |
According with customers' drawing |
|
Maximum forming speed |
120 m / min |
|
Roll Forming stands |
15 Rollers station |
|
Machine Power |
~ 15 KW |
Structure Of Malaysia C Channel Roll Forming Machine :
- Hydraulic decoiler
- Main roll forming machine
- shearing station
- Output table.
- Electrical & Hydraulic system
Machine Features
|
Quality Independent Archway Panel Structure
We have unique quality independent archway panel structure for roller groups. With our special design, archways were cast, then processed, surface treated. Our archways not only are firm and durable, but also have stable qualities. And it is featured with beautiful appearance and endurable quality. |
|
|
|

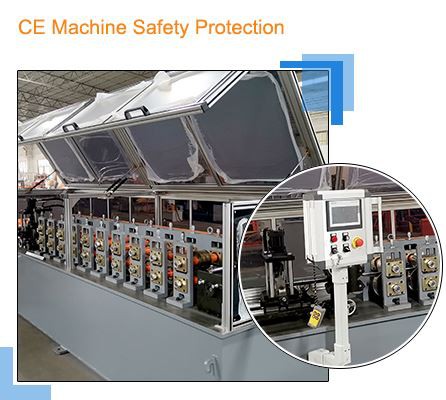

CE Machine Safety Protection We use safety protective cover in order to keep machine operator save. The cover is assembled by high-strength aluminium profile and acrylic.
Once it was open, machine would be automatically shutdown, and there are a lot of other functions to avoid work injuries caused by accidental contacts which make the whole machine more humanised. In addition, the protective cover is a mandatory option for CE certification and the European market. |
|
SIEMENS MOTOR KINGREAL cold roll forming machines series use SIEMENS motors to ensure the stable running of the machine.
Beside the motors, all the electrical system we use high quality famous brands, Such as YASKAWA for the servo feeder motors and Omron for the PLC, etc. This will ensure our machine running stable and long life time usage. |
|

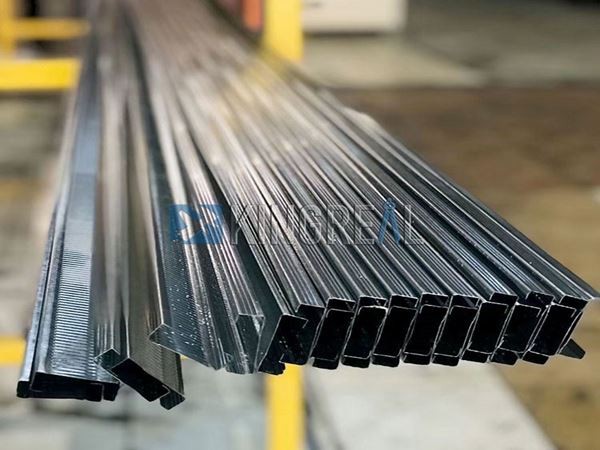

Final Product Display
Our Customers
Certification
