Video Of Wall Angle Forming Machine With Punch

Wall Angle Roll Forming Machine Description:

Angel Bead profile, also called corner bead profile is widely used in various types of building structures and support systems in the construction and engineering fields, and the demand for its production is increasing.

KINGREAL has specially designed Wall Angle Roll Forming MachineWith Punch, which is able to achieve the integration of corner edge punching and forming, and the most common materials are galvanized steel and aluminum alloy.

one-stop solution

professional team

high quality

Working Process Of The Wall Angle Profile Machine

angle forming machine

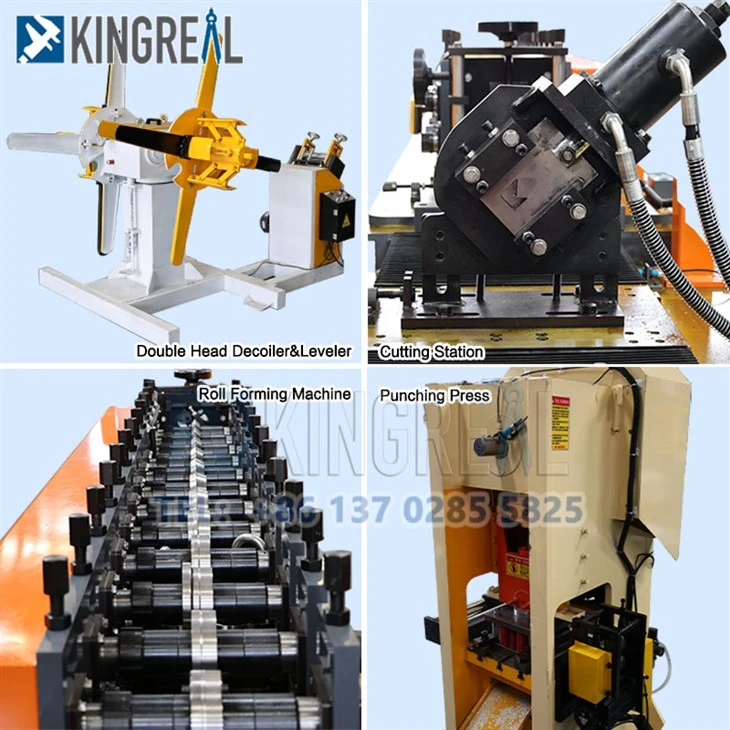

Hydraulic Decoiler → Punching Press Machine → Continuously Cold Roll Forming → Cutting→ Products Output

Technical Specification For Angle bead roll forming machine

Material Thickness	0.4mm angle profiles
Shearing Accuracy	±1.0mm (There is a little deformation due to the material stress)
Straightness	Bending is less than 1‰/M, twist is less than 1.3%/M
Product Section Size	According with drawing or Sample
Roll Forming main motor power	4kw
Hydraulic Station Motor Power	3kw
Power Supply	AC415V, 50HZ, 3phase 4 Lines

Wall Angle Profile Machine Feature

Automated operation

The Wall Corner Bead Forming Machine is equipped with an advanced CNC control system, enabling intelligent, fully automated production that significantly boosts overall efficiency while ensuring consistent product quality.

Operation is simple and convenient; staff need only adjust parameters on the smart control panel to flexibly process corner beads of various specifications.

The Wall Corner Bead Forming Machine independently executes the entire production sequence-including uncoiling and feeding, precision punching, profile forming, cutting, and unloading-in a fully automated workflow.

Versatility

This Wall Corner Bead Forming Machine can punch holes of various shapes and sizes into the material to meet specific processing requirements.

KINGREAL Roll Former designs and manufactures custom punching dies in strict accordance with the production drawings or samples provided by the client.

By simply swapping out the corresponding dies, a single machine can produce a wide range of corner bead styles.

High precision

The Wall Corner Bead Forming Machine offers exceptional processing precision and forming stability. It precisely controls punching angles, profile dimensions, and overall geometry, ensuring consistent precision and standardized specifications for every finished product.

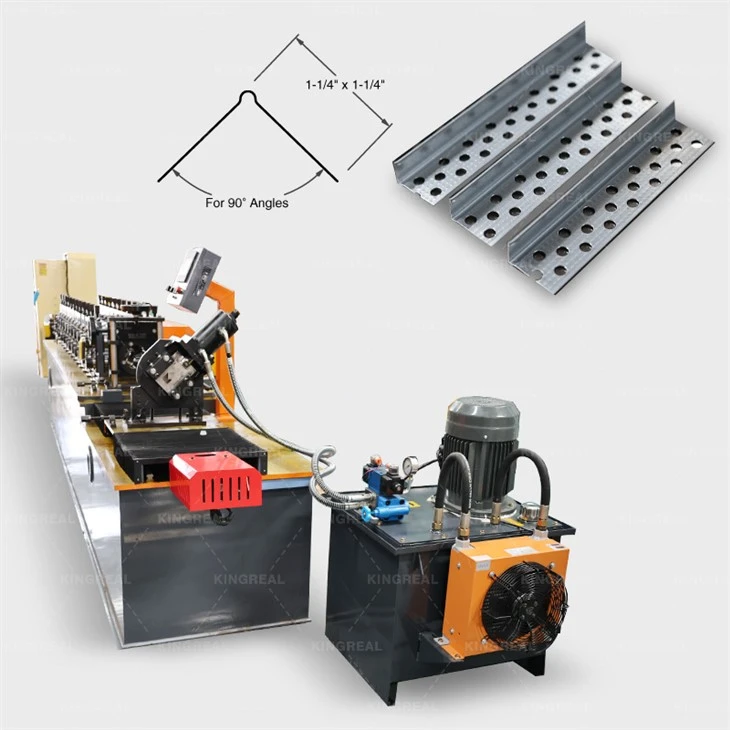

The machine's core forming section features multiple sets of rollers that progressively shape the raw material; through this roll-forming process, the sheet metal is gradually and smoothly formed into a standard 90-degree corner bead, resulting in a flat, uniform finish free from deformation or dimensional deviations.

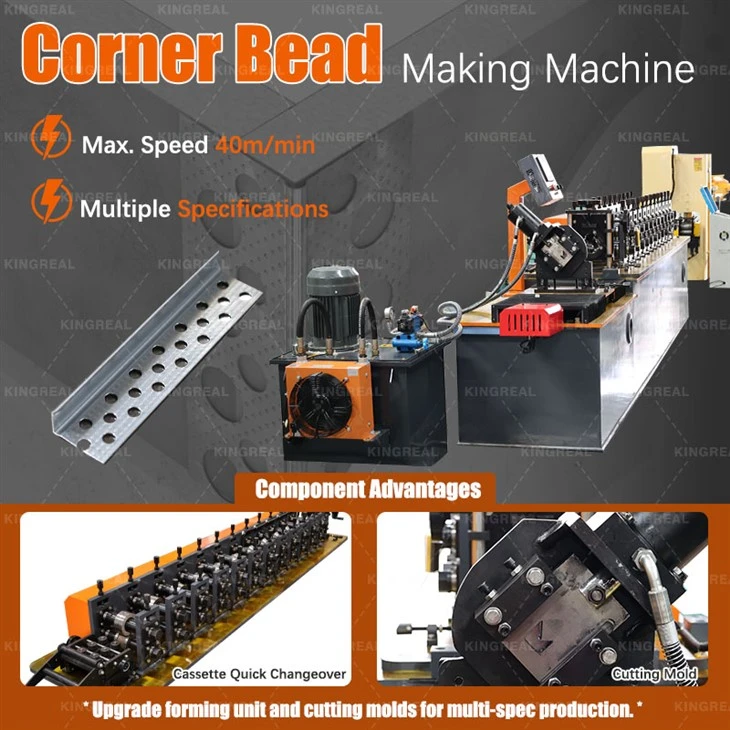

Interchangeable Hanger Design for Wall Corner Bead Forming Machine

A key highlight of this Wall Corner Bead Forming Machine is its convenient interchangeable hanger design; by simply swapping out the matching hanger assemblies, users can flexibly adjust production parameters to accommodate the forming and processing of various wall angles.

A single Wall Corner Bead Forming Machine meets the production requirements for multiple profile specifications, effectively solving the problem of having to purchase multiple units to handle different products.

This solution not only significantly lowers equipment investment costs and reduces the factory floor space occupied by multiple machines but also eliminates the labor costs associated with operating and maintaining multiple units.

It enhances production line flexibility and overall utilization, making it ideal for handling multi-variety, small-batch profile production orders.

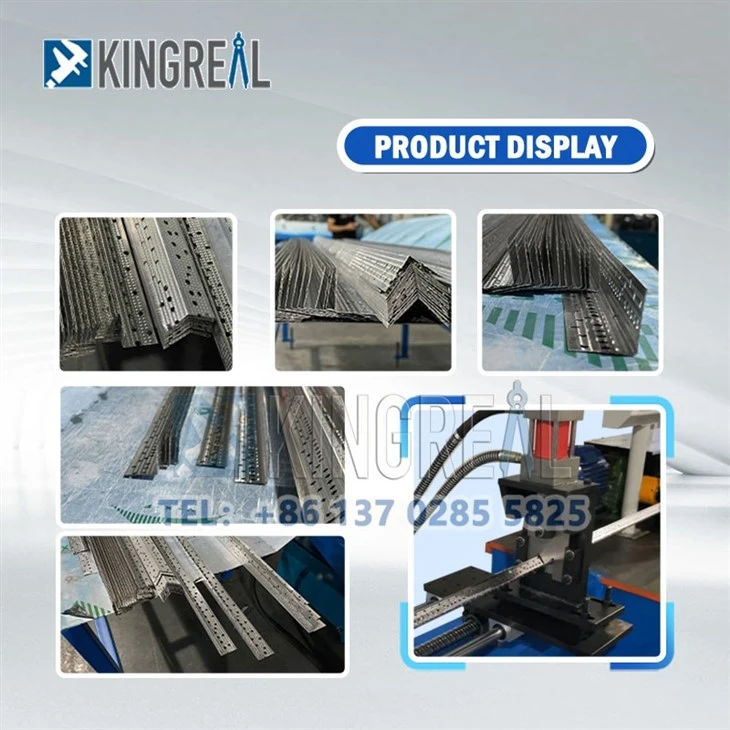

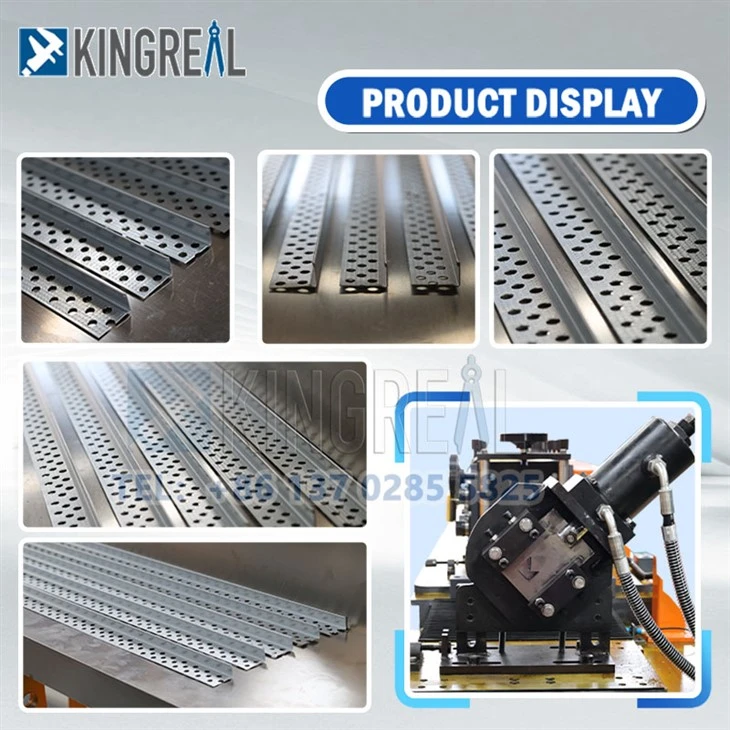

Final Product Display

4-Angle Bead Roll Forming Machine

The special design of perforated corner edge keel can make it have high bearing capacity and stiffness, and at the same time, through the perforation process, it can make it have better air permeability and drainage performance, so that it can effectively prevent the accumulation of water vapor and reduce the wind pressure. Therefore, perforated corner keel is widely used in various types of building structures and support systems in the field of construction and engineering.
