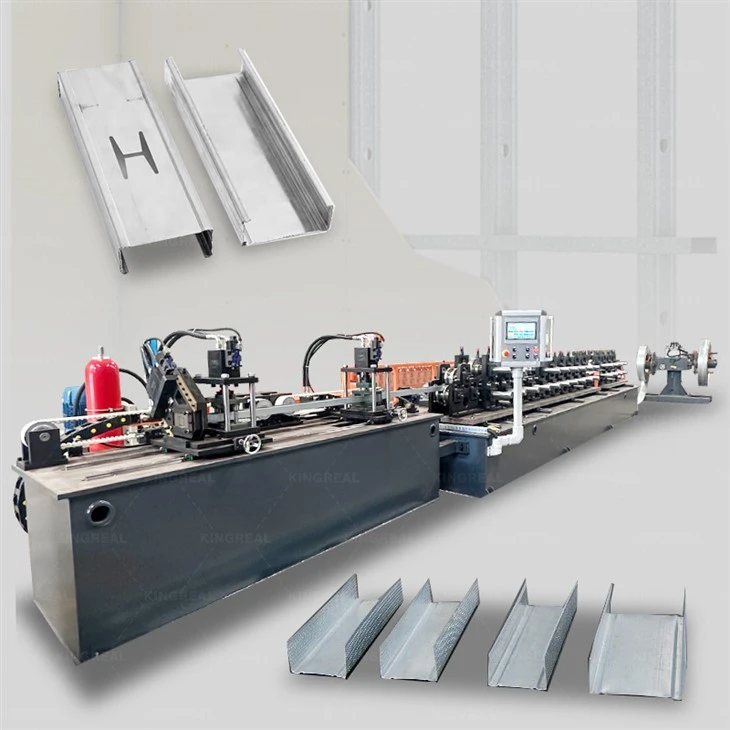

Machine Description:

One machine for Different width and height products!

Our Drywall Metal Stud and Track Making Machine can produce different sizes of product as customer's demand. With the most advanced servo feeder driving technology, this stud and track machine can be changed in 10 minutes or less to produce different width and flange heights products.

As our one of the most featuring products, drywall metal studs and tracks roll forming machine has the following characteristics:

-High speed output (up to 120m/min)

-Fully automatic running (auto stacking system for your choice)

-Easy to operate, etc.

The basic gypsum channel machine components including double heads decoiler, continuously cold roll forming, Hydrualic fly punch, hydraulic fly shearing output table and etc.

Technical Specification

Raw materials	galvanized steel strip or stainless-steel strip
Spring tee sizes	According with customers' drawing
Maximum forming speed	120 m / min
Roll Forming stands	15-18 Rollers station
Machine Power	~ 15 KW

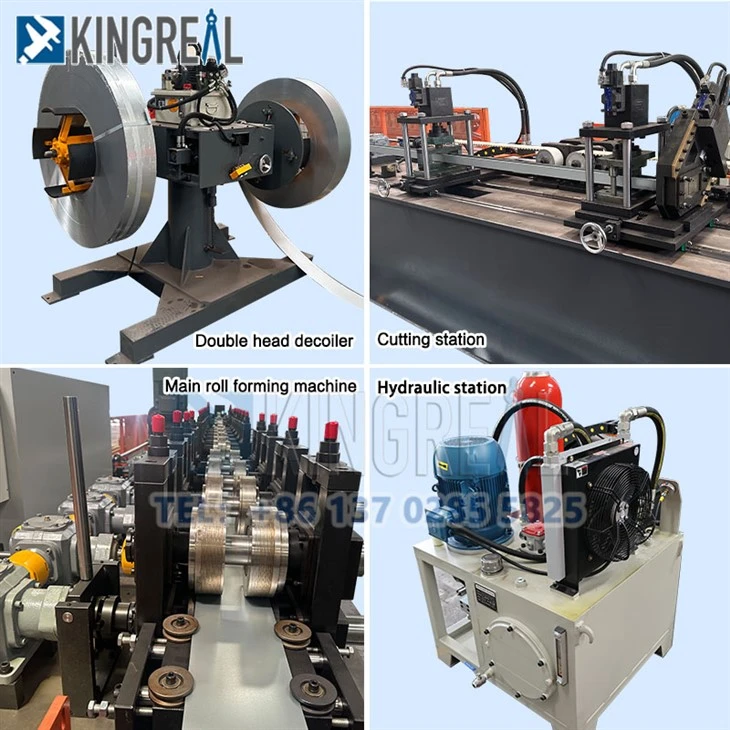

Structure Of gypsum channel machine

- Double heads decoiler

- Main roll forming machine

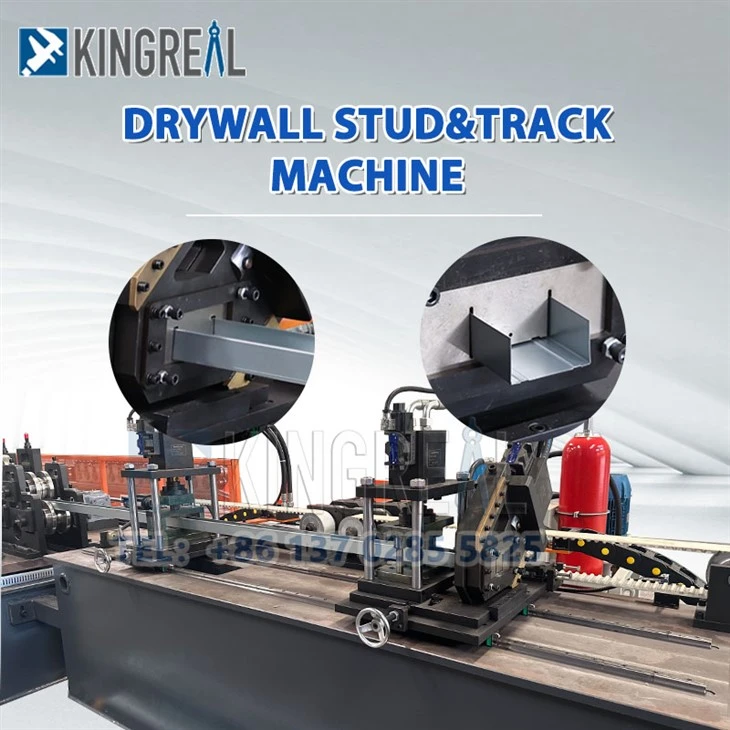

-Fly Punch and shearing station

-Output table

- Electrical & Hydraulic system

gypsum board metal profile machine Features

Strong Roll Forming Machine Structure

KINGREAL ROLL FORMER build the stud and track machine frame panel with 30mm thickness steel. The panel will be fine milled to ensure its hardness.

On the other hand, the frame panel will help to remove vibration and improve production quality. With a thin panel, the whole production line will shake like a toy and do no benefits to production.

Auto Width Adjustable

KINGREAL ROLL FORMER developed our own auto width adjustable system for stud and track machine, it is drive by the high precision Yaskawa servo motor and through the precision screw rod. The system can change the width of rollers automatically or manually.

This width adjustable system is widely used on other roll forming machines.

With this system, one machine can produce different multi sizes products, and featured with flexible solution and economical investment.

High Precision Cr12MoV Forming Rollers

KINGREAL ROLL FORMER material for rollers is CR12MOV, which is better than usual CR12 rollers. They are more durable and precise in actual manufacturing of metal ceilings.

They will be heated up to HRC 58-60 degrees, then CNC machine to do fine process etc. After all the procedures, our rollers are ready to go under most circumstance and give good performance.

Automatic High Speed PAcking Mahcine For Drywall Stud and Track:

KINGREAL ROLL FORMER specializes in an automatic production line for the 2-6m drywall profiles, aluminum tube and other building materials industry, with a lot of labor, low obedience, and research and development. The work process of automatic buckle, automatic rectification, automatic arm palletizing and automatic plastic steel bundling is adopted to form an automatic/efficient/stable automatic palletizing and packing line.

automatic packing machine 1

This production line adopts PLC control and has a high degree of automation. And it has the advantages of saving manpower, reducing labor intensity, reducing costs, and reducing injuries to employees, and is more suitable for industry competition.

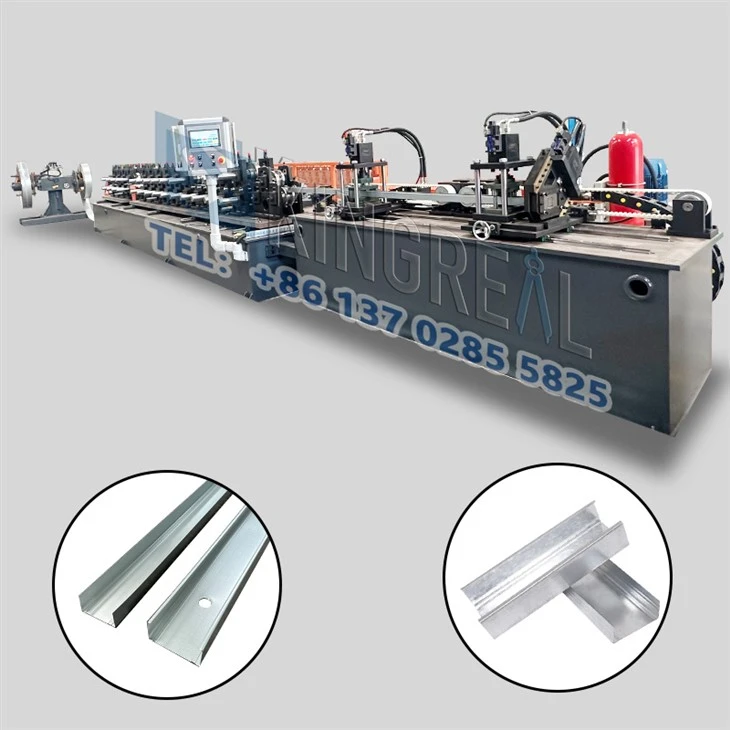

Drywall Stud And Track Machine In The Factory

Stud And Tack Machine Quality Control

KINGREAL ROLL FORMER has established a strict quality control process to ensure that every stud and track production step meets the standards and requirements. This includes raw material procurement, production process, assembly, testing, etc. To ensure that every part of the machine meets quality standards. It has also passed the international CE certificate certification.

Packing & Shipping

steel stud machine package

(KINGREAL CU Channel Roll Forming Machine Shipping To UAE)

Customer FeedBack

customer feedback

FAQ

01.How to visit your factory?

There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.

02.What's your Warranty ?

12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.

03.What's your delivery Time ?

Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.

04.What's your payment terms ?

40% deposit is paid before production, the balance paid after inspection confirmation before shipment

05.What's your Install and Training ?

If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, Manual book and video is provided to show how to install and operate.

06.What can you do if the machine breaks down?

We will include some spare parts with the machine itself, if emergency we will send required parts by air to ensure problem solved quickly.
