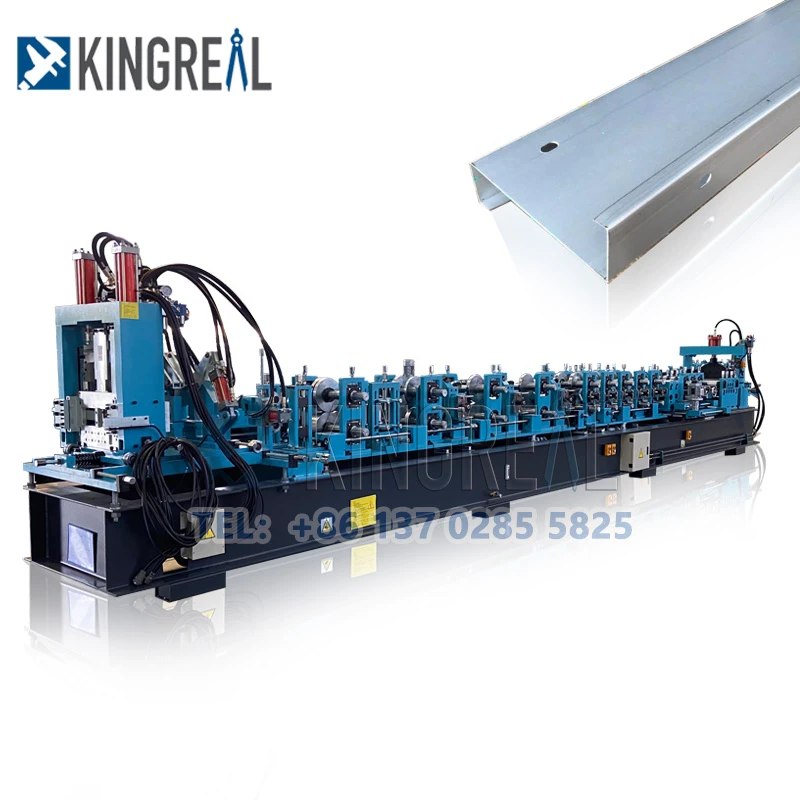

1-3MM CZ Purlin Making Machine
Machine Description

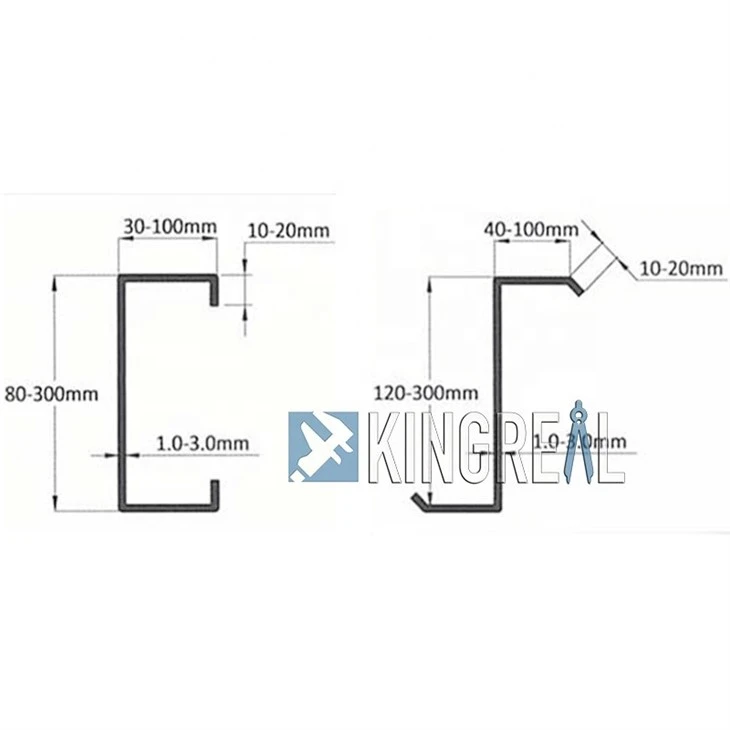

KINGREAL can supply both C purlin roll forming machine, Z purlin machine and C&Z purlin making machine, to produce 1-3mm thickness C-shape and Z-shape steel purlin product. The most popular widths range from 100-300mm, with different size dimensions corresponding to different production options.
CZ purlin is a member used on the roof of a building, usually to support roof tiles or other roofing materials. It is a long, timber-like material that is cold-formed from CZ profiles.CZ purlins are installed at the gable end or ridge of a building to support and hold roofing materials in place.CZ purlins are widely used in the construction industry, and are especially common in roofing construction.
Products Description
Hydraulic Decoiler –- Feeding&Guiding Machine -– High Precision Straightener -– Main Roll Forming Machine -– Shearing Cutting Machine -– Collecting
Technical Spcification
|
Coil Material |
Galvanized Steel/ Hot Roll Steel/ and so on |
|
Material Thickness |
1-3mm (can up to 4mm) |
|
Coil Width |
100-600MM |
|
Line Speed |
15M/Min |
|
Control System |
PLC Control |
|
Total Power |
30KW |
|
Machine Weight |
15Ton |
Main Component Details
| Components Name | Specification |
|

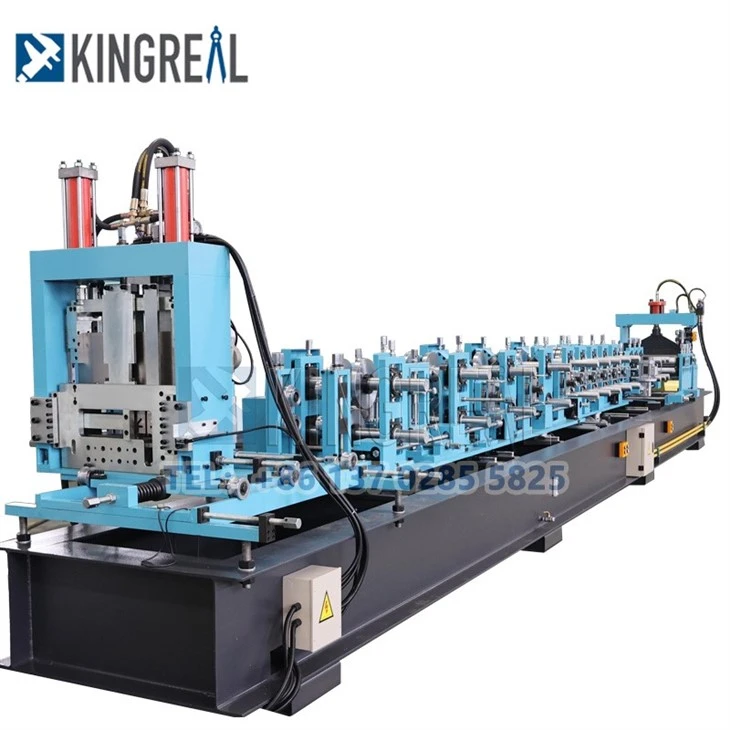

Main Roll Forming Machine |
21 groups roll forming station (one of which is a flange forming 87-95 degree adjustable roller group)equipped with 12sets of CZ exchange modules. |
|
Double chain for transmission |
b and d channels are connected with reinforcing plates |
|
Motor Version |
22kw motor+11KW hydraulic station |
|
Decoiler |
Load capacity 6 tons |
|
Overall weight |
approximately 13.8 tons |
Machine Features
CZ purlin molding machine adopts advanced automation technology and high speed production line, which can produce purlins quickly and continuously, greatly improving the production efficiency. It also has precise control system and high-precision molds, which can produce purlin products with accurate size and stable quality. The machine adopts human-machine interface operating system, which is easy and convenient to operate, and the operator can be put on the job and operate it with simple training.
In order to meet different production requirements, KINGREALCZ purlin forming machine can also produce purlins of different specifications and shapes according to customers' demands, which has strong adaptability and flexibility.
Products Description
KINGREAL Exhibition
Technical Support
KINGREAL is able to provide technical after-sales service to our customers. In order to ensure the smooth installation and operation of the machines, KINGREAL will arrange to send engineers to the customer's project for technical guidance.
Up to now, KINGREAL has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.
