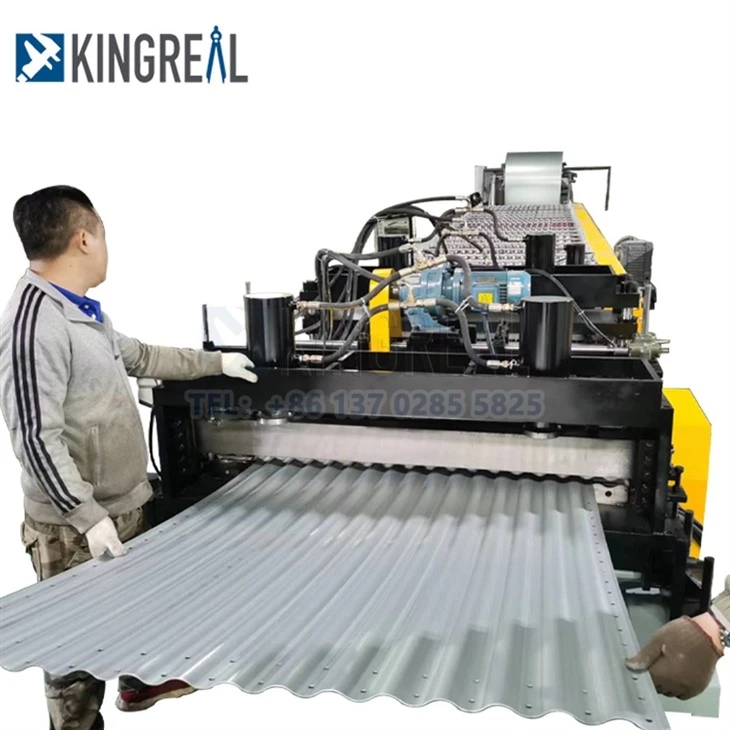

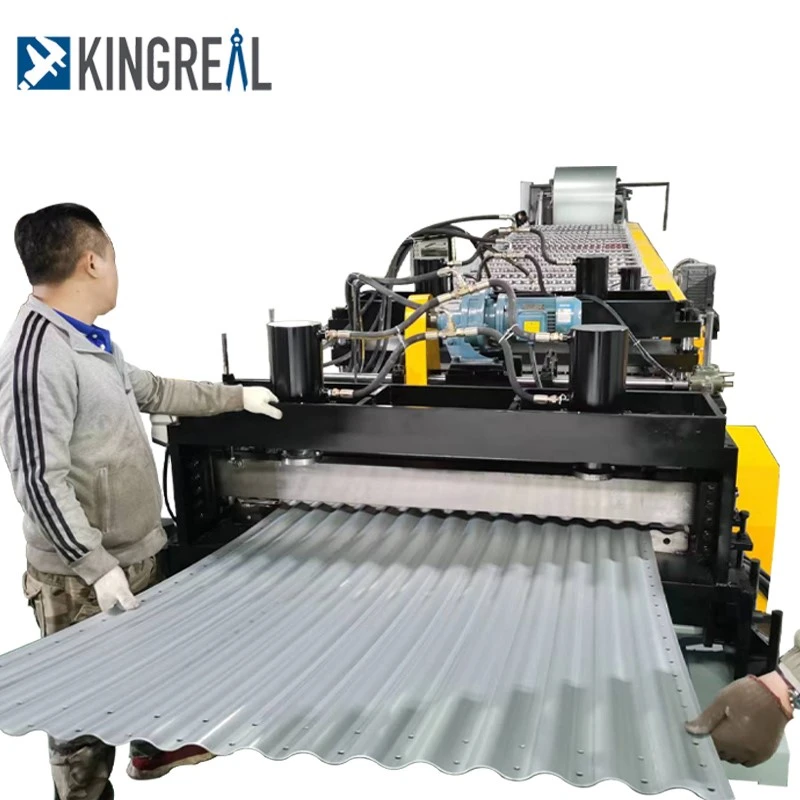

Description Of Grain Silo Making Machine
Granary silo cold bending machine is used for the production of different sizes of grain silos.
The corrugated board production line consists of 8 parts:
unloader, central delivery leveling, forming, punching, shearing, discharging rack, electric control
system and hydraulic system. This production line can meet the automatic production of corrugated
boards in all silos.
The fast production capacity can reach 2 pieces/min. The commissioning of this production line can improve
the production efficiency of corrugated board and stable products quality.
Technical Specification
|
Frame: |
iron plate welding |
|
Uncoiler: |
5 tons electric decoiler |
|
Main machine passes |
20 passes |
|
Transmission mode: |
gear transmission |
|
Main motor power: |
15kw, Oumite |
|
Hydraulic system: |
7.5kw*3 |
|
Electrical system: |
Delta controller |
|
Cutting method: |
hydraulic stop cutting |
|
Stamping equipment: |
servo tracking hydraulic punching |
|
Cooling system: |
water cooling |
|
Material thickness: |
1.0-1.5mm, galvanized sheet
|
|
Production speed: |
16m/min |
|
Discharge: |
pneumatic reclaim |
Production Process
1250 hydraulic decoiler with trolley-20-pass roll forming-servo tracking punching-arc bending-shutdown and cutting-pneumatic reclaiming
Main Component Feature

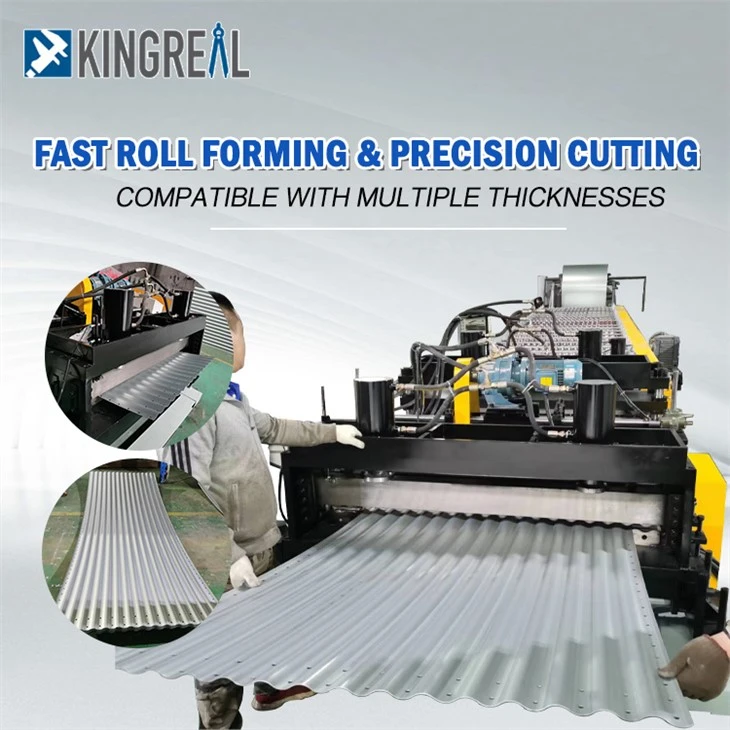

Roll Forming Machine
1. The machine frame has a sturdy structure and can withstand high-intensity continuous operation. Its modular design is easy to replace and maintain, increasing the flexibility and service life of the equipment.
2. Provides a stable processing platform to ensure high precision and consistency in the molding process.

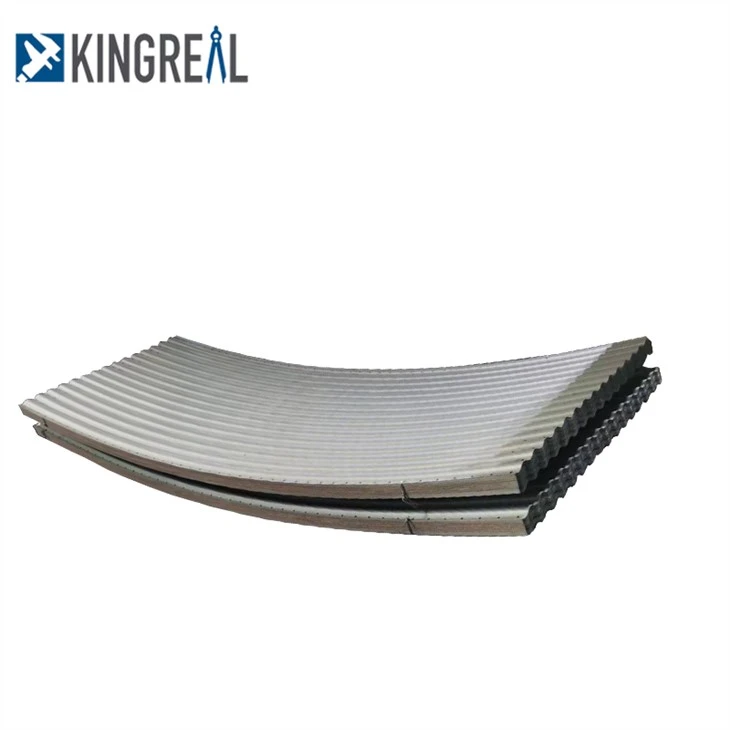

3 The molds are made of high-strength alloy steel, precision machined and heat-treated for high wear resistance and durability. The precise design of the molds enables the production of silo wall panels with consistent dimensions and perfect shapes.
spary read laser welding technology
1. Cutting devices are equipped with high-speed cutting knives and automated control systems capable of making precise cuts at high speeds. Common cutting methods include hydraulic shearing and flying saw cutting.
2. Ensure that the cutting edge is smooth and burr-free to improve the quality of the finished product and reduce the subsequent processing procedures.
