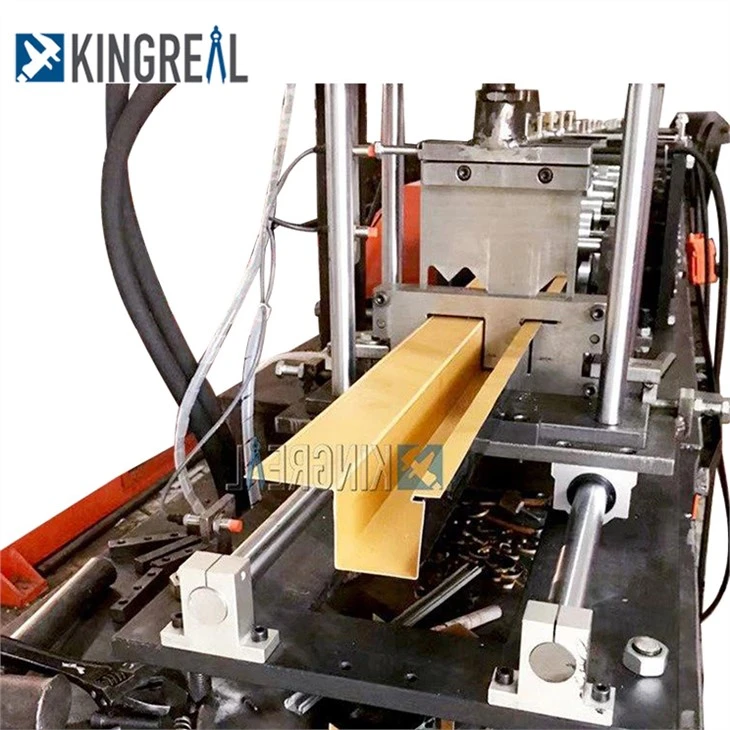

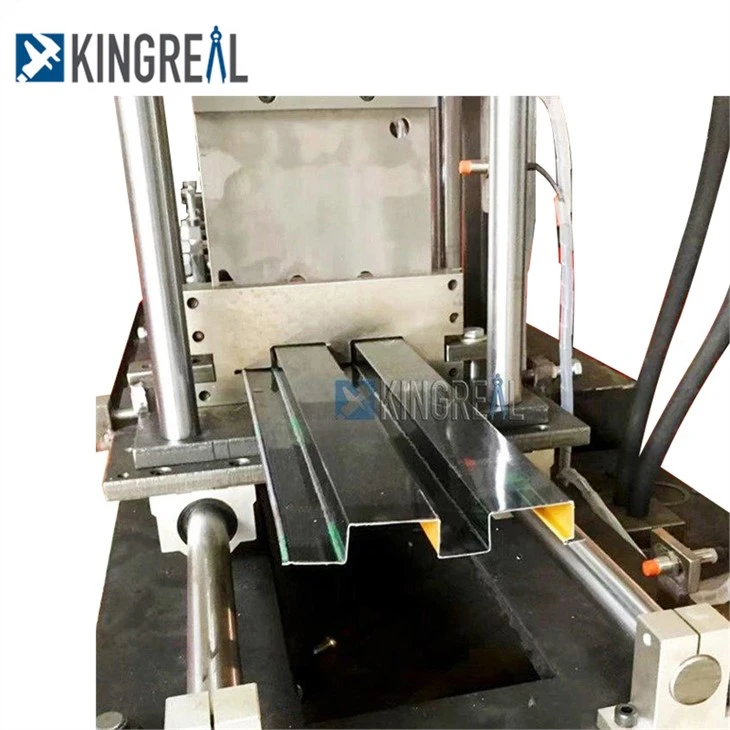

Corrugated Strip Ceiling Roll Forming Machine
Working Process Of Normal Linear Strip Ceiling Production Line
Other Types Linear Strip Ceiling Machine Can Be Designed
Corrugated Strip Ceiling Roll Froming Machine Description
|

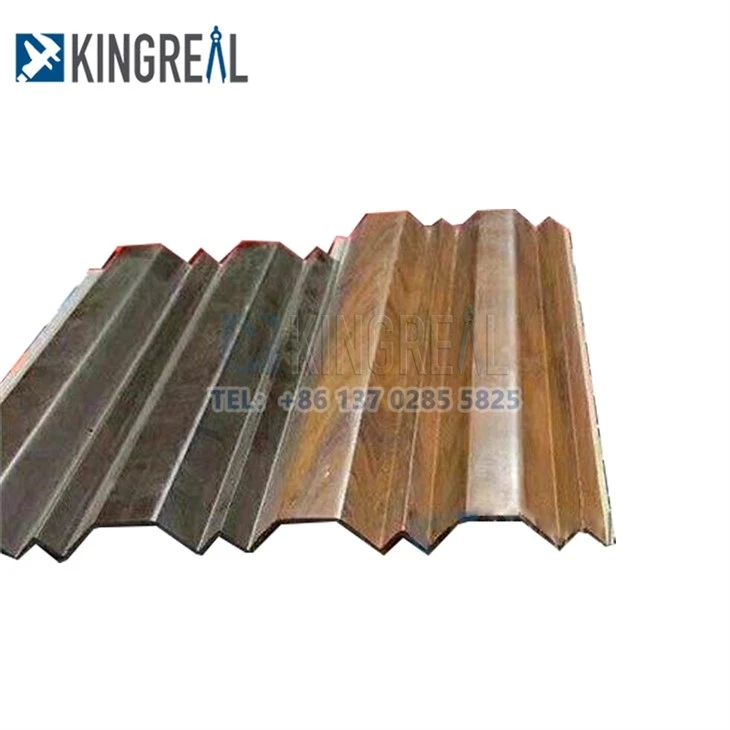

KINGREAL MACHINERY provides corrugated metal linear strips, only needs to tell servo control system what specifications are required.
The production line will act as per required.
The Strip Ceiling Production Line Components :
-decoiler -leveller -main roll forming machine -hydraulic follow shearing system -product table.
The hydraulic follow shearing system uses good parts from various well-known manufacturers from all over the world like Japan, Australia etc. The shearing system makes sure that the whole line can produce at maximum 30m/min speed. |
 |
Technical Specification
|
Raw materials type |
Perforated or plain Pre-painted alum coils |
|
Product sizes |
75mm -300mm based on different designs |
|
Maximum forming speed |
30 m / min with follow cutting |
|
Roll Forming stands |
15 Rollers station |
|
Machine Power |
~ 15 KW |
Structure Of This Production Line
|
- Hydraulic decoiler - Main roll forming machine - shearing station - Output table. - Electrical & Hydraulic system
|
 |
Machine Features
|
Auto Width Adjustable
For the different width material, we can provide full auto width adjustable system, which is drive by the high precision Yaskawa servo motor and through the precision screw rod.
The system can change the width of rollers automatically or manually.
The width adjustable system is widely used on acoustic baffle ceiling roll forming machine, shelf panel roll forming machine, Drywall stud and track making machine, etc.
With this system, one machine can produce different multi sizes products, and featured with flexible solution and economical investment. |
|
|
|
High quality Hydraulic System
The hydraulic parts use high efficiency energy storage type hydraulic system.
The hydraulic parts are made from Taiwan or Germany to ensure the high quality of the machine.
At the same time, in order to make sure the safe of operation under high temperature, optional cooling system. It can be used for the high-speed punching and shearing of different roll formed products. |
Production Application
Technical Support
Local After-Sale Service
