A-Shape Carrier Roll Forming Machine For Clip In Metal Ceiling

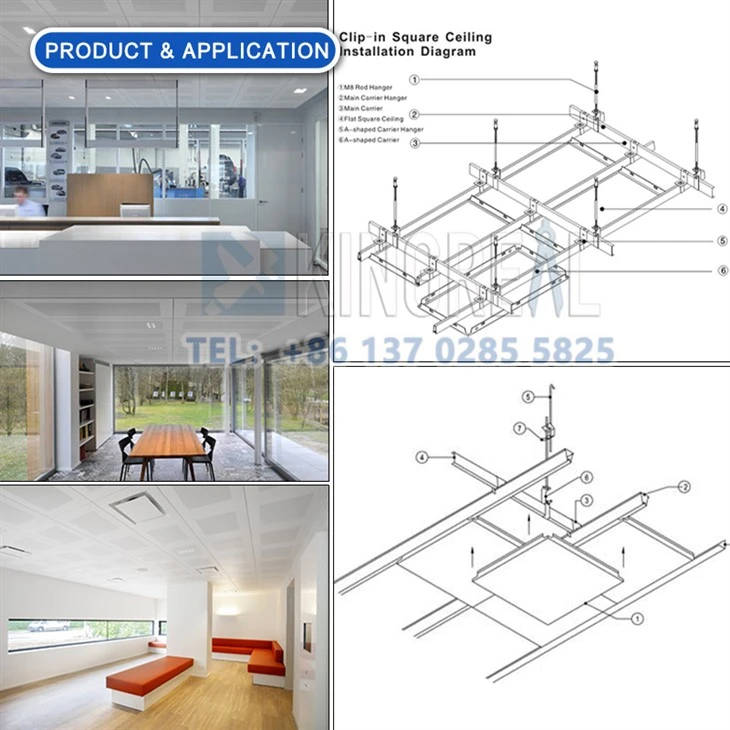

The "clip-in" metal ceiling is an easy-to-install, easy-to-maintain ceiling system. It consists of a number of metal panels with special edges that snap easily into the ceiling frame.

These ceiling systems are often used in commercial and industrial buildings because they can be installed quickly, are easy to clean and maintain and provide a modern and uncluttered appearance.

The "clip-in" ceiling ceiling is installed with a relative clip-in to form a complete ceiling, which has a unique design and is very popular in the decoration industry. For the uniqueness of the 'clip-in' ceiling design, two types of studs are available to achieve the perfect installation, including triangle Tee and A-shape Carrier.

As a professional sheet forming equipment and roll forming machine supplier, KINGREAL MACHINERY can provide both different metal ceiling tile production line and these carrier keel roll forming machine for you.

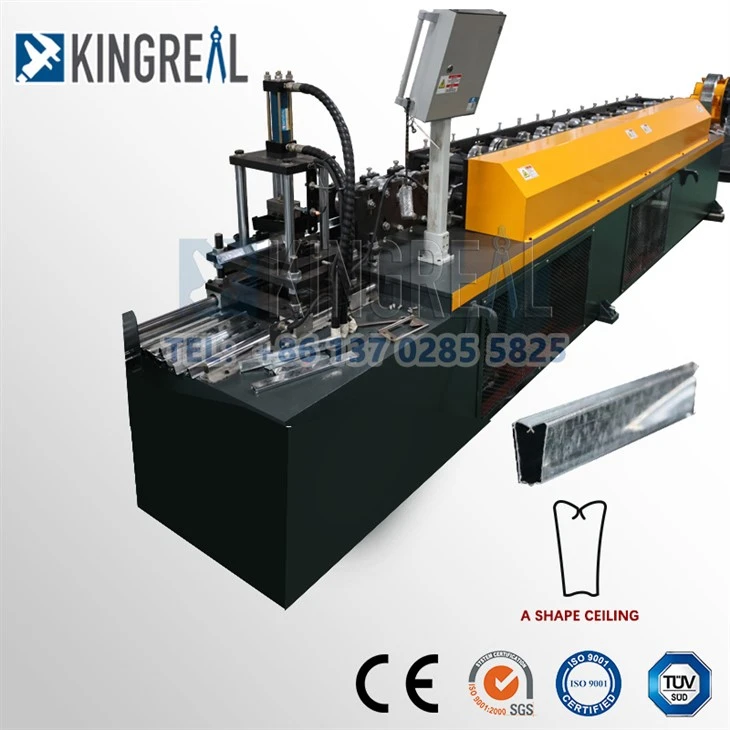

KINGREAL A-Shape Carrier Roll Forming Machine used to produce A-frame keels. It can take metal sheets and put them through a series of forming processes to make them into A-frame keels.

The A-Shape Carrier Roll Forming Machine usually consists of two rollers on the top and bottom, through the rotation and pressing of the rollers, the sheet metal is formed into an A-frame keel. This equipment is widely used in the construction, decoration and furniture industries.

Hydraulic Decoiler -- Straightener -- Main Roll Forming Machine -- Hydraulic Punch And Cutting Station -- Output Table

Rollers for shaping with high precision Cr12MoV

Cr12mov mold steel has an HRC of 580–600 after heat treatment. which a CNC machine processes.

Follow Shearing System at High Speed

To ensure continuous operation of the entire manufacturing line, we deploy a high speed follow shearing system.Typically driven by a high-precision servo feeder connected to a planetary reducer, our high speed follow shearing system uses a synchronous belt to drive the cutter to make the cut.

To ensure swift action and reset, the hydraulic component of the cutter is pressurized. High speed, high precision, and automation are features of the KINGREAL high speed follow shearing system.The BEST option for high-speed automation is this one.

Exceptional Independent Archway Panel Construction

For roller groups, we have a superior independent archway panel structure.Archways were cast, then processed, and surface treated using our unique design.Our arches offer stable features in addition to being sturdy and long-lasting.

01.

Triangle Tee Making Machine For Clip-In Ceiling

KINGREAL Triangular Keel Forming Machine is used to produce triangular keels. The steel strip is formed into a triangular keel by putting it through a series of bending and pressing operations. This machine usually consists of a frame with rollers and press rollers and a control system that allows automatic control of the production process, improving productivity and product quality.

It is mainly used in conjunction with the "clip-in" ceiling.

02.

T Bar Roll Forming Machine For Lay In Ceiling

KINGREAL can provide a fantastic production facility with roll forming technologies for the creation of Ceiling T Bar Suspended Panels.



The KINGREAL system, which consists of three cold roll forming machines for creating Main Tee Grid, Cross Tee Grid, and Wall Angle Profile, is another of China's most advanced innovations.

3. Other Carrier Roll Forming Machine For Suspended Ceiling

- Linear Strip Ceiling Carrier Roll Forming Machine

- U Baffle Ceiling Carrier Making Machine

- And So On
