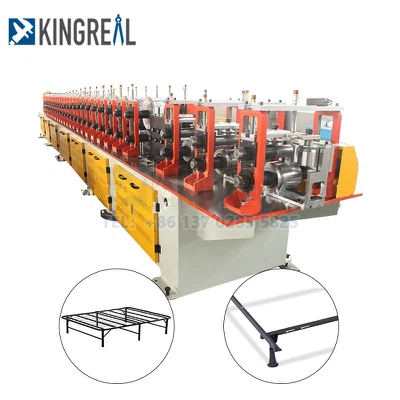

Bed Frame Making Machine
Video About KINGREAL Roll Forming Machine Factory
Bed Frame Making Machine Description
|
KINGREAL Bed Frame Making Machine is widely used for cold bending of metal bed frames, closed tube profiles and etc.
This machine intergrate the technology of auto sheet bending, cold roll forming, welding and etc.
Bed frame roll forming machine is one of our most featuring products, and it is featured with fully auto- matic production, easy for operation, etc.
KINGREL high quality bed frame roll forming machine is our specially designed machine for the production of steel bed frames.
Components Of Bed Frame production line: -Fully automatic includes two heads decoiler -Auto coil welding machine -Continuously main roll forming machine -Online welding machine - Following shearing system.
|
|
Machine Features
|
- Double heads decoiler - Auto coil welding machine to connect the coils - Precision Servo feeder - High precision cold roll forming machine. - High speed Online welding - Auto shearing
|
|
Technical Specification Of Bed Frame Making Machine
|
Raw materials |
1.0-1.5mm mild steel(Q195,Q235) |
|
Raw material ID |
450-520mm |
|
Max. raw material weight |
5tons |
|
Max. materials width |
400MM |
|
Main axle diameter |
ф65 mm |
|
Products sizes |
According with customers' drawing |
|
Maximum forming speed |
0-10 m / min |
|
Roll Forming stands |
35 Rollers station |
|
Machine Power |
~ 75 KW |
|
Power supply |
AC380V 50Hz |
|
Air pressure |
0.6MPa |
Structure Of Bed Frame Making Machine
|
- Double heads Hydraulic decoiler - Pre-punch & notching station - Servo feeder - High precision cold roll forming - Auto shearing - Auto bending. - Output table. - Electrical & Hydraulic system |
|
Machine Features
|
Self-developed Software & Multi Language support
Bed Frame Roll Forming machines have integrated self-developed software, which is more professional and can fully perform their functions.
In addition, we are able to provide a multi-language operation interface, including English, Russian, Spanish and so on. This makes our machines easy to operate, more user-friendly and provides a better user experience. |
|
|
|

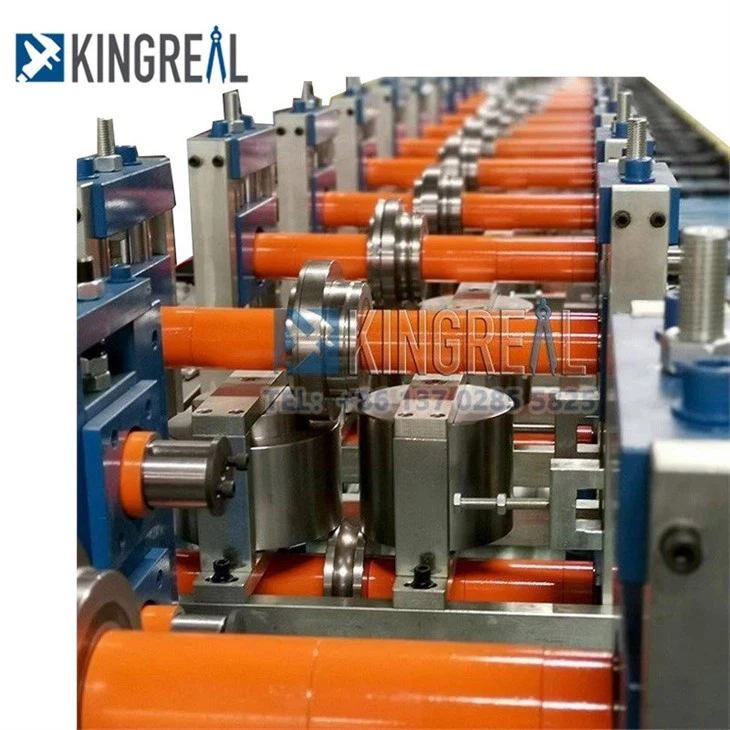

High Precision forming roller
KINGREAL adopt the Cr12mov mold steel, heat treatment hardness up to HRC 580-600. Which is processed by CNC machine after wire cut, 1st lathe machine, the vacuum heat treatment.
After strictly following these processing procedures, the forming rollers would be endurable and ensure our machines long time running. |
|

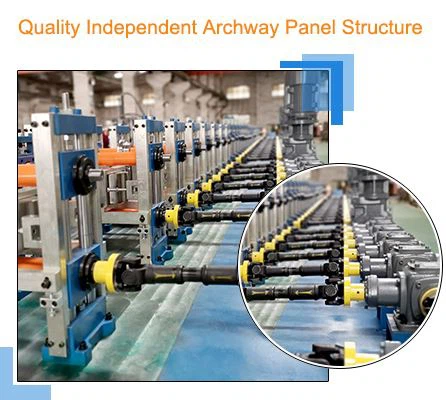

Quality Independent Archway Panel Structure
KINGREAL can provide unique independent archway panel structure for foming roller groups, which is more quality.
With our special design, archways were cast, then processed, surface treated. Our archways not only are firm and durable, but also have stable qualities. And it is featured with beautiful appearance and endurable quality. |
|
Advantages
|

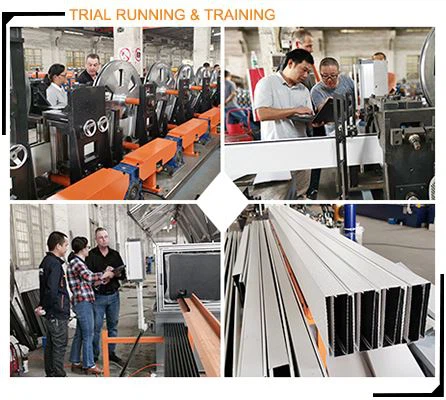

Trail running & Training
When machine production is completed, we will conduct large-scale trial production in factory to ensure quality and working conditions of the machine.
Customers can send their engineers to inspect the machine and be familiar with basic operation and maintenance. |
|
|
|
Overall solution including punching, bending, forming, welding, etc.
Our company can provide a overall solution according to customer needs, including product punching, automatic forming, bending, welding, etc. This solution is widely used in full automatic production of various complex profiles, such as closed complex profiles, shelf columns, etc. |
|
Multi cutting methods
For different products we use different methods to cut them. Usual cutting methods includes hydraulic cutting, sawing and rotary cutting.
According to speed of the machine, methods can be divided into shutdown cutting, deceleration cutting, high-speed follow shearing, fly shearing, etc. The cutting speed of machine can reach 150m/min maximum depends on different shapes of products. |
|

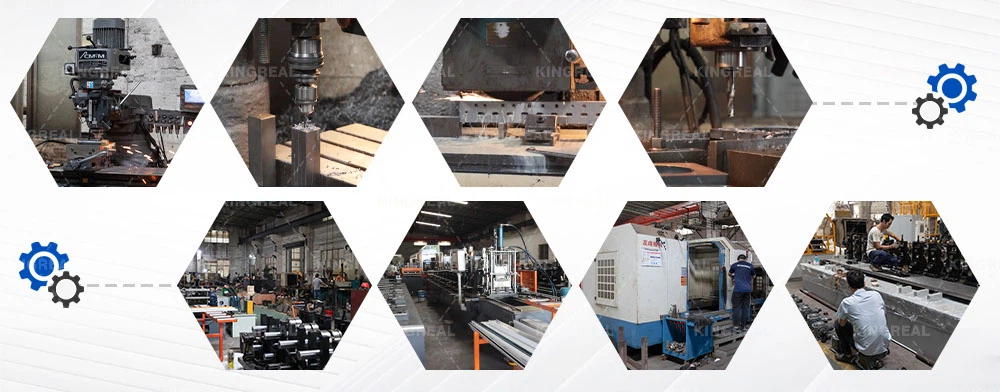

Production Workshop
KINGREAL has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop. In order to ensure the production quality of the machines, the whole line will be tested and adjusted in the factory. KINGREAL welcomes all customers to visit our factory.
Technical Support
KINGREAL is able to provide technical after-sales service to our customers.
In order to ensure the smooth installation and operation of the machines, KINGREAL will arrange to send engineers to the customer's project for technical guidance.
Up to now, KINGREAL has helped customers from Russia, Mexico, India and Saudi Arabia to use the machines smoothly.

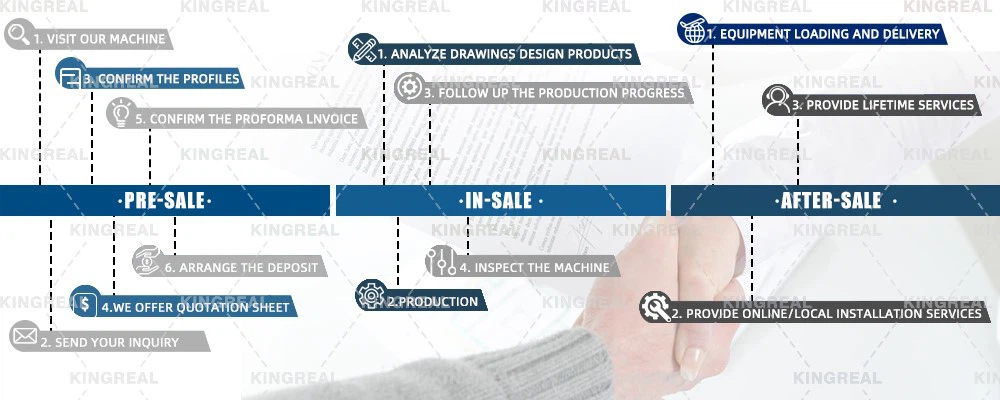

How To Order?
