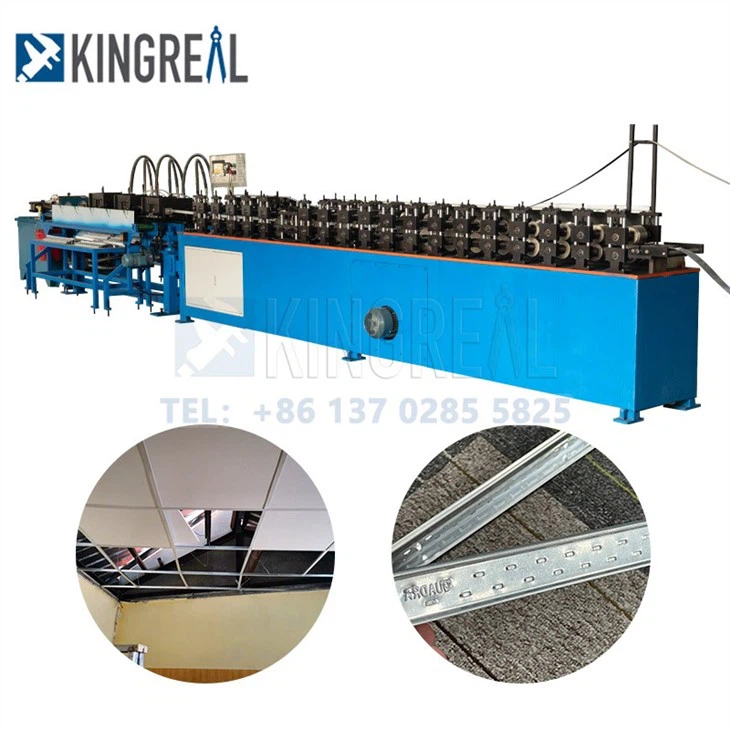

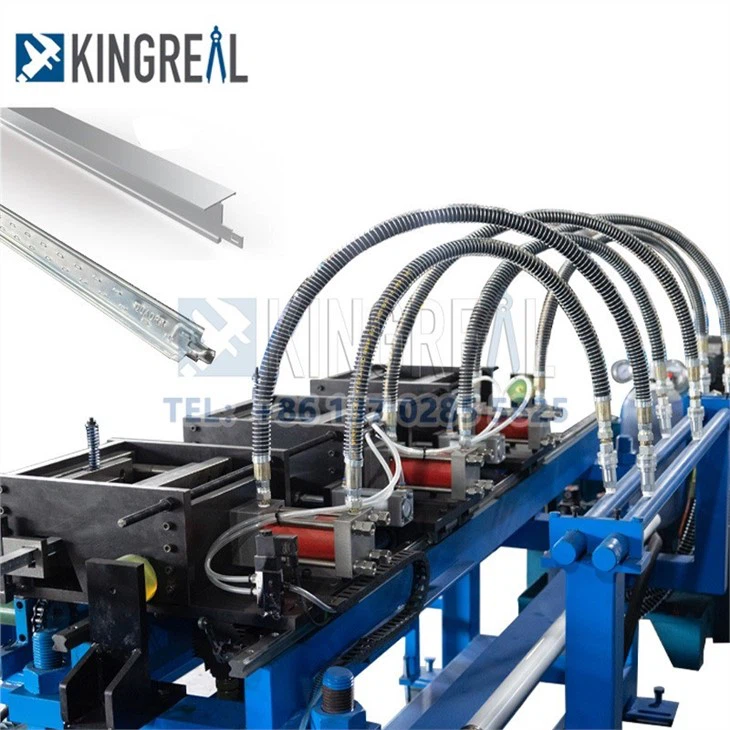

Cross Tee Roll Forming Machine With Chain Drive
Video About Cross Tee Bar Roll Forming Machine
Description Of Cross Tee Roll Forming Machine
KINGREAL cross tee roll forming machine is design for product different type cross tee, which is used in ceiling, partition wall, light steel keel floor and other building decoration and structure.
One of the best features of this cross tee roll forming machine is the use of a chain drive, which reduces production costs and wins greater benefits for the customer.
In addition to this machine, KINGREAL offers the following equipment in the same series:
1. T Bar Roll Forming Machine( Main Tee)
3. Light Steel Keel Roll Forming Machine
4. Drywall Stud And Track Roll Forming Machine

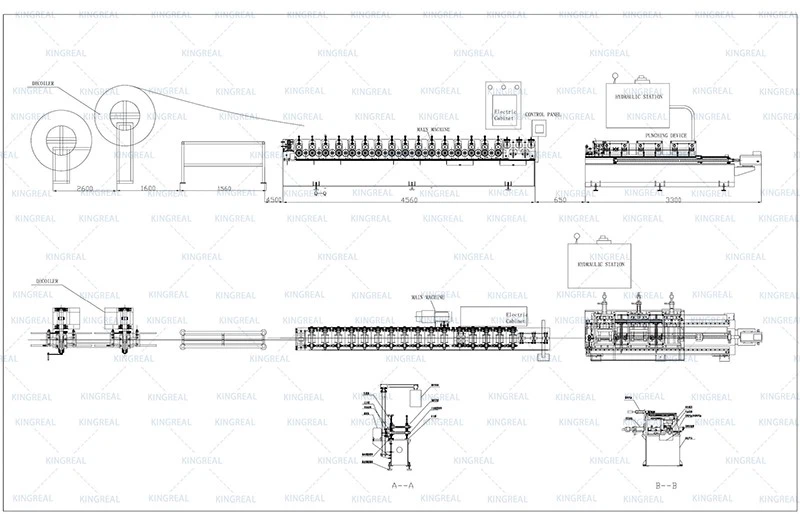

Working Process Of Cross Tee Making Machine

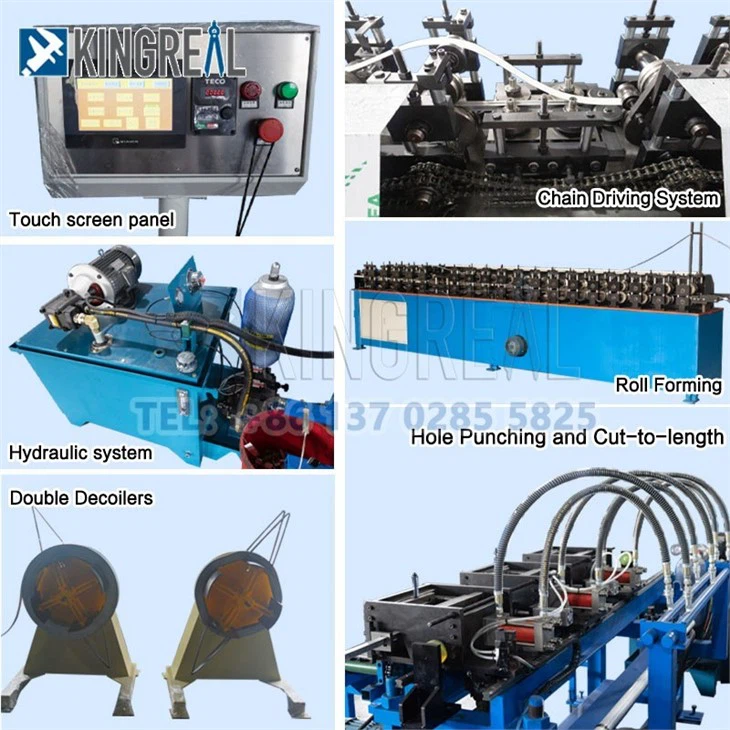

Hydraulic Decoiler-- Feeder--Main Roll Forming Machine -- Chain Drive -- Cutting Part -- Out Put table
Technical Specification
|
Material Thickness |
0.3-0.4mm |
|
Decoiler Weight |
2 Tons |
|
Loading capacity |
250 Kg |
|
Driving type |
Chain |
|
Main driven motor |
10 HP motor with 10HP inverter |
|
Cutting type |
Hydraulic cutting |
|
Punching system |
Hydraulic punching |
|
Roll forming speed |
Max 40M/min |
|
Length tolerance |
within ±0.2mm |

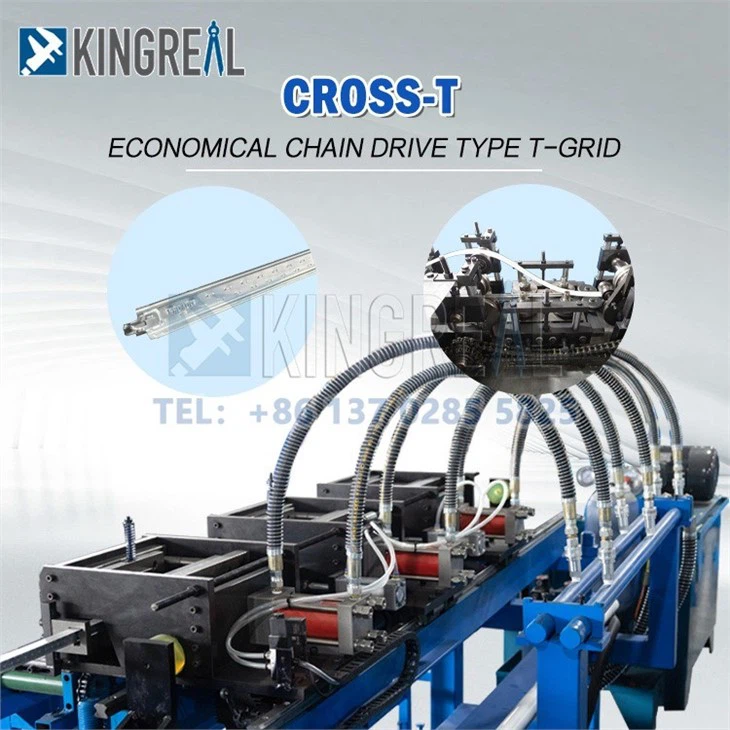

Advantages Of Chain Drive In Cross Tee Making Machine
Chain drive is a common mechanical transmission method that converts electrical energy or other forms of energy into mechanical motion to operate the machine. Compared with other transmission methods, chain drive has the following advantages, which can reduce production costs:
Energy saving:
Chain drive has the characteristics of high efficiency and energy saving, which can convert electrical energy and other forms of energy into mechanical motion, reducing the waste of energy in working process of cross tee making machine.
High transmission efficiency:
The high transmission efficiency of chain drive can convert the input energy into greater output energy, which improves the efficiency and production capacity of the machine, thus reducing the production cost.
Good stability:
The chain drive has the feature of good stability, which can ensure the smooth operation of the machine and reduce the machine failure and damage, thus reducing the maintenance cost.

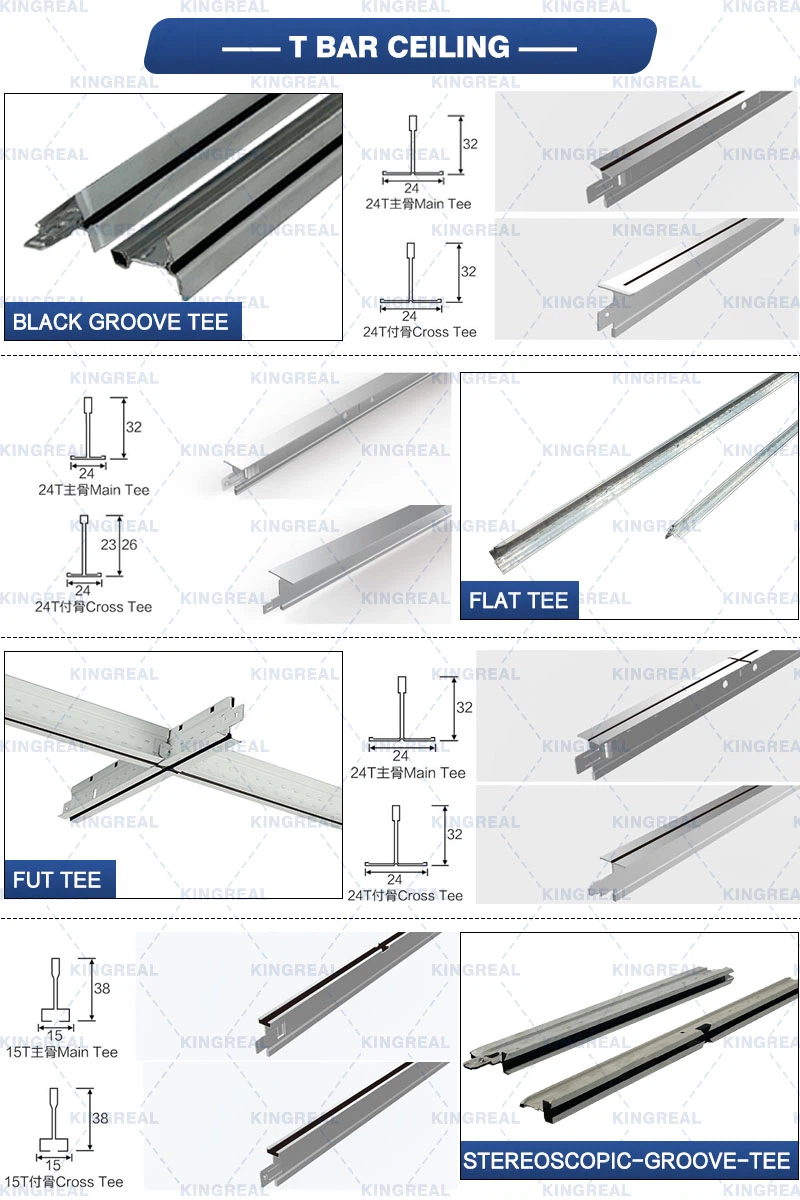

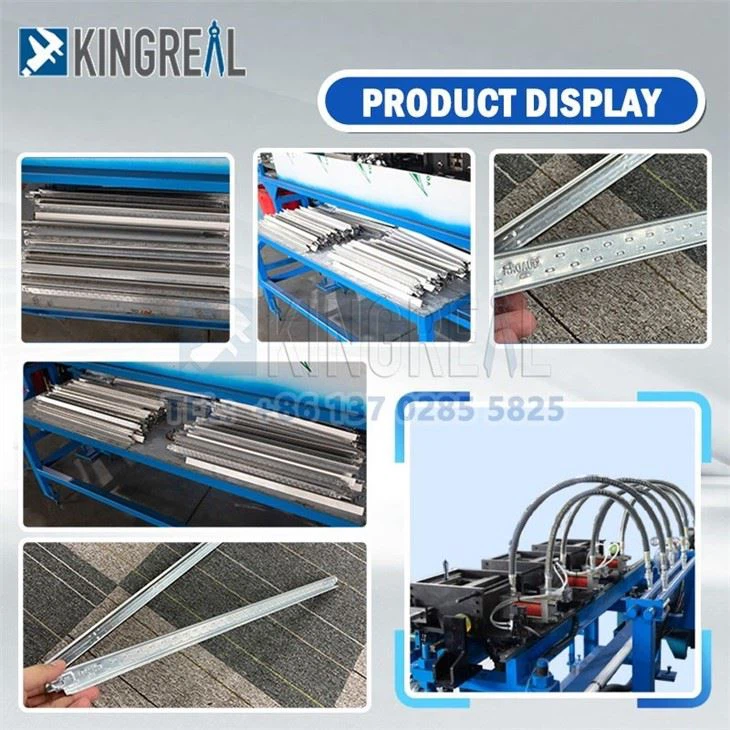

Different Type Ceiling T Bar Product On Your Choice

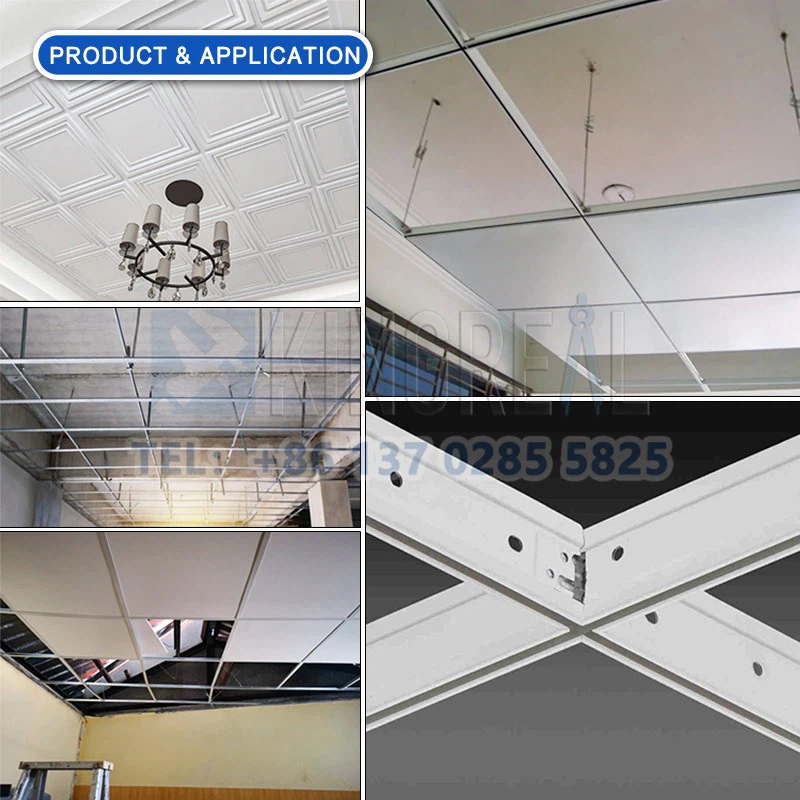

Products Application
Why Choose Us?
●Rich Project Experience
At present, KINGREAL has successfully transported the machine production to all over the world, including the United Arab Emirates, India, Russia, Saudi Arabia, Egypt, Pakistan and other countries
●Professional Team
KINGREAL has a dedicated technical staff of experts.
KINGREAL engineers can develop machines in accordance with the drawings supplied by customers and the associated production needs thanks to their strong professional aptitude and wealth of design expertise.
During the machine's creation, installation, and operation, resolve all technical issues.
●Technical Support
Customers can get technical after-sales support from KINGREAL.
KINGREAL will make arrangements to send engineers to the customer's project for technical guidance in order to ensure the smooth installation and operation of the machines.
Up till this point, KINGREAL has assisted clients from Saudi Arabia, Russia, Mexico, and India in efficiently using the equipment.
