Shelf Rack Upright Post Making Machine
Shelf Upright Rack Post Making Machine video Display
Pallet Rack Making Machine Description

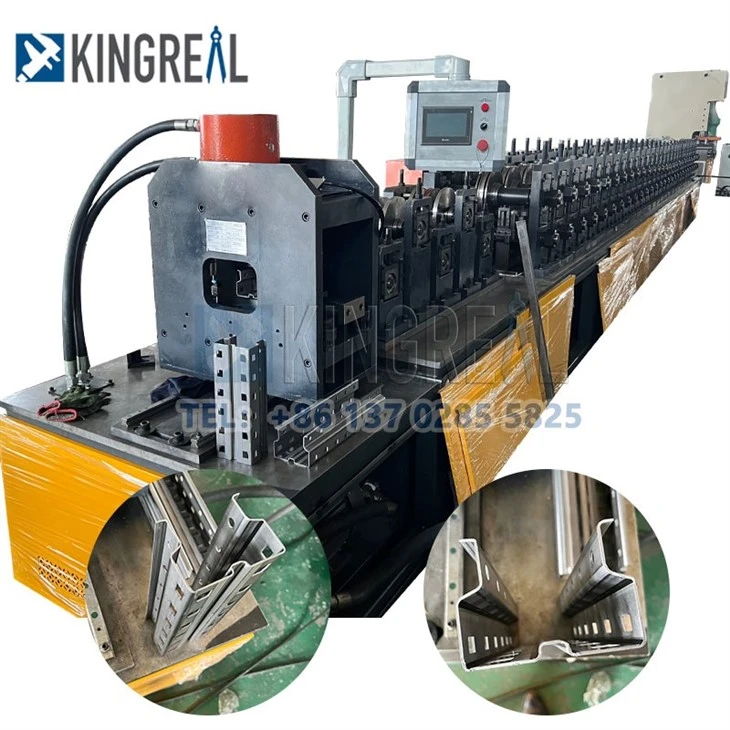

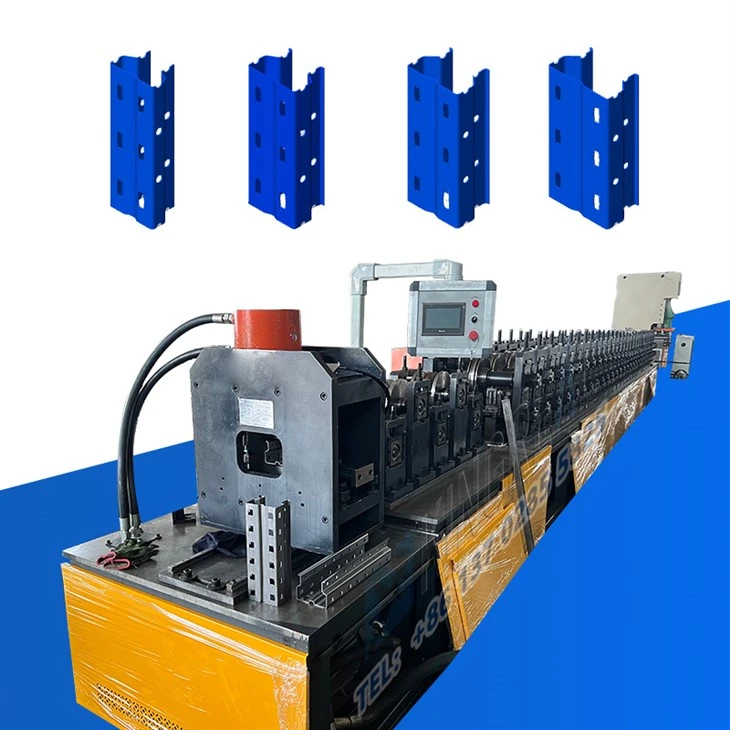

KINGREAL ROLL FORMER can provide the high quality shelf rack upright post making machine, which adopts advanced forming technology to process raw materials into shelf columns with specific shapes and sizes by bending, cutting and stamping metal sheets.
KINGREAL ROLL FORMER shelf rack upright post roll forming machine is suitable for different materials and different thickness, the specific needs need to communicate with engineers. KINGREAL ROLL FORMER focuses on the quality control of the machine, and is able to provide high quality pallet rack making machine, and has been certified by CE.
Different production requirements, including the shape of the post, the thickness of the holes, etc. Any detail may affect the final design solution. All customers are welcome to contact us and visit our factory.
Working Process of Pallet Rack Making Machine
Hydraulic Decoiler → High Precision Straightener→ Pre-punching (two sets of 15 tons and 25 tons) → Servo feeding → Shelf Post Roll forming Machine→ Hydraulic cutting → Unloading.
(The whole warehouse pallet rack machine process is completed automatically.)
Technical Specification of Pallet Rack Making Machine
|
Raw Material |
HCR Coil / Carbon Steel Coil, GI Coil,and so on |
|
Material Thickness |
0.8~2.5mm |
|
Profile |
90/100/120*70mm |
|
Complete line working speed |
2~15m/min |
|
Decoiler Capacity |
5 Ton |
|
Punch Press Capacity |
110 Ton |
|
Roll Forming Stands |
18-22 |
|
Motor Power |
18.5KW x 2 |
|
Roller Material |
CR12 MOV, HRD 58-62 degree |
|
Shaft |
75mm diameter, 40CR |
|
Hydraulic Motor Power |
5.5 KW |
|
Servo Track Motor Power |
3 KW |
Image Details of Pallet Rack Making Machine
|

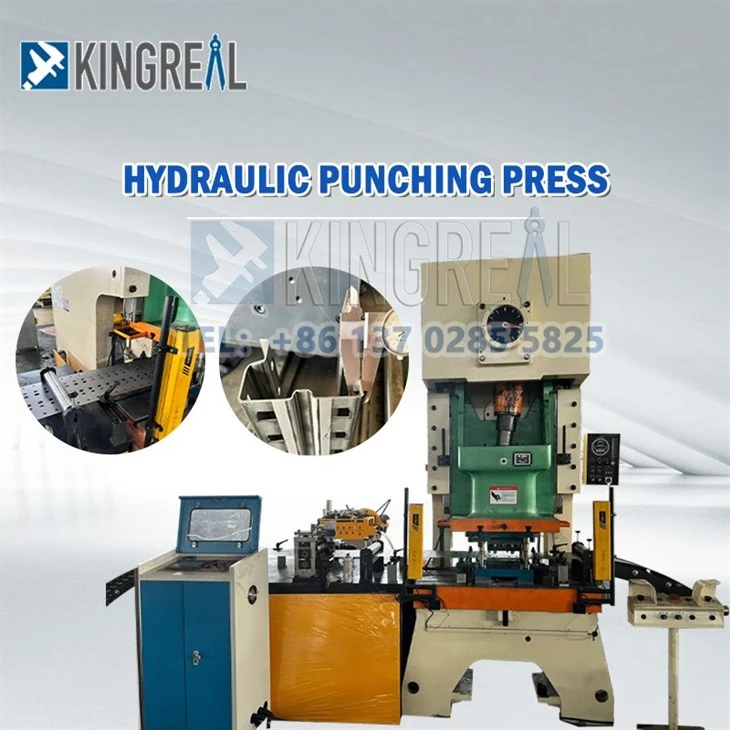

125Tons High Pressure Punching Press
The 125Ton High Pressure Punching Press is made of high strength materials that can withstand greater pressure and impact to ensure the stability and safety of the pallet rack making machine. Meanwhile, it is equipped with high-performance hydraulic system and advanced control technology, which can realize high-speed operation and fast punching action, greatly shortening the production cycle.
Meanwhile, it adopts precision transmission system and high-precision mold positioning device, which can ensure the stability of processing accuracy and product quality.
PS: KINGREAL Roll Former Pallet Rack Making Machine enables the production of various hole patterns-such as Teardrop, Diamond, and Hexagon-with customizable aperture sizes to meet specific customer requirements. |
 |
 |
Main Roll Forming Machine:
The material of the 16 sets of rollers is Cr12MoV, which has undergone vacuum heat treatment, two tempered processes, and hardness HRC55-58. The rollers' reference diameter is 110 mm.
The 45# steel used for the main shaft, which is approximately 50 inches long, is quenched and tempered after rough machining, fine turning, and fine grinding. (Adjust the spindle's radial run-out to within 0.04MM)
PS: The KINGREAL Roll Former team provides customized roller set designs based on the client's specific requirements, ensuring the Pallet Rack Making Machine can produce C/U section uprights, with the option to incorporate stiffening ribs. |
|
Cutting System
The maximum stroke of the cylinder is 100mm, and the closed height of the template is 300mm. The mold base's bottom has two linear guide rails, two sliding blocks on each slide rail, and an air cylinder drives the mold base's return.
The bolt, which is driven by the cylinder, positions the set length. Utilize scrap to cut, Cr12MoV as the mold material, and heat-treat to HRC58-62 |
 |

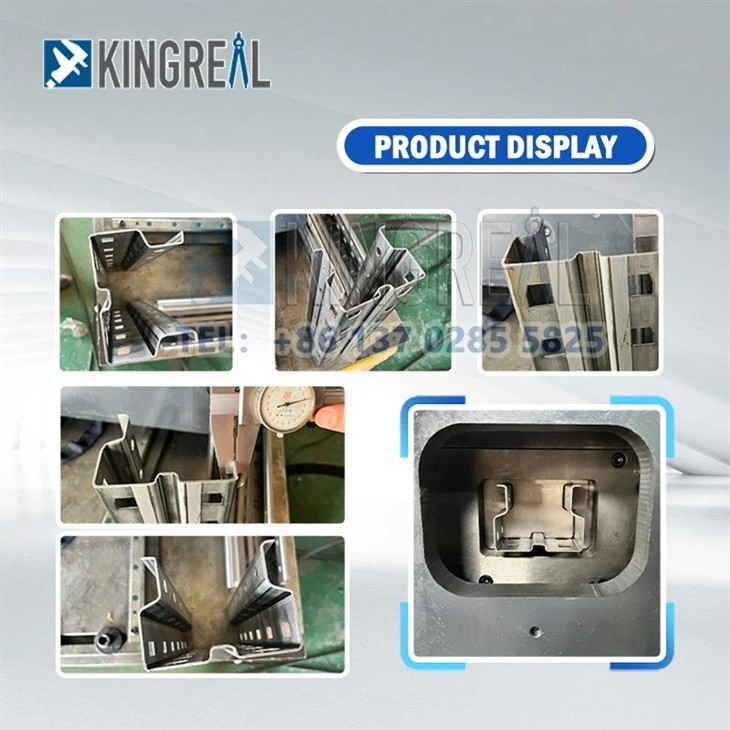

Final Product Display
Drawing About Pallet Rack:
Application of Pallet Rack Making Machine
The high-quality uprights produced by the Pallet Rack Making Machine are compatible with a wide range of light-, medium-, and heavy-duty racking systems.
Suitable applications include warehouse pallet racking, cantilever racking, drive-in racking, mezzanine structures, and retail shelving.
Their high versatility allows them to meet diverse requirements for both warehousing and retail display.
Complete Pallet racking System Solution
KINGREAL Roll Former can provide you with a complete racking system solution, encompassing a range of machines:
Storage Shelf Panel Machine,
Pallet Rack Making Machine,
Box Beam Making Machine,
Step Beam Making Machine,
Slotted Angle Rack Machine,
Cross Bracing Roll Forming Machine
